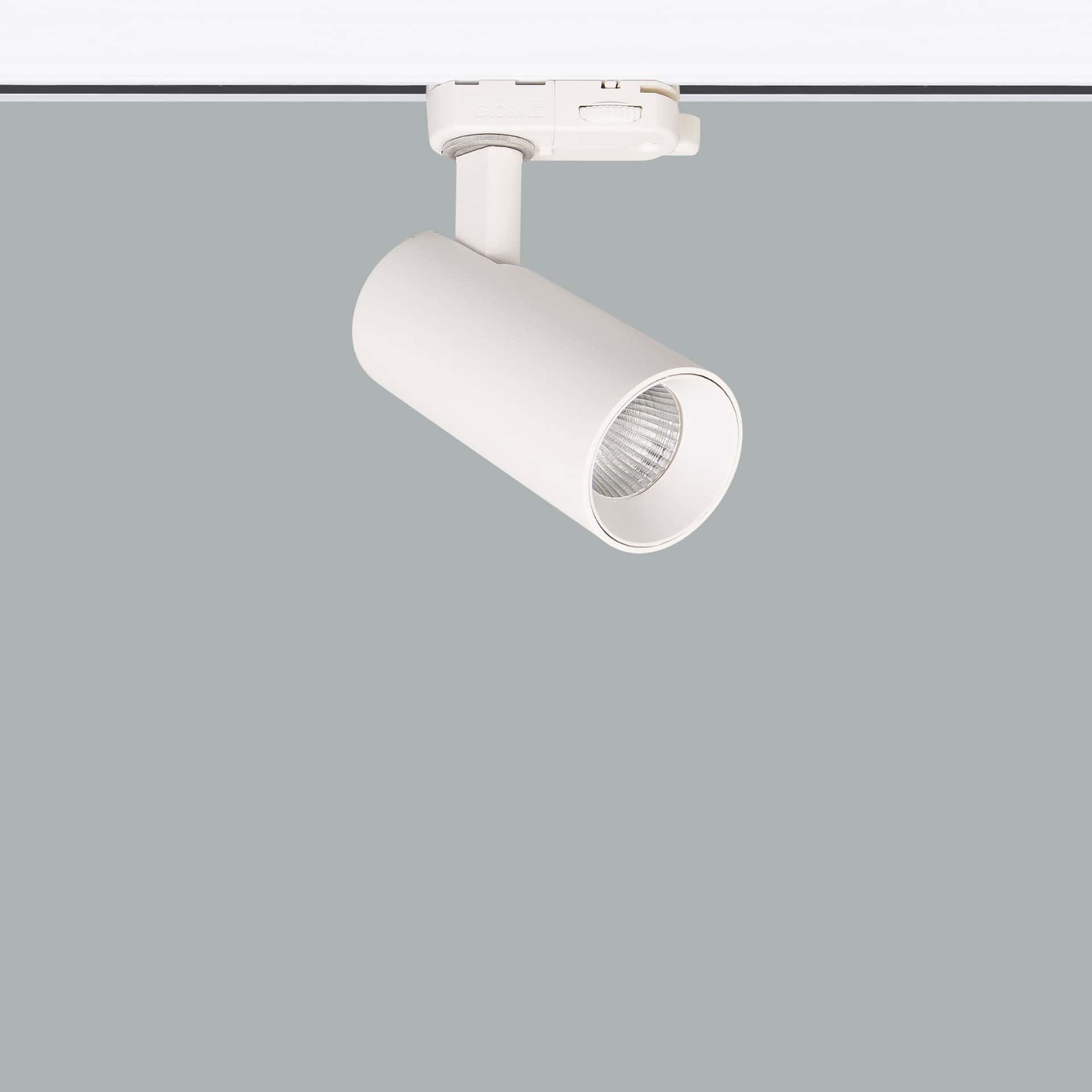

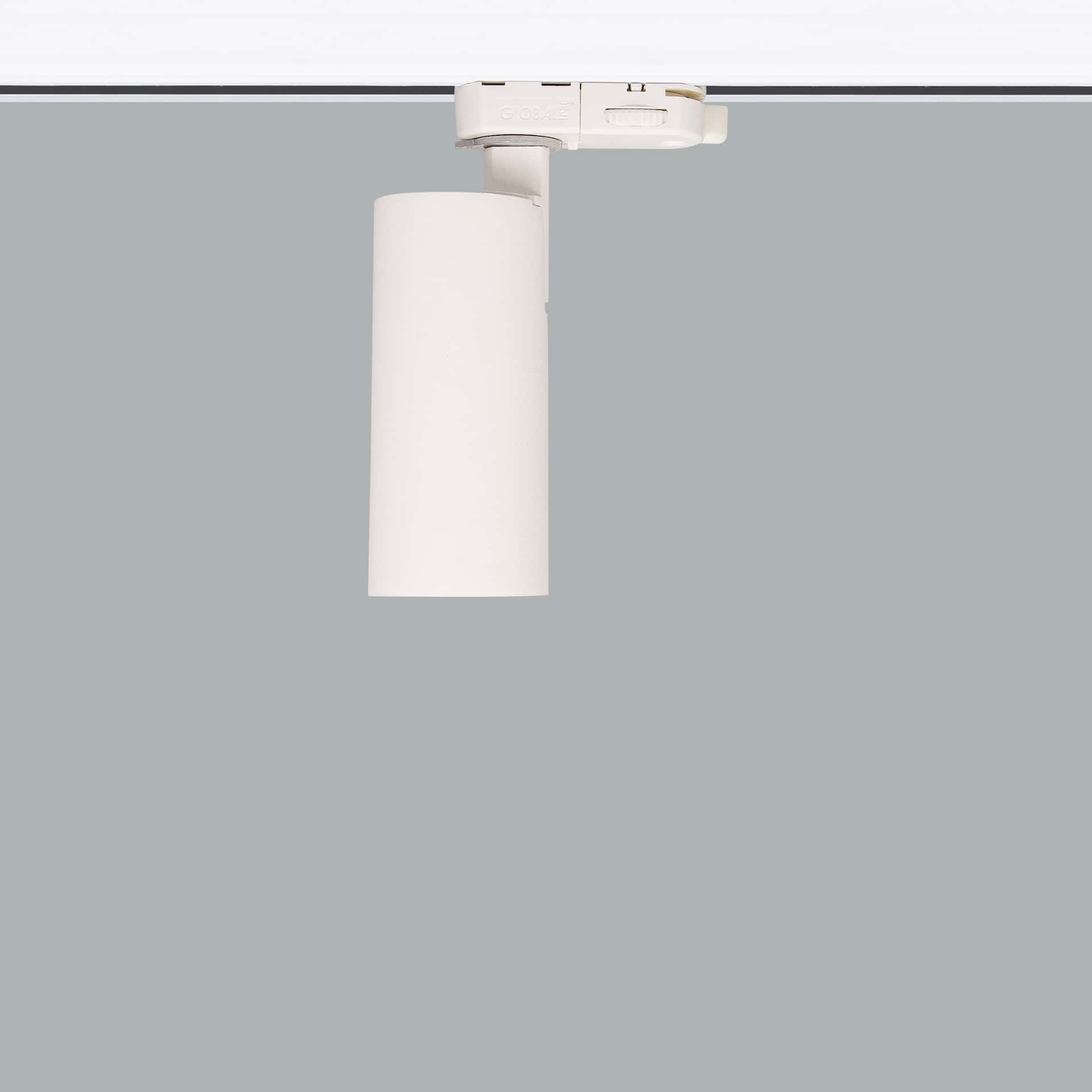

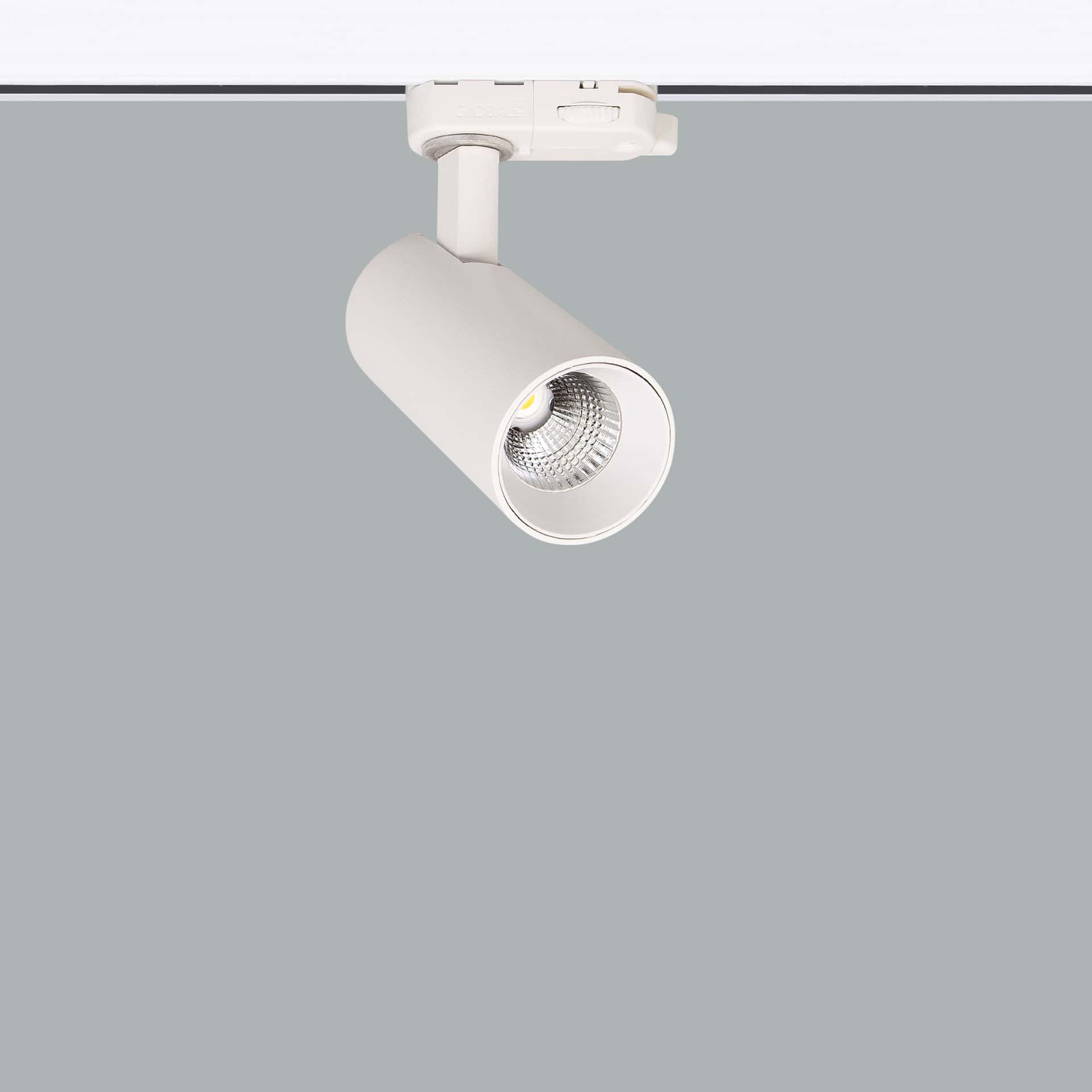

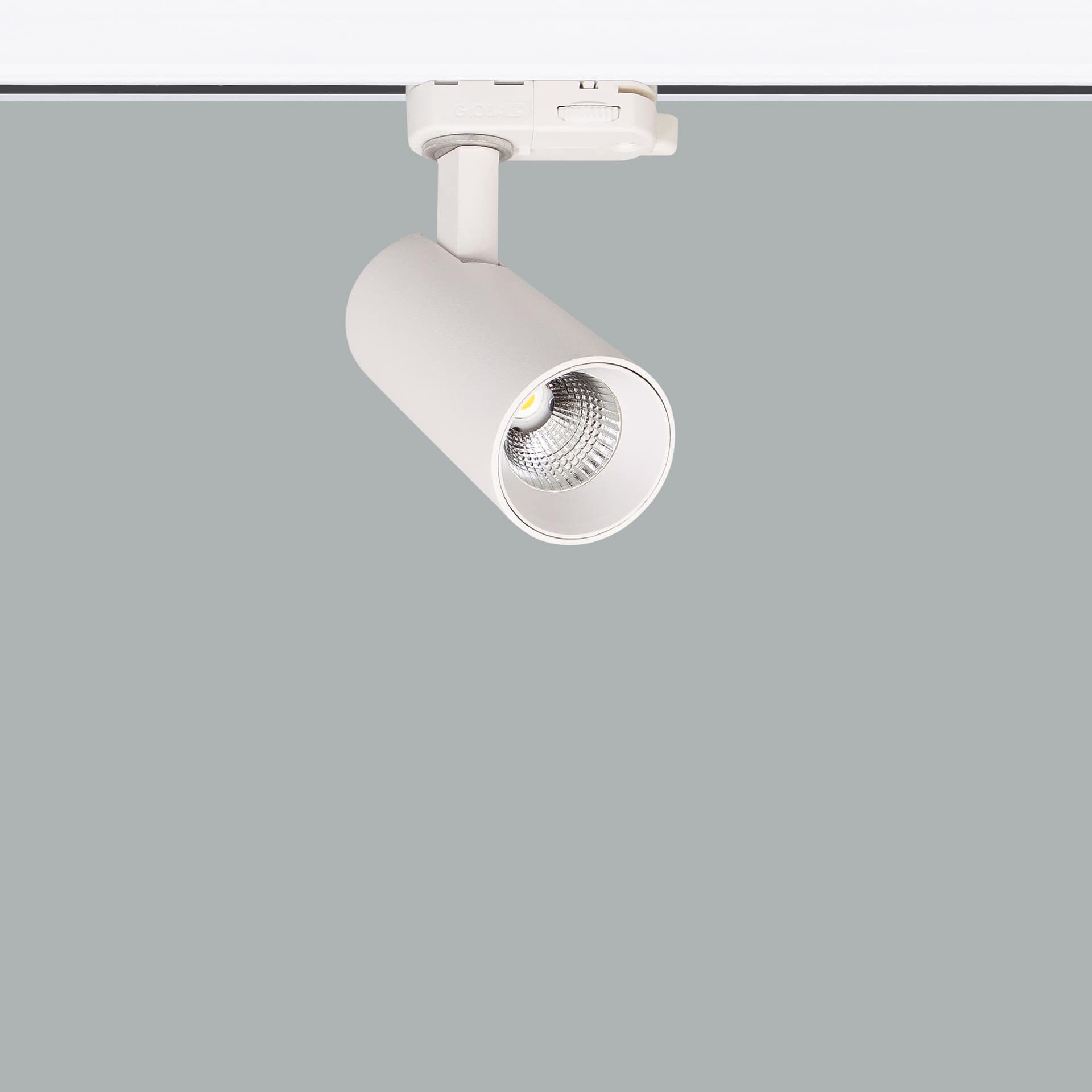

Silindir Micro Short
Silindir Micro Short is an AVOLUX LED lighting fixture in the COB Led Tracklight Series category with a power of 10W and IP20 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 10W |
| Protection Class | IP20 |
| Shape | rayspot |
| Optical | Reflector |
DESCRIPTION
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- With 3-Phase universal rail adapter.

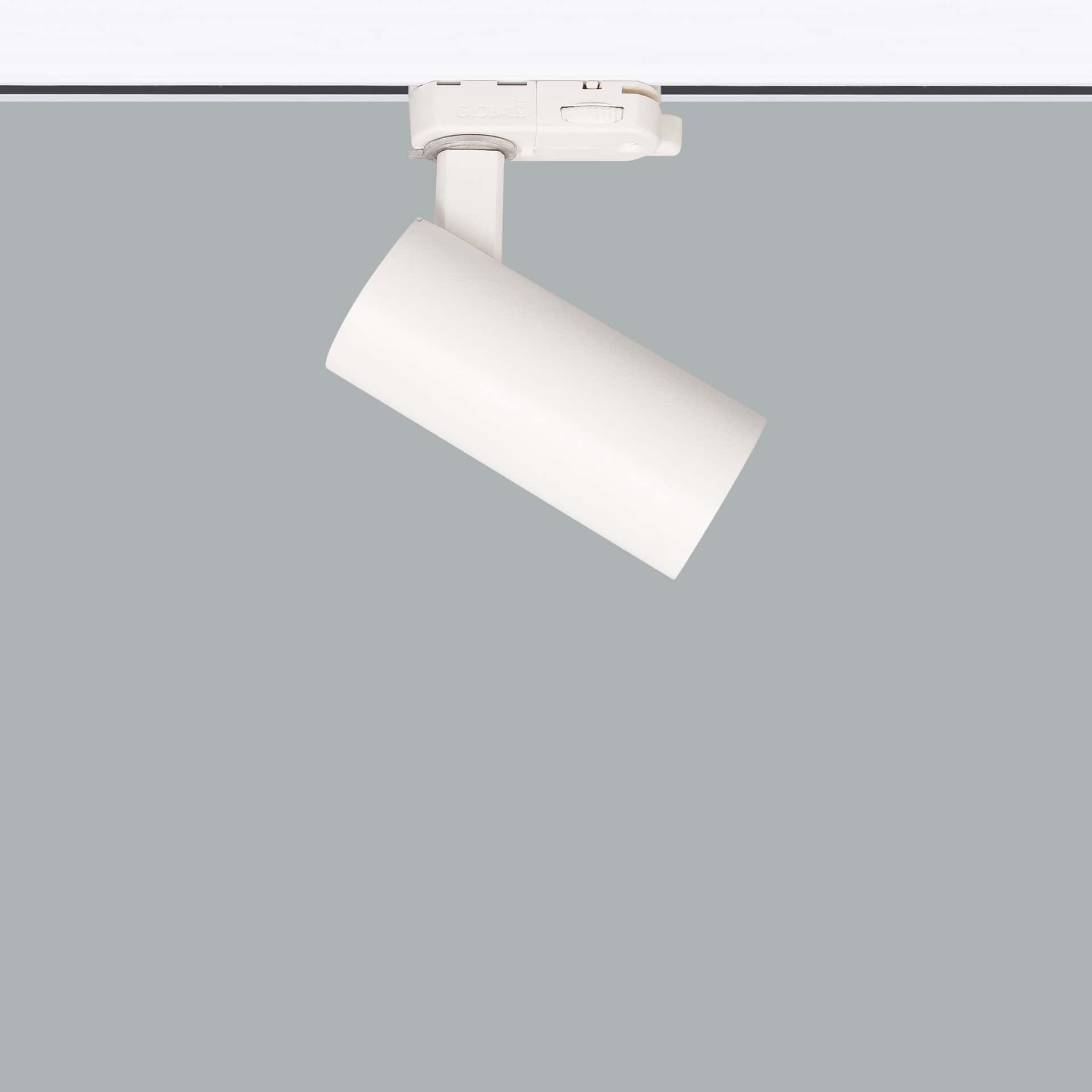

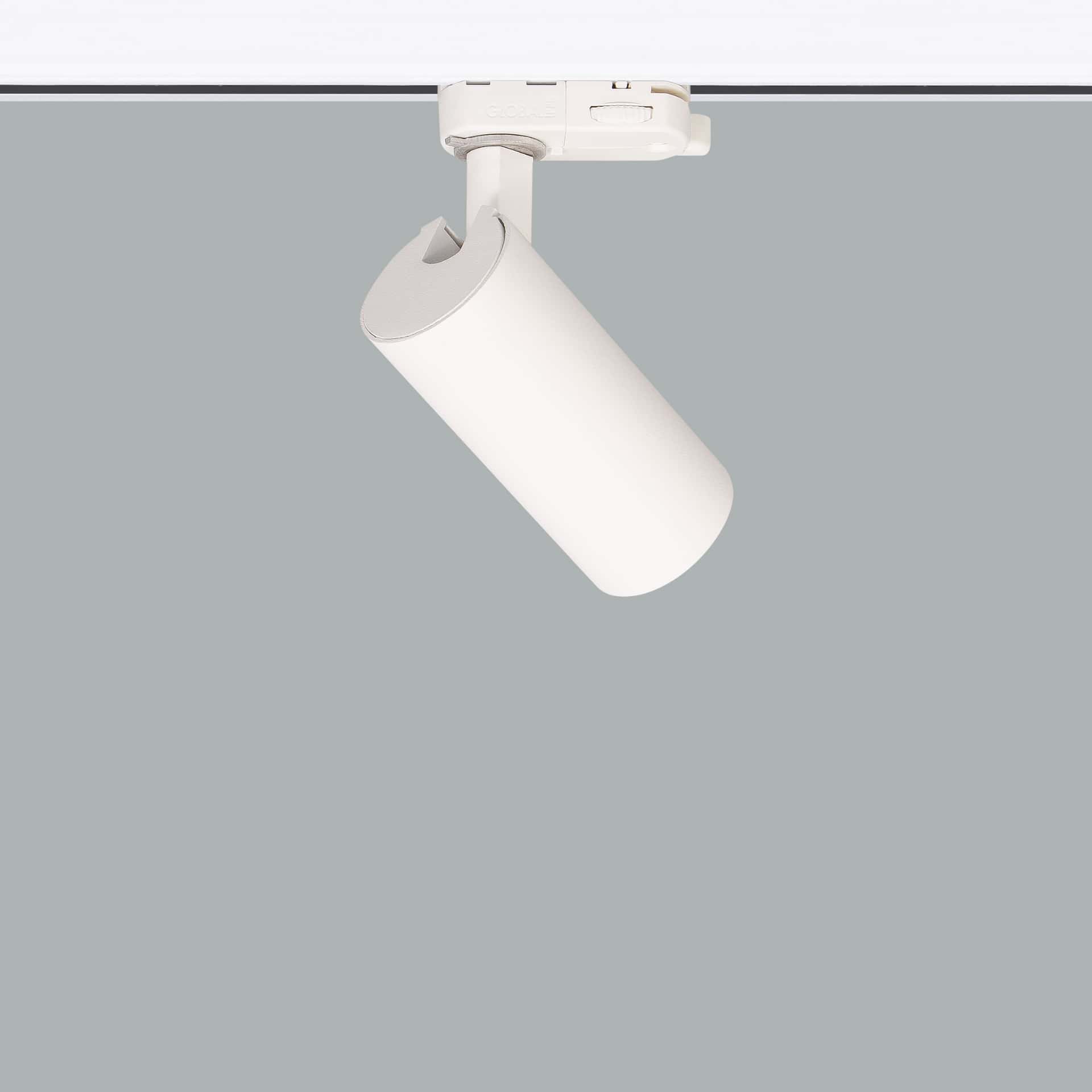

-- Mechanical locking with 90° vertical and 350° horizontal movement capability
joint system.
-- Tempered glass.

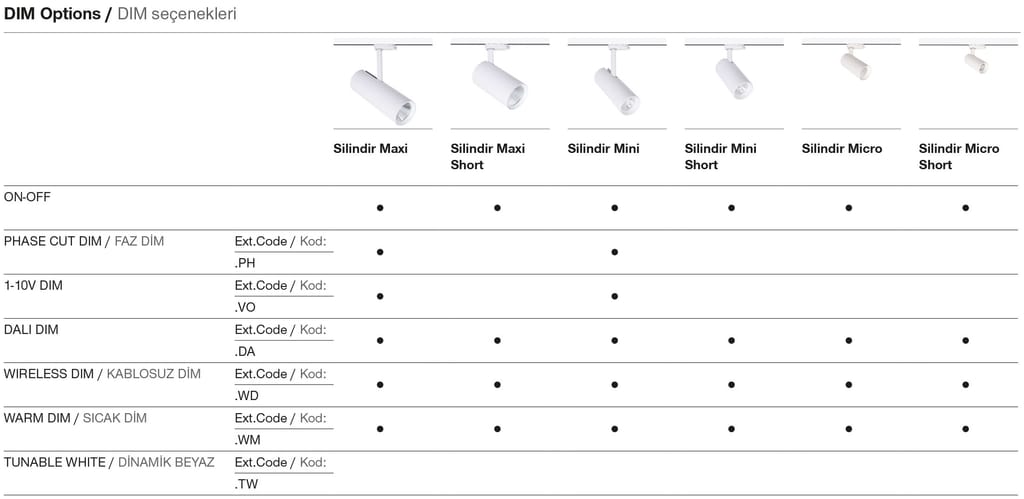

-- Classic Phase-DIM, DALI and 1-10V DIM options can be applied.
-- Wireless DIM and Hot DIM, which are high-tech control systems
applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.

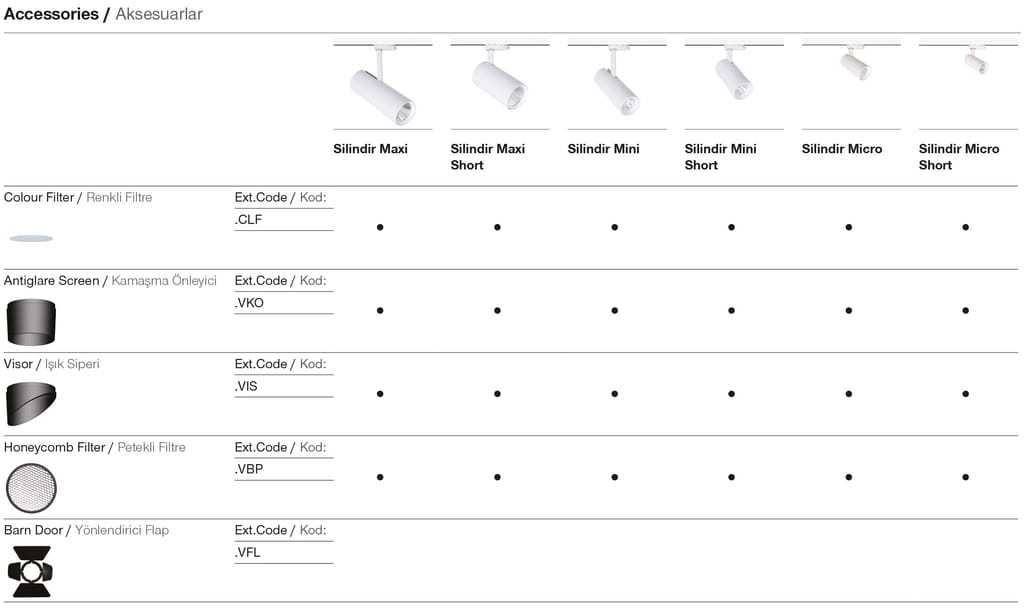

--Honeycomb Filter, Color Filter, Anti-Glare and Viewfinder accessories
options can be applied.
-- Narrow, Medium, Wide and Very Wide reflector angle options are available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED
options are available.
-- Efficiency up to 145lm/W.
-- High color compatibility: <3 SDCM
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 10W | CRI>80 | I01.MLT.18201 . (..) . (...) . (..) . (..) | 2700K | 995 |
| 3000K | 1027 | |||
| 3500K | 1048 | |||
| 4000K | 1067 | |||
| 5000K | 1100 | |||
| CRI>90 | I01.MLT.18201 . (..) . (...) . (..) . (..) | 2700K | 930 | |
| 3000K | 960 | |||
| 3500K | 980 | |||
| 4000K | 998 | |||
| 5000K | X | |||
| CRI>98 | I01.MLT.18201 . (..) . (...) . (..) . (..) | 2700K | 677 | |
| 3000K | 697 | |||
| 4000K | 725 | |||
| Meat COB | I01.MLT.18201 . (..) . (...) . (..) . (..) | 1800K | X | |
| Food COB | I01.MLT.18201 . (..) . (...) . (..) . (..) | 2400K | X | |
| Pisces COB | I01.MLT.18201 . (..) . (...) . (..) . (..) | 6600K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 10W - 250mA | 827 | CRI>80 - 2700K | 9827 | CRI>98 - 2700K |  | M.E. | 30° - Medium |  | 01 | white |
| 7 | 7W - 180mA | 830 | CRI>80 - 3000K | 9830 | CRI>98 - 3000K |  | FL | 40° - Flood |  | 02 | ral 9010 |
| 4 | 4W - 100mA | 835 | CRI>80 - 3500K | 9840 | CRI>98 -4000K |  | W.F. | 60° - Wide Flood |  | 03 | black |
| 840 | CRI>80 - 4000K |  | 04 | gray | |||||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
| 927 | CRI>90 - 2700K |  | 06 | special color | |||||||
| 930 | CRI>90 - 3000K | ||||||||||
| 935 | CRI>90 - 3500K | ||||||||||
| 940 | CRI>90 - 4000K |

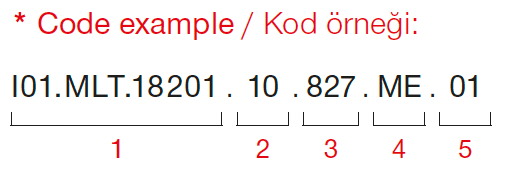

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Silindir Micro Short?
Silindir Micro Short has a power of 10W.
What is the protection class of Silindir Micro Short?
The protection class of Silindir Micro Short is IP20.
Which certifications and standards does Silindir Micro Short have?
Silindir Micro Short carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP20.
What is the product code of Silindir Micro Short?
The product (stock) code of Silindir Micro Short is I01.MLT.18201.
Where can I download the catalog or PDF of Silindir Micro Short?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/043.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/tracklight/Silindir%20Tracklight.pdf) buttons on this page.
