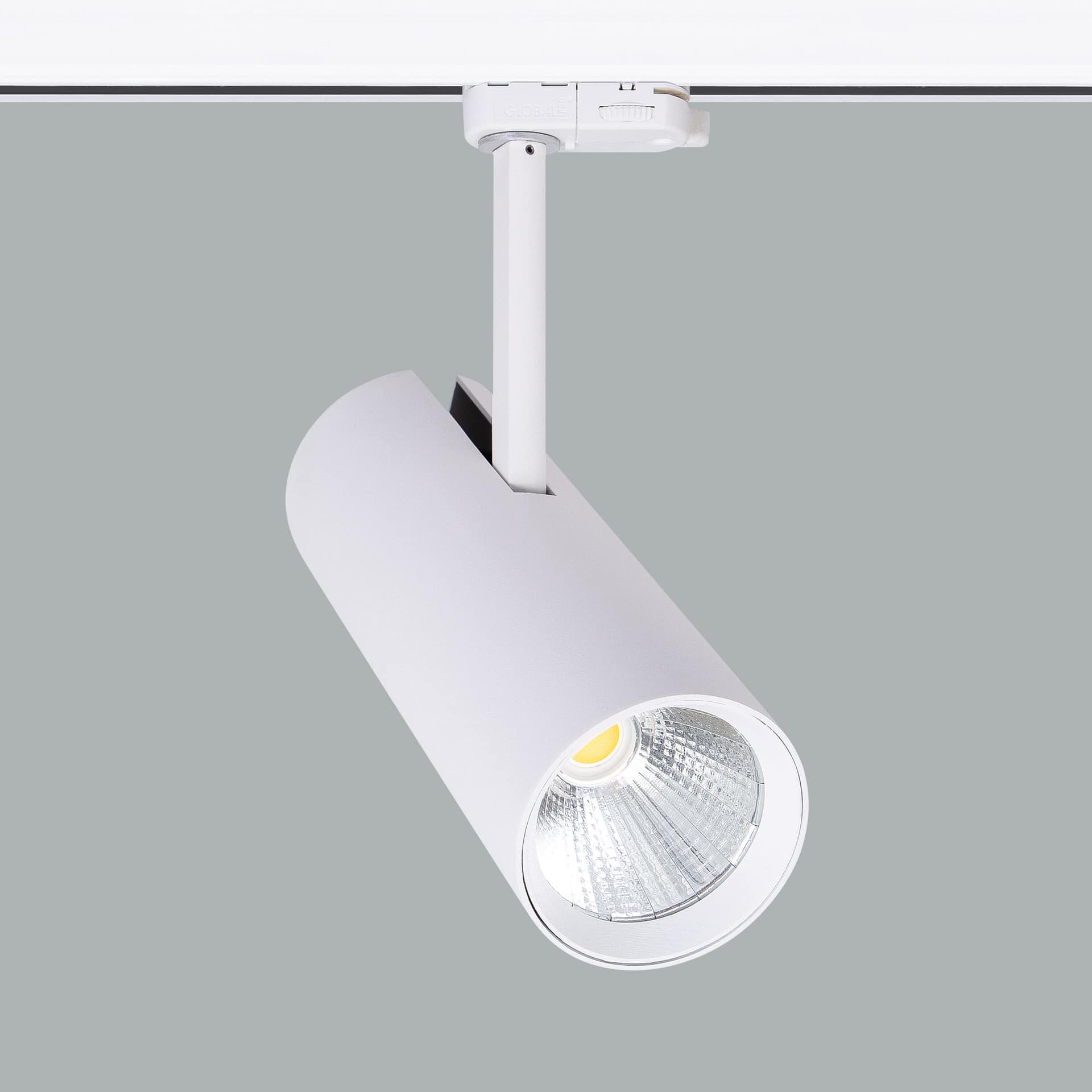

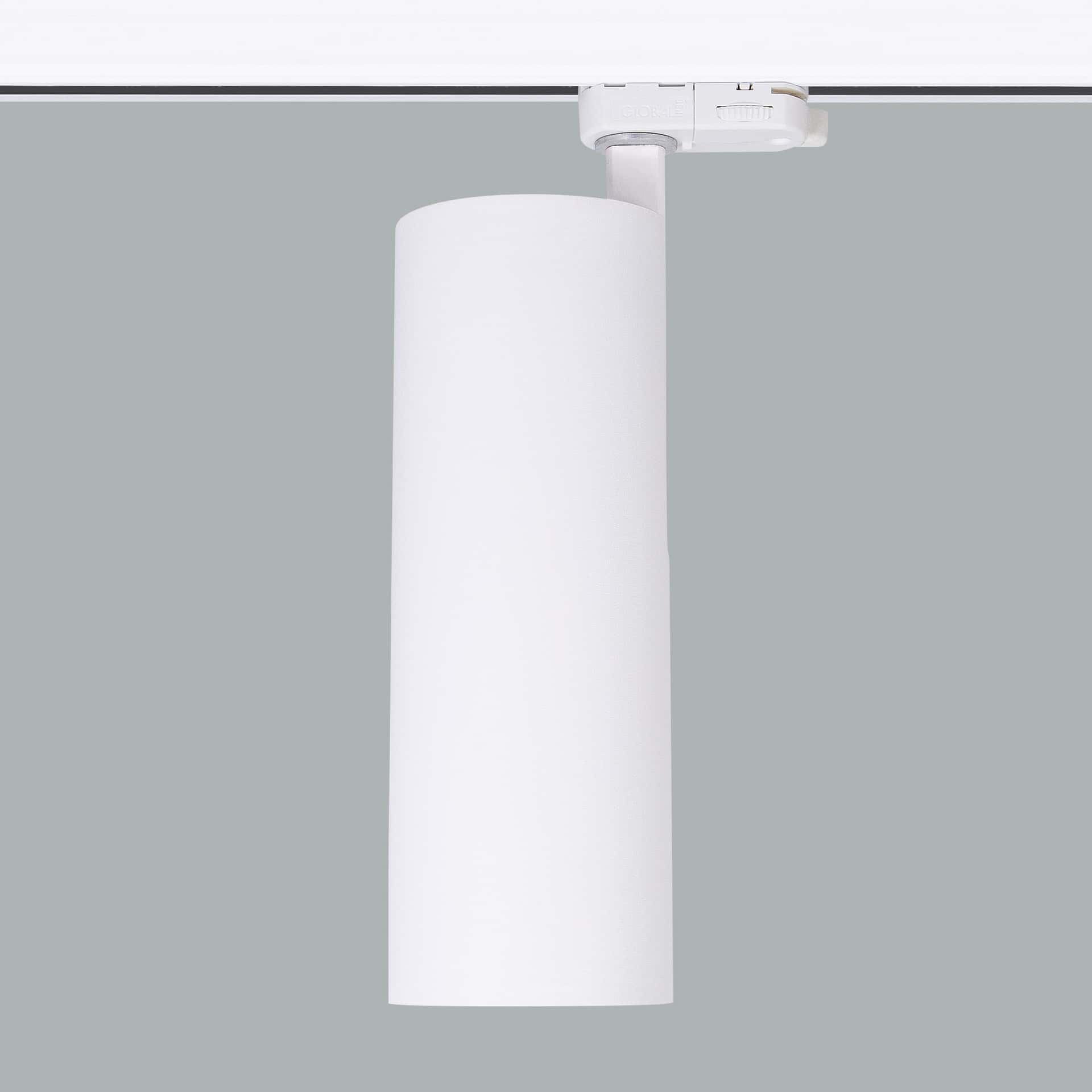

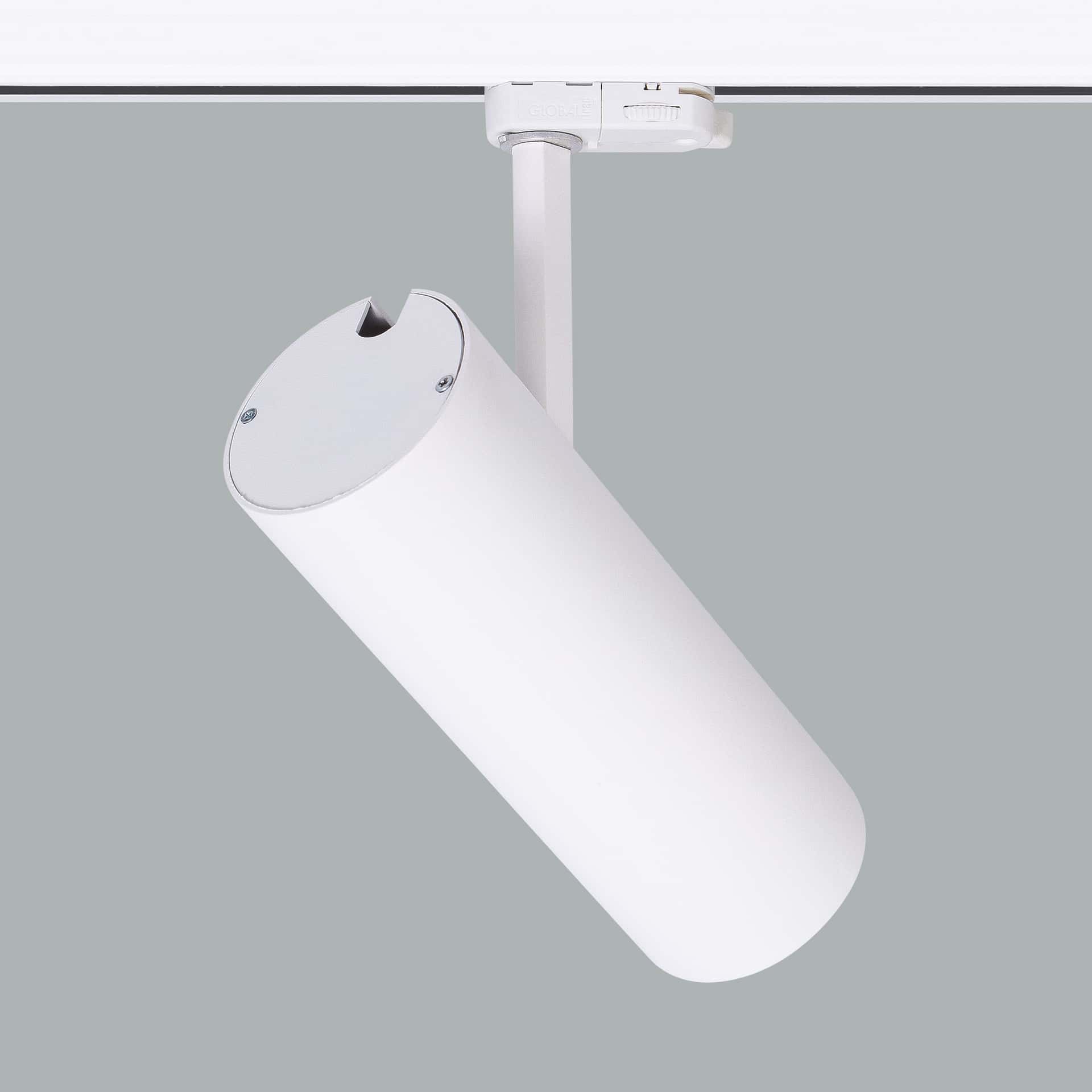

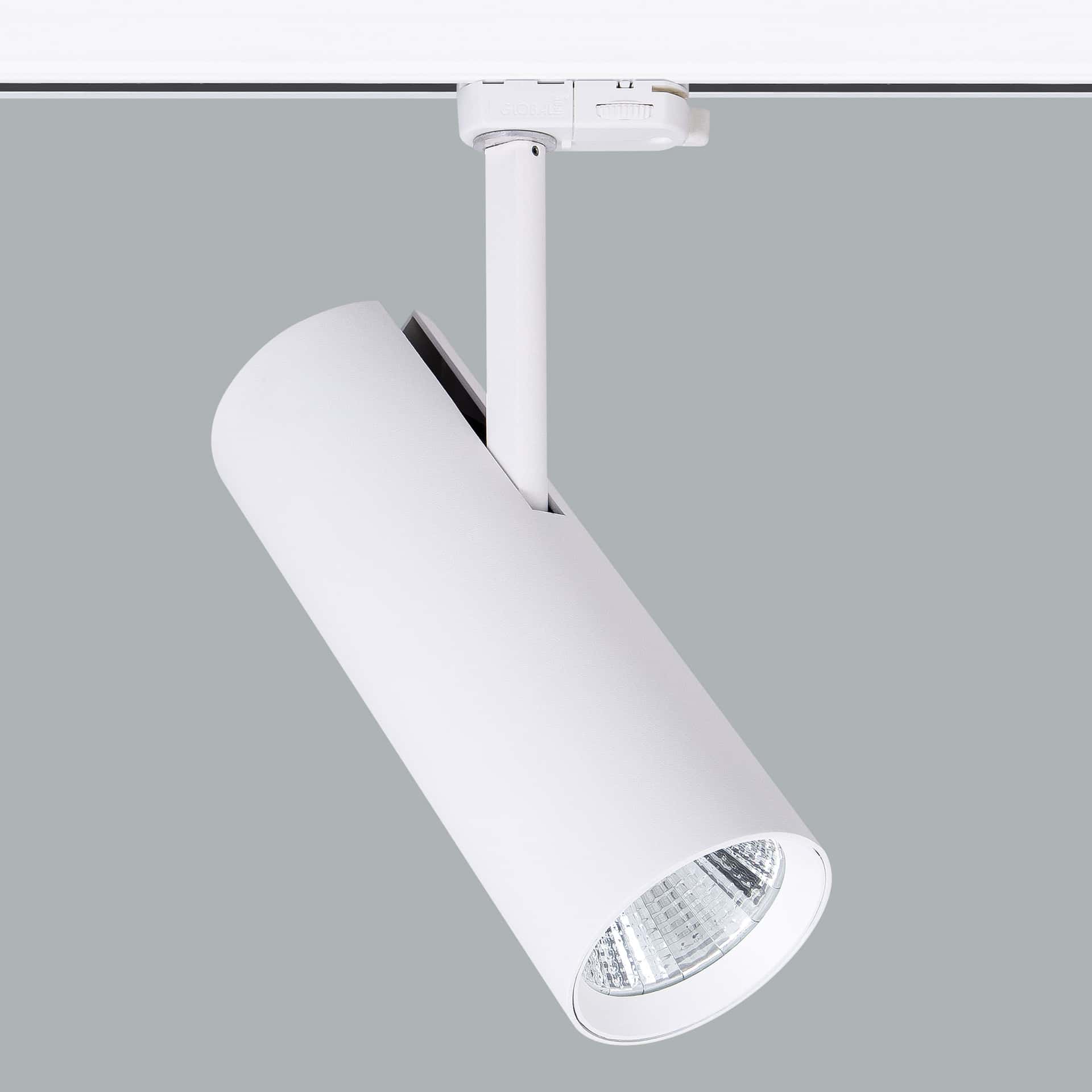

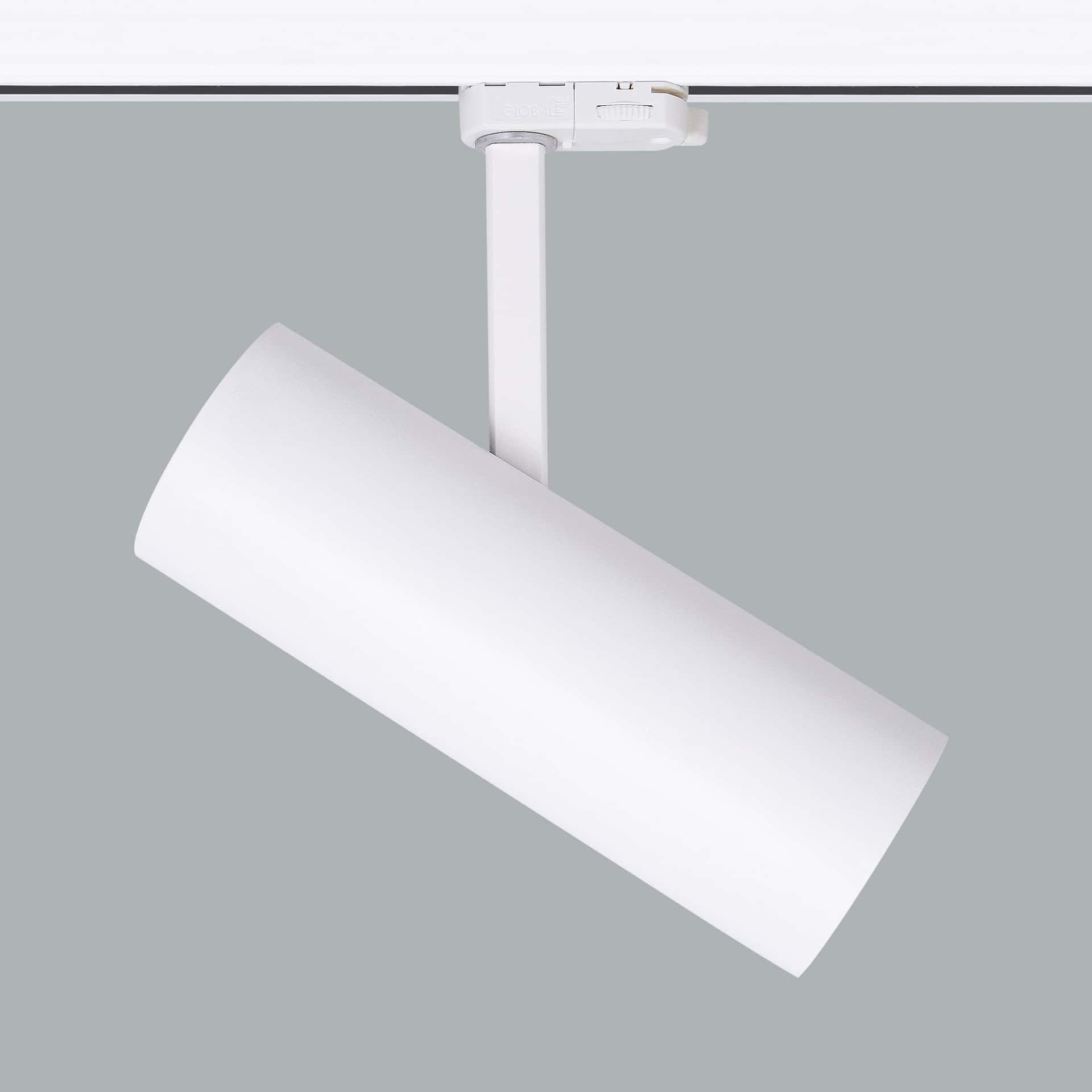

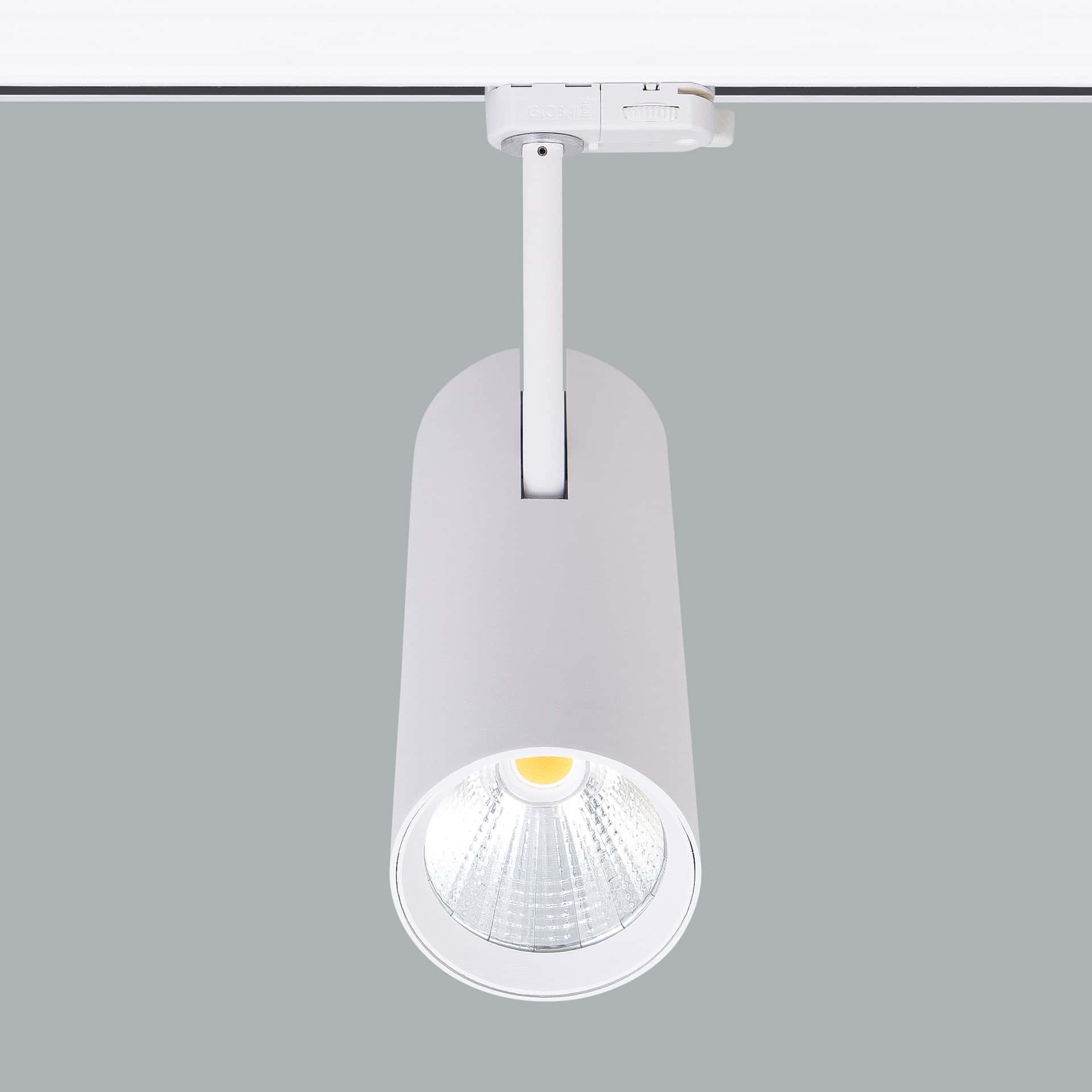

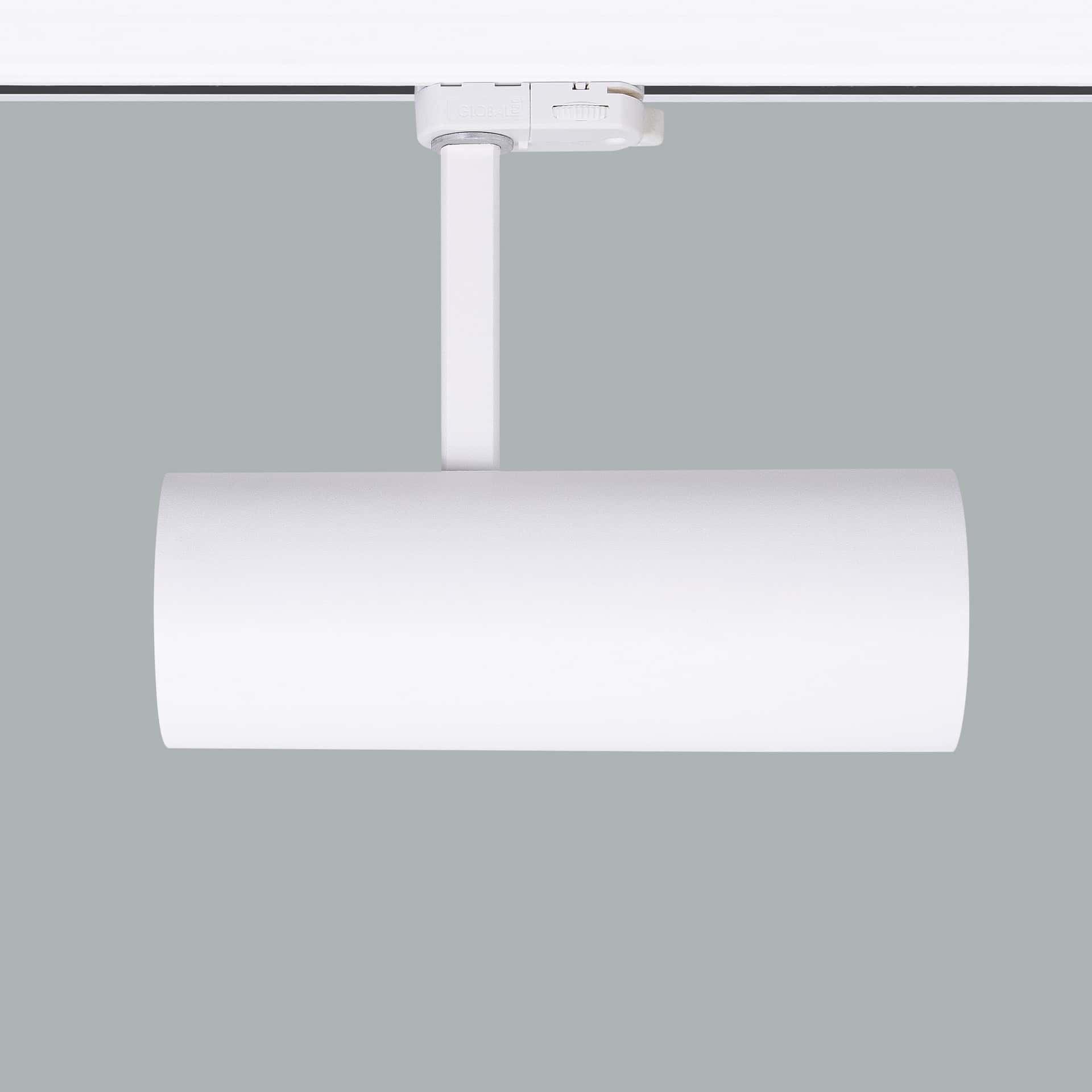

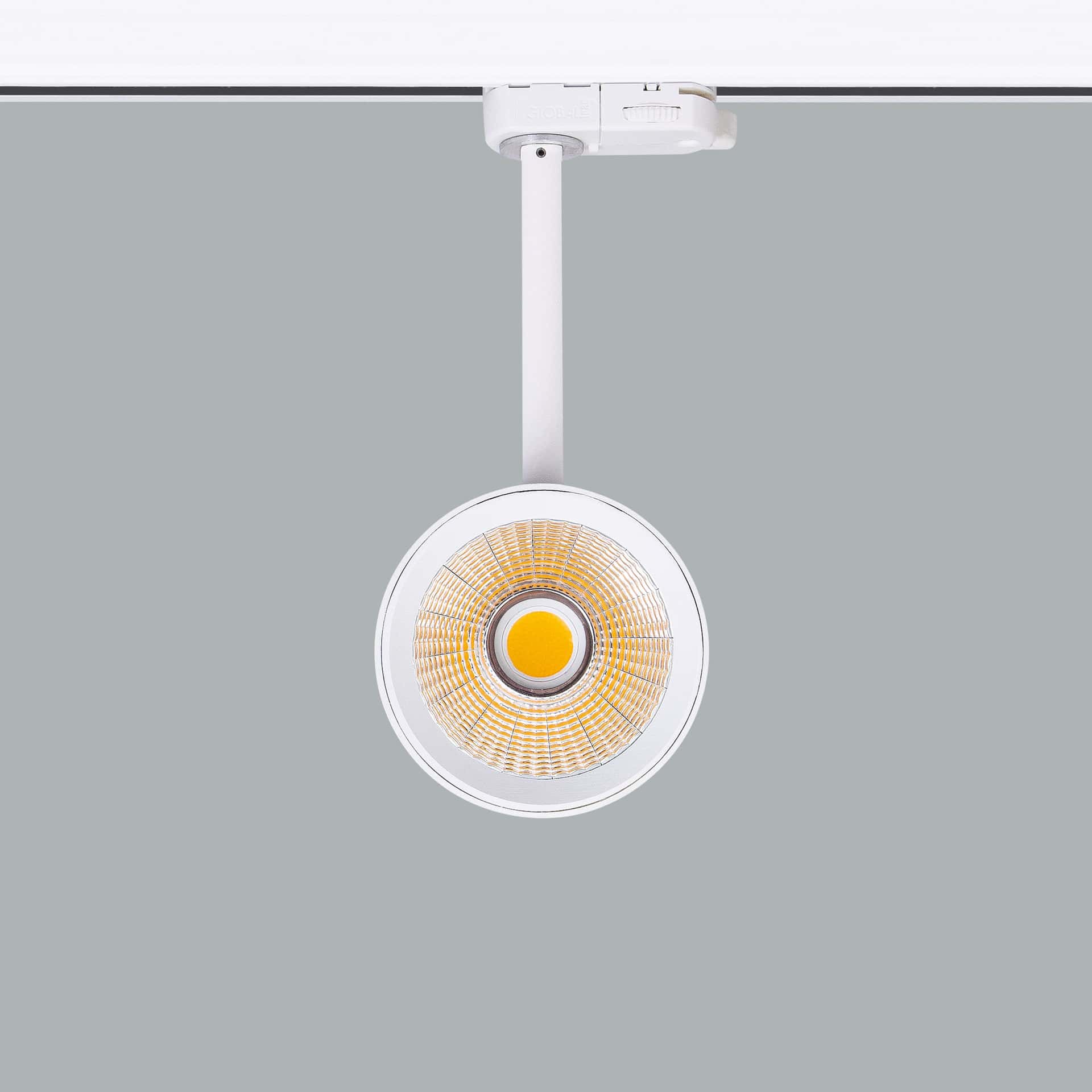

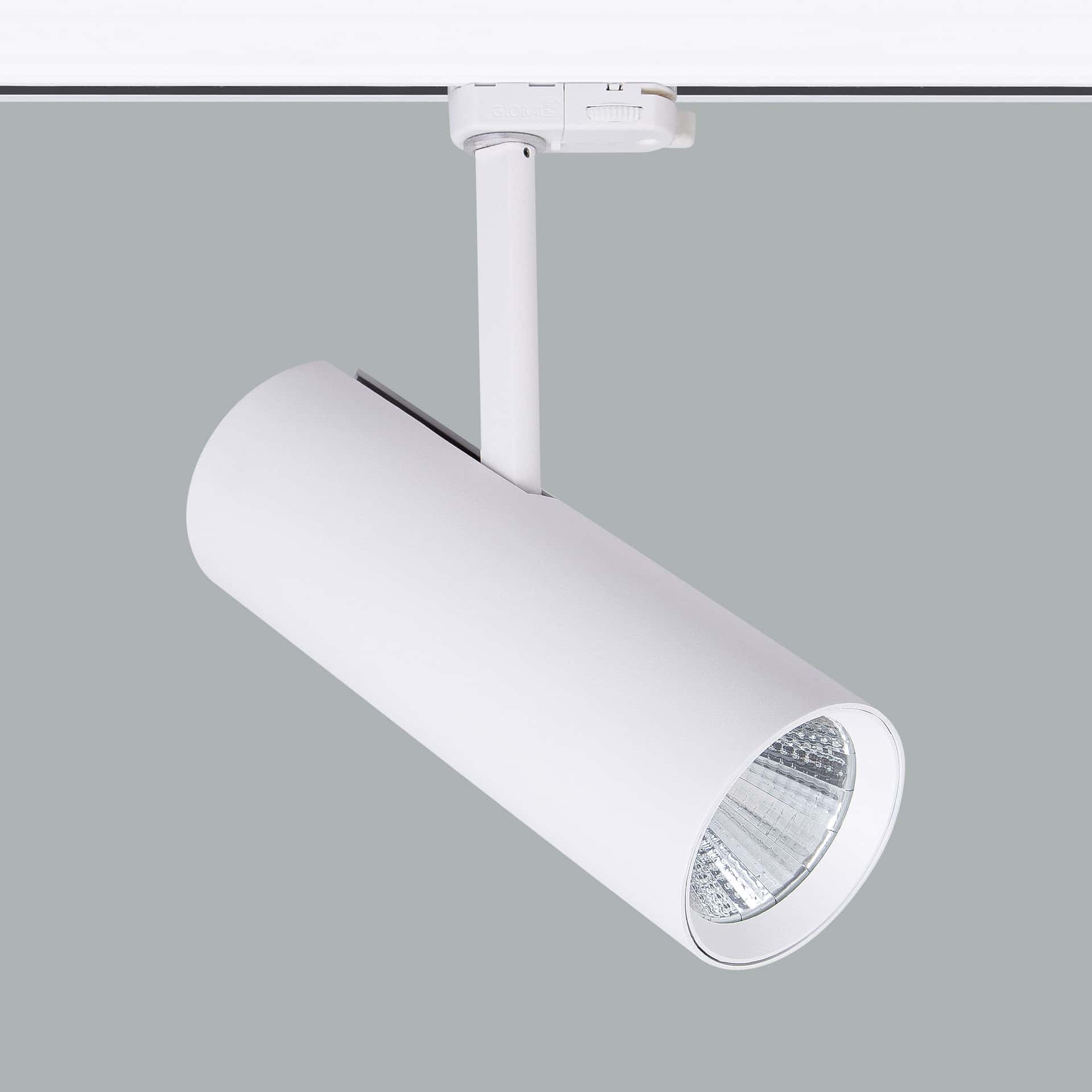

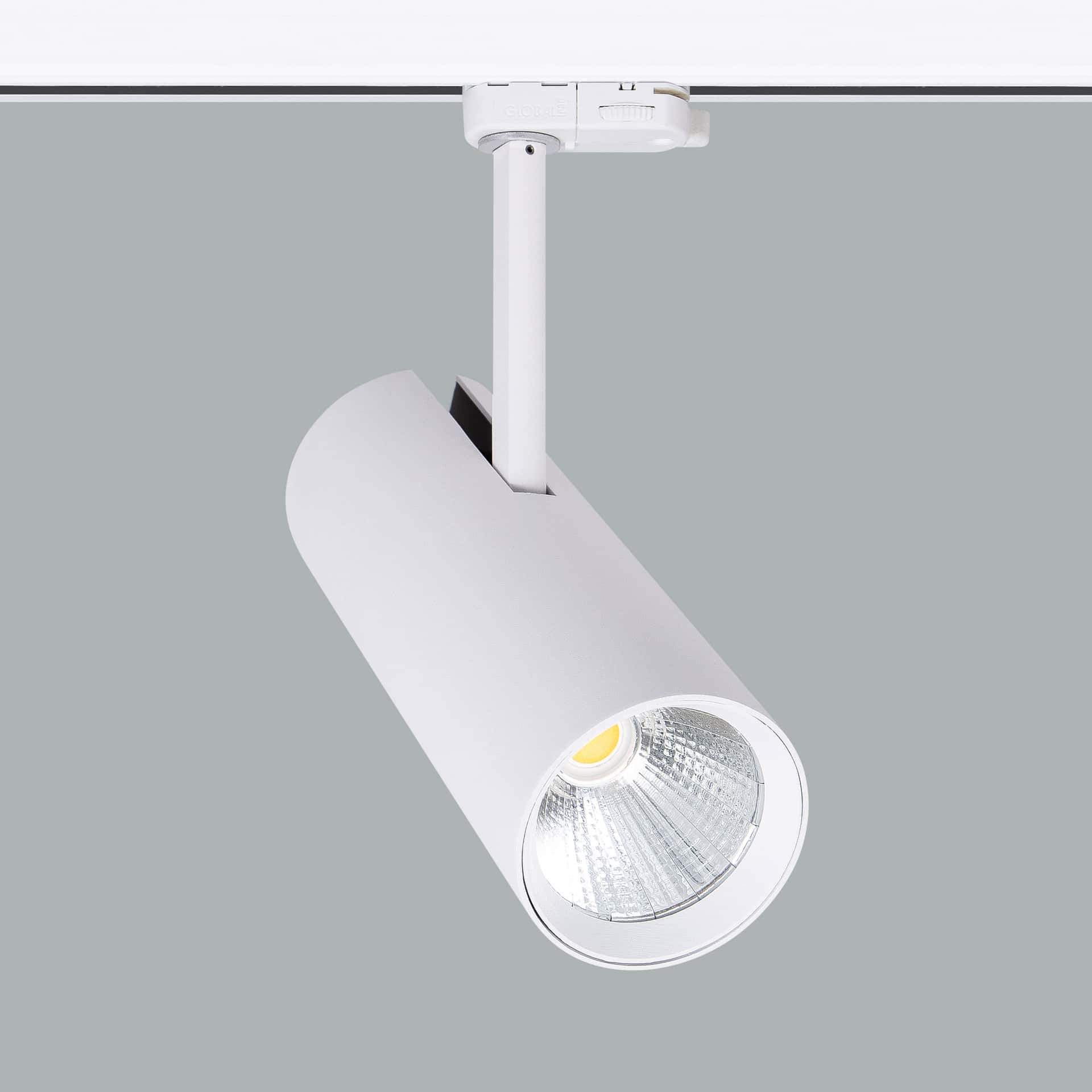

Silindir Maxi
Silindir Maxi is an AVOLUX LED lighting fixture in the COB Led Tracklight Series category with a power of 31W and IP20 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 31W |
| Protection Class | IP20 |
| Shape | rayspot |
| Optical | Reflector |
DESCRIPTION
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- With 3-Phase universal rail adapter.
-- Mechanical locking joint system with 90° vertical and 350° horizontal movement capability.
-- Tempered glass.

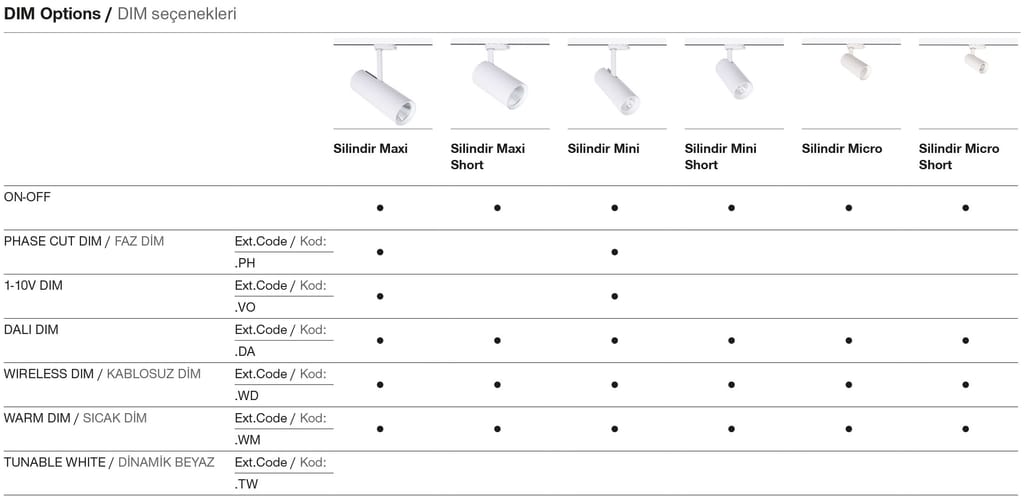

-- Classic Phase-DIM, DALI and 1-10V DIM options can be applied.
-- Wireless DIM and Hot DIM applications, which are high-tech control systems, can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 as well as optional special color options can be applied.

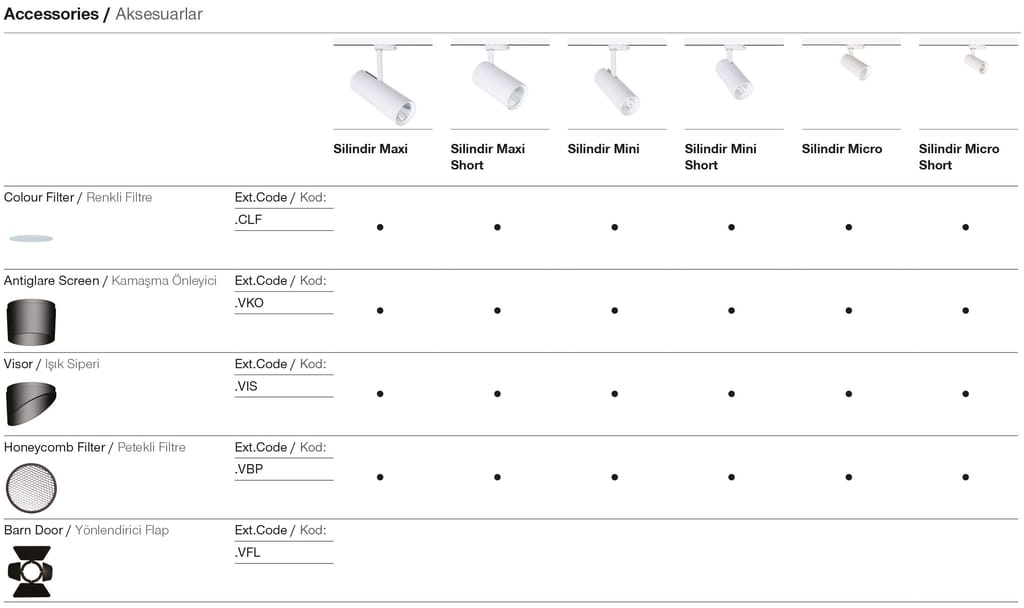

--Honeycomb Filter, Color Filter, Anti-Glare and Viewfinder accessory options can be applied.
-- Narrow, Medium, Wide and Very Wide reflector angle options are available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.
-- Efficiency up to 145lm/W.
-- High color compatibility: <3 SDCM
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 31W | CRI>80 | I01.MLT.18190 . (..) . (...) . (..) . (..) | 2700K | 3632 |
| 3000K | 3780 | |||
| 3500K | 3912 | |||
| 4000K | 4048 | |||
| 5000K | 4309 | |||
| CRI>90 | I01.MLT.18190 . (..) . (...) . (..) . (..) | 2700K | 3269 | |
| 3000K | 3352 | |||
| 3500K | 3469 | |||
| 4000K | 3590 | |||
| 5000K | X | |||
| CRI>98 | I01.MLT.18190 . (..) . (...) . (..) . (..) | 2700K | 2761 | |
| 3000K | 2861 | |||
| 4000K | 3061 | |||
| Meat COB | I01.MLT.18190 . (..) . (...) . (..) . (..) | 1800K | 2318 | |
| Food COB | I01.MLT.18190 . (..) . (...) . (..) . (..) | 2400K | 2392 | |
| Pisces COB | I01.MLT.18190 . (..) . (...) . (..) . (..) | 6600K | 3157 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 31 | 31W - 800mA | 827 | CRI>80 - 2700K | 9827 | CRI>98 - 2700K |  | SP | 20° - Spot |  | 01 | white |
| 28 | 28W - 700mA | 830 | CRI>80 - 3000K | 9830 | CRI>98 - 3000K |  | M.E. | 35° - Medium |  | 02 | ral 9010 |
| 24 | 24W - 600mA | 835 | CRI>80 - 3500K | 9840 | CRI>98 -4000K |  | FL | 45° - Flood |  | 03 | black |
| 20 | 20W - 500mA | 840 | CRI>80 - 4000K | MEAT | 1800K |  | 04 | gray | |||
| 850 | CRI>80 - 5000K | GOLD | 2400K |  | 05 | dark gray | |||||
| 927 | CRI>90 - 2700K | fish | 6600K |  | 06 | special color | |||||
| 930 | CRI>90 - 3000K | ||||||||||
| 935 | CRI>90 - 3500K | ||||||||||
| 940 | CRI>90 - 4000K |

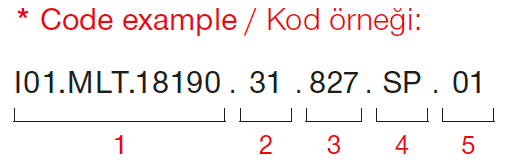

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Silindir Maxi?
Silindir Maxi has a power of 31W.
What is the protection class of Silindir Maxi?
The protection class of Silindir Maxi is IP20.
Which certifications and standards does Silindir Maxi have?
Silindir Maxi carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP20.
What is the product code of Silindir Maxi?
The product (stock) code of Silindir Maxi is I01.MLT.18190.
Where can I download the catalog or PDF of Silindir Maxi?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/038.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/tracklight/Silindir%20Tracklight.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Silindir%20Maxi%2BI01.MLT.18190.rar) buttons on this page.
