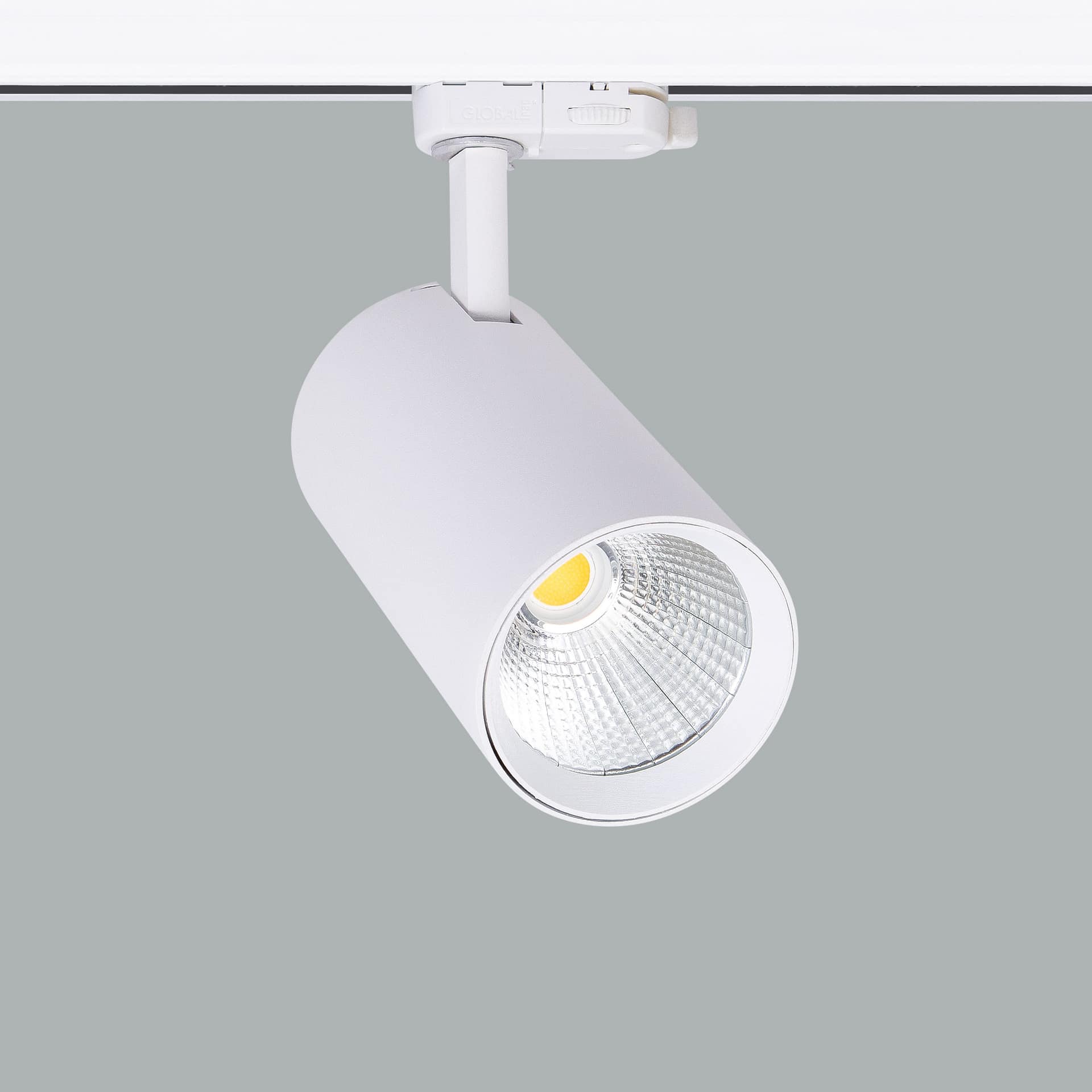

Silindir Maxi Short

Silindir Maxi Short

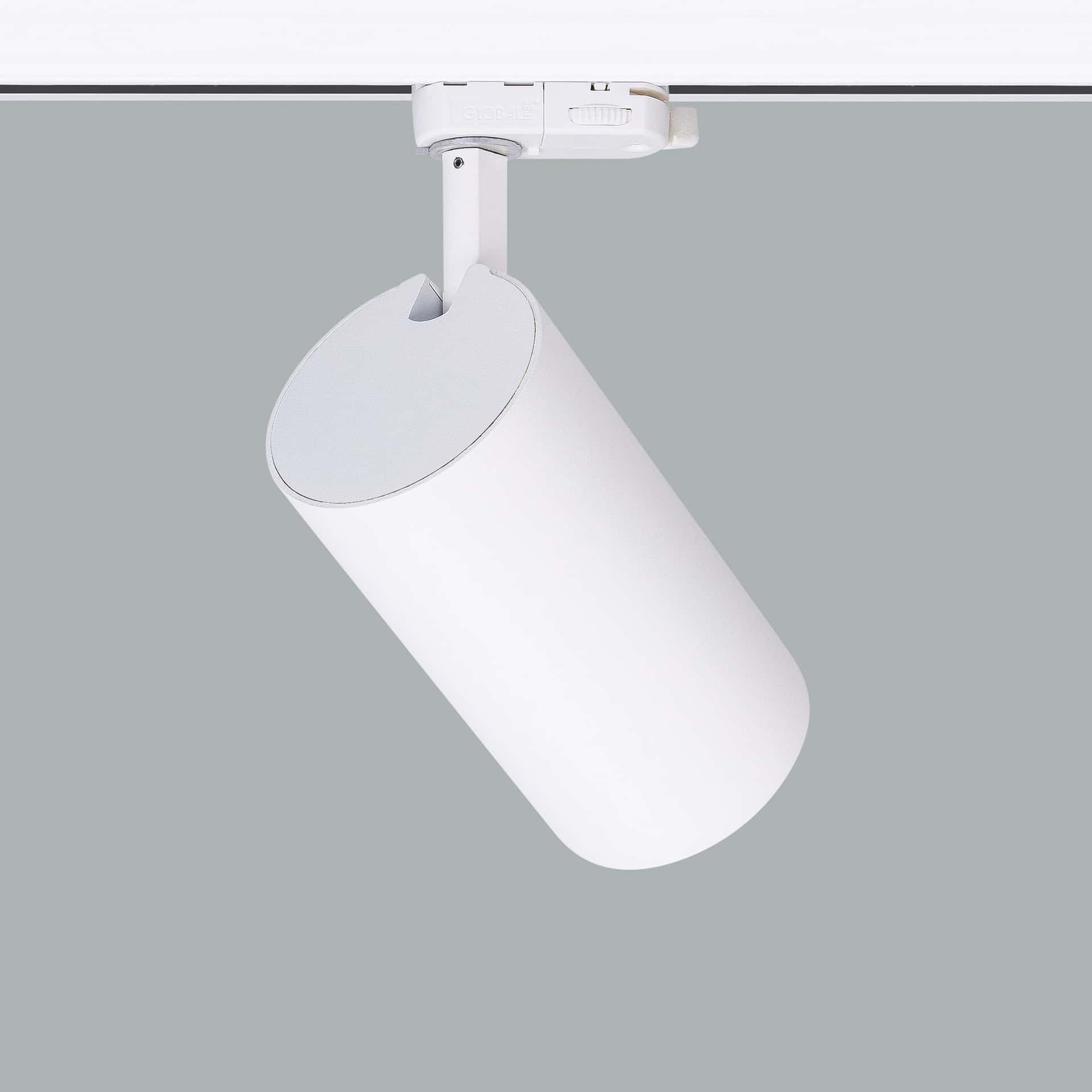

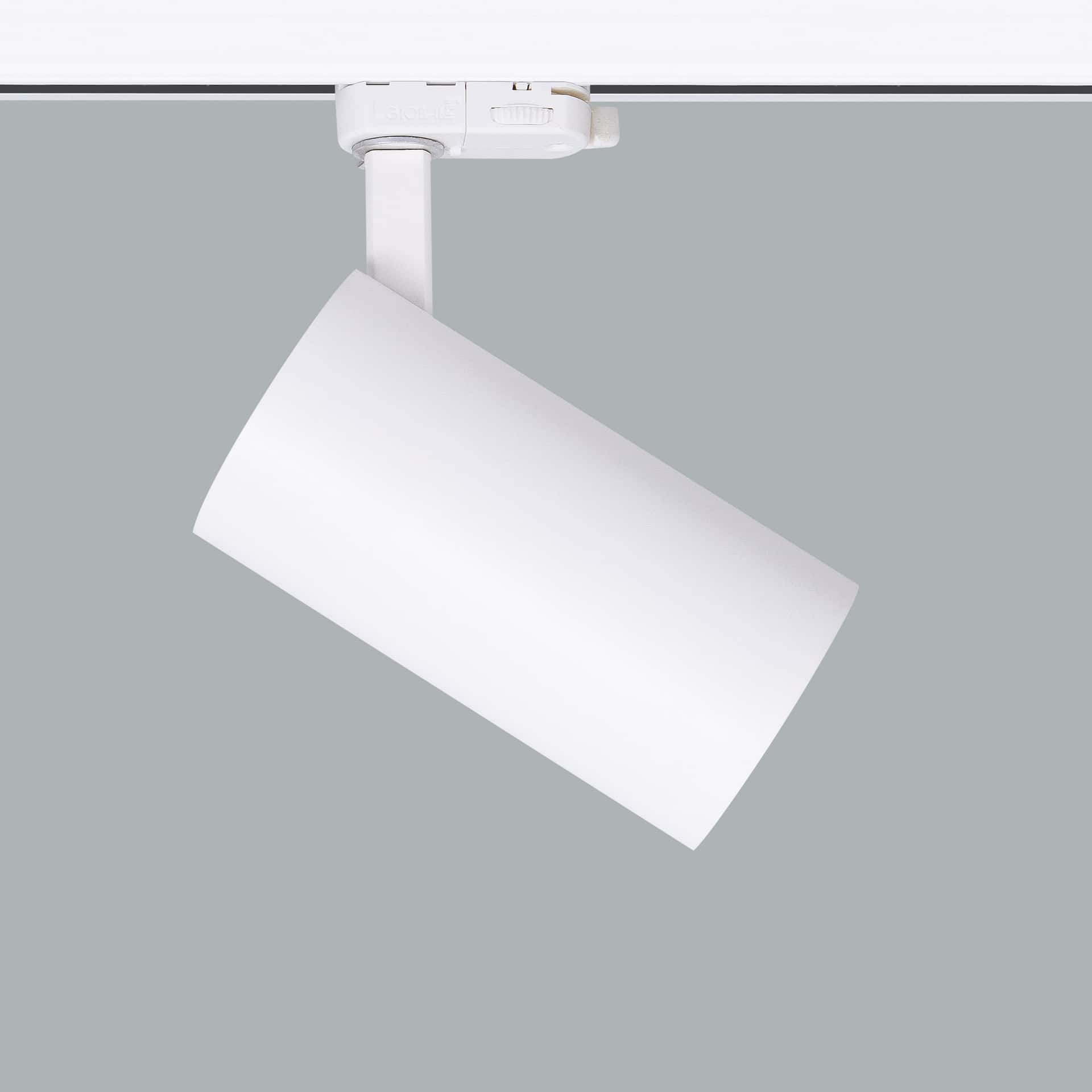

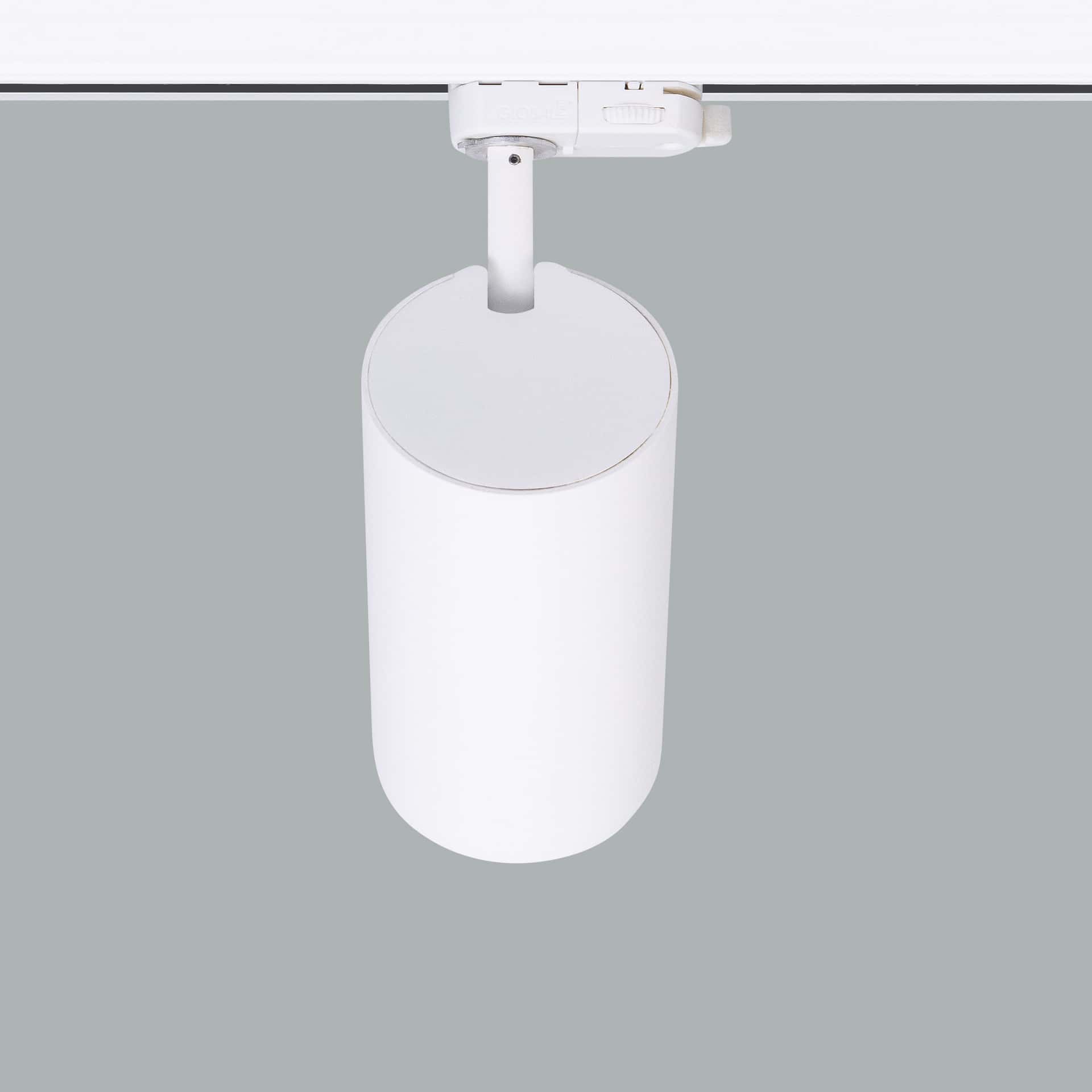

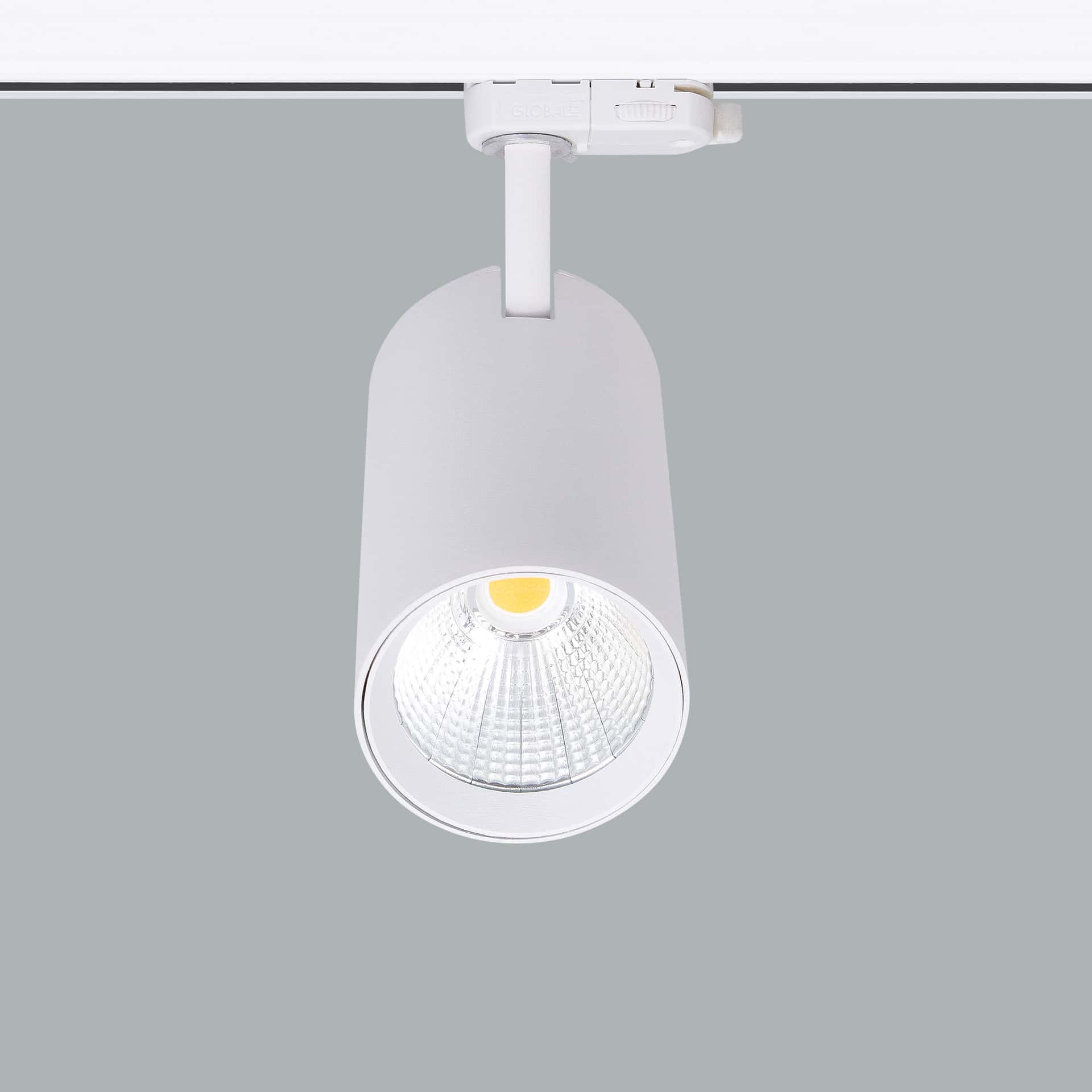

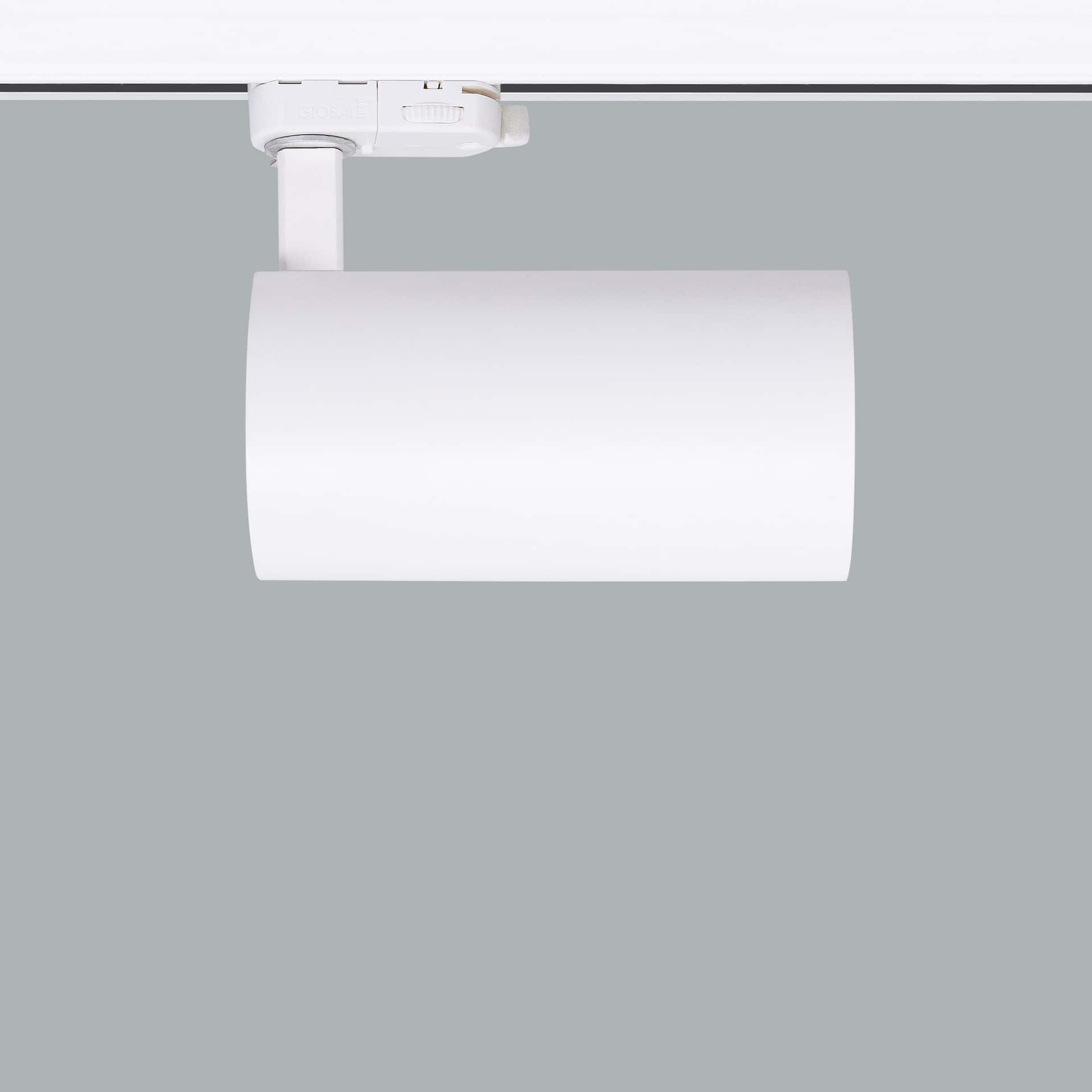

Silindir Maxi Short is an AVOLUX LED lighting fixture in the COB Led Tracklight Series category with a power of 28W and IP20 protection.

Product icons
SASOCBLVDEACCEF mark (suitable for mounting on normally flammable surfaces)Protection class ITrack adapterIP20For indoor use
LED
Technical specifications
Input Voltage220-240V / 50-60Hz
Wattage28W
Protection ClassIP20
Shaperayspot
OpticalReflector

Stock code: I01.MLT.18191

Categories: COB Led Tracklight Series

DESCRIPTION
DOWNLOAD PRODUCT PDFDOWNLOAD PRODUCT FAMILY PDFDOWNLOAD LDT

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- With 3-Phase universal rail adapter.
-- Mechanical locking joint system with 90° vertical and 350° horizontal movement capability.
-- Tempered glass.
-- Classic Phase-DIM, DALI and 1-10V DIM options can be applied.
-- Wireless DIM and Hot DIM applications, which are high-tech control systems, can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 as well as optional special color options can be applied.
--Honeycomb Filter, Color Filter, Anti-Glare and Viewfinder accessory options can be applied.
-- Narrow, Medium, Wide and Very Wide reflector angle options are available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.
-- Efficiency up to 145lm/W.
-- High color compatibility: <3 SDCM

StrengthCRIOrder CodeKelvinLumen
28WCRI>80I01.MLT.18191 . (..) . (...) . (..) . (..)2700K3147
3000K3286
3500K3324
4000K3452
5000K3690
CRI>90I01.MLT.18191 . (..) . (...) . (..) . (..)2700K2547
3000K2812
3500K2889
4000K2920
5000KX
CRI>98I01.MLT.18191 . (..) . (...) . (..) . (..)1800K2100
2400K2156
6600K2856
Meat COBI01.MLT.18191 . (..) . (...) . (..) . (..)1800K2100
Food COBI01.MLT.18191 . (..) . (...) . (..) . (..)2400K2156
Pisces COBI01.MLT.18191 . (..) . (...) . (..) . (..)6600K2856


2Watts - Driving Current3CRI/Kelvin3CRI/Kelvin4Reflector Angle5Product Color
2828W - 700mA827CRI>80 - 2700K9827CRI>98 - 2700KSP20° - Spot01white
2424W - 600mA830CRI>80 - 3000K9830CRI>98 - 3000KM.E.35° - Medium02ral 9010
2020W - 500mA835CRI>80 - 3500K9840CRI>98 -4000KFL45° - Flood03black
1515W - 350mA840CRI>80 - 4000KMEAT1800K04gray
850CRI>80 - 5000KGOLD2400K05dark gray
927CRI>90 - 2700Kfish6600K06special color
930CRI>90 - 3000K
935CRI>90 - 3500K
940CRI>90 - 4000K

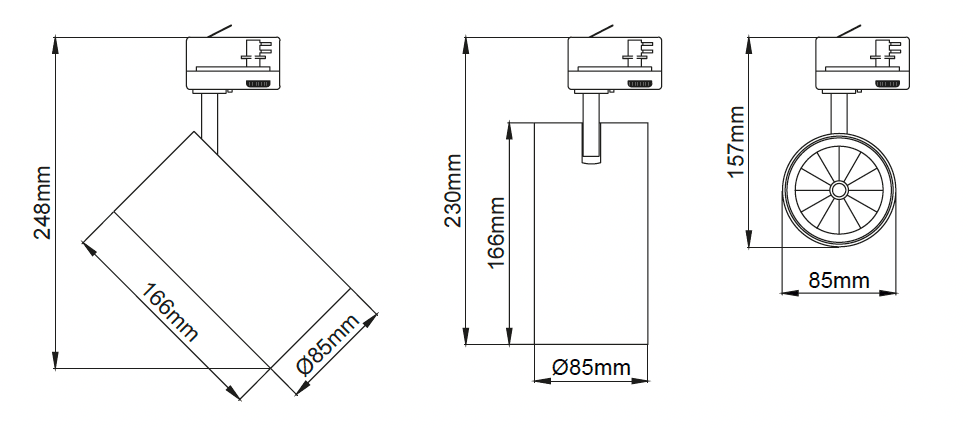

Silindir Maxi Short – Technical Drawings

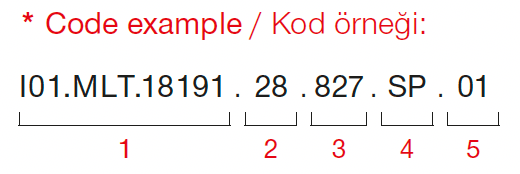

Silindir Maxi Short – Code Example

  1. Luminaire code
  2. Strength
  3. Kelvin
  4. Reflector Angle
  5. Product Color

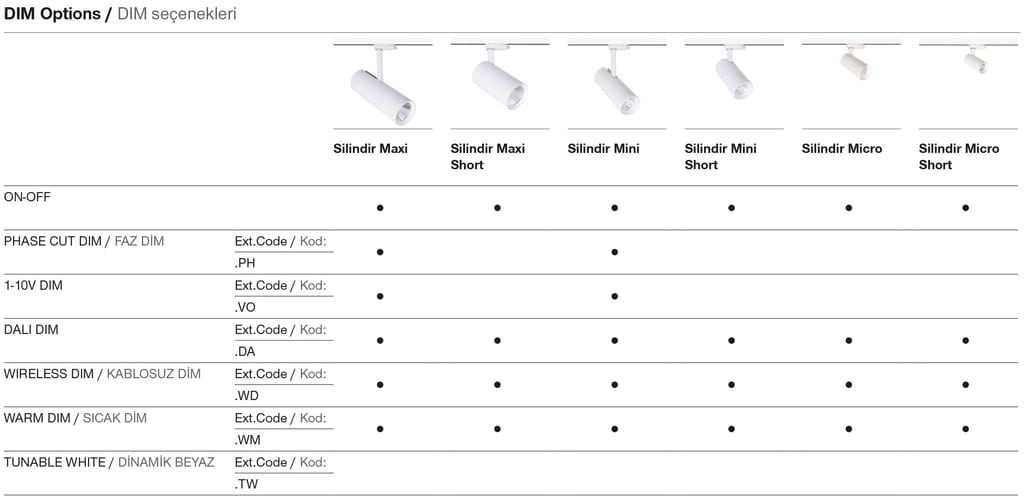

Silindir Maxi Short – Dimming Options

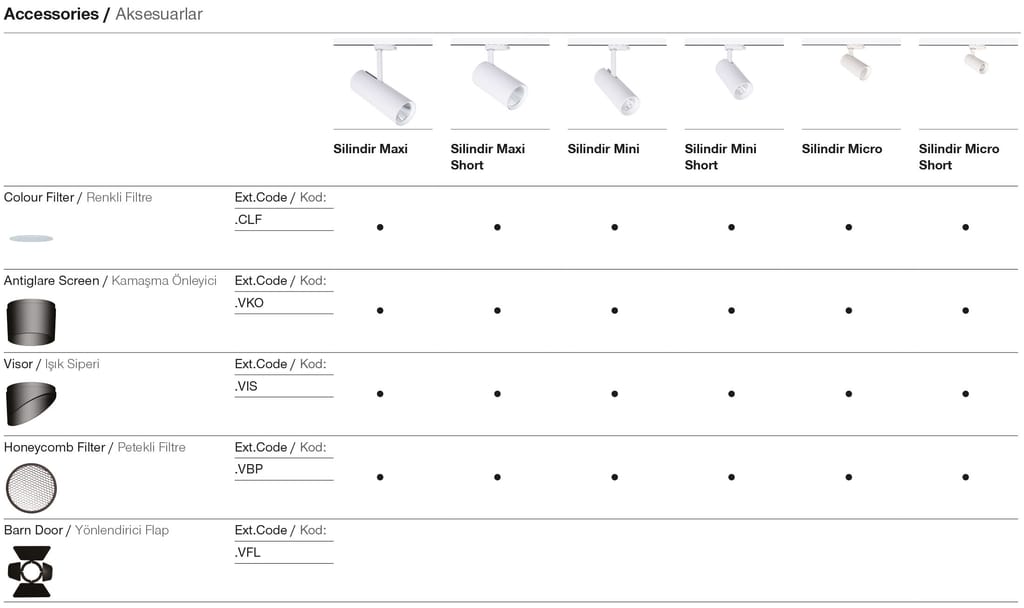

Silindir Maxi Short – Accessories


Frequently Asked Questions

What is the wattage of Silindir Maxi Short?

Silindir Maxi Short has a power of 28W.

What is the protection class of Silindir Maxi Short?

The protection class of Silindir Maxi Short is IP20.

Which certifications and standards does Silindir Maxi Short have?

Silindir Maxi Short carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP20.

What is the product code of Silindir Maxi Short?

The product (stock) code of Silindir Maxi Short is I01.MLT.18191.

Where can I download the catalog or PDF of Silindir Maxi Short?

You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/039.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/tracklight/Silindir%20Tracklight.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Silindir%20Maxi%20Short%2BI01.MLT.18191.rar) buttons on this page.
