Neptun Maxi Downlight
Neptun Maxi Downlight is an AVOLUX LED lighting fixture in the Power LED Recessed Series category with a power of 24W and IP44 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 24W |
| Protection Class | IP44 |
| Shape | built-in |
| Optical | diffuser |
-- Aluminum injection body.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 24W | CRI>80 | I02.PLR.15077 . (..) . (...) . (..) . (..) | 2700K | 1568 |
| 3000K | 1616 | |||
| 3500K | 1649 | |||
| 4000K | 1683 | |||
| 5000K | 1733 | |||
| CRI>90 | I02.PLR.15077 . (..) . (...) . (..) . (..) | 2700K | 1458 | |
| 3000K | 1503 | |||
| 3500K | 1534 | |||
| 4000K | 1565 | |||
| 5000K | X | |||
| CRI>98 | I02.PLR.15077 . (..) . (...) . (..) . (..) | 2700K | X | |
| 3000K | X | |||
| 4000K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 24W - 600mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | W.F. | 107° - Wide Flood |  | 01 | white |
| 21 | 21W - 500mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color |

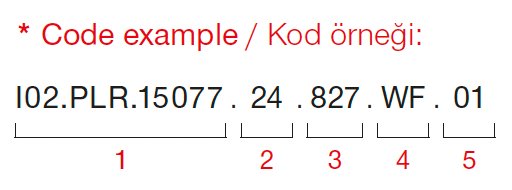

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Neptun Maxi Downlight?
Neptun Maxi Downlight has a power of 24W.
What is the protection class of Neptun Maxi Downlight?
The protection class of Neptun Maxi Downlight is IP44.
Which certifications and standards does Neptun Maxi Downlight have?
Neptun Maxi Downlight carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP44.
What is the product code of Neptun Maxi Downlight?
The product (stock) code of Neptun Maxi Downlight is I02.PLR.15077.
Where can I download the catalog or PDF of Neptun Maxi Downlight?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/695.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/downlight/NEPTUN%20Downlight.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Neptun%20Maxi%20%20%20I02.PLR.15077.rar) buttons on this page.
