Neptun Mega Downlight
Neptun Mega Downlight is an AVOLUX LED lighting fixture in the Power LED Recessed Series category with a power of 28W and IP44 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 28W |
| Protection Class | IP44 |
| Shape | built-in |
| Optical | diffuser |
-- Aluminum injection body.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 28W | CRI>80 | I02.PLR.15076 . (..) . (...) . (..) . (..) | 2700K | 2775 |
| 3000K | 2859 | |||
| 3500K | 2917 | |||
| 4000K | 2977 | |||
| 5000K | 3066 | |||
| CRI>90 | I02.PLR.15076 . (..) . (...) . (..) . (..) | 2700K | 2581 | |
| 3000K | 2659 | |||
| 3500K | 2713 | |||
| 4000K | 2851 | |||
| 5000K | X | |||
| CRI>98 | I02.PLR.15076 . (..) . (...) . (..) . (..) | 2700K | X | |
| 3000K | X | |||
| 4000K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 28 | 28W - 700mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | W.F. | 108° - Wide Flood |  | 01 | white |
| 25 | 25W - 600mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color |

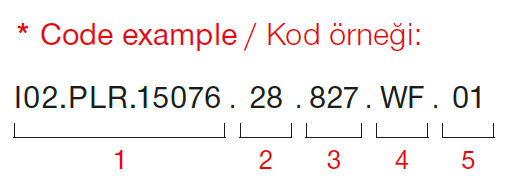

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Neptun Mega Downlight?
Neptun Mega Downlight has a power of 28W.
What is the protection class of Neptun Mega Downlight?
The protection class of Neptun Mega Downlight is IP44.
Which certifications and standards does Neptun Mega Downlight have?
Neptun Mega Downlight carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP44.
What is the product code of Neptun Mega Downlight?
The product (stock) code of Neptun Mega Downlight is I02.PLR.15076.
Where can I download the catalog or PDF of Neptun Mega Downlight?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/694.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/downlight/NEPTUN%20Downlight.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Neptun%20Mega%20%20I02.PLR.15076.rar) buttons on this page.
