Neptun Downlight
Neptun Downlight is an AVOLUX LED lighting fixture in the Power LED Recessed Series category with a power of 20W and IP44 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 20W |
| Protection Class | IP44 |
| Shape | built-in |
| Optical | diffuser |
-- Aluminum injection body.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 20W | CRI>80 | I02.PLR.15078 . (..) . (...) . (..) . (..) | 2700K | 1990 |
| 3000K | 2051 | |||
| 3500K | 2093 | |||
| 4000K | 2136 | |||
| 5000K | 2200 | |||
| CRI>90 | I02.PLR.15078 . (..) . (...) . (..) . (..) | 2700K | 1850 | |
| 3000K | 1907 | |||
| 3500K | 1946 | |||
| 4000K | 1986 | |||
| 5000K | X | |||
| CRI>98 | I02.PLR.15078 . (..) . (...) . (..) . (..) | 2700K | X | |
| 3000K | X | |||
| 4000K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 20W - 500mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | W.F. | 108° - Wide Flood |  | 01 | white |
| 16 | 16W - 350mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color |

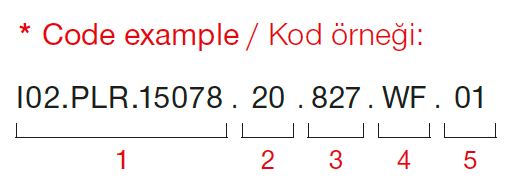

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Neptun Downlight?
Neptun Downlight has a power of 20W.
What is the protection class of Neptun Downlight?
The protection class of Neptun Downlight is IP44.
Which certifications and standards does Neptun Downlight have?
Neptun Downlight carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP44.
What is the product code of Neptun Downlight?
The product (stock) code of Neptun Downlight is I02.PLR.15078.
Where can I download the catalog or PDF of Neptun Downlight?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/696.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/downlight/NEPTUN%20Downlight.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Neptun%20%20I02.PLR.15078.rar) buttons on this page.
