Plafo

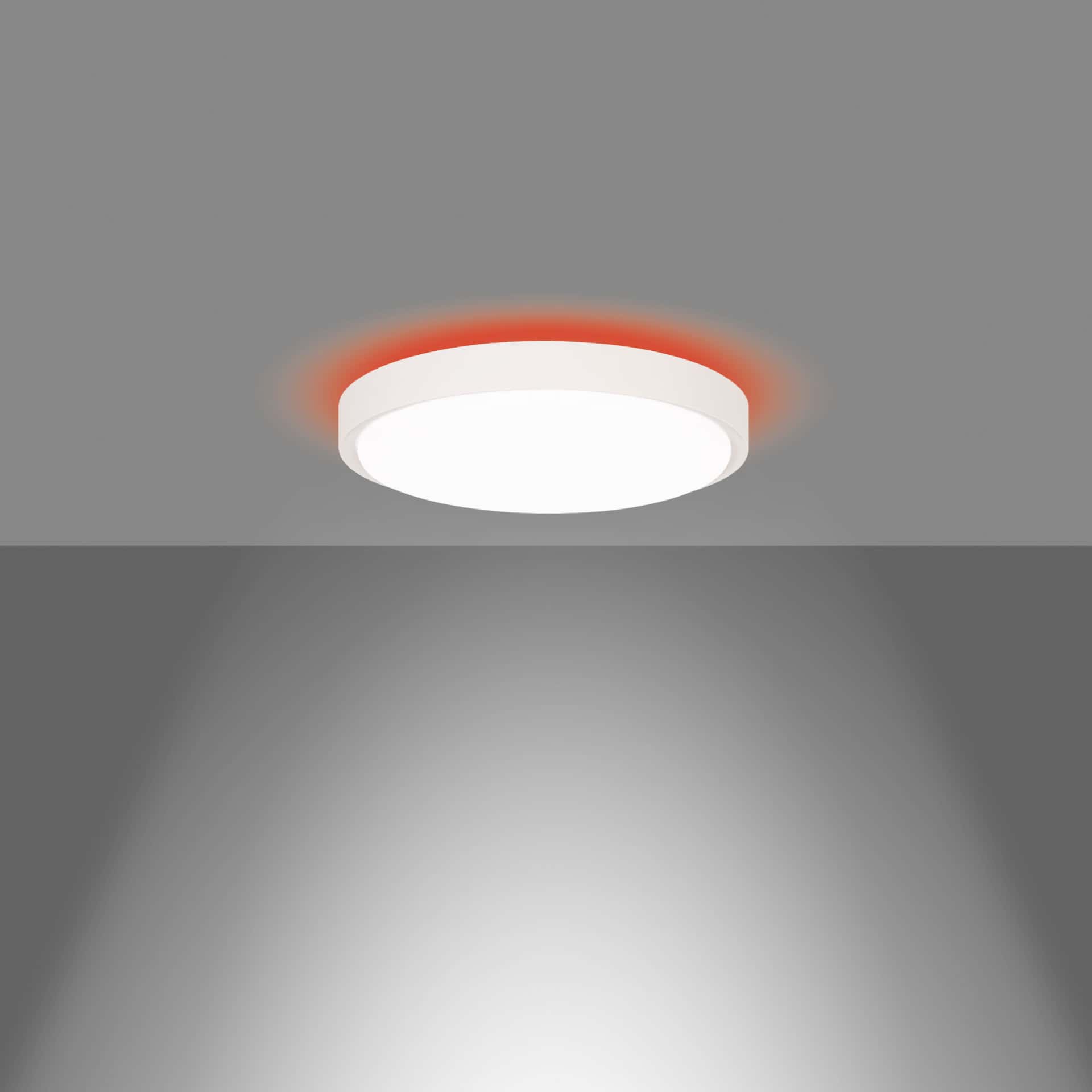

Plafo is an AVOLUX LED lighting fixture in the Ring and Circular Fixture Series category with a power of 34W and IP20 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 34W |
| Protection Class | IP20 |
| Shape | Full Ring |
| Optical | diffuser |

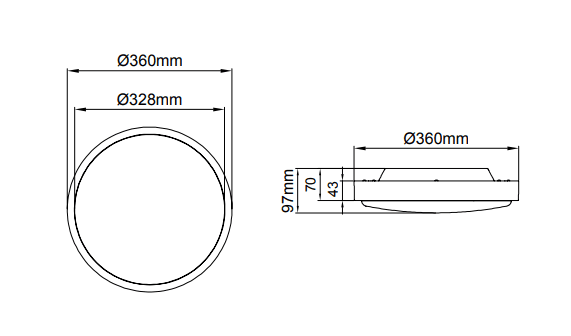

| Diameter | Ø360mm |
Aluminum body and opal diffuser. Mains voltage: 220-240V / 50-60Hz. 1-10V, DALI, Casambi DIM, Dynamic White DALI, Dynamic White CASAMBI options are available. 100lm/W
| Product Information | |
|---|---|
| Article No. (AVOLUX) | I02.LL.13419.(Diameter).(Power).(CRI).(Colour) |
| Material | aluminum |
| Outside Diameter | 36cm |
| Height | 95mm |
| Mounting method | surface mounted |
| Lighting Technology | |||||
|---|---|---|---|---|---|
| Color Temperature | 2700K | 3000K | 3500K | 4000K | 5000K |
| luminous flux | 3557lm | 3611lm | 3638lm | 3707lm | 3734lm |
| System efficiency | 105lm/W | 106lm/W | 107lm/W | 109lm/W | 110lm/W |
| Luminous flux Direct | 1705lm | 1759lm | 1786lm | 1855lm | 1882lm |
| Luminous flux Indirect RGBW | 1852lm (RGBW Lumen) | 1852lm (RGBW Lumen) | 1852lm (RGBW Lumen) | 1852lm (RGBW Lumen) | 1852lm (RGBW Lumen) |
| Color rendering | 80CRI | 80CRI | 80CRI | 80CRI | 80CRI |
| beam angle | 116° | 116° | 116° | 116° | 116° |
| Light Angle | Direct - Indirect |
| Working technology of fixtures | |
|---|---|
| System Output | 34W (18W Direct - 16W Indirect) |
| Voltage Type | 220-240VAC |
| AC nominal voltage max. | 264VAC |
| Frequency max | 63Hz |
| Lamp | LED |
| Protection Class | IP20 |
| Degree of protection | Class I |
| Control | ON - OFF / DALI / CASAMBI / TUNABLE WHITE |
| Rated Life time L80/B10 at 25°C | >50000 hrs |

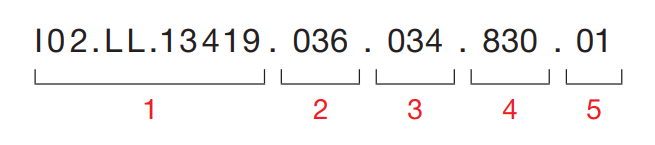

1- Product code / Armature code
2- Daimeter / Diameter
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
Frequently Asked Questions
What is the wattage of Plafo?
Plafo has a power of 34W.
What is the protection class of Plafo?
The protection class of Plafo is IP20.
Which certifications and standards does Plafo have?
Plafo carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP20.
What is the product code of Plafo?
The product (stock) code of Plafo is I02.LL.13419.
Where can I download the catalog or PDF of Plafo?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/linea/351.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/linea/Plafo%20Linea%20Led.pdf) buttons on this page.
