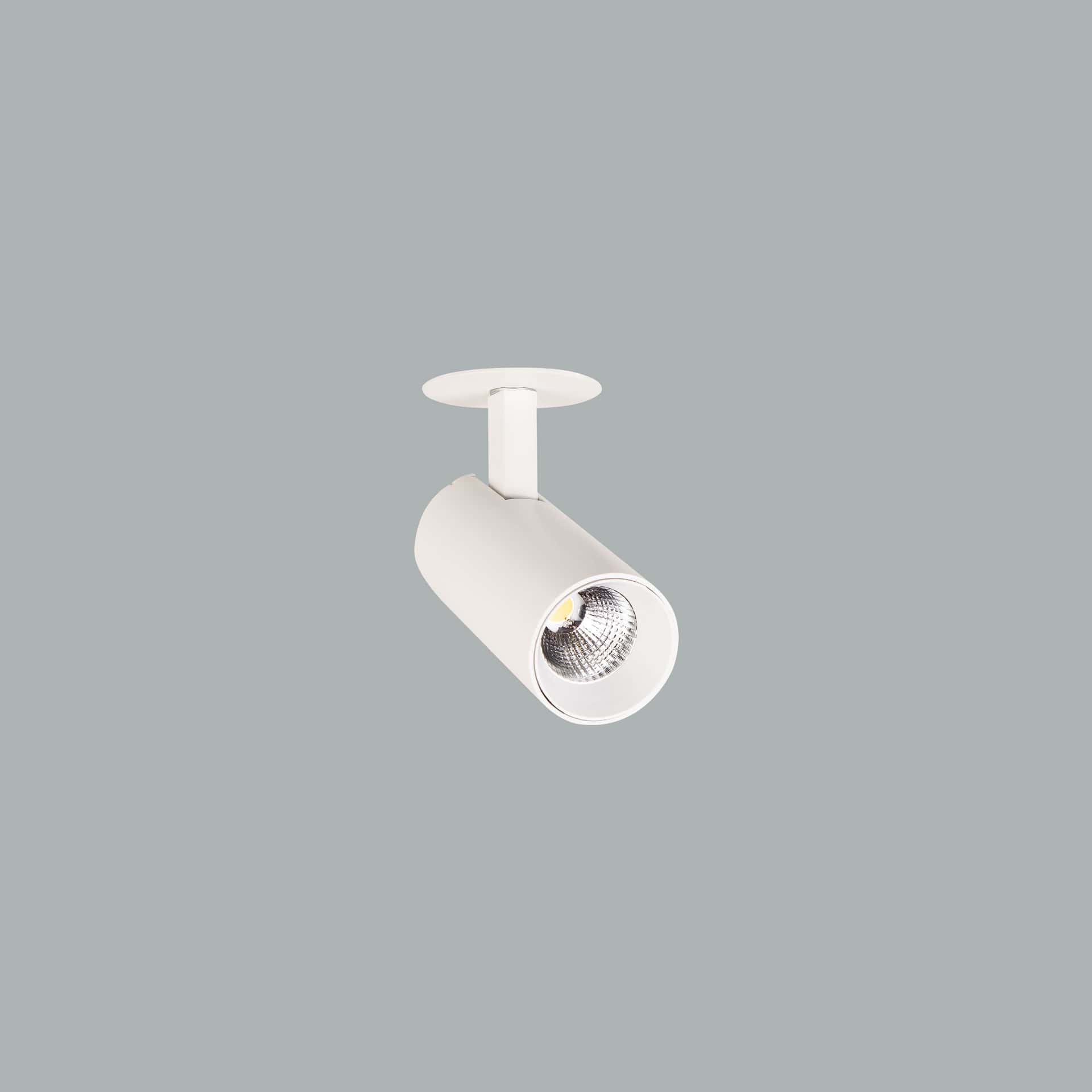

Silindir Mini Recessed
Silindir Mini Recessed is an AVOLUX LED lighting fixture in the COB Led Recessed Series category with a power of 15W and IP20 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 15W |
| Protection Class | IP20 |
| Shape | built-in |
| Optical | Reflector |
-- Aluminum injection body.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 15W | CRI>80 | I01.MLR.18201 . (..) . (...) . (..) . (..) | 2700K | 1630 |
| 3000K | 1680 | |||
| 3500K | 1714 | |||
| 4000K | 1750 | |||
| 5000K | 1800 | |||
| CRI>90 | I01.MLR.18201 . (..) . (...) . (..) . (..) | 2700K | 1515 | |
| 3000K | 1562 | |||
| 3500K | 1595 | |||
| 4000K | 1628 | |||
| 5000K | X | |||
| CRI>98 | I01.MLR.18201 . (..) . (...) . (..) . (..) | 2700K | 1105 | |
| 3000K | 1140 | |||
| 4000K | 1190 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 15W - 350mA | 827 | CRI>80 - 2700K | 930 | CRI>90 - 3000K |  | M.E. | 30° - Medium |  | 01 | white |
| 830 | CRI>80 - 3000K | 935 | CRI>90 - 3500K |  | FL | 40° - Flood |  | 02 | ral 9010 | ||
| 835 | CRI>80 - 3500K | 940 | CRI>90 - 4000K |  | W.F. | 60° - Wide Flood |  | 03 | black | ||
| 840 | CRI>80 - 4000K | 9827 | CRI>98 - 2700K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K | 9830 | CRI>98 - 3000K |  | 05 | dark gray | |||||
| 927 | CRI>90 - 2700K | 9840 | CRI>98 -4000K |  | 06 | special color |

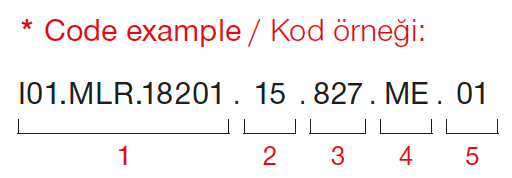

- Luminaire code
- Strength
- Kelvin

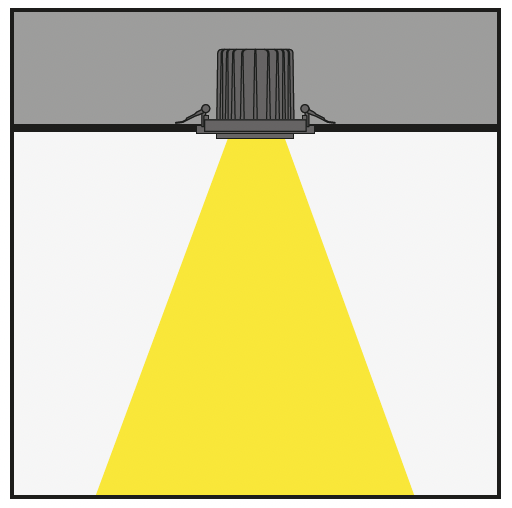

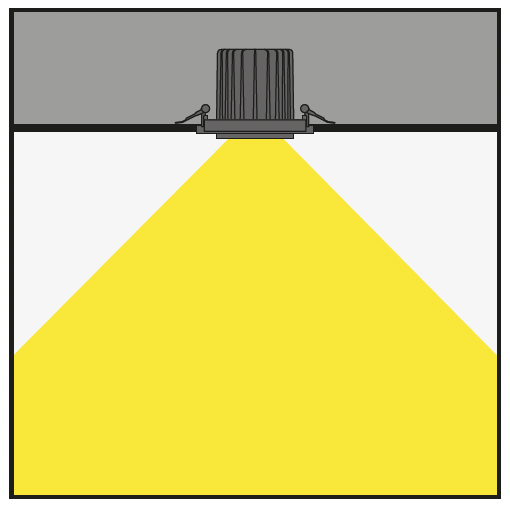

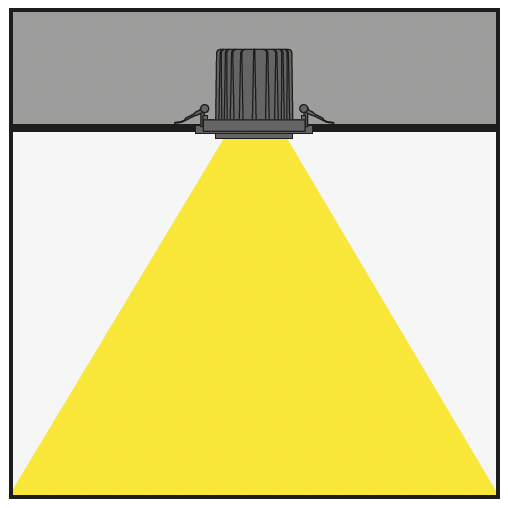

- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Silindir Mini Recessed?
Silindir Mini Recessed has a power of 15W.
What is the protection class of Silindir Mini Recessed?
The protection class of Silindir Mini Recessed is IP20.
Which certifications and standards does Silindir Mini Recessed have?
Silindir Mini Recessed carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP20.
What is the product code of Silindir Mini Recessed?
The product (stock) code of Silindir Mini Recessed is I01.MLR.18201.
Where can I download the catalog or PDF of Silindir Mini Recessed?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/430.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/recessed/SILINDIR%20Recessed.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Silindir%20Mini%20Recessed%2BI01.MLR.18201.rar) buttons on this page.
