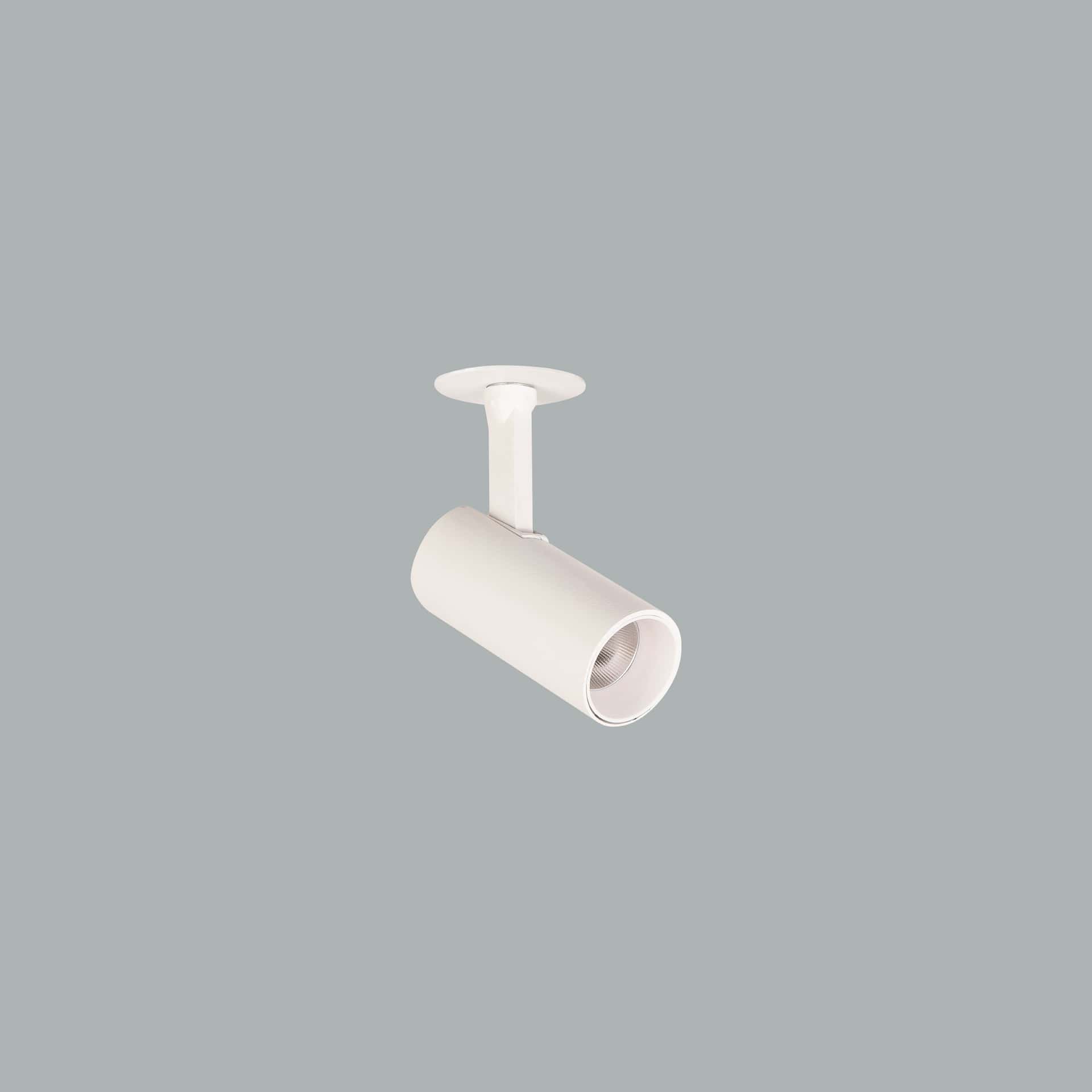

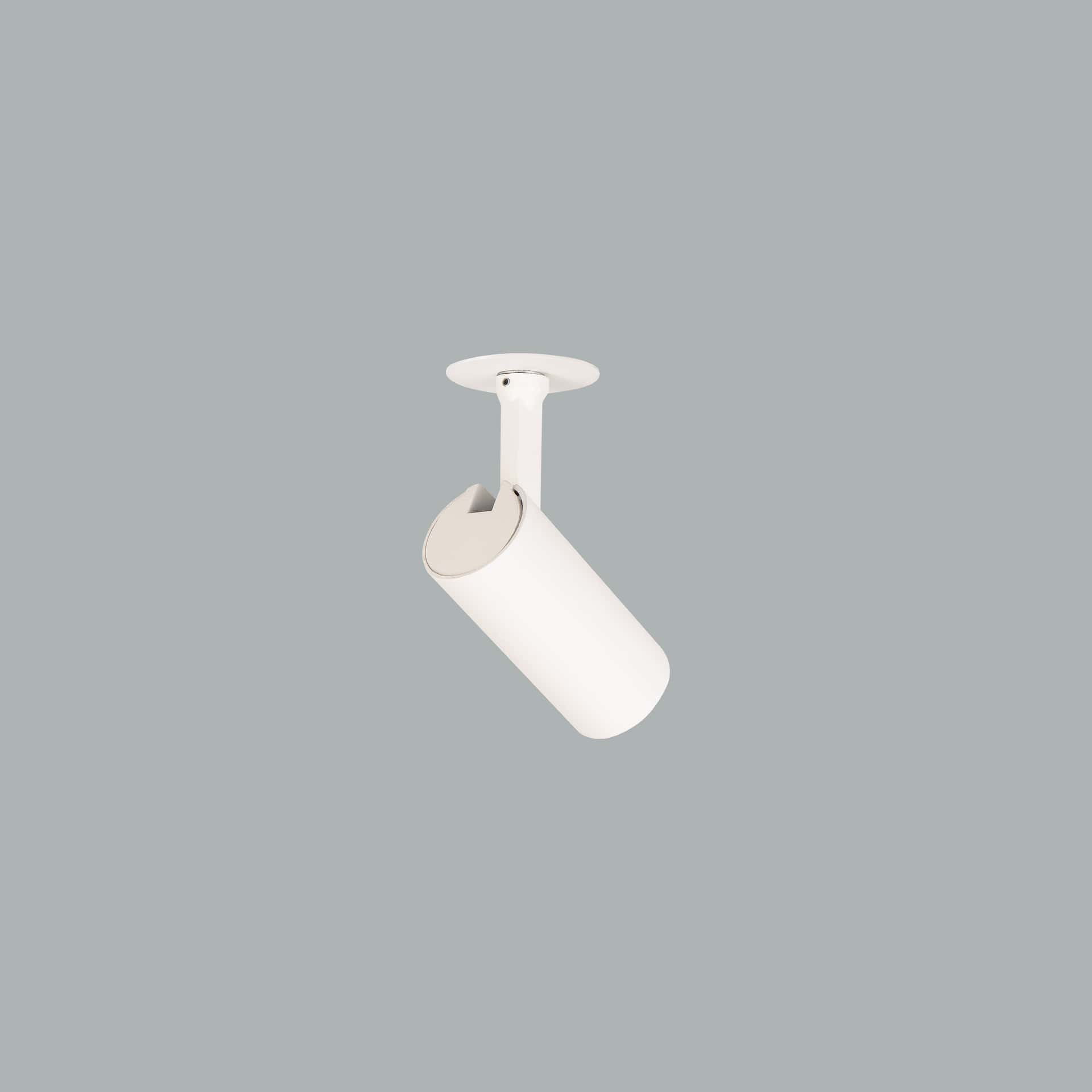

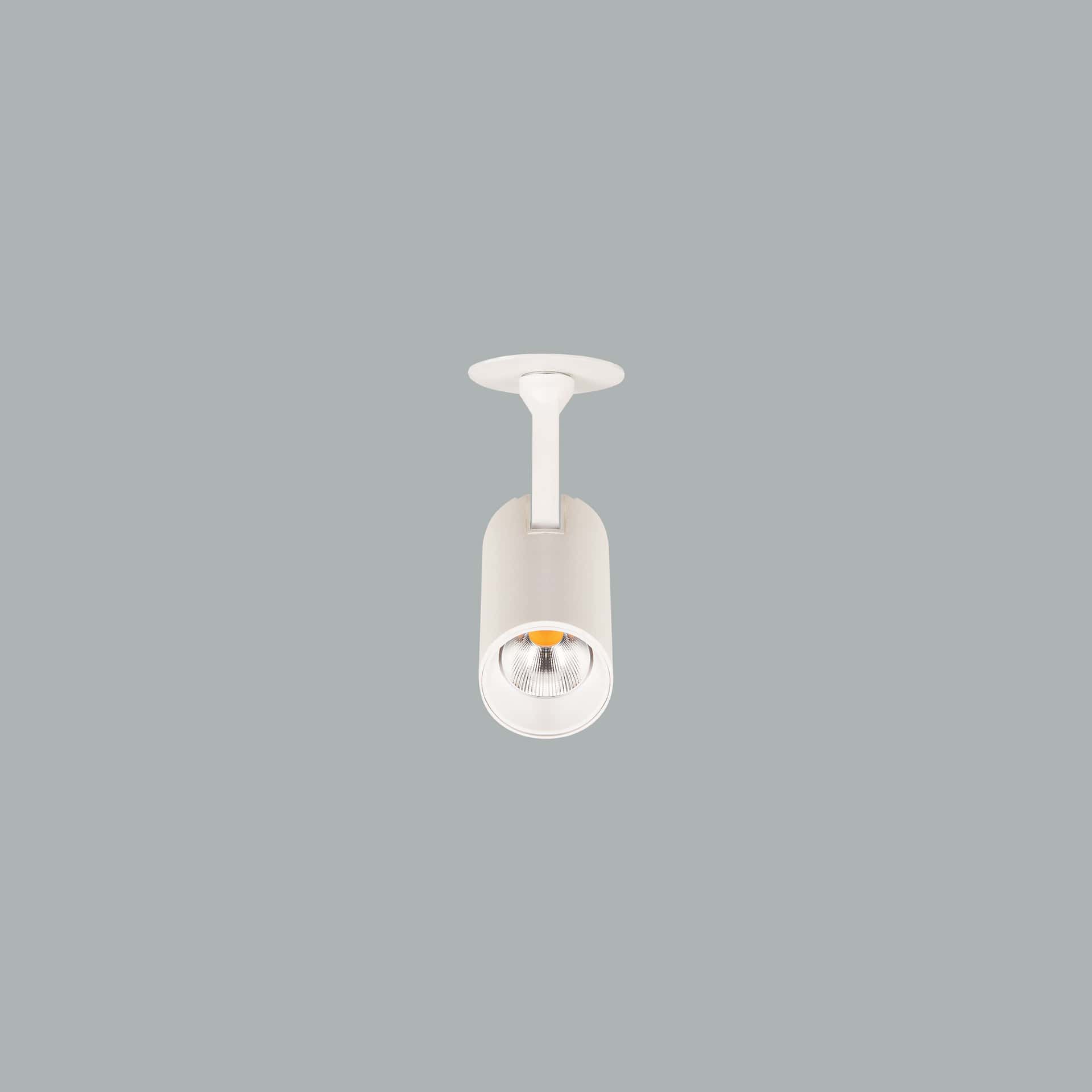

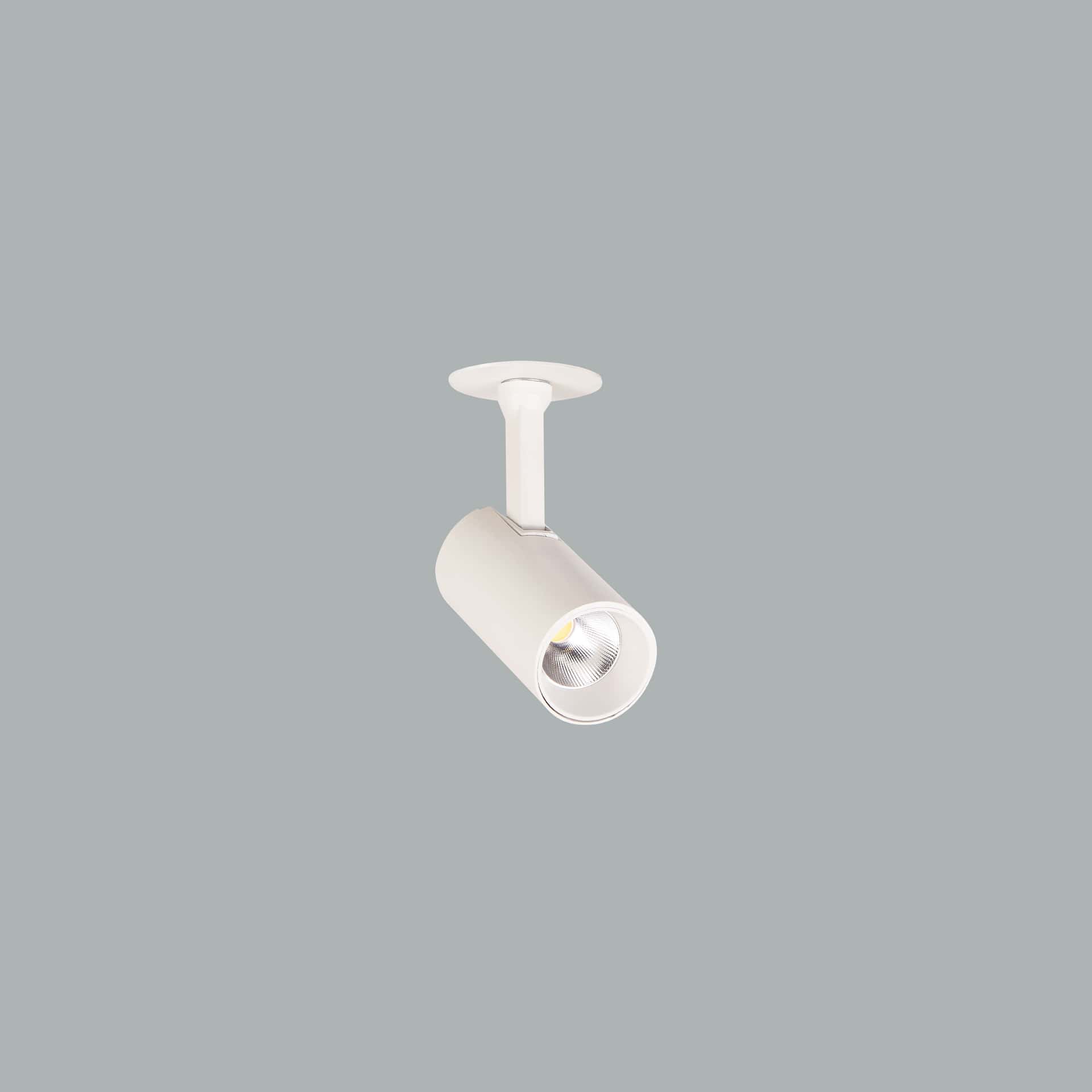

Silindir Micro Recessed
Silindir Micro Recessed is an AVOLUX LED lighting fixture in the COB Led Recessed Series category with a power of 10W and IP20 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 10W |
| Protection Class | IP20 |
| Shape | built-in |
| Optical | Reflector |
-- Aluminum injection body.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 10W | CRI>80 | I01.MLR.18215 . (..) . (...) . (..) . (..) | 2700K | 1175 |
| 3000K | 1199 | |||
| 3500K | 1225 | |||
| 4000K | 1247 | |||
| 5000K | 1275 | |||
| CRI>90 | I01.MLR.18215 . (..) . (...) . (..) . (..) | 2700K | 1093 | |
| 3000K | 1115 | |||
| 3500K | 1137 | |||
| 4000K | 1159 | |||
| 5000K | X | |||
| CRI>98 | I01.MLR.18215 . (..) . (...) . (..) . (..) | 2700K | 747 | |
| 3000K | 769 | |||
| 4000K | 800 |

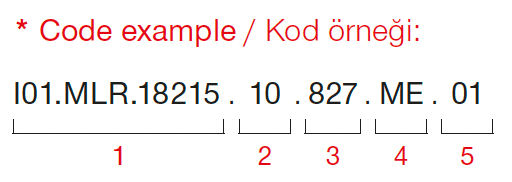

| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|

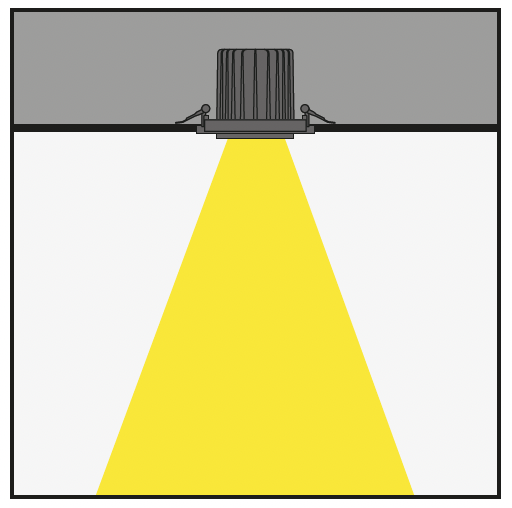

| 10 | 10W - 250mA | 827 | CRI>80 - 2700K | 930 | CRI>90 - 3000K |  | M.E. | 30° - Medium |  | 01 | white |

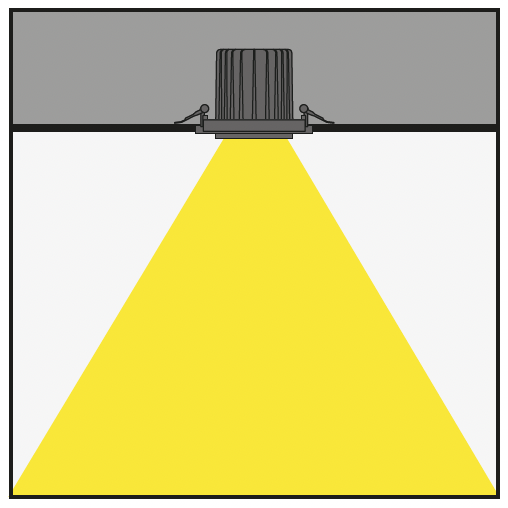

| 830 | CRI>80 - 3000K | 935 | CRI>90 - 3500K |  | FL | 40° - Flood |  | 02 | ral 9010 | ||

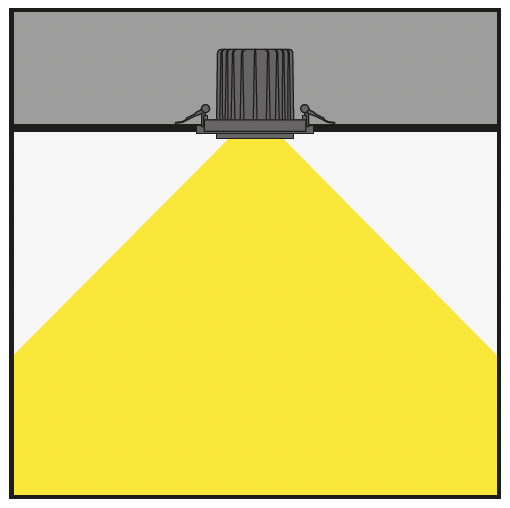

| 835 | CRI>80 - 3500K | 940 | CRI>90 - 4000K |  | W.F. | 60° - Wide Flood |  | 03 | black | ||
| 840 | CRI>80 - 4000K | 9827 | CRI>98 - 2700K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K | 9830 | CRI>98 - 3000K |  | 05 | dark gray | |||||
| 927 | CRI>90 - 2700K | 9840 | CRI>98 -4000K |  | 06 | special color |
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Silindir Micro Recessed?
Silindir Micro Recessed has a power of 10W.
What is the protection class of Silindir Micro Recessed?
The protection class of Silindir Micro Recessed is IP20.
Which certifications and standards does Silindir Micro Recessed have?
Silindir Micro Recessed carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP20.
What is the product code of Silindir Micro Recessed?
The product (stock) code of Silindir Micro Recessed is I01.MLR.18215.
Where can I download the catalog or PDF of Silindir Micro Recessed?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/431.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/recessed/SILINDIR%20Recessed.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Silindir%20Micro%20Recessed%2BI01.MLR.18215.rar) buttons on this page.
