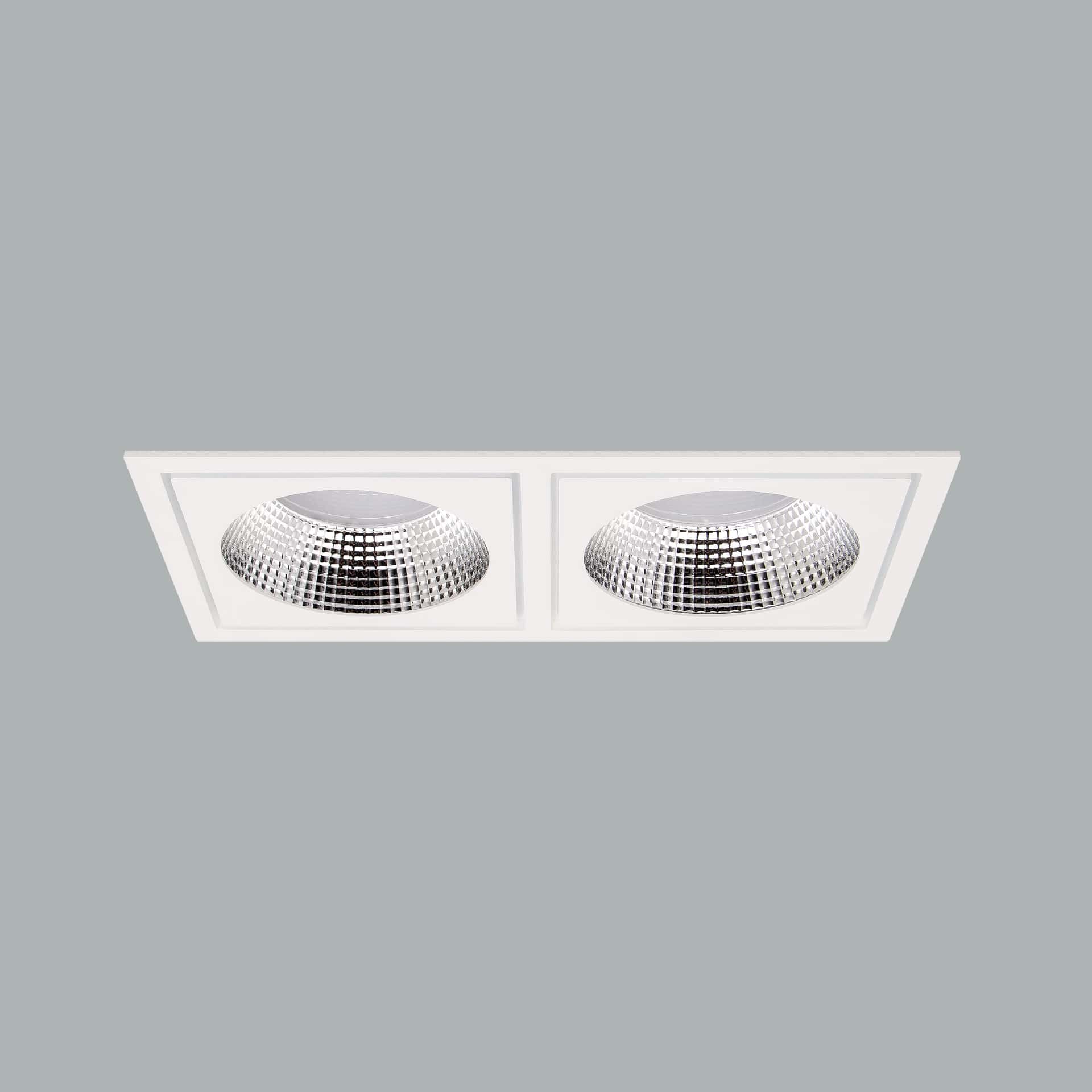

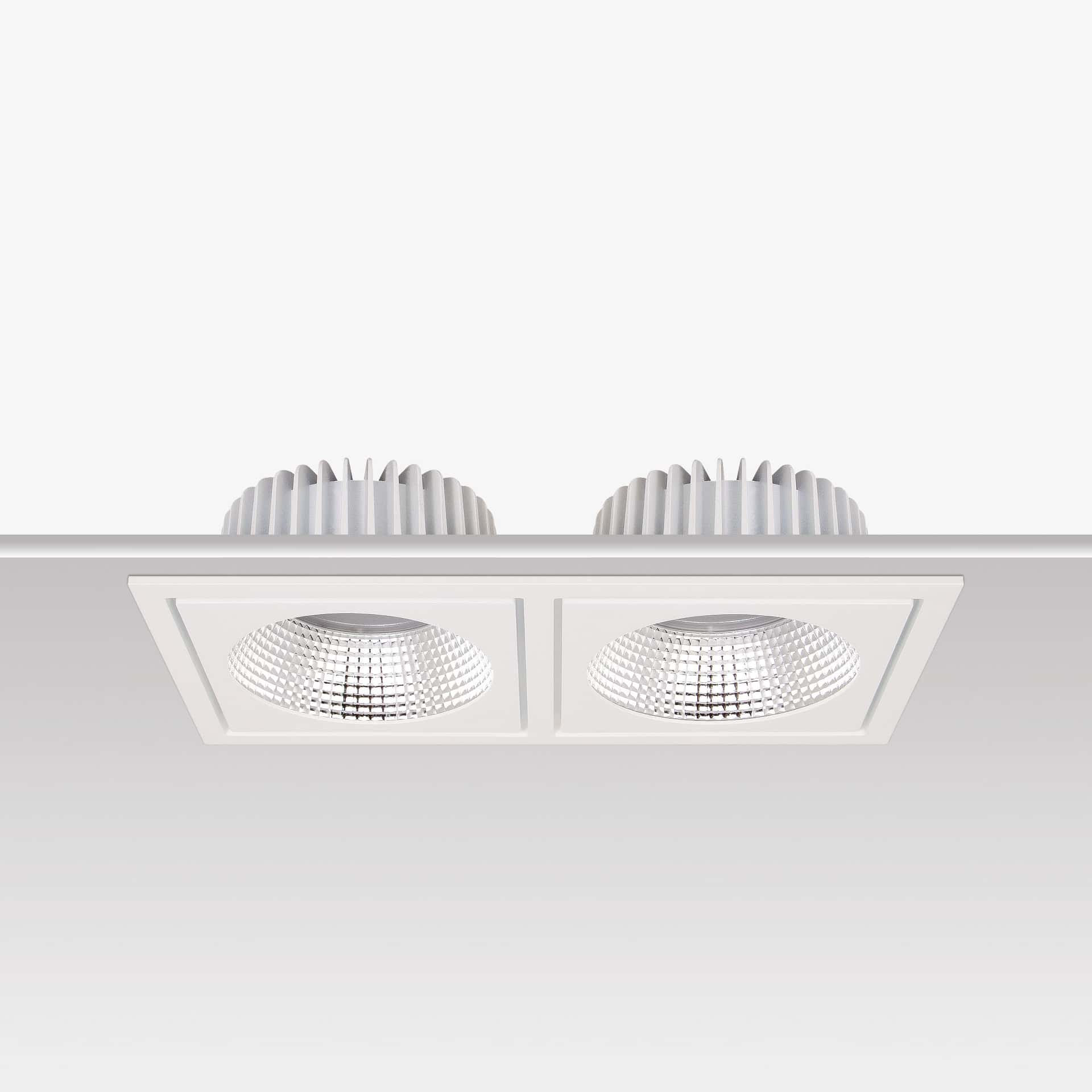

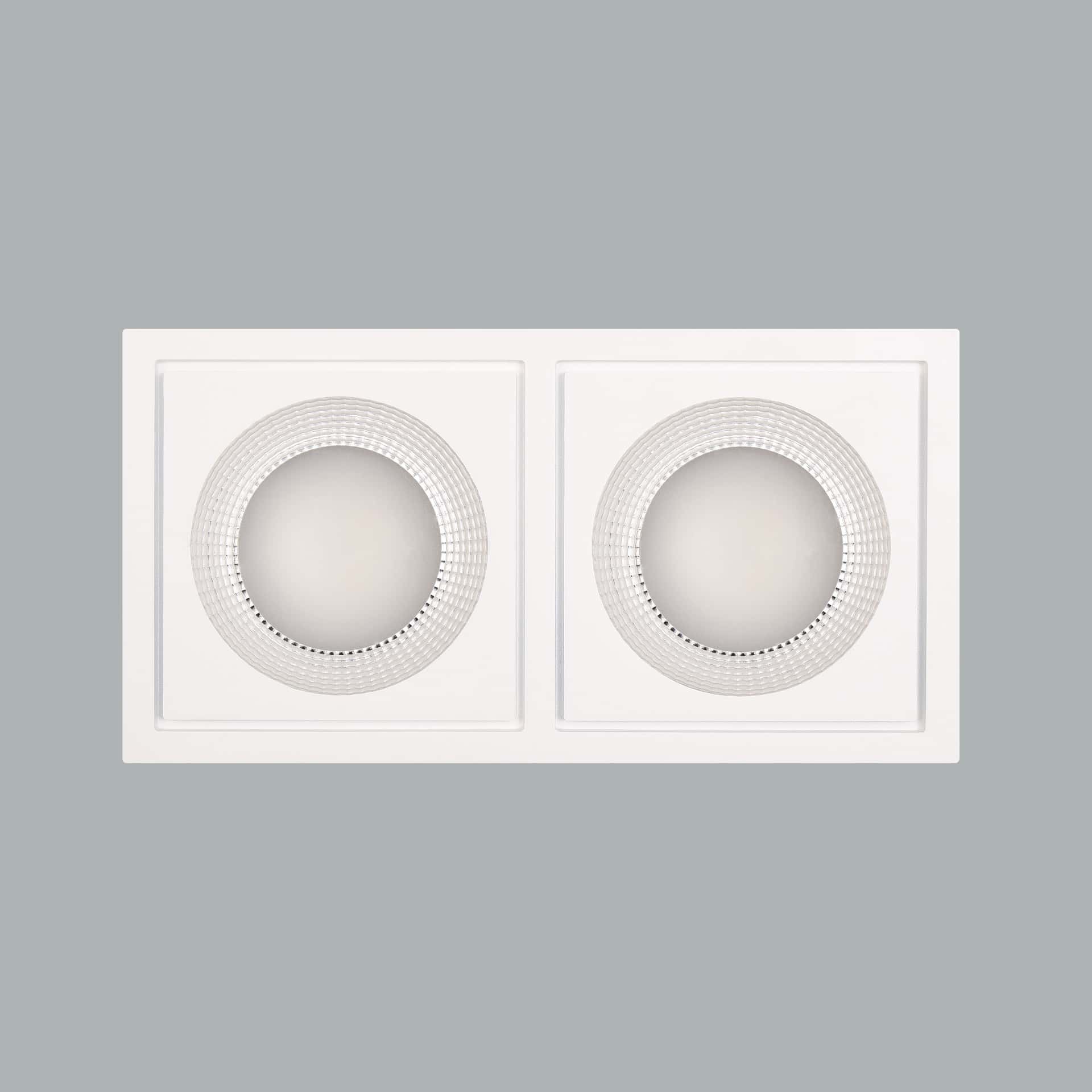

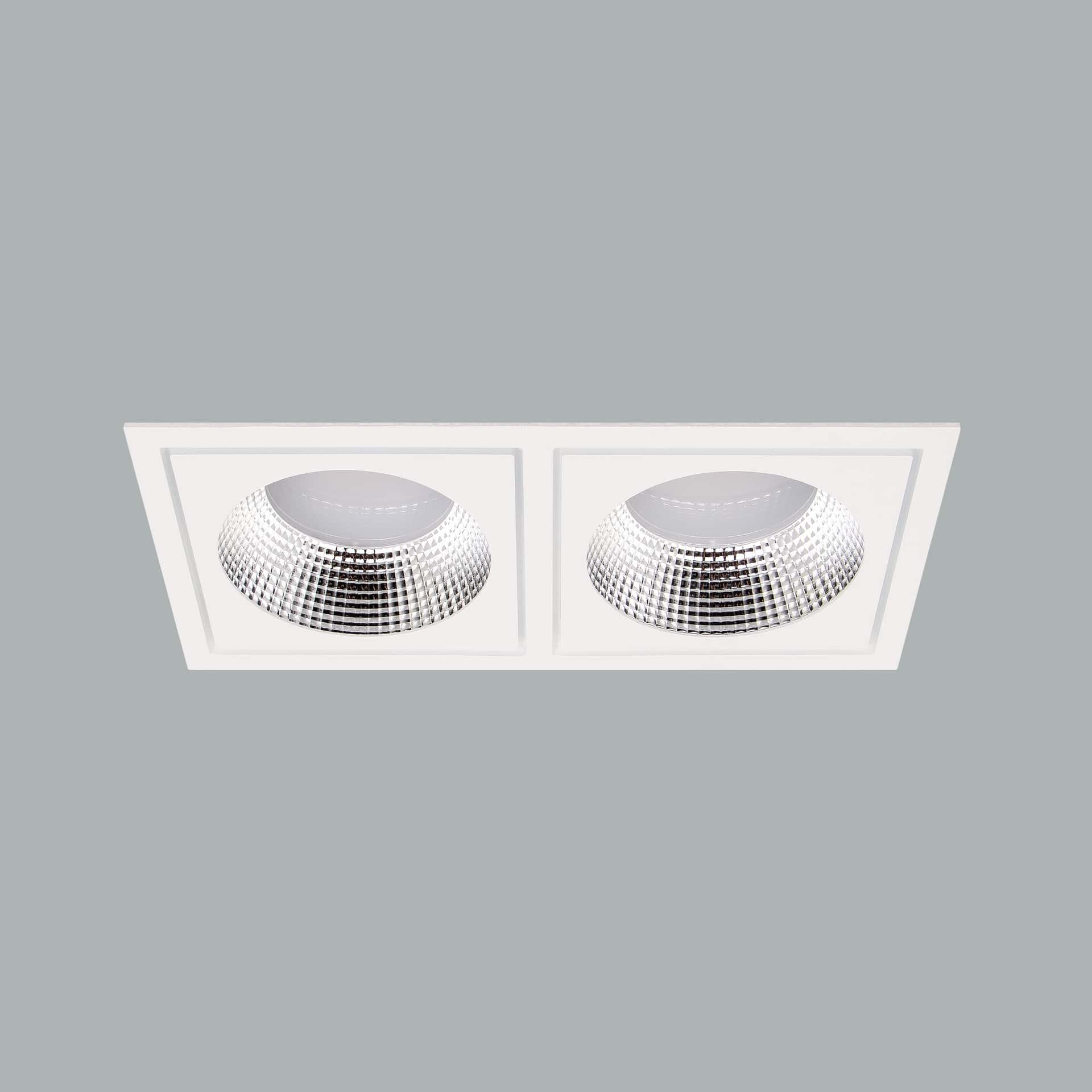

Leila Square Downlight
Leila Square Downlight is an AVOLUX LED lighting fixture in the Power LED Recessed Series category with a power of 2x21W and IP40 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 2x21W |
| Protection Class | IP40 |
| Shape | built-in |
| Optical | Reflector |
-- Aluminum injection body.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 2x21W | CRI>80 | I02.PLR.15073 . (..) . (...) . (..) . (..) | 2700K | 2870 |
| 3000K | 2960 | |||
| 3500K | 3020 | |||
| 4000K | 3080 | |||
| 5000K | 3170 | |||
| CRI>90 | I02.PLR.15073 . (..) . (...) . (..) . (..) | 2700K | 2670 | |
| 3000K | 2750 | |||
| 3500K | 2810 | |||
| 4000K | 2864 | |||
| 5000K | X | |||
| CRI>98 | I02.PLR.15073 . (..) . (...) . (..) . (..) | 2700K | X | |
| 3000K | X | |||
| 4000K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 21 | 2x21W - 500mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | W.F. | 2x68° - Wide Flood |  | 01 | white |
| 16 | 2x16W - 350mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color |

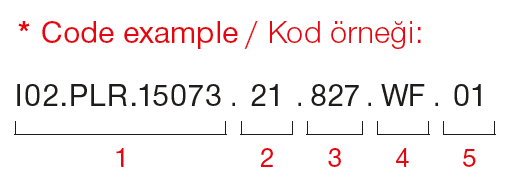

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Leila Square Downlight?
Leila Square Downlight has a power of 2x21W.
What is the protection class of Leila Square Downlight?
The protection class of Leila Square Downlight is IP40.
Which certifications and standards does Leila Square Downlight have?
Leila Square Downlight carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP40.
What is the product code of Leila Square Downlight?
The product (stock) code of Leila Square Downlight is I02.PLR.15073.
Where can I download the catalog or PDF of Leila Square Downlight?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/688-689.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/downlight/LEILA%20SQUARE%20Downlight.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Leila%20Squrae%20Downl%C4%B1ght%20I02.PLR.15071.rar) buttons on this page.
