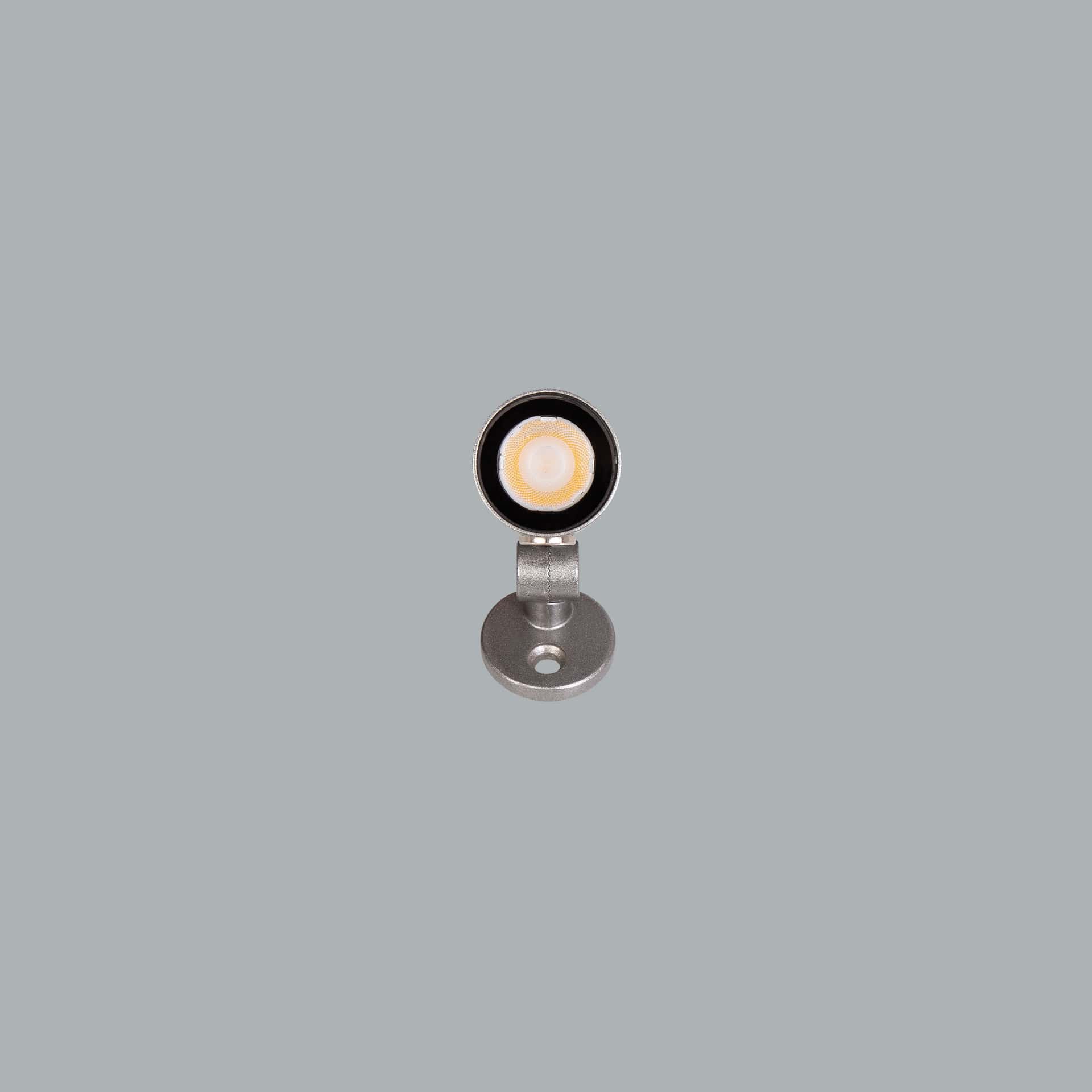

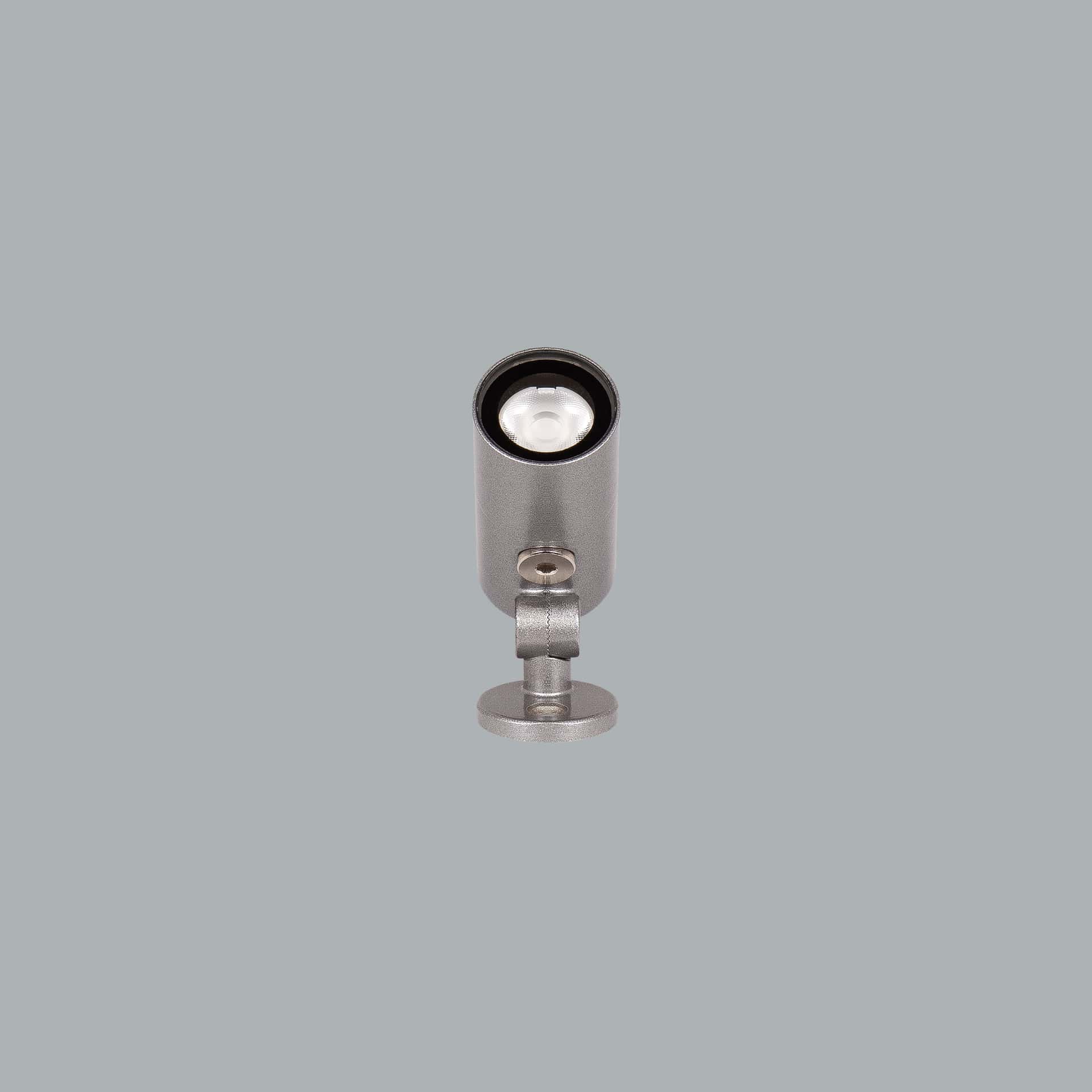

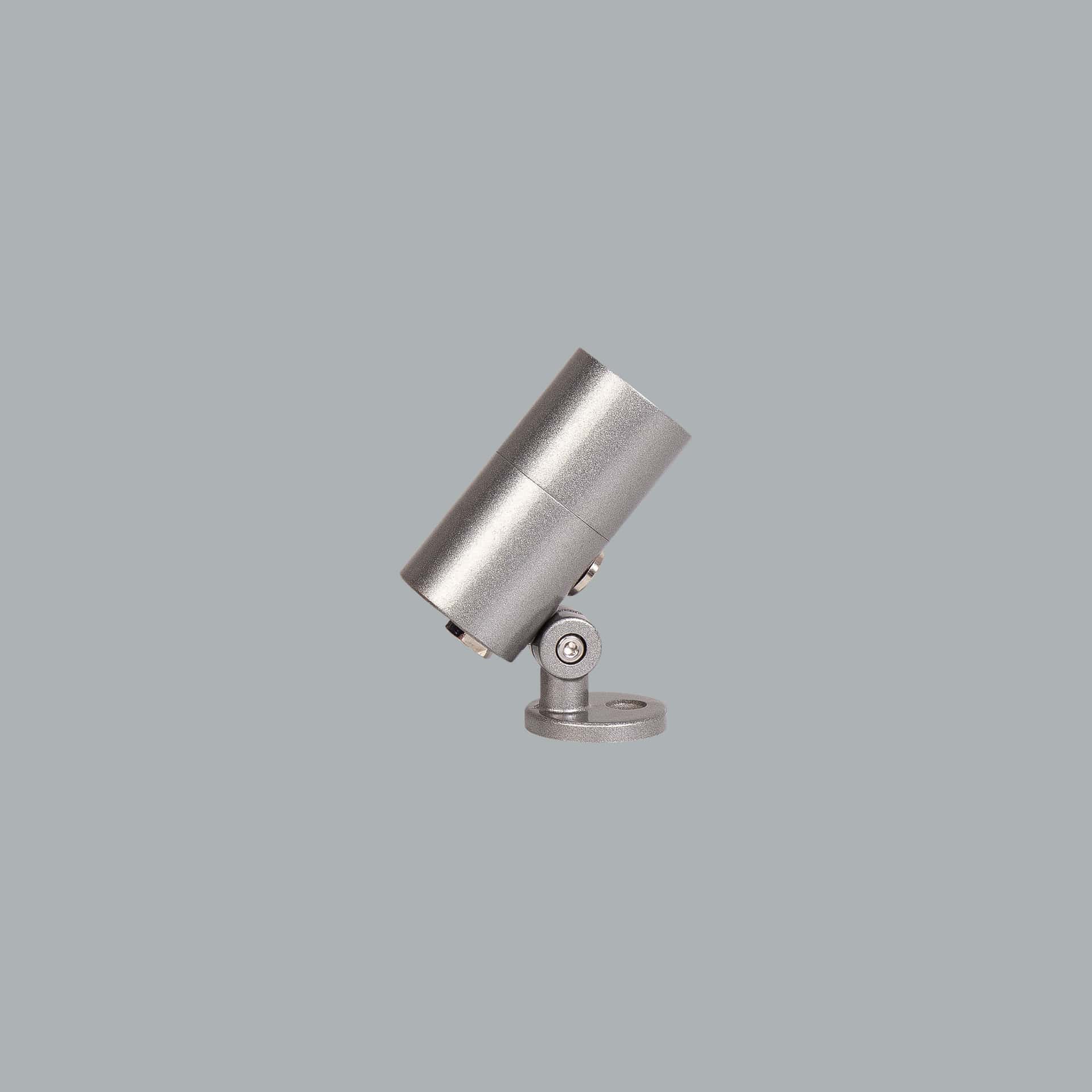

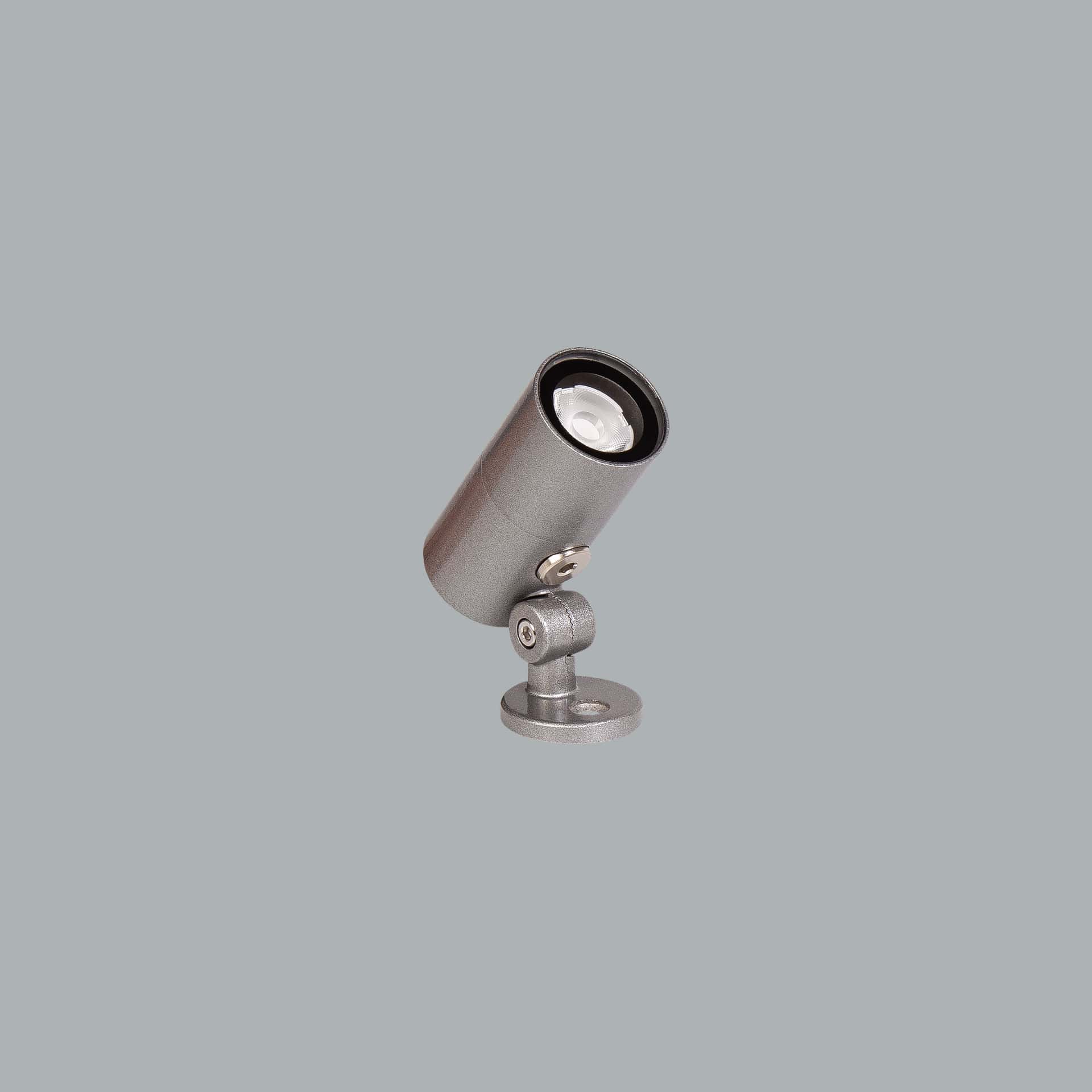

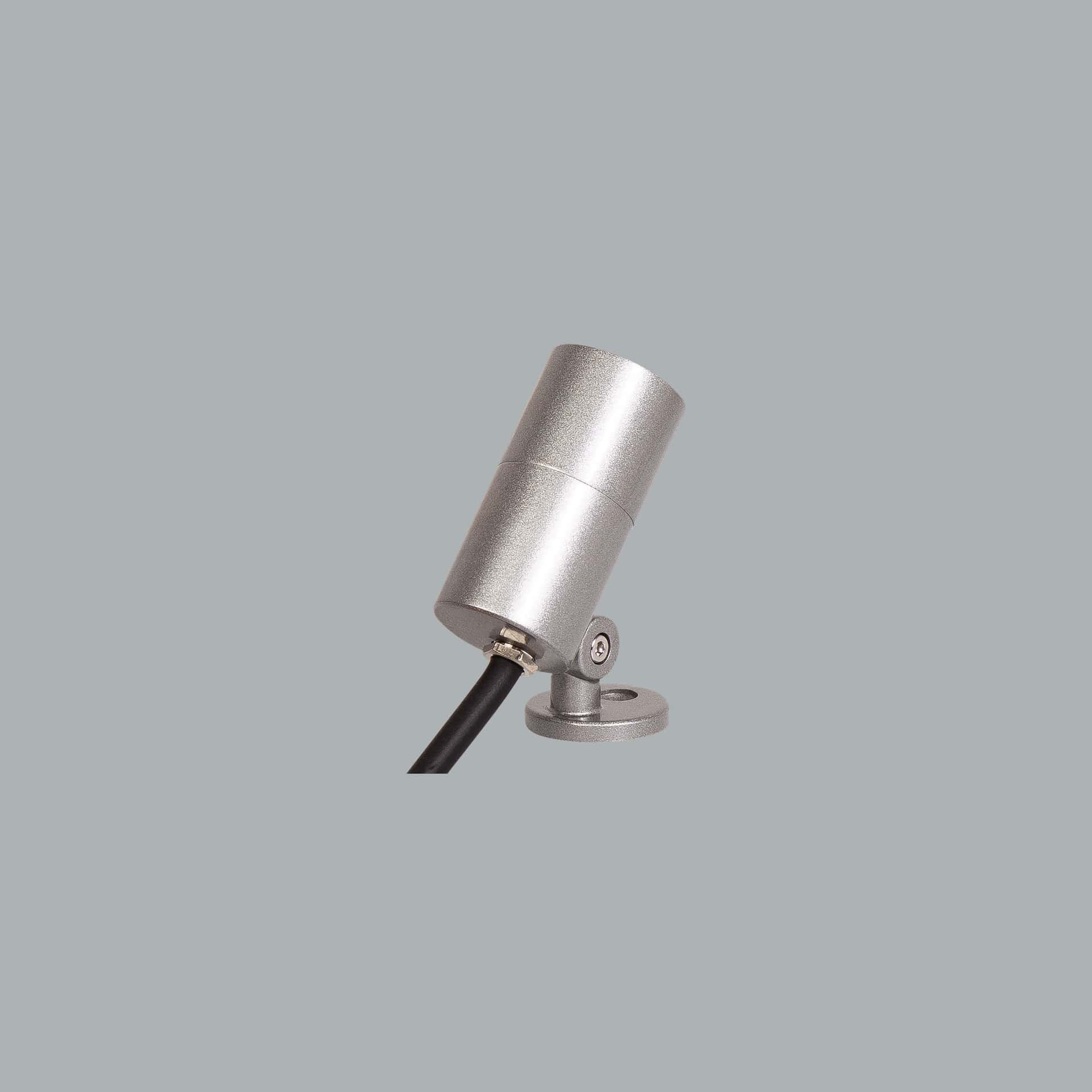

Nano Mini
Nano Mini is an AVOLUX LED lighting fixture in the Floodlight Series category with a power of 6W and IP66 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 6W |
| Protection Class | IP66 |
| Shape | Projector |
| Optical | Lens |
-- LED projector fixture with symmetrical light output.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 6W | CRI>70 | O07.WL.00571 . (..) . (...) . (..) . (..) | 2700K | 524 |
| 3000K | 533 | |||
| 3500K | 557 | |||
| 4000K | 570 | |||
| 5000K | 576 | |||
| 6500K | 582 | |||
| CRI>80 | O07.WL.00571 . (..) . (...) . (..) . (..) | 2700K | 522 | |
| 3000K | 529 | |||
| 3500K | 553 | |||
| 4000K | 565 | |||
| 5000K | 571 | |||
| 6500K | 577 | |||
| Dynamic White | O07.WL.00571 . (..) . (...) . (..) . (..) | 2700K - 6000K | X | |
| RGBW | O07.WL.00571 . (..) . (...) . (..) . (..) | RGBW | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 6W - 150mA | 727 | CRI>70 - 2700K | 827 | CRI>80 - 2700K |  | SP | 24° - Spot |  | 01 | white |
| 730 | CRI>70- 3000K | 830 | CRI>80 - 3000K |  | M.E. | 28° - Medium |  | 02 | ral 9010 | ||
| 735 | CRI>70- 3500K | 835 | CRI>80 - 3500K |  | FL | 72° - Flood |  | 03 | black | ||
| 740 | CRI>70- 4000K | 840 | CRI>80 - 4000K |  | 04 | gray | |||||
| 750 | CRI>70- 5000K | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||
| 765 | CRI>70 - 6500K | T.W. | 2700K - 6000K |  | 06 | special color | |||||
| RGBW | RGBW |

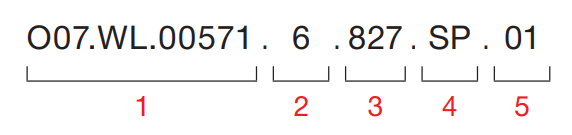

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
Frequently Asked Questions
What is the wattage of Nano Mini?
Nano Mini has a power of 6W.
What is the protection class of Nano Mini?
The protection class of Nano Mini is IP66.
Which certifications and standards does Nano Mini have?
Nano Mini carries the following certifications and standards: PBS, SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP66, IK08.
What is the product code of Nano Mini?
The product (stock) code of Nano Mini is O07.WL.00571.
Where can I download the catalog or PDF of Nano Mini?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/outdoor/341.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/Projekt%C3%B6r/Nano.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/outdoor/NanoMini.zip) buttons on this page.
