Nano Midi

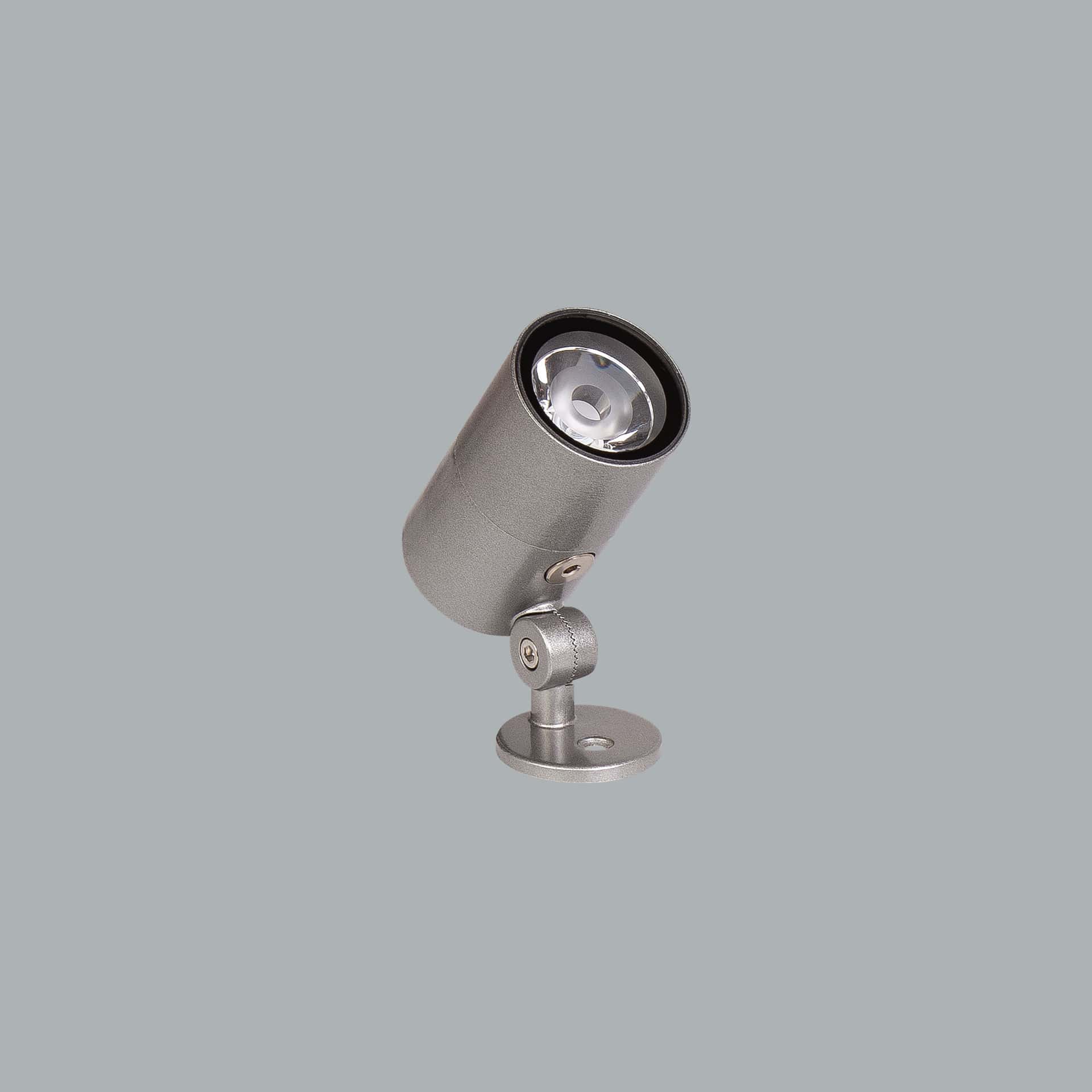

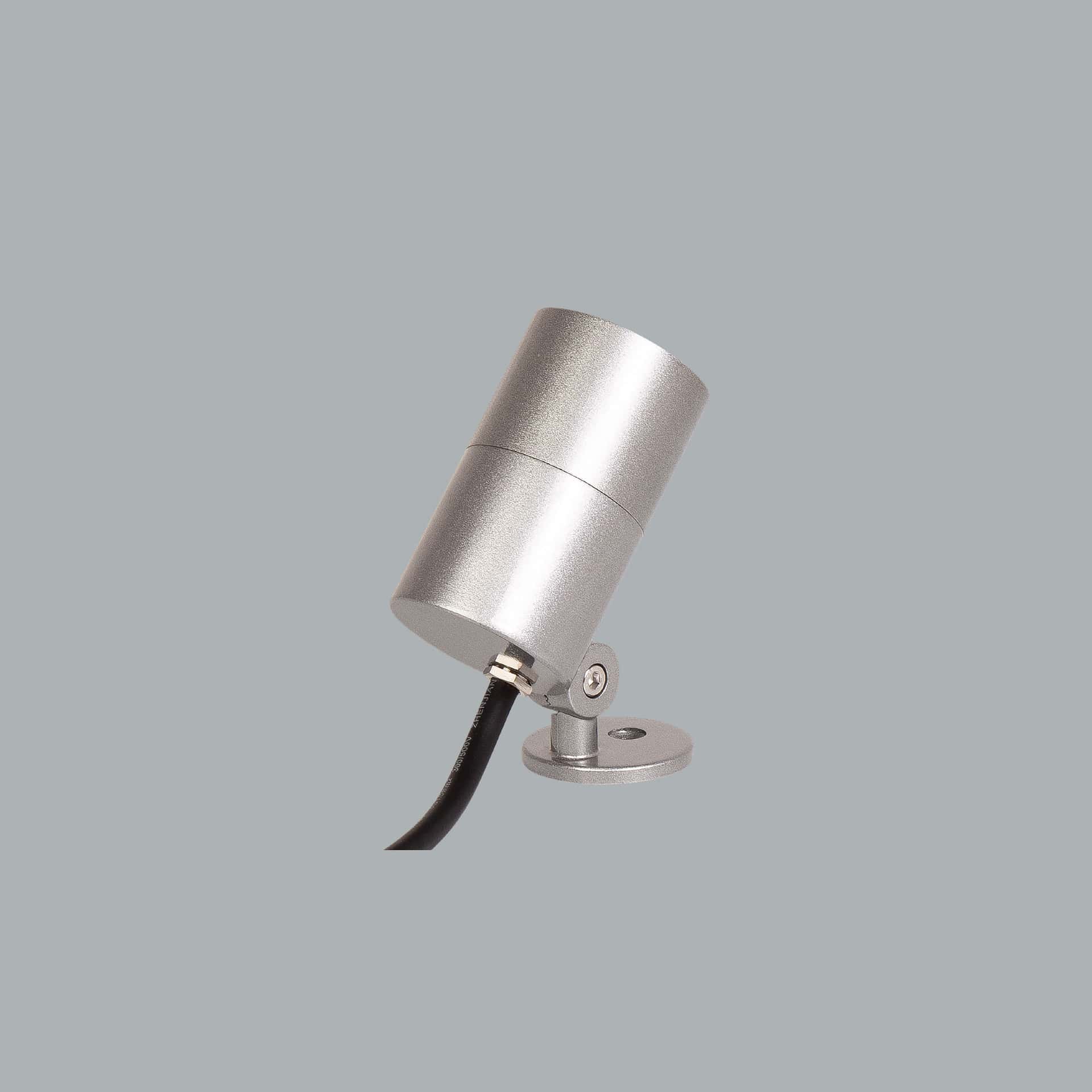

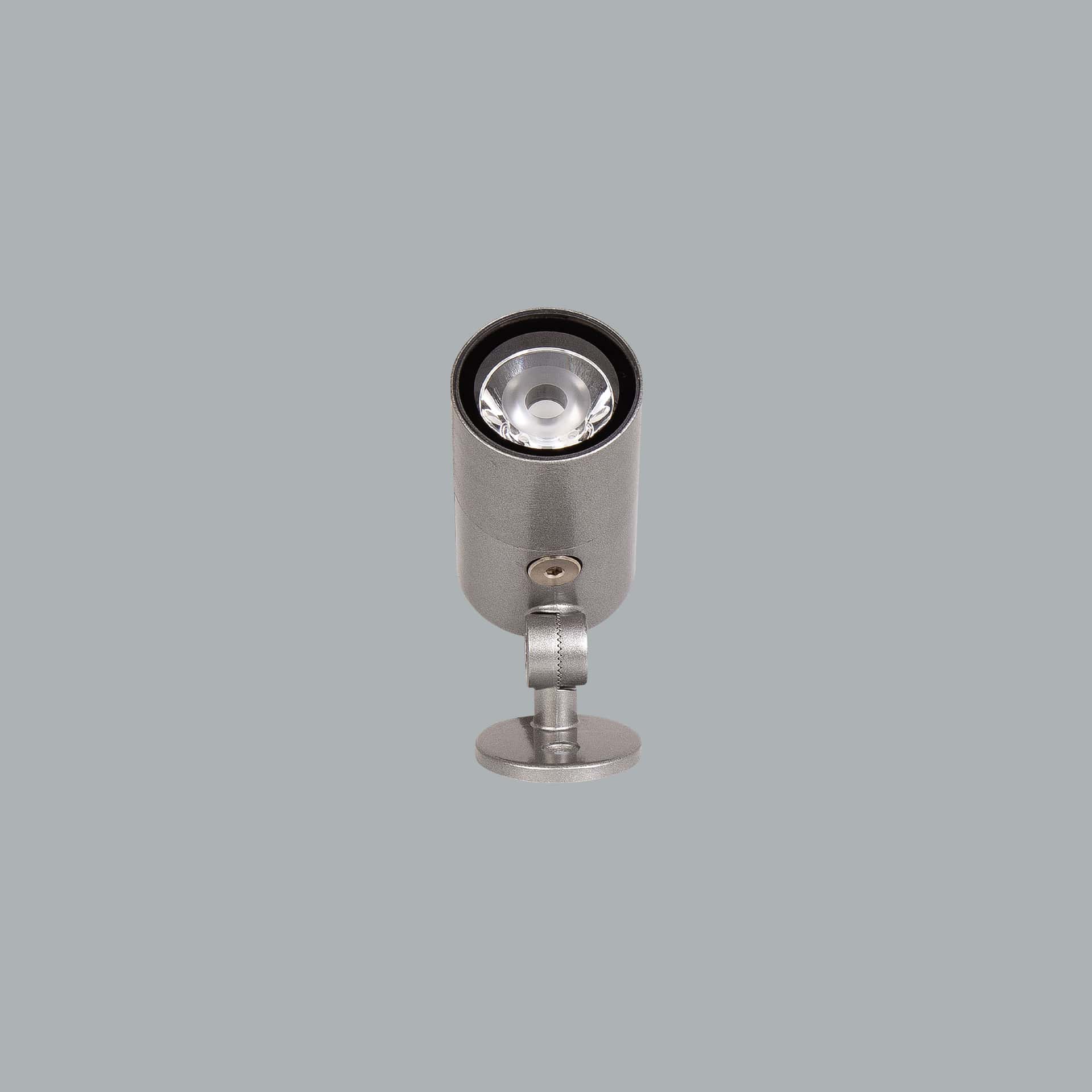

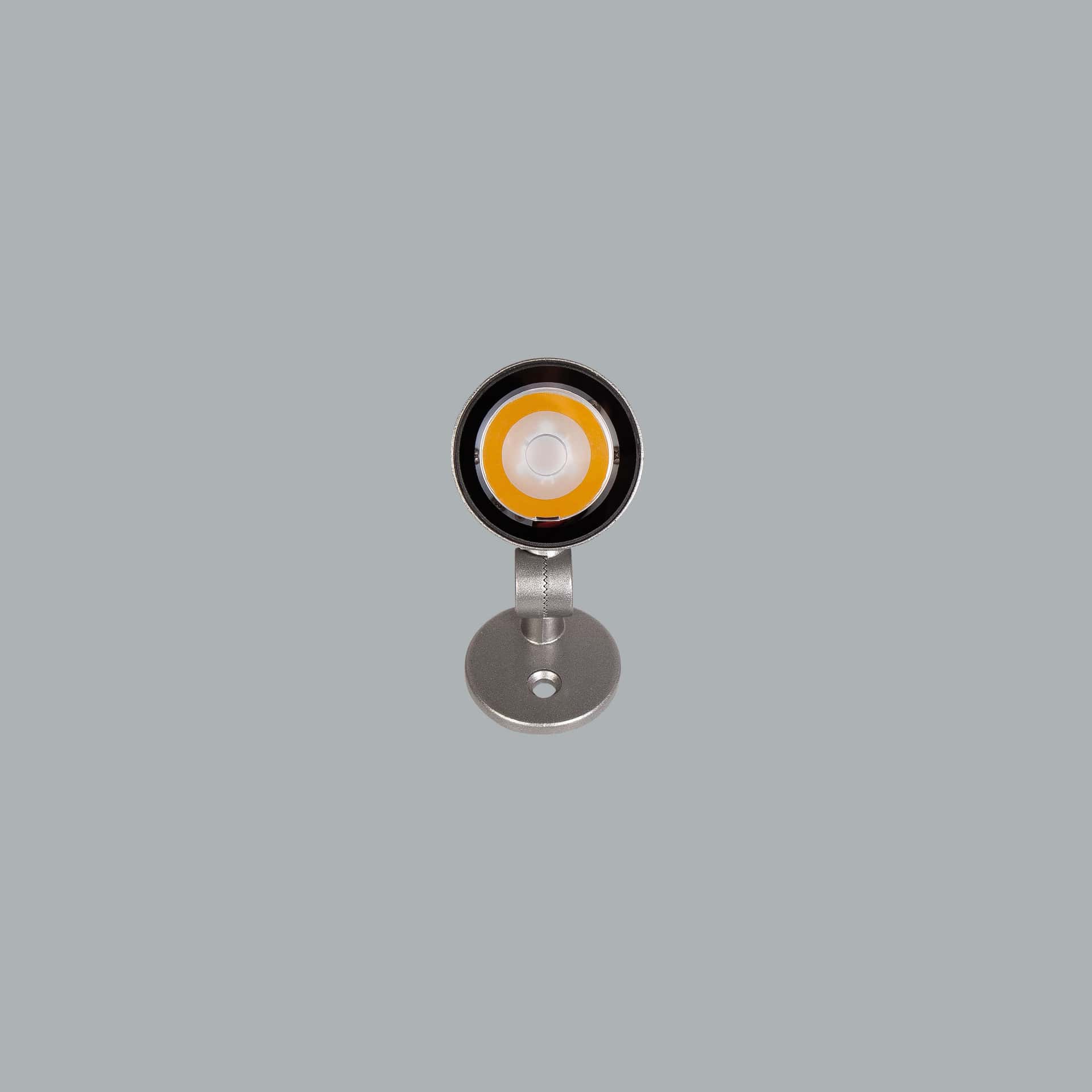

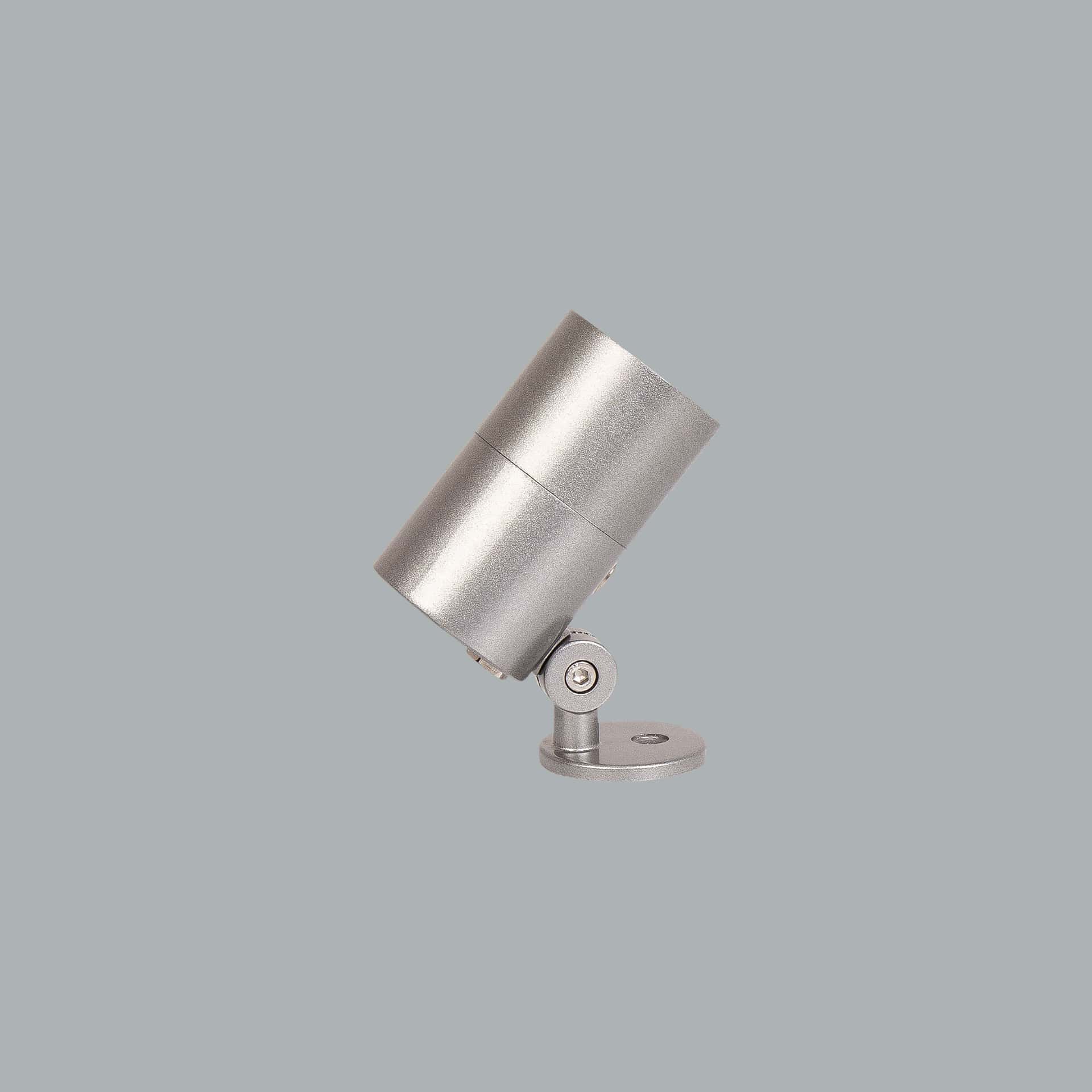

Nano Midi is an AVOLUX LED lighting fixture in the Floodlight Series category with a power of 10W and IP66 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 10W |
| Protection Class | IP66 |
| Shape | Projector |
| Optical | Lens |
-- LED projector fixture with symmetrical light output.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 10W | CRI>70 | O07.WL.00572 . (..) . (...) . (..) . (..) | 2700K | 837 |
| 3000K | 851 | |||
| 3500K | 890 | |||
| 4000K | 898 | |||
| 5000K | 919 | |||
| 6500K | 929 | |||
| CRI>80 | O07.WL.00572 . (..) . (...) . (..) . (..) | 2700K | 822 | |
| 3000K | 832 | |||
| 3500K | 870 | |||
| 4000K | 889 | |||
| 5000K | 898 | |||
| 6500K | 908 | |||
| Dynamic White | O07.WL.00572 . (..) . (...) . (..) . (..) | 2700K - 6000K | X | |
| RGBW | O07.WL.00572 . (..) . (...) . (..) . (..) | RGBW | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 10W - 250mA | 727 | CRI>70 - 2700K | 827 | CRI>80 - 2700K |  | SS | 6° - Super Spot |  | 01 | white |
| 730 | CRI>70- 3000K | 830 | CRI>80 - 3000K |  | SP | 10° - Spot |  | 02 | ral 9010 | ||
| 735 | CRI>70- 3500K | 835 | CRI>80 - 3500K |  | M.E. | 33° - Medium |  | 03 | black | ||
| 740 | CRI>70- 4000K | 840 | CRI>80 - 4000K |  | 04 | gray | |||||
| 750 | CRI>70- 5000K | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||
| 765 | CRI>70 - 6500K | T.W. | 2700K - 6000K |  | 06 | special color | |||||
| RGBW | RGBW |

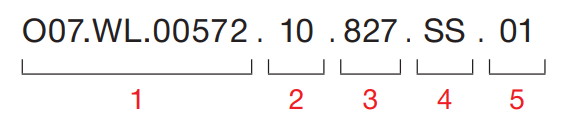

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
Frequently Asked Questions
What is the wattage of Nano Midi?
Nano Midi has a power of 10W.
What is the protection class of Nano Midi?
The protection class of Nano Midi is IP66.
Which certifications and standards does Nano Midi have?
Nano Midi carries the following certifications and standards: PBS, SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP66, IK08.
What is the product code of Nano Midi?
The product (stock) code of Nano Midi is O07.WL.00572.
Where can I download the catalog or PDF of Nano Midi?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/outdoor/340.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/Projekt%C3%B6r/Nano.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/outdoor/NanoMidi.zip) buttons on this page.
