Mavi Mini Deco
Mavi Mini Deco is an AVOLUX LED lighting fixture in the COB Led Tracklight Series category with a power of 31W and IP20 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 31W |
| Protection Class | IP20 |
| Shape | rayspot |
| Optical | Reflector |
DESCRIPTION
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- With 3-Phase universal rail adapter.
-- Mechanical locking with 90° vertical and 350° horizontal movement capability
joint system.
-- Tempered glass.
-- Classic Phase DIM option can be applied.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
--Honeycomb Filter, Color Filter, Anti-Glare and Viewfinder accessories
options can be applied.
-- Very Narrow, Narrow, Medium, Wide and Very Wide reflector angle options
available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED
options are available.
-- Efficiency up to 131lm/W.
-- High color compatibility: <3 SDCM
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 31W | CRI>80 | I01.MLT.20838 . (..) . (...) . (..) . (..) | 2700K | 3611 |
| 3000K | 3807 | |||
| 3500K | 3860 | |||
| 4000K | 4009 | |||
| 5000K | 4285 | |||
| CRI>90 | I01.MLT.20838 . (..) . (...) . (..) . (..) | 2700K | 3319 | |
| 3000K | 3270 | |||
| 3500K | 3355 | |||
| 4000K | 3379 | |||
| 5000K | X | |||
| CRI>98 | I01.MLT.20838 . (..) . (...) . (..) . (..) | 2700K | 2728 | |
| 3000K | 2845 | |||
| 4000K | 3043 | |||
| Meat COB | I01.MLT.20838 . (..) . (...) . (..) . (..) | 1800K | 2278 | |
| Food COB | I01.MLT.20838 . (..) . (...) . (..) . (..) | 2400K | 2345 | |
| Pisces COB | I01.MLT.20838 . (..) . (...) . (..) . (..) | 6600K | 3100 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 31 | 31W - 800mA | 827 | CRI>80 - 2700K | 9827 | CRI>98 - 2700K |  | SP | 20° - Spot |  | 01 | white |
| 28 | 28W - 700mA | 830 | CRI>80 - 3000K | 9830 | CRI>98 - 3000K |  | M.E. | 30° - Medium |  | 02 | ral 9010 |
| 24 | 24W - 600mA | 835 | CRI>80 - 3500K | 9840 | CRI>98 -4000K |  | FL | 40° - Flood |  | 03 | black |
| 20 | 20W - 500mA | 840 | CRI>80 - 4000K | MEAT | 1800K |  | W.F. | 60° - Wide Flood |  | 04 | gray |
| 850 | CRI>80 - 5000K | GOLD | 2400K |  | 05 | dark gray | |||||
| 927 | CRI>90 - 2700K | fish | 6600K |  | 06 | special color | |||||
| 930 | CRI>90 - 3000K | ||||||||||
| 935 | CRI>90 - 3500K | ||||||||||
| 940 | CRI>90 - 4000K |

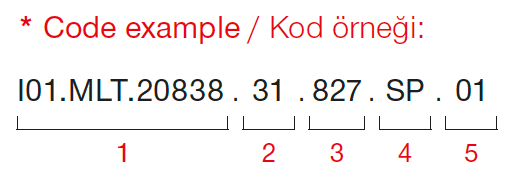

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Mavi Mini Deco?
Mavi Mini Deco has a power of 31W.
What is the protection class of Mavi Mini Deco?
The protection class of Mavi Mini Deco is IP20.
Which certifications and standards does Mavi Mini Deco have?
Mavi Mini Deco carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class II, IP20.
What is the product code of Mavi Mini Deco?
The product (stock) code of Mavi Mini Deco is I01.MLT.20838.
Where can I download the catalog or PDF of Mavi Mini Deco?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/103.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/tracklight/MAVI%20Tracklight.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Mavi%20Mini%20Deco%2BI01.MLT.20838.rar) buttons on this page.
