Bavyera

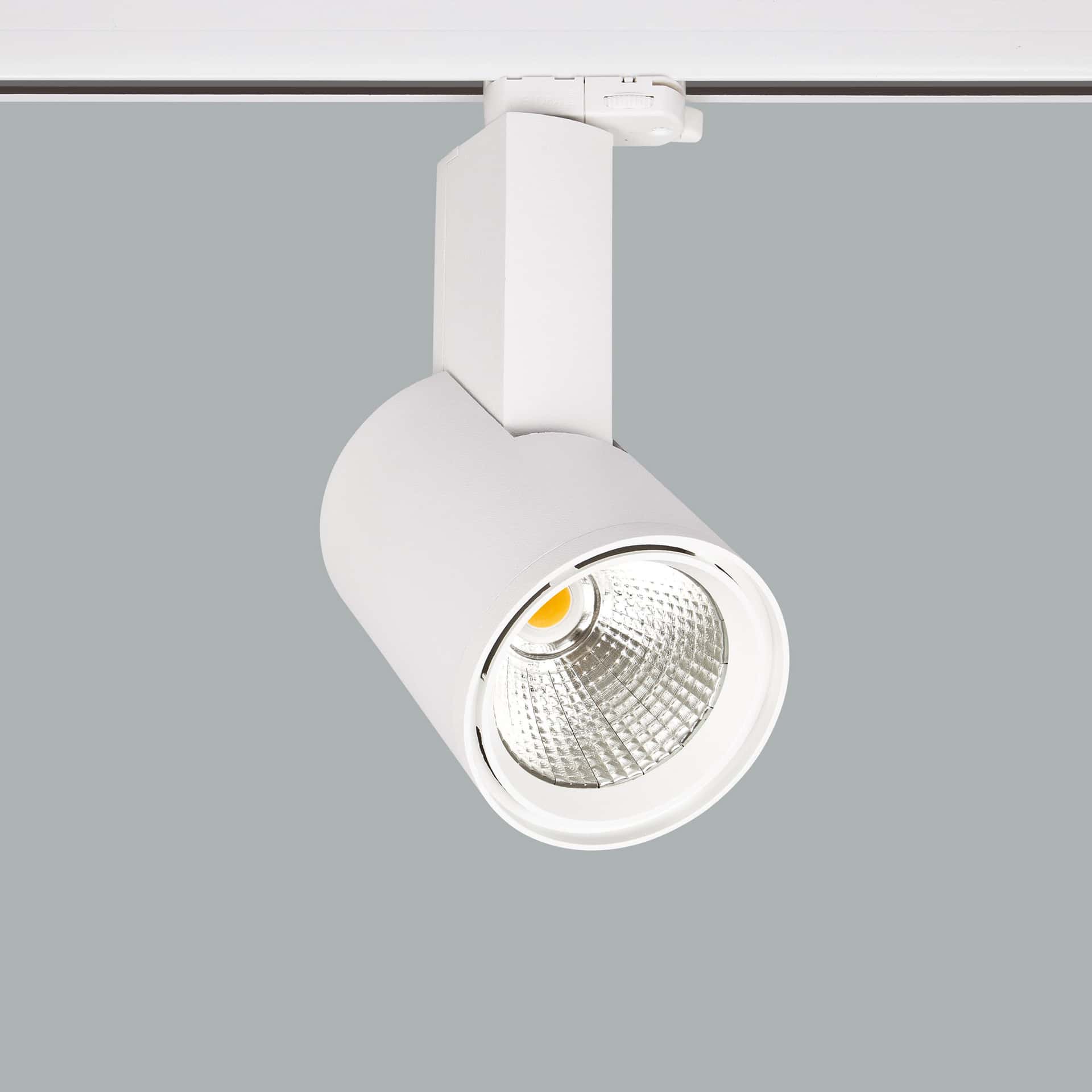

Bavyera is an AVOLUX LED lighting fixture in the COB Led Tracklight Series category with a power of 35W and IP20 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 35W |
| Protection Class | IP20 |
| Shape | rayspot |
| Optical | Reflector |
DESCRIPTION
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- With 3-Phase universal rail adapter.
-- Mechanical locking with 90° vertical and 350° horizontal movement capability
joint system.
-- Tempered glass.

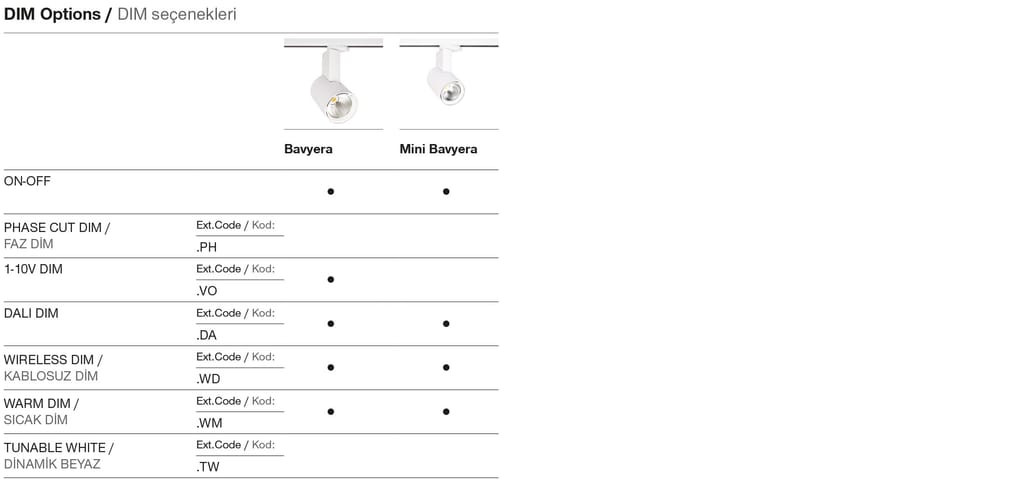

-- Classic DALI and 1-10V DIM options are applicable.
-- Wireless DIM and Hot DIM, which are high-tech control systems
applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.

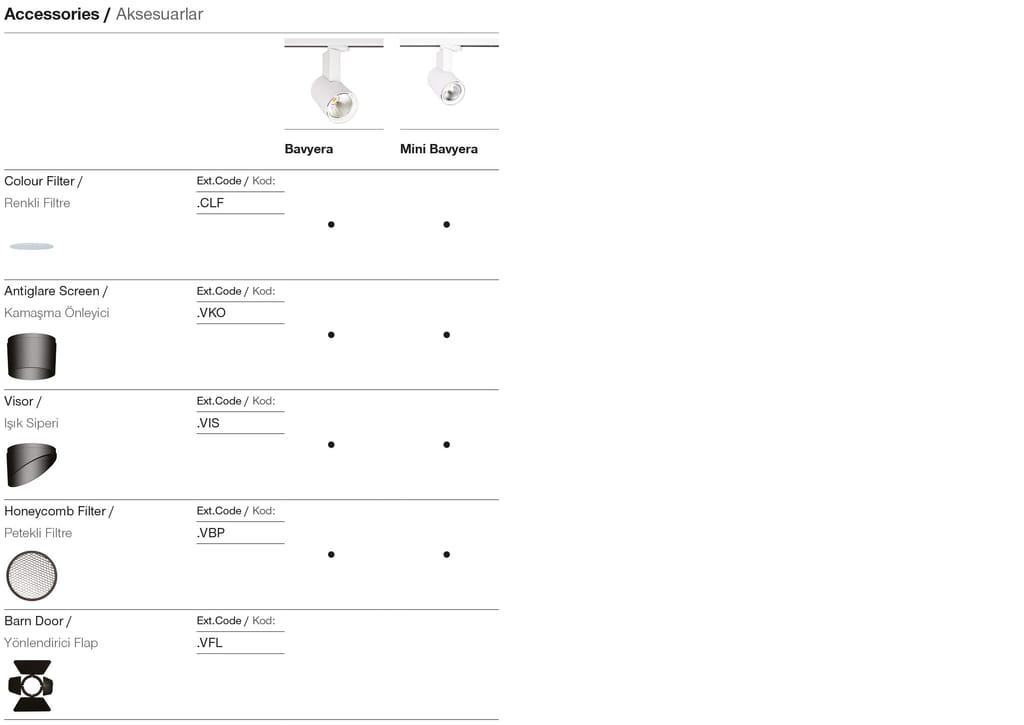

--Honeycomb Filter, Color Filter, Anti-Glare and Viewfinder accessories
options can be applied.
-- Narrow, Medium, Wide and Very Wide reflector angle options are available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED
options are available.
-- Efficiency up to 137lm/W.
-- High color compatibility: <3 SDCM
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 35W | CRI>80 | I01.MLT.20160 . (..) . (...) . (..) . (..) | 2700K | 4276 |
| 3000K | 4449 | |||
| 3500K | 4605 | |||
| 4000K | 4766 | |||
| 5000K | 5099 | |||
| CRI>90 | I01.MLT.20160 . (..) . (...) . (..) . (..) | 2700K | 3848 | |
| 3000K | 3944 | |||
| 3500K | 4083 | |||
| 4000K | 4226 | |||
| 5000K | X | |||
| CRI>98 | I01.MLT.20160 . (..) . (...) . (..) . (..) | 2700K | 3046 | |
| 3000K | 3157 | |||
| 4000K | 3314 | |||
| Meat COB | I01.MLT.20160 . (..) . (...) . (..) . (..) | 1800K | 2461 | |
| Food COB | I01.MLT.20160 . (..) . (...) . (..) . (..) | 2400K | 2534 | |
| Pisces COB | I01.MLT.20160 . (..) . (...) . (..) . (..) | 6600K | 3350 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 35 | 35W - 900mA | 827 | CRI>80 - 2700K | 9827 | CRI>98 - 2700K |  | SP | 20° - Spot |  | 01 | white |
| 31 | 31W - 800mA | 830 | CRI>80 - 3000K | 9830 | CRI>98 - 3000K |  | M.E. | 30° - Medium |  | 02 | ral 9010 |
| 28 | 28W - 700mA | 835 | CRI>80 - 3500K | 9840 | CRI>98 -4000K |  | FL | 40° - Flood |  | 03 | black |
| 24 | 24W - 600mA | 840 | CRI>80 - 4000K | MEAT | 1800K |  | W.F. | 60° - Wide Flood |  | 04 | gray |
| 850 | CRI>80 - 5000K | GOLD | 2400K |  | 05 | dark gray | |||||
| 927 | CRI>90 - 2700K | fish | 6600K |  | 06 | special color | |||||
| 930 | CRI>90 - 3000K | ||||||||||
| 935 | CRI>90 - 3500K | ||||||||||
| 940 | CRI>90 - 4000K |

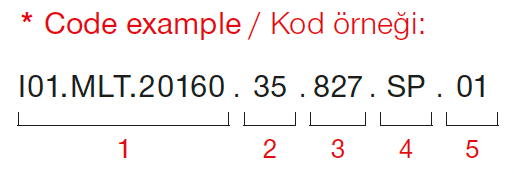

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Bavyera?
Bavyera has a power of 35W.
What is the protection class of Bavyera?
The protection class of Bavyera is IP20.
Which certifications and standards does Bavyera have?
Bavyera carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP20.
What is the product code of Bavyera?
The product (stock) code of Bavyera is I01.MLT.20160.
