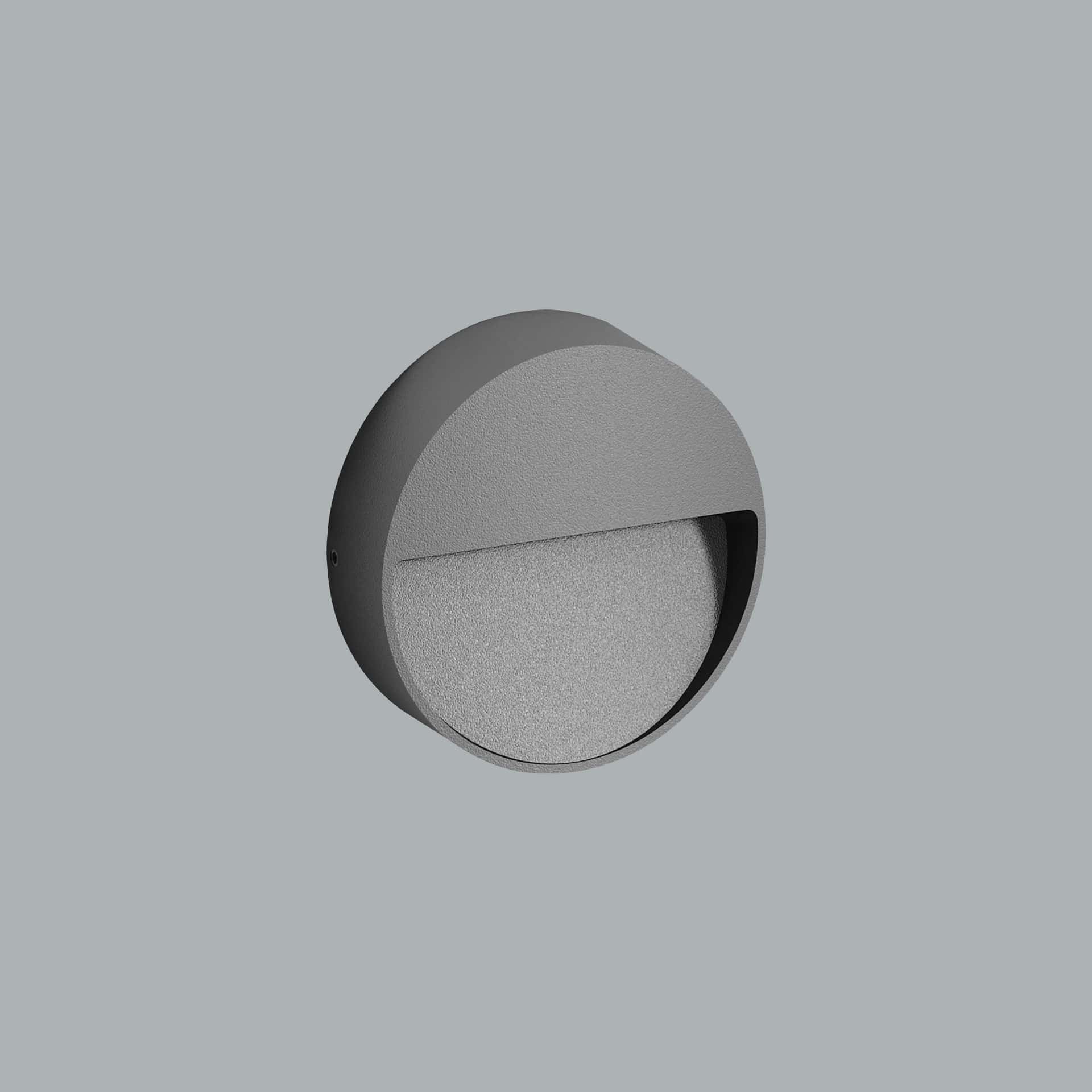

Lite Surface
Lite Surface is an AVOLUX LED lighting fixture in the Wall Sconce Series category with a power of 4.5W and IP65 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 4.5W |
| Protection Class | IP65 |
| Shape | surface mounted |
| Optical | diffuser |
-- Corrosion resistant aluminum injection body.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 4.5W | CRI>80 | O07.WA.00015 . (..) . (...) . (..) . (..) | 2700K | 132 |
| 3000K | 135 | |||
| 3500K | 141 | |||
| 4000K | 146 | |||
| 5000K | 148 | |||
| 6500K | 152 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 4.5W | 827 | CRI>80 - 2700K |  | ASM | Asymmetric |  | 01 | white | ||
| 830 | CRI>80 - 3000K |  | 02 | ral 9010 | |||||||
| 835 | CRI>80 - 3500K |  | 03 | black | |||||||
| 840 | CRI>80 - 4000K |  | 04 | gray | |||||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
| 865 | CRI>80 - 6500K |  | 06 | special color | |||||||

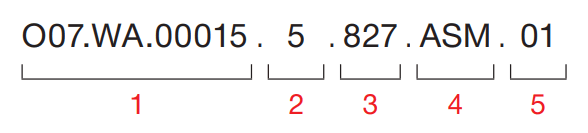

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
Frequently Asked Questions
What is the wattage of Lite Surface ?
Lite Surface has a power of 4.5W.
What is the protection class of Lite Surface ?
The protection class of Lite Surface is IP65.
Which certifications and standards does Lite Surface have?
Lite Surface carries the following certifications and standards: PBS, SASO, CB, LVD, EAC, CE, Protection class I, IK07, IP65.
What is the product code of Lite Surface ?
The product (stock) code of Lite Surface is O07.WA.00015.
Where can I download the catalog or PDF of Lite Surface ?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/outdoor/519.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/Duvar%20Aplik/Lite%20Surface.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/outdoor/Lite%20Surface%20-%20O07.WA.00015.zip) buttons on this page.
