Gama
Gama is an AVOLUX LED lighting fixture in the Wall Sconce Series category with a power of 22W and IP54 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 22W |
| Protection Class | IP54 |
| Shape | surface mounted |
| Optical | diffuser |
-- Corrosion resistant aluminum body.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 22W | CRI>80 | O07.WA.07860 . (..) . (...) . (..) . (..) | 2700K | 1522 |
| 3000K | 1533 | |||
| 3500K | 1585 | |||
| 4000K | 1617 | |||
| 5000K | 1649 | |||
| 6500K | 1698 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22 | 22W | 827 | CRI>80 - 2700K |  | W.F. | Wide Flood |  | 01 | white | ||
| 13 | 13W | 830 | CRI>80 - 3000K |  | 02 | ral 9010 | |||||
| 835 | CRI>80 - 3500K |  | 03 | black | |||||||
| 840 | CRI>80 - 4000K |  | 04 | gray | |||||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
| 865 | CRI>80 - 6500K |  | 06 | special color | |||||||

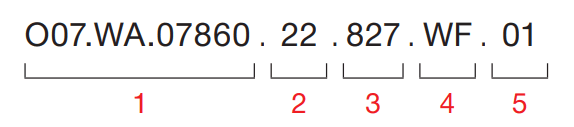

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
Frequently Asked Questions
What is the wattage of Gama?
Gama has a power of 22W.
What is the protection class of Gama?
The protection class of Gama is IP54.
Which certifications and standards does Gama have?
Gama carries the following certifications and standards: PBS, SASO, CB, LVD, EAC, CE, Protection class I, IP54, IK08.
What is the product code of Gama?
The product (stock) code of Gama is O07.WA.07860.
Where can I download the catalog or PDF of Gama?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/outdoor/531.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/Duvar%20Aplik/Gama.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/outdoor/Gama%20Maxi%20O07.WA.07860.zip) buttons on this page.
