Extrude Suspendant

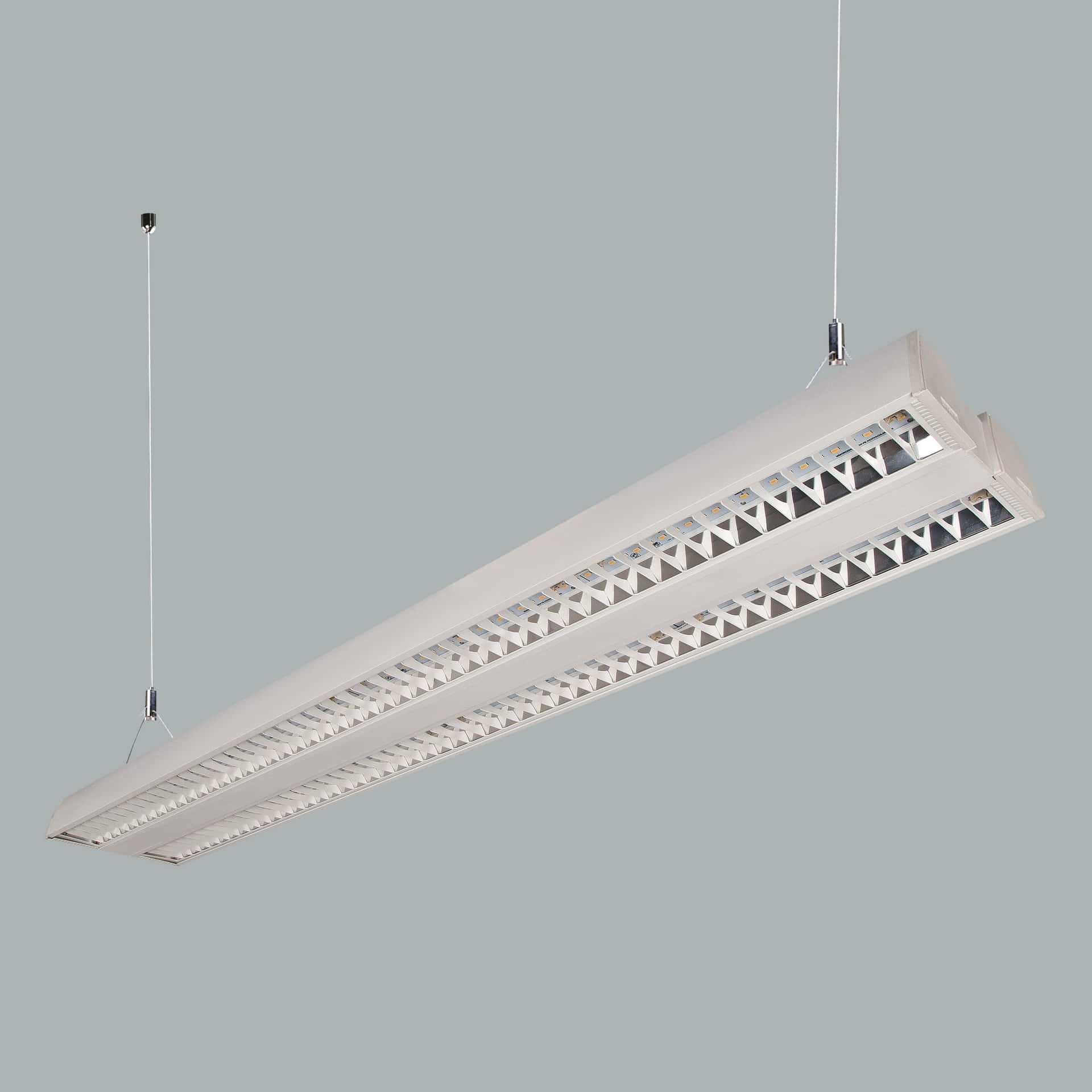

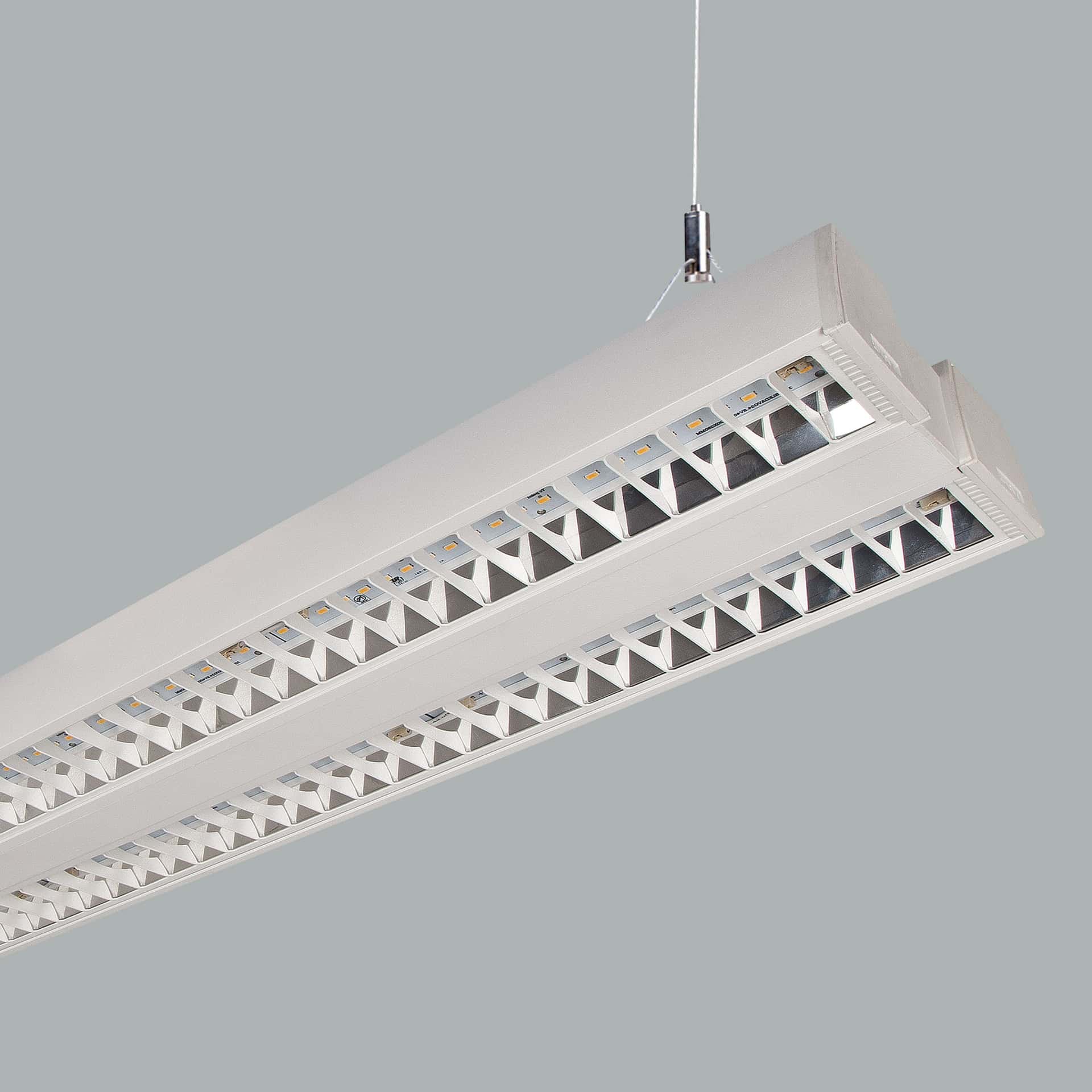

Extrude Suspendant is an AVOLUX LED lighting fixture in the Linear Profile Led Series category with a power of 67-105W and IP40 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 67-105W |
| Protection Class | IP40 |
| Shape | Linear |
| Optical | Reflector |
| width, height | 190-60mm |
| Mounting Type | Stalactite |
| Armature Data | |
|---|---|
| Product Code | I02.LL.18060.1150.067.830.01 |
| Family Name | extruded |
| Material | Aluminum Profile |
| Format | linear |
| Profile Width | 190mm |
| Profile Height | 60mm |
| Installation Type | Pendant, Surface Mounted and Rail Mounted |
| Productivity | >103lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 40 |
| Luminaire Life | L70/B50 50000h |
| Optical | RAL Painted Sheet Honeycomb Lamellar |
| Length (A) | CRI | Order Code | Kelvin | 1150mm 67W 350mA lm | 1430mm 84W 350mA lm | 1710mm 105W 350mA lm |
|---|---|---|---|---|---|---|
| 1150mm - 67W | CRI>80 | I02.LL.18060 . (...) . (...) . (...) | 2700K | 6317 | 8198 | 10387 |
| 1430mm - 84W | 3000K | 6519 | 8460 | 10720 | ||
| 1710mm - 105W | 3500K | 6620 | 8591 | 10886 | ||
| 4000K | 6873 | 8919 | 11301 | |||
| 5000K | 6974 | 9051 | 11468 | |||
| CRI>90 | I02.LL.18060 . (...) . (...) . (...) | 2700K | 5306 | 6886 | 8725 | |
| 3000K | 5458 | 7083 | 8975 | |||
| 3500K | 5559 | 7214 | 9141 | |||
| 4000K | 5761 | 7476 | 9473 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1150mm | 67W | 67W (Direct) - 350mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 1430mm | 84W | 84W (Direct) - 350mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 1710mm | 105W | 105W (Direct) - 350mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||||
 | 06 | special color |
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
Frequently Asked Questions
What is the wattage of Extrude Suspendant?
Extrude Suspendant has a power of 67-105W.
What is the protection class of Extrude Suspendant?
The protection class of Extrude Suspendant is IP40.
Which certifications and standards does Extrude Suspendant have?
Extrude Suspendant carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP40.
What is the product code of Extrude Suspendant?
The product (stock) code of Extrude Suspendant is I02.LL.18060.
Where can I download the catalog or PDF of Extrude Suspendant?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/linealed/190-191.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/linealedpanel/EXTRUDE%20Linea%20Led.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/linea/I02.LL.18060.rar) buttons on this page.
