Ege
Ege is an AVOLUX LED lighting fixture in the Linear Profile Led Series category with a power of 40W and IP40 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 40W |
| Protection Class | IP40 |
| Optical | diffuser |

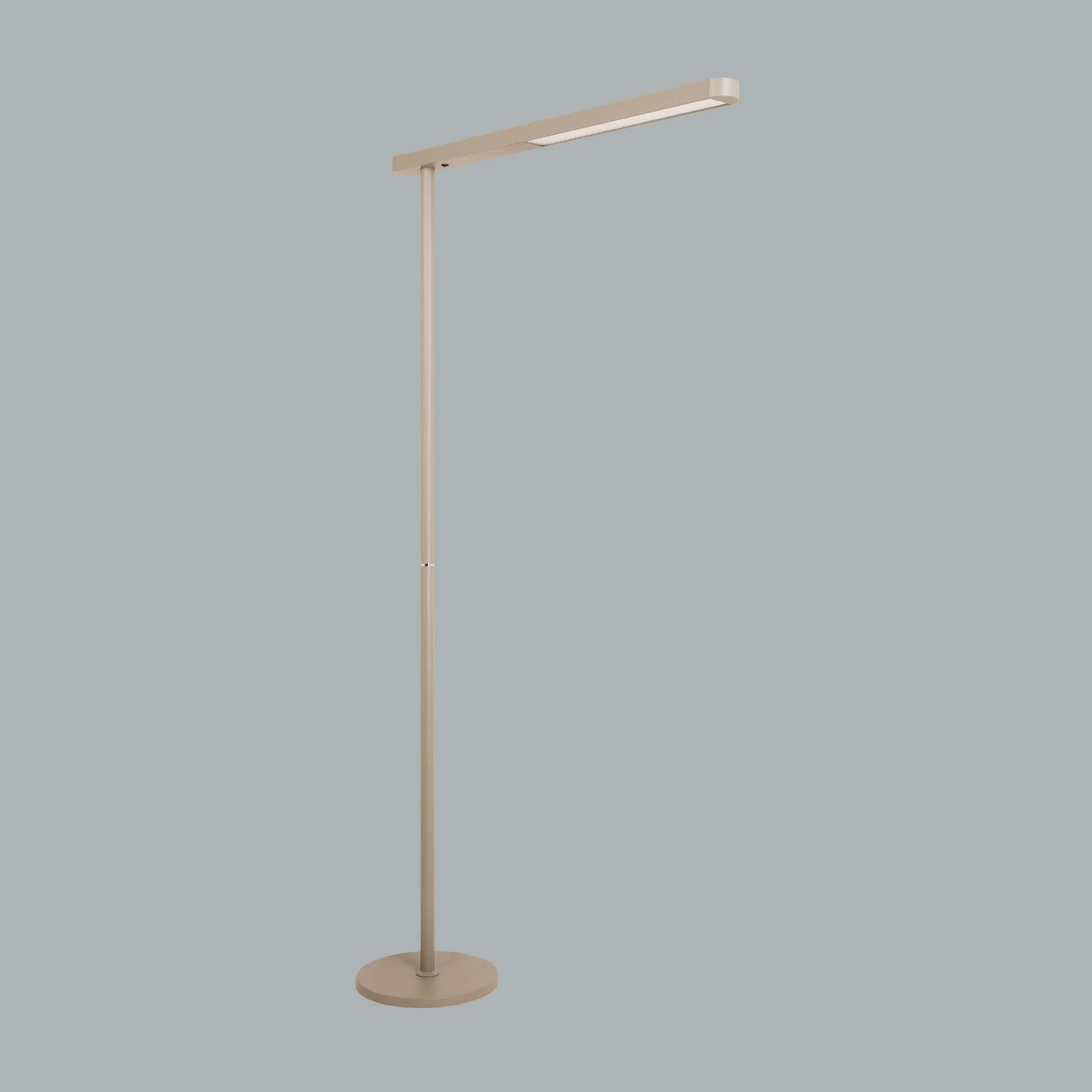

| Mounting Type | Standing Floor Lamp |
DESCRIPTION
| Armature Data | |
|---|---|
| Product Code | I02.LL.90225.040.830.01 |
| Family Name | Aegean |
| Material | Aluminum Profile |
| Installation Type | Standing Floor Lamp |
| Productivity | >130lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 40 |
| Luminaire Life | L70/B50 50000h |
| Optical | Opal Plexi |
| watts | CRI | Order Code | Kelvin | 16W lm ↓ | 24W lm ↑ |
|---|---|---|---|---|---|
| 40W | CRI>80 | I02.LL.90225 . (...) . (...) . (...) . (...) | 2700K | 1960 | 2935 |
| 3000K | 2000 | 2995 | |||
| 3500K | 2040 | 3060 | |||
| 4000K | 2080 | 3120 | |||
| 5000K | 2140 | 3215 | |||
| CRI>90 | I02.LL.90225 . (...) . (...) . (...) . (...) | 2700K | 1820 | 2730 | |
| 3000K | 1860 | 2785 | |||
| 3500K | 1895 | 2840 | |||
| 4000K | 1935 | 2900 |
| 2 | watts | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 40W | 16W | 16W (Direct) | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 24W | 24W (Indirect) | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | ||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||||
 | 06 | special color |

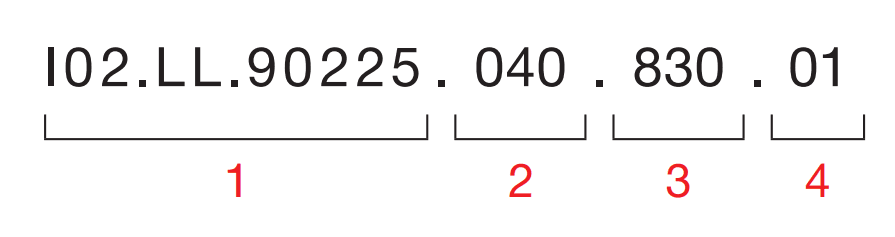

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
5- Control type
Frequently Asked Questions
What is the wattage of Ege?
Ege has a power of 40W.
What is the protection class of Ege?
The protection class of Ege is IP40.
Which certifications and standards does Ege have?
Ege carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP40.
What is the product code of Ege?
The product (stock) code of Ege is I02.LL.90225.
Where can I download the catalog or PDF of Ege?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/linealed/286-287.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/linealedpanel/EGE%20Linea%20Led.pdf) buttons on this page.
