Cappadocia Mini Deco

Cappadocia Mini Deco

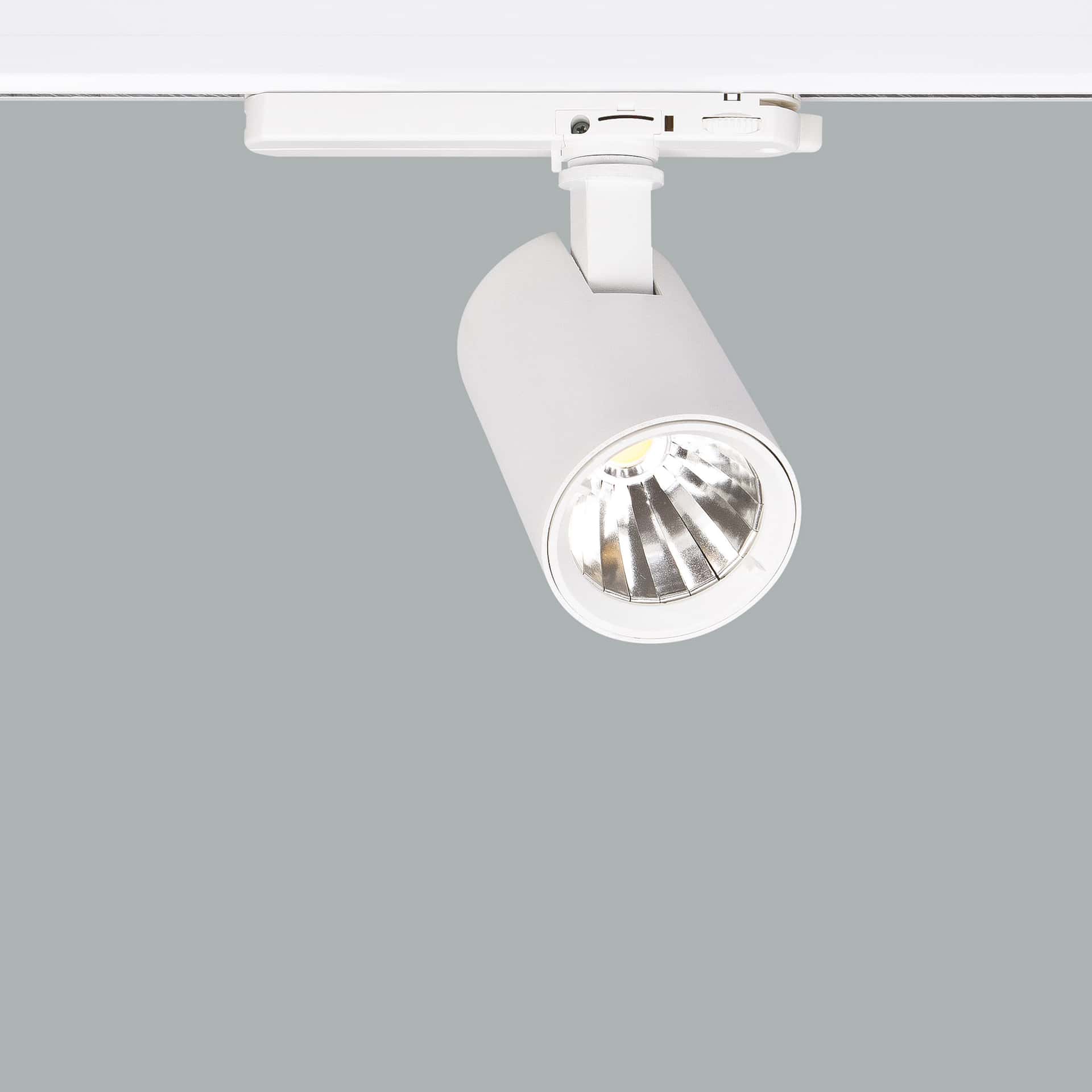

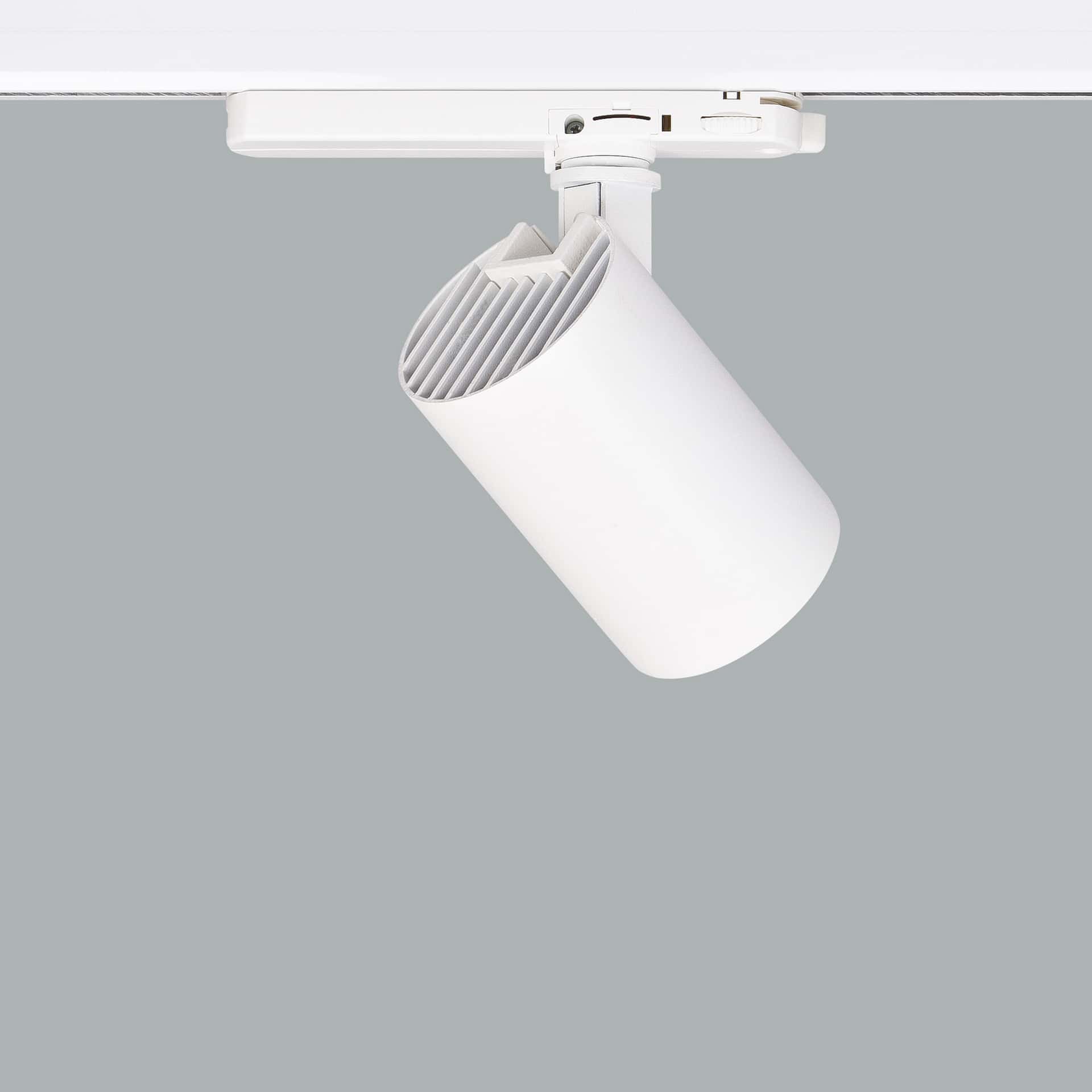

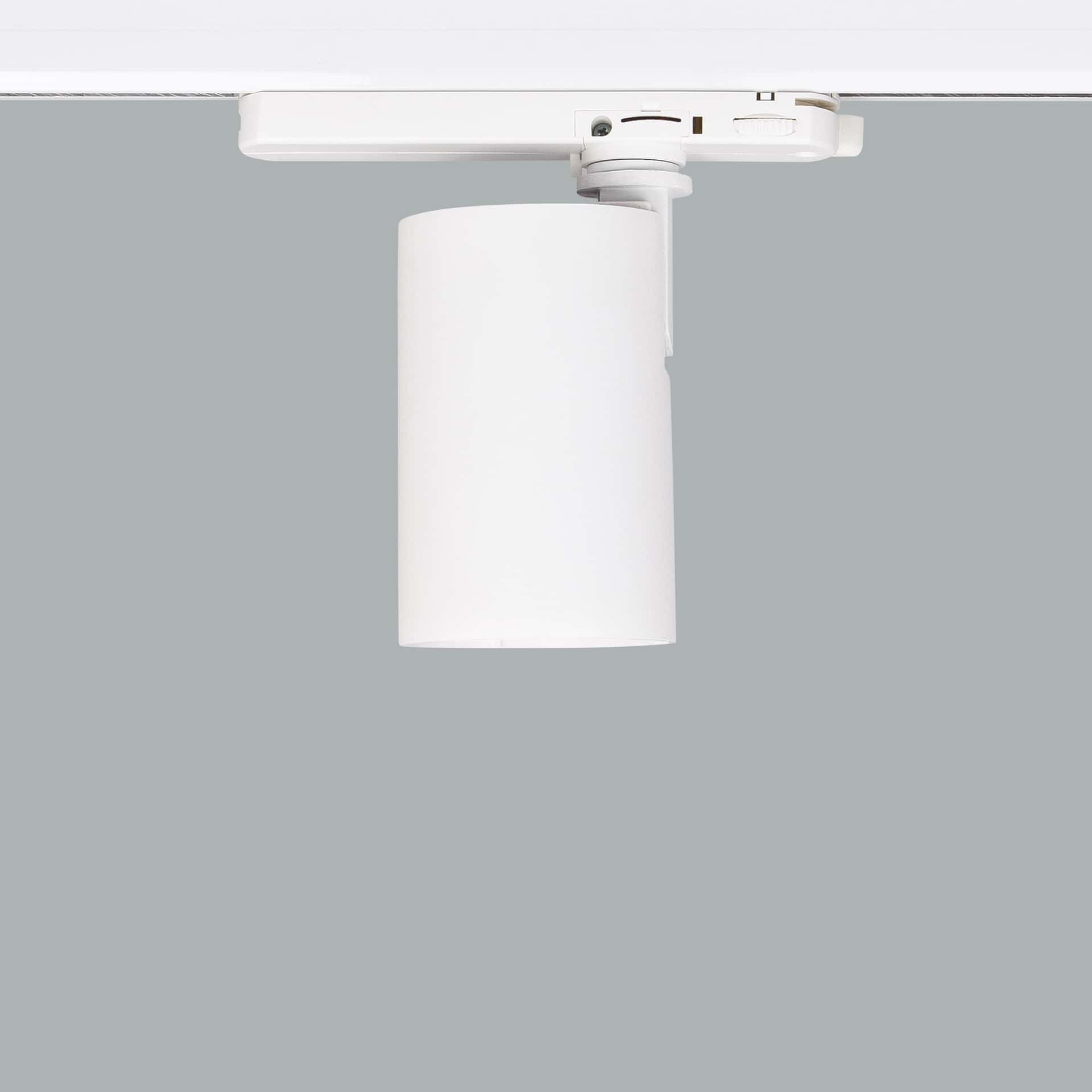

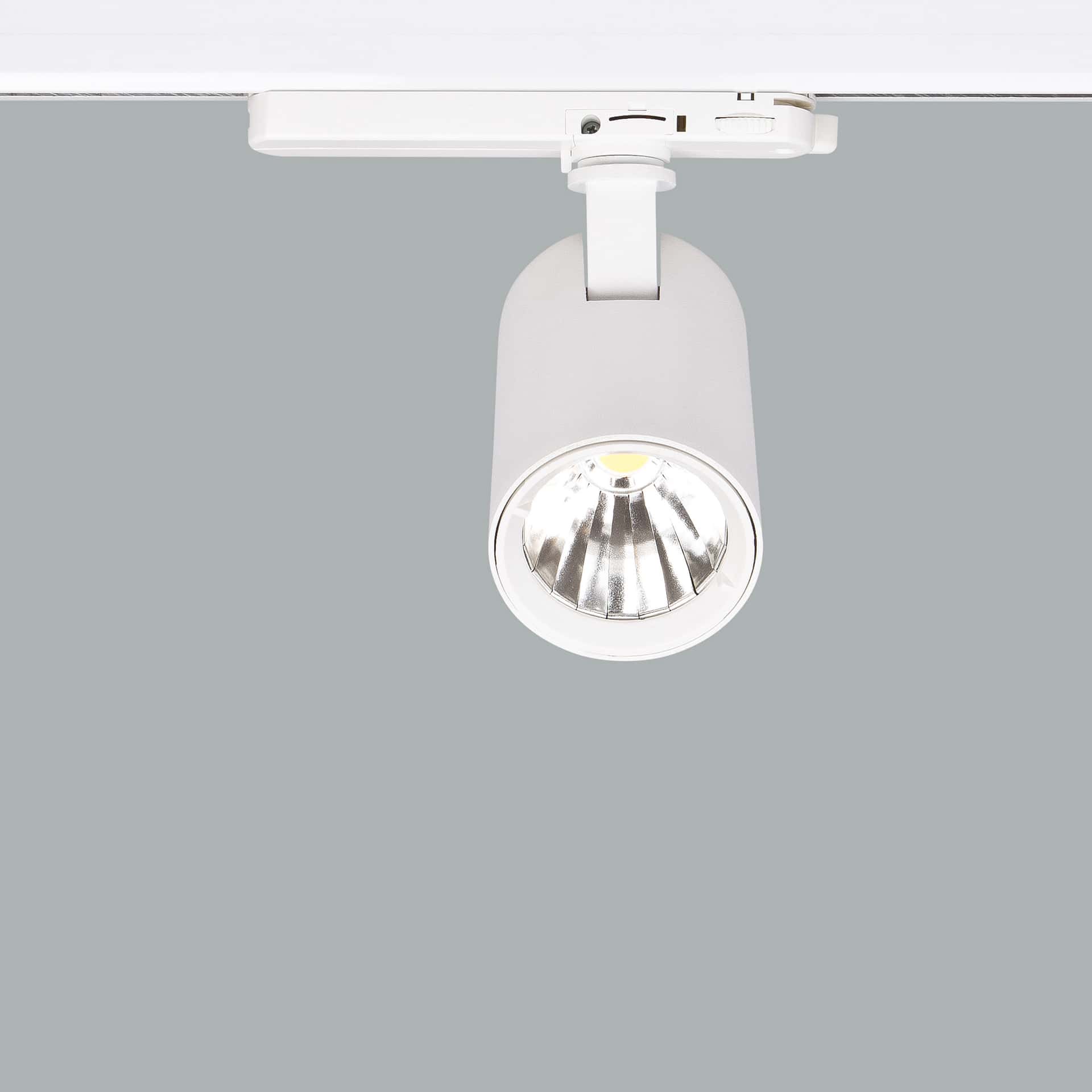

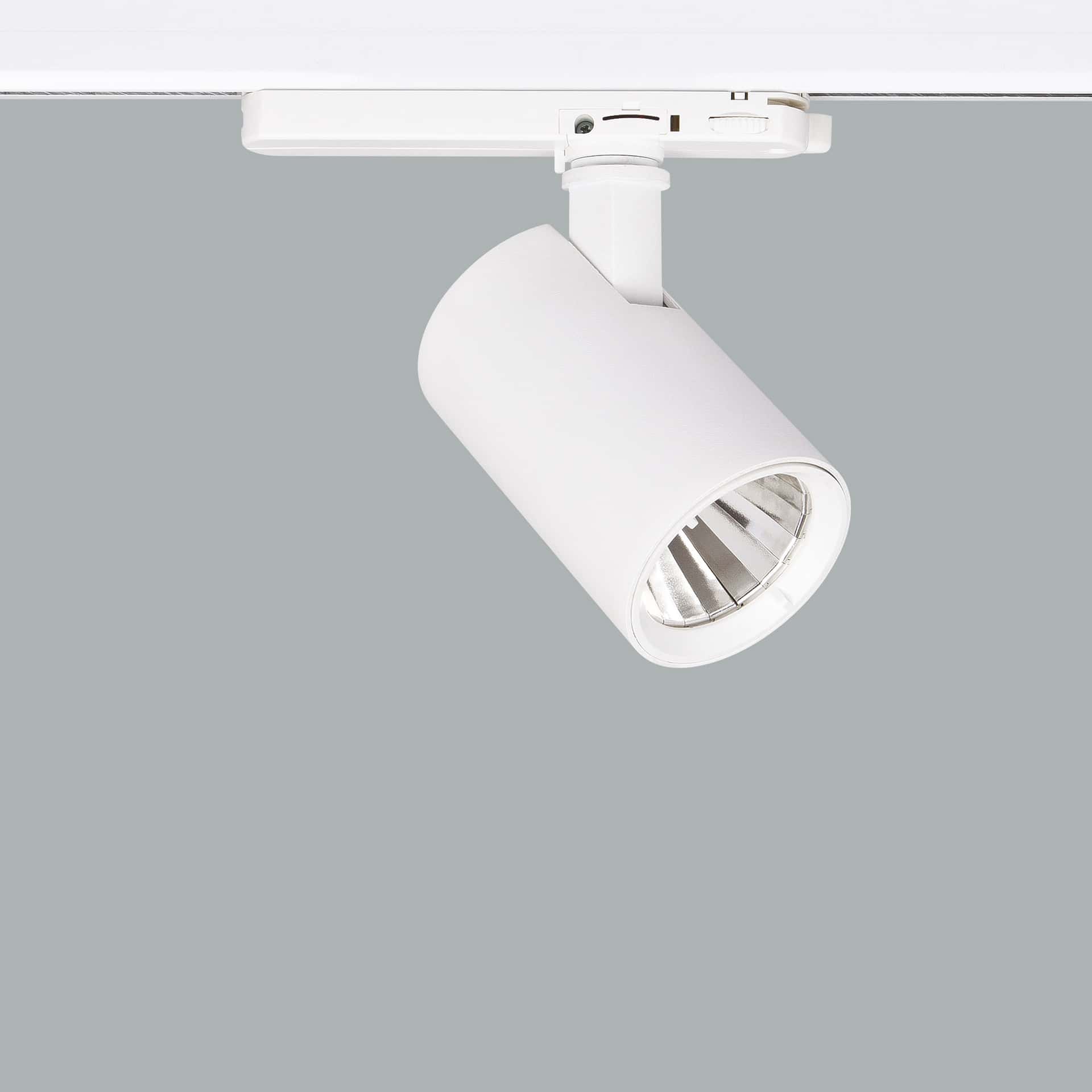

Cappadocia Mini Deco is an AVOLUX LED lighting fixture in the COB Led Tracklight Series category with a power of 28W and IP20 protection.

Product icons
SASOCBLVDEACCEF mark (suitable for mounting on normally flammable surfaces)Protection class IITrack adapterIP20For indoor use
LED
Technical specifications
Input Voltage220-240V / 50-60Hz
Wattage28W
Protection ClassIP20
Shaperayspot
OpticalReflector

Stock code: I01.MLT.16165

Categories: COB Led Tracklight Series

DESCRIPTION
DOWNLOAD PRODUCT PDFDOWNLOAD PRODUCT FAMILY PDFDOWNLOAD LDT

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- With 3-Phase universal rail adapter.
-- Mechanical locking with 90° vertical and 350° horizontal movement capability joint system.
-- Tempered glass.
-- Classic DALI and 1-10V DIM options are applicable.
-- Wireless DIM and Hot DIM, which are high-tech control systems applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.
--Honeycomb Filter, Color Filter, Anti-Glare and Viewfinder accessories options can be applied.
-- Narrow, Medium and Wide reflector angle options are available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.
-- Efficiency up to 142lm/W.
-- High color compatibility: <3 SDCM

StrengthCRIOrder CodeKelvinLumen
28WCRI>80I01.MLT.16165 . (..) . (...) . (..) . (..)2700K3479
3000K3633
3500K3674
4000K3815
5000K4079
CRI>90I01.MLT.16165 . (..) . (...) . (..) . (..)2700K2816
3000K3110
3500K3193
4000K3228
5000KX
CRI>98I01.MLT.16165 . (..) . (...) . (..) . (..)2700K2543
3000K2635
4000K2822
Meat COBI01.MLT.16165 . (..) . (...) . (..) . (..)1800KX
Food COBI01.MLT.16165 . (..) . (...) . (..) . (..)2400KX
Pisces COBI01.MLT.16165 . (..) . (...) . (..) . (..)6600KX


2Watts - Driving Current3CRI/Kelvin3CRI/Kelvin4Reflector Angle5Product Color
2828W - 700mA827CRI>80 - 2700K9827CRI>98 - 2700KSP23° - Spot01white
2424W - 600mA830CRI>80 - 3000K9830CRI>98 - 3000KM.E.35° - Medium02ral 9010
2020W - 500mA835CRI>80 - 3500K9840CRI>98 -4000KFL48° - Flood03black
1515W - 350mA840CRI>80 - 4000K04gray
850CRI>80 - 5000K05dark gray
927CRI>90 - 2700K06special color
930CRI>90 - 3000K
935CRI>90 - 3500K
940CRI>90 - 4000K

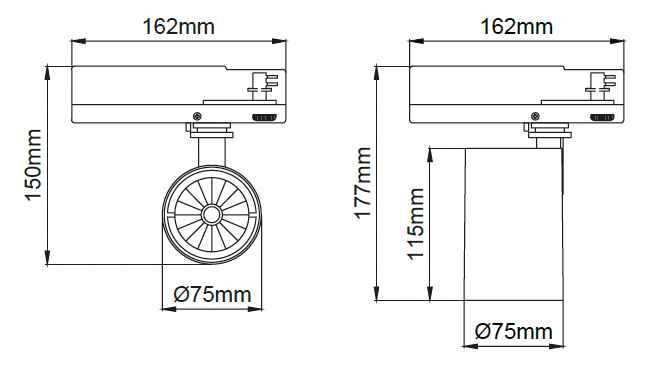

Cappadocia Mini Deco – Technical Drawings

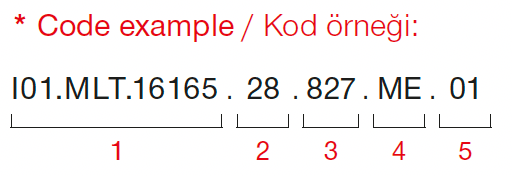

Cappadocia Mini Deco – Code Example

  1. Armature code: Power
  2. Kelvin
  3. Reflector Angle
  4. Product Color


Cappadocia Mini Deco – Dimming Options




Cappadocia Mini Deco – Accessories



Frequently Asked Questions

What is the wattage of Cappadocia Mini Deco?

Cappadocia Mini Deco has a power of 28W.

What is the protection class of Cappadocia Mini Deco?

The protection class of Cappadocia Mini Deco is IP20.

Which certifications and standards does Cappadocia Mini Deco have?

Cappadocia Mini Deco carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class II, IP20.

What is the product code of Cappadocia Mini Deco?

The product (stock) code of Cappadocia Mini Deco is I01.MLT.16165.

Where can I download the catalog or PDF of Cappadocia Mini Deco?

You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/095.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/tracklight/CAPPADOCIA%20Tracklight.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Cappadocia%20Mini%20Deco%2BI01.MLT.16165.rar) buttons on this page.
