Cappadocia Mini
Cappadocia Mini is an AVOLUX LED lighting fixture in the COB Led Tracklight Series category with a power of 28W and IP20 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 28W |
| Protection Class | IP20 |
| Shape | rayspot |
| Optical | Reflector |
DESCRIPTION
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- With 3-Phase universal rail adapter.
-- Mechanical locking with 90° vertical and 350° horizontal movement capability
joint system.
-- Tempered glass.
-- Classic DALI and 1-10V DIM options are applicable.
-- Wireless DIM and Hot DIM, which are high-tech control systems
applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
--Honeycomb Filter, Color Filter, Anti-Glare and Viewfinder accessories
options can be applied.
-- Narrow, Medium and Wide reflector angle options are available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED
options are available.
-- Efficiency up to 142lm/W.
-- High color compatibility: <3 SDCM
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 28W | CRI>80 | I01.MLT.16160 . (..) . (...) . (..) . (..) | 2700K | 3479 |
| 3000K | 3633 | |||
| 3500K | 3674 | |||
| 4000K | 3815 | |||
| 5000K | 4079 | |||
| CRI>90 | I01.MLT.16160 . (..) . (...) . (..) . (..) | 2700K | 2816 | |
| 3000K | 3110 | |||
| 3500K | 3193 | |||
| 4000K | 3228 | |||
| 5000K | X | |||
| CRI>98 | I01.MLT.16160 . (..) . (...) . (..) . (..) | 2700K | 2543 | |
| 3000K | 2635 | |||
| 4000K | 2822 | |||
| Meat COB | I01.MLT.16160 . (..) . (...) . (..) . (..) | 1800K | X | |
| Food COB | I01.MLT.16160 . (..) . (...) . (..) . (..) | 2400K | X | |
| Pisces COB | I01.MLT.16160 . (..) . (...) . (..) . (..) | 6600K | X |

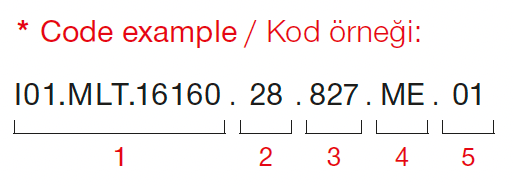

| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 28 | 28W - 700mA | 827 | CRI>80 - 2700K | 9827 | CRI>98 - 2700K |  | SP | 23° - Spot |  | 01 | white |
| 24 | 24W - 600mA | 830 | CRI>80 - 3000K | 9830 | CRI>98 - 3000K |  | M.E. | 35° - Medium |  | 02 | ral 9010 |
| 20 | 20W - 500mA | 835 | CRI>80 - 3500K | 9840 | CRI>98 -4000K |  | FL | 48° - Flood |  | 03 | black |
| 15 | 15W - 350mA | 840 | CRI>80 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
| 927 | CRI>90 - 2700K |  | 06 | special color | |||||||
| 930 | CRI>90 - 3000K | ||||||||||
| 935 | CRI>90 - 3500K | ||||||||||
| 940 | CRI>90 - 4000K |
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Cappadocia Mini?
Cappadocia Mini has a power of 28W.
What is the protection class of Cappadocia Mini?
The protection class of Cappadocia Mini is IP20.
Which certifications and standards does Cappadocia Mini have?
Cappadocia Mini carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP20.
What is the product code of Cappadocia Mini?
The product (stock) code of Cappadocia Mini is I01.MLT.16160.
Where can I download the catalog or PDF of Cappadocia Mini?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/094.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/tracklight/CAPPADOCIA%20Tracklight.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Cappadocia%20Mini%2BI01.MLT.16160.rar) buttons on this page.
