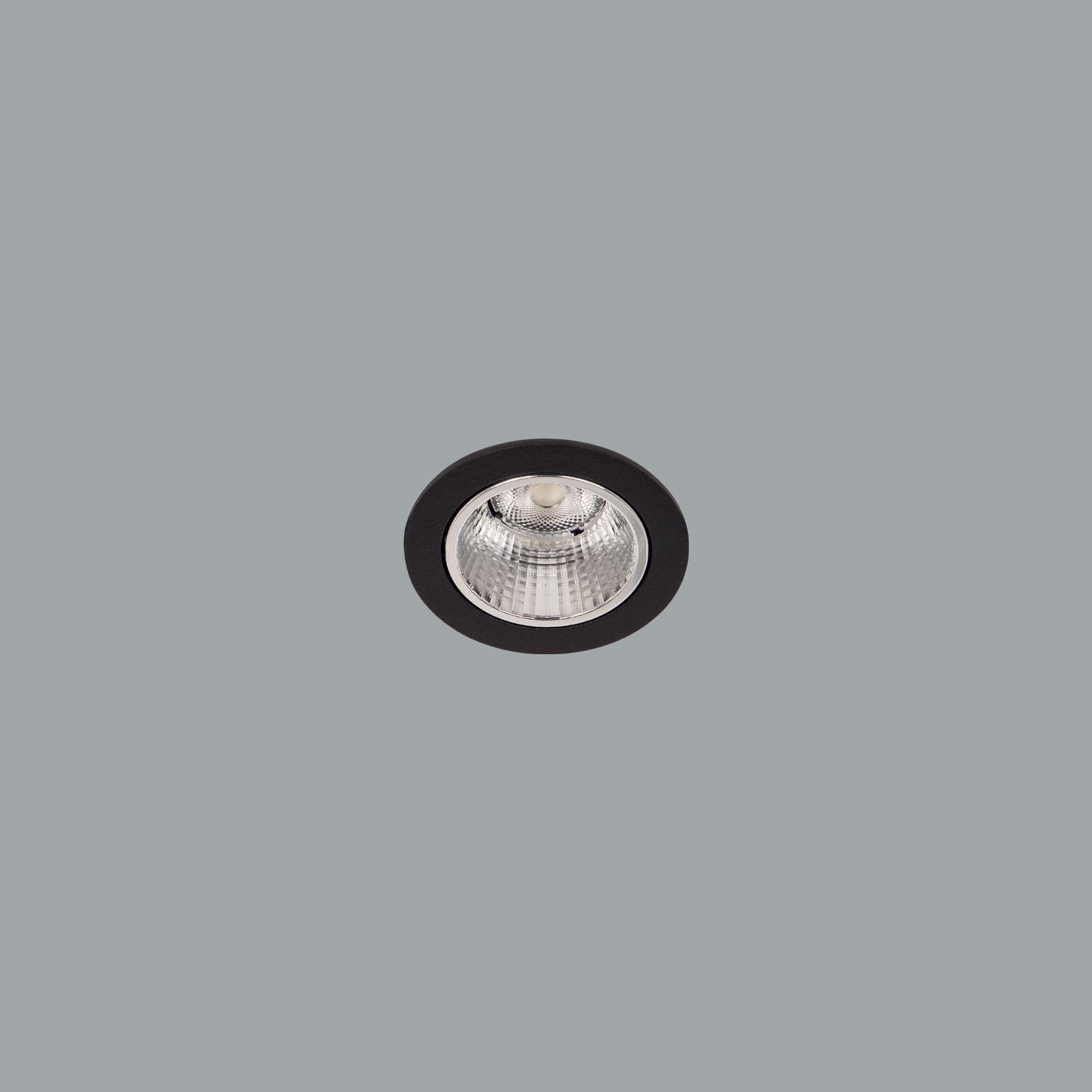

Ares Micro
Ares Micro is an AVOLUX LED lighting fixture in the COB Led Recessed Series category with a power of 6W and IP44 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 6W |
| Protection Class | IP44 |
| Shape | built-in |
| Optical | Lens |
DESCRIPTION
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.

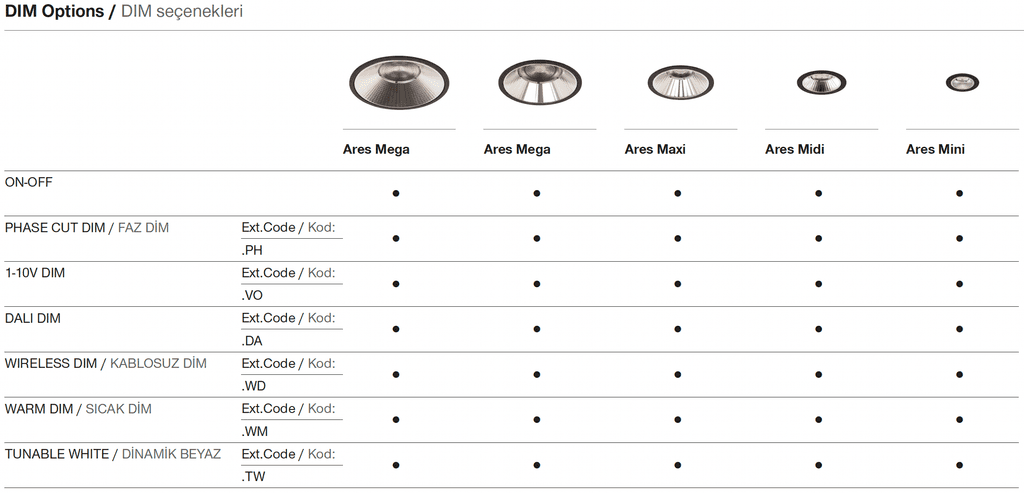

-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- High-tech control systems Wireless DIM, Hot DIM and
Dynamic White applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
-- Narrow, Medium, Wide and Very Wide light angle options are available.
-- Standard CRI>80 and high CRI>90 LED options are available.
-- Efficiency up to 145lm/W.
-- High color compatibility: <3 SDCM.
-- Emergency lighting kit system can be applied.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 6W | CRI>80 | I01.MLR.50830 . (..) . (...) . (..) . (..) | 2700K | 1092 |
| 3000K | 1102 | |||
| 3500K | 1115 | |||
| 4000K | 1126 | |||
| 5000K | 1131 | |||
| CRI>90 | I01.MLR.50830 . (..) . (...) . (..) . (..) | 2700K | 1014 | |
| 3000K | 1025 | |||
| 3500K | 1039 | |||
| 4000K | 1051 | |||
| 5000K | X | |||
| CRI>98 | I01.MLR.50830 . (..) . (...) . (..) . (..) | 2700K | X | |
| 3000K | X | |||
| 4000K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 6W - 150mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | SP | 17° - Spot |  | 01 | white |
| 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | M.E. | 23° - Medium |  | 02 | ral 9010 | ||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | FL | 34° - Flood |  | 03 | black | ||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | W.F. | 55° - Wide Flood |  | 04 | gray | ||
| 850 | CRI>80 - 5000K |  | H.F. | Half-Batwing |  | 05 | dark gray | ||||
 | 06 | special color |

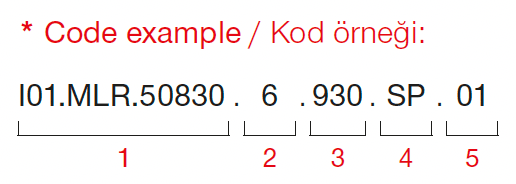

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Ares Micro?
Ares Micro has a power of 6W.
What is the protection class of Ares Micro?
The protection class of Ares Micro is IP44.
Which certifications and standards does Ares Micro have?
Ares Micro carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP44.
What is the product code of Ares Micro?
The product (stock) code of Ares Micro is I01.MLR.50830.
Where can I download the catalog or PDF of Ares Micro?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/258.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/recessed/ARES%20Recessed_yuvarlak.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/ARESM%C4%B0CRO%2BI01.MLR.50830.rar) buttons on this page.
