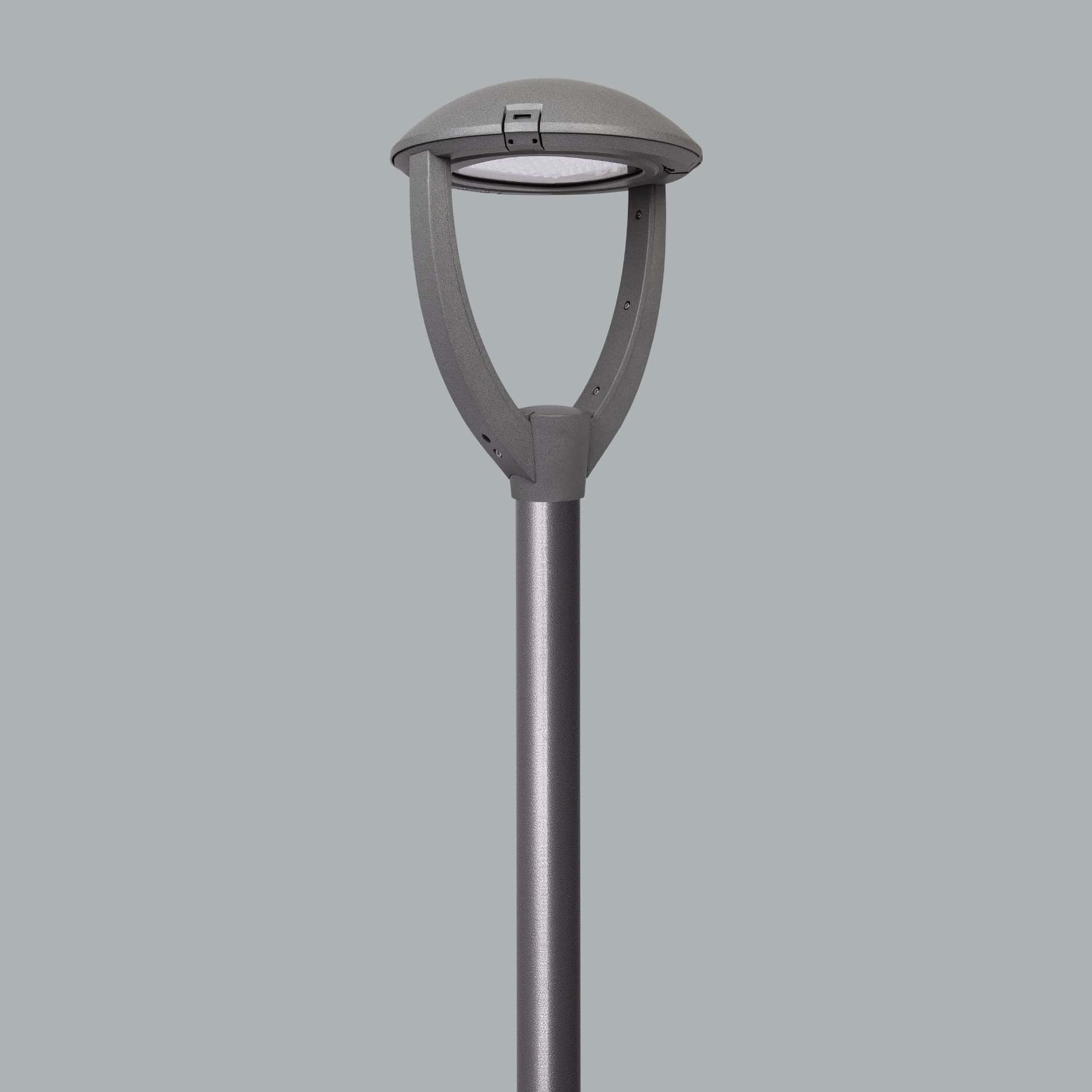

Solemar Mini
Solemar Mini is an AVOLUX LED lighting fixture in the Pole Mounted Street Fixtures Series category with a power of 30W and IP66 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 30W |
| Protection Class | IP66 |
| Shape | Pole Mounted |
| Optical | Lens |

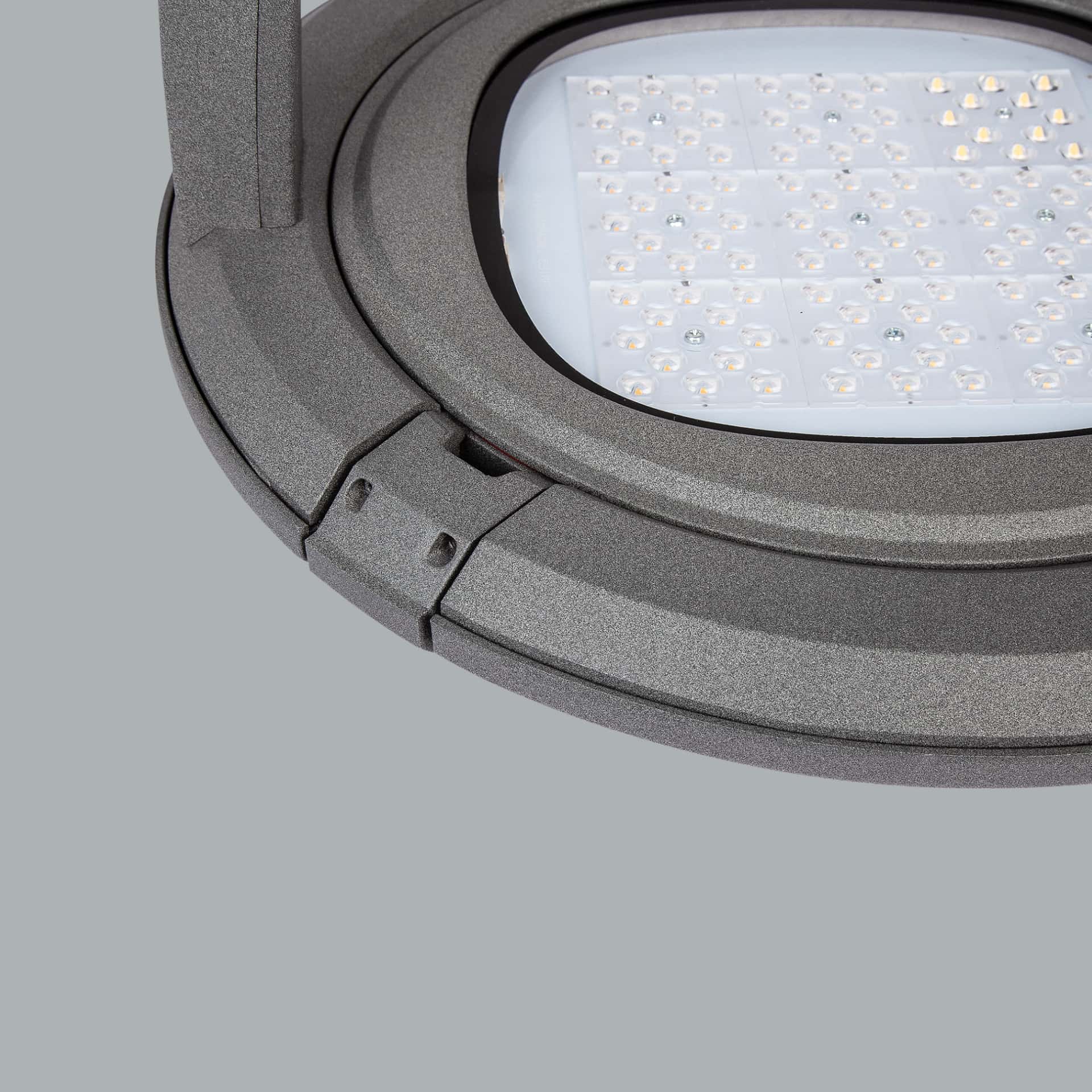

-- LED street lighting fixture.
| Solemar Mini / O07.ST.07930 | |
|---|---|
| System Power | 30W |
| Luminaire Output Lumen CRI>70 - 4000K | 4470lm |

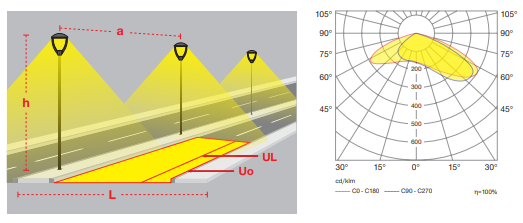

| Mast Span (a) | 16m |
| Mast Height (h) | 4m |
| Road Width (L) | 6m |
| Lighting Class | - |
| Optical Type | Maximum pole spacing |
| Armature Data | |
|---|---|
| Product Code | O07.ST.07930.30.740.05 |
| Family Name | Solemar Mini |
| Material | Aluminum Injection |
| LED Life | L70/B50 50000h |
| Optical | Asymmetric Street Lighting Lens |
| Luminaire Maximum Power | 30W |
| Number of LEDs | 108 |
| Circuit | 24S2P |
| LED Type | 3535 |
| CRI | 70 |
| Operating Temperature | -20°C / +50°C |
| Protection | IP66 |

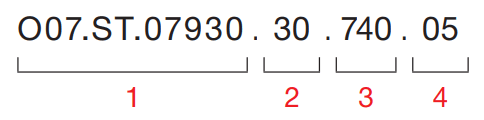

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
Frequently Asked Questions
What is the wattage of Solemar Mini?
Solemar Mini has a power of 30W.
What is the protection class of Solemar Mini?
The protection class of Solemar Mini is IP66.
Which certifications and standards does Solemar Mini have?
Solemar Mini carries the following certifications and standards: PBS, SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP66, IK08.
What is the product code of Solemar Mini?
The product (stock) code of Solemar Mini is O07.ST.07930.
Where can I download the catalog or PDF of Solemar Mini?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/outdoor/108-109.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/Dire%C4%9Fe%20Monte/Solemar.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/outdoor/O07.ST.07930.rar) buttons on this page.
