Ares Maxi
Ares Maxi is an AVOLUX LED lighting fixture in the COB Led Recessed Series category with a power of 20W and IP44 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 20W |
| Protection Class | IP44 |
| Shape | built-in |
| Optical | Lens |
DESCRIPTION
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- High-tech control systems Wireless DIM, Hot DIM and
Dynamic White applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
-- Narrow, Medium, Wide and Very Wide light angle options are available.
-- Standard CRI>80 and high CRI>90 LED options are available.
-- Efficiency up to 145lm/W.
-- High color compatibility: <3 SDCM.
-- Emergency lighting kit system can be applied.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 20W | CRI>80 | I01.MLR.50845 . (..) . (...) . (..) . (..) | 2700K | 2414 |
| 3000K | 2488 | |||
| 3500K | 2537 | |||
| 4000K | 2590 | |||
| 5000K | 2640 | |||
| CRI>90 | I01.MLR.50845 . (..) . (...) . (..) . (..) | 2700K | 2245 | |
| 3000K | 2315 | |||
| 3500K | 2361 | |||
| 4000K | 2408 | |||
| 5000K | X | |||
| CRI>98 | I01.MLR.50845 . (..) . (...) . (..) . (..) | 2700K | X | |
| 3000K | X | |||
| 4000K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 20W - 500mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | SP | 17° - Spot |  | 01 | white |
| 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | M.E. | 23° - Medium |  | 02 | ral 9010 | ||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | FL | 34° - Flood |  | 03 | black | ||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | W.F. | 55° - Wide Flood |  | 04 | gray | ||
| 850 | CRI>80 - 5000K |  | H.F. | Half-Batwing |  | 05 | dark gray | ||||
 | 06 | special color |

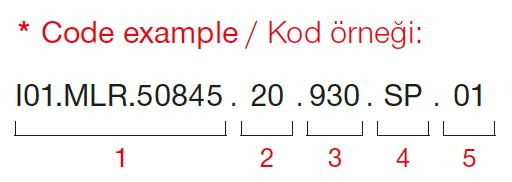

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Ares Maxi?
Ares Maxi has a power of 20W.
What is the protection class of Ares Maxi?
The protection class of Ares Maxi is IP44.
Which certifications and standards does Ares Maxi have?
Ares Maxi carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP44.
What is the product code of Ares Maxi?
The product (stock) code of Ares Maxi is I01.MLR.50845.
Where can I download the catalog or PDF of Ares Maxi?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/255.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/recessed/ARES%20Recessed_yuvarlak.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/ARES%20MAX%C4%B0%2BI01.MLR.50845.rar) buttons on this page.
