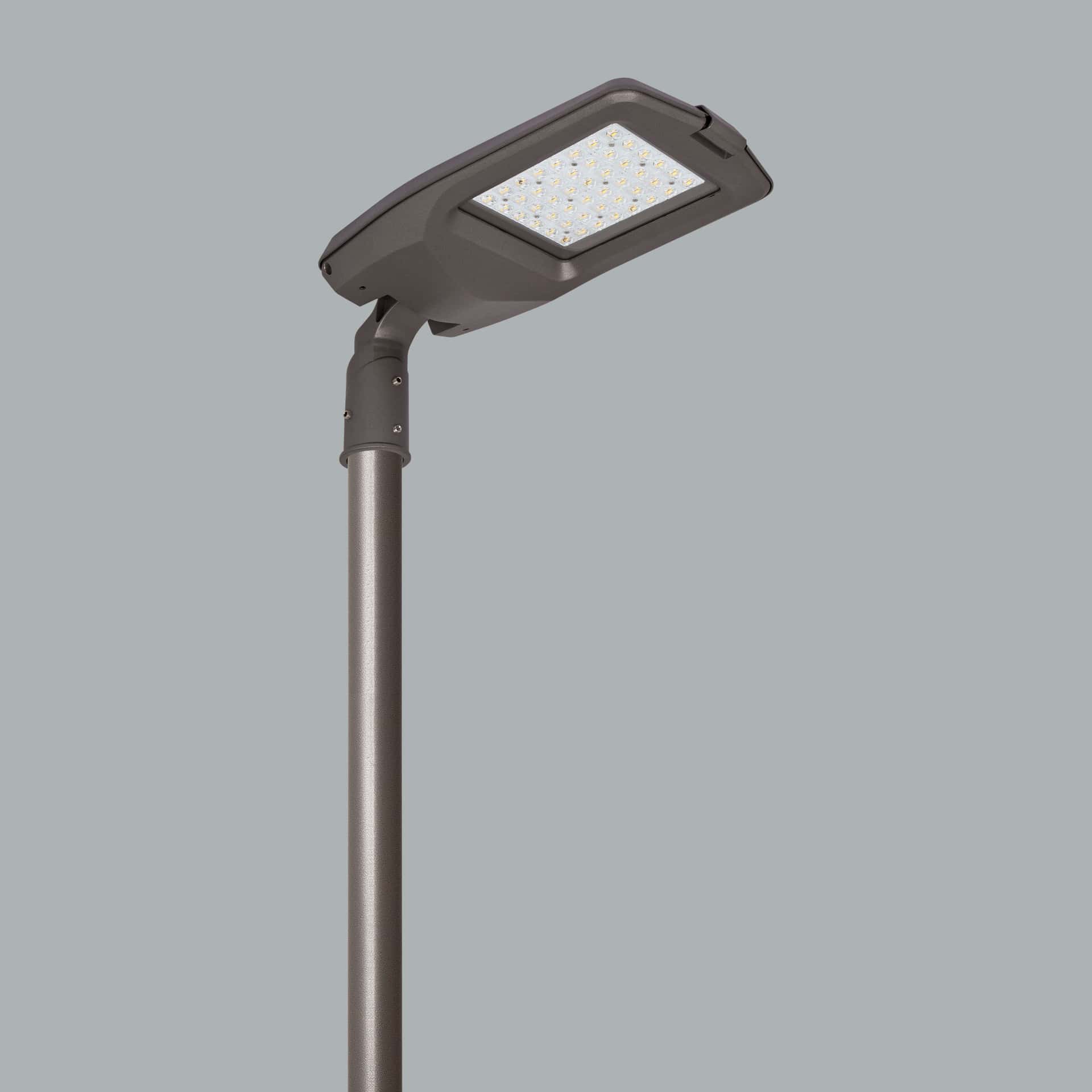

Quasar Mini
Quasar Mini is an AVOLUX LED lighting fixture in the Pole Mounted Street Fixtures Series category with a power of 50-70-90W and IP66 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 50-70-90W |
| Protection Class | IP66 |
| Shape | Pole Mounted |
| Optical | Lens |
-- LED street lighting fixture.
| Quasar Mini / O07.ST.16310 | |
|---|---|
| System Power | 50W |
| Luminaire Output Lumen CRI>70 - 4000K | 6883lm |
| Driving Current | 375mA |

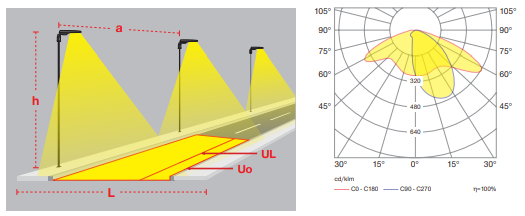

| Mast Span (a) | 41m |
| Mast Height (h) | 8m |
| Road Width (L) | 7m |
| Lighting Class | M5 |
| Optical Type | Maximum pole spacing |
| Quasar Mini / O07.ST.16310 | |
|---|---|
| System Power | 70W |
| Luminaire Output Lumen CRI>70 - 4000K | 9206lm |
| Driving Current | 500mA |

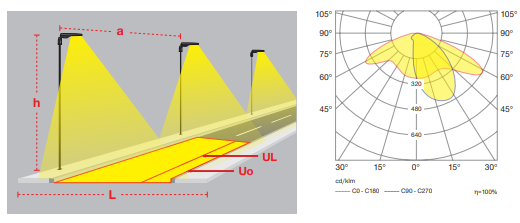

| Mast Span (a) | 38m |
| Mast Height (h) | 10m |
| Road Width (L) | 7m |
| Lighting Class | M4 |
| Optical Type | Maximum pole spacing |
| Quasar Mini / O07.ST.16310 | |
|---|---|
| System Power | 90W |
| Luminaire Output Lumen CRI>70 4000K | 11248lm |
| Driving Current | 650mA |
| Mast Span (a) | 38m |
| Mast Height (h) | 10m |
| Road Width (L) | 10.5m |
| Lighting Class | M4 |
| Optical Type | Maximum pole spacing |
| Armature Data | |
|---|---|
| Product Code | O07.ST.16310.90.740.05 |
| Family Name | QuasarMini |
| Material | Aluminum Injection |
| LED Life | L70/B50 50000h |

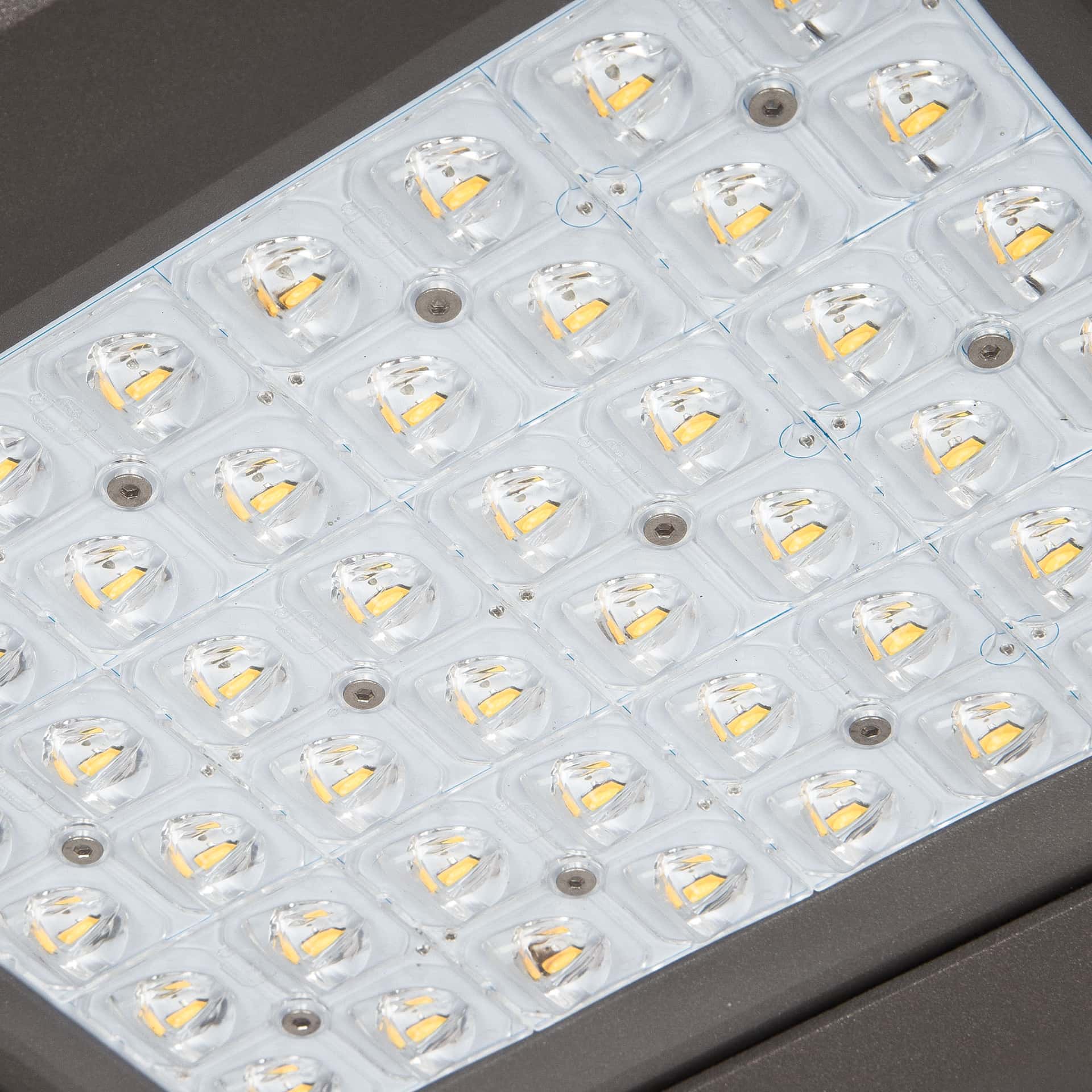

| Optical | Asymmetric Street Lighting Lens |
| Luminaire Maximum Power | 90W |
| Number of LEDs | 48 |
| Circuit | 24S2P |
| LED Type | 3535 |
| CRI | 70 |
| Operating Temperature | -20°C / +50°C |
| Protection | IP66 |

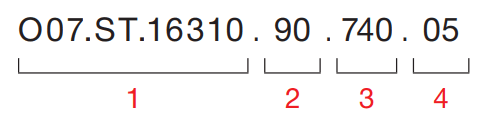

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
Frequently Asked Questions
What is the wattage of Quasar Mini?
Quasar Mini has a power of 50-70-90W.
What is the protection class of Quasar Mini?
The protection class of Quasar Mini is IP66.
Which certifications and standards does Quasar Mini have?
Quasar Mini carries the following certifications and standards: PBS, SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP66, IK09.
What is the product code of Quasar Mini?
The product (stock) code of Quasar Mini is O07.ST.16310.
Where can I download the catalog or PDF of Quasar Mini?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/outdoor/032-033.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/Dire%C4%9Fe%20Monte/Quasar.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/outdoor/3.%20Quasar%20Mini.zip) buttons on this page.
