Spark
Ürün ikonları
| Eingangsspannung | 220-240V / 50-60Hz |
| Wattzahl | 40-116W |
| Schutzklasse | IP20 |
| Form | Linear |
| Optisch | Diffusor |
| Breite, Höhe | 33–89 mm |
| Montageart | oberflächenmontiert |
AÇIKLAMA
Açıklama
| Ankerdaten | |
|---|---|
| Produktcode | I02.LL.06090.1154.068.830.01 |
| Nachname | Funke |
| Material | Aluminiumprofil |
| Format | linear |
| Profilbreite | 33mm |
| Profilhöhe | 89mm |
| Installationstyp | Wandmontage |
| Produktivität | >77lm/W |
| CRI | 80 |
| Lichtverteilung | Symmetrischer Weitwinkel |
| Schutzklasse | 20 |
| Leuchtenleben | L70/B50 50000h |
| Optisch | Opal-Plexi |
Ürün Kodu Tablosu
| Länge (A) | CRI | Bestellcode | Kelvin | 20W 250mA lm ↓ | 20W 250mA lm ↑ | 27W 350mA lm ↓ | 27W 350mA lm ↑ |
|---|---|---|---|---|---|---|---|
| 874mm | CRI>80 | I02.LL.06090 . (...) . (...) . (...) . (...) | 2700K | 1409 | 1409 | 1892 | 1892 |
| 3000K | 1454 | 1454 | 1953 | 1953 | |||
| 3500K | 1476 | 1476 | 1983 | 1983 | |||
| 4000K | 1533 | 1533 | 2059 | 2059 | |||
| 5000K | 1555 | 1555 | 2089 | 2089 | |||
| CRI>90 | I02.LL.06090 . (...) . (...) . (...) . (...) | 2700K | 1183 | 1183 | 1589 | 1589 | |
| 3000K | 1217 | 1217 | 1635 | 1635 | |||
| 3500K | 1240 | 1240 | 1665 | 1665 | |||
| 4000K | 1285 | 1285 | 1726 | 1726 |
| Länge (A) | CRI | Bestellcode | Kelvin | 24W 250mA lm ↓ | 24W 250mA lm ↑ | 34W 350mA lm ↓ | 34W 350mA lm ↑ |
|---|---|---|---|---|---|---|---|
| 1154 mm | CRI>80 | I02.LL.06090 . (...) . (...) . (...) . (...) | 2700K | 1713 | 1713 | 2408 | 2408 |
| 3000K | 1768 | 1768 | 2485 | 2485 | |||
| 3500K | 1795 | 1795 | 2523 | 2523 | |||
| 4000K | 1864 | 1864 | 2620 | 2620 | |||
| 5000K | 1891 | 1891 | 2658 | 2658 | |||
| CRI>90 | I02.LL.06090 . (...) . (...) . (...) . (...) | 2700K | 1439 | 1439 | 2022 | 2022 | |
| 3000K | 1480 | 1480 | 2080 | 2080 | |||
| 3500K | 1507 | 1507 | 2119 | 2119 | |||
| 4000K | 1562 | 1562 | 2196 | 2196 |
| Länge (A) | CRI | Bestellcode | Kelvin | 30W 250mA lm ↓ | 30W 250mA lm ↑ | 43W 350mA lm ↓ | 43W 350mA lm ↑ |
|---|---|---|---|---|---|---|---|
| 1434 mm | CRI>80 | I02.LL.06090 . (...) . (...) . (...) . (...) | 2700K | 2188 | 2188 | 3103 | 3103 |
| 3000K | 2258 | 2258 | 3202 | 3202 | |||
| 3500K | 2293 | 2293 | 3252 | 3252 | |||
| 4000K | 2381 | 2381 | 3376 | 3376 | |||
| 5000K | 2416 | 2416 | 3425 | 3425 | |||
| CRI>90 | I02.LL.06090 . (...) . (...) . (...) . (...) | 2700K | 1838 | 1838 | 2606 | 2606 | |
| 3000K | 1890 | 1890 | 2681 | 2681 | |||
| 3500K | 1925 | 1925 | 2730 | 2730 | |||
| 4000K | 1995 | 1995 | 2830 | 2830 |
| Länge (A) | CRI | Bestellcode | Kelvin | 36W 250mA lm ↓ | 36W 250mA lm ↑ | 51W 350mA lm ↓ | 51W 350mA lm ↑ |
|---|---|---|---|---|---|---|---|
| 1714 mm | CRI>80 | I02.LL.06090 . (...) . (...) . (...) . (...) | 2700K | 2682 | 2682 | 3787 | 3787 |
| 3000K | 2768 | 2768 | 3908 | 3908 | |||
| 3500K | 2810 | 2810 | 3968 | 3968 | |||
| 4000K | 2918 | 2918 | 4120 | 4120 | |||
| 5000K | 2961 | 2961 | 4180 | 4180 | |||
| CRI>80 | I02.LL.06090 . (...) . (...) . (...) . (...) | 2700K | 2252 | 2252 | 3181 | 3181 | |
| 3000K | 2317 | 2317 | 3272 | 3272 | |||
| 3500K | 2360 | 2360 | 3332 | 3332 | |||
| 4000K | 2446 | 2446 | 3453 | 3453 |
| Länge (A) | CRI | Bestellcode | Kelvin | 42W 250mA lm ↓ | 42W 250mA lm ↑ | 58W 350mA lm ↓ | 58W 350mA lm ↑ |
|---|---|---|---|---|---|---|---|
| 1994mm | CRI>80 | I02.LL.06090 . (...) . (...) . (...) . (...) | 2700K | 3195 | 3195 | 4482 | 4482 |
| 3000K | 3297 | 3297 | 4625 | 4625 | |||
| 3500K | 3348 | 3348 | 4697 | 4697 | |||
| 4000K | 3476 | 3476 | 4876 | 4876 | |||
| 5000K | 3527 | 3527 | 4948 | 4948 | |||
| CRI>90 | I02.LL.06090 . (...) . (...) . (...) . (...) | 2700K | 2683 | 2683 | 3764 | 3764 | |
| 3000K | 2760 | 2760 | 3872 | 3872 | |||
| 3500K | 2811 | 2811 | 3944 | 3944 | |||
| 4000K | 2913 | 2913 | 4087 | 4087 |
| 2 | Länge (A) | 3 | Watt – Antriebsstrom | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Produktfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| 874mm | 40W | 20 W (direkt) / 20 W (indirekt) – 250 mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | Weiß | |
| 54W | 27 W (direkt) / 27 W (indirekt) – 350 mA | |||||||||
| 1154 mm | 48W | 24 W (direkt) / 24 W (indirekt) – 250 mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 68W | 34 W (direkt) / 34 W (indirekt) – 350 mA | |||||||||
| 1434 mm | 60W | 30 W (direkt) / 30 W (indirekt) – 250 mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | Schwarz | |
| 86W | 43 W (direkt) / 43 W (indirekt) – 350 mA | |||||||||
| 1714 mm | 72W | 36 W (direkt) / 36 W (indirekt) – 250 mA | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | grau | |
| 102W | 51 W (direkt) / 51 W (indirekt) – 350 mA | |||||||||
| 1994mm | 84W | 42 W (direkt) / 42 W (indirekt) – 250 mA | 850 | CRI>80 - 5000K |  | 05 | dunkelgrau | |||
| 116W | 58 W (direkt) / 58 W (indirekt) – 350 mA | |||||||||
 | 06 | Sonderfarbe |

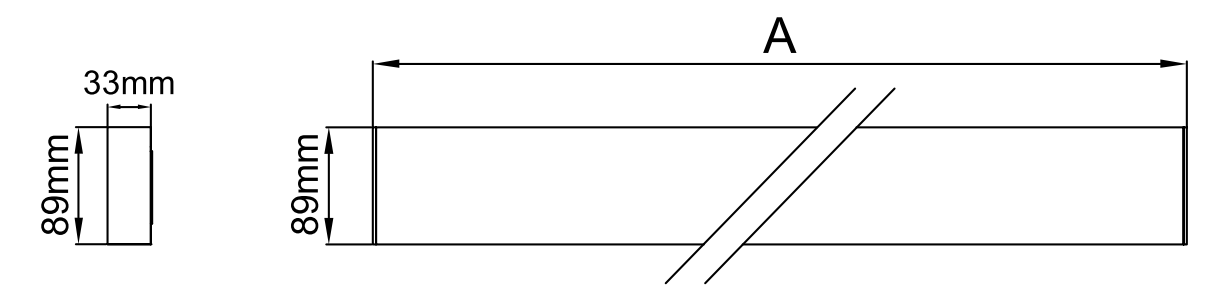

Teknik Çizimler

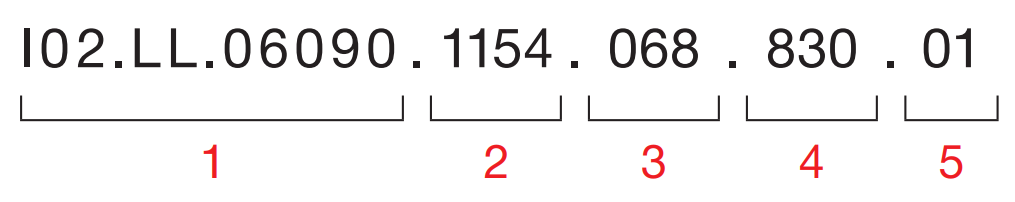

Kod Örneği
1- Produktcode / Armaturencode
2- Länge
3- Macht
4- CRI / Kelvin
5- Farbe / Produktfarbe
6- Steuerungstyp
