Spade
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 34-40W |
| Protection Class | IP20 |
| Optical | Lens |
| width, length | 595x595mm |
AÇIKLAMA
Açıklama
SPADE Avolux new generation panel
It is included in the armature series. Slim body structure
and thanks to specially designed plastic reflector optics
Extra high lm/W efficiency is achieved. office, school,
many different buildings such as hospitals, clinics, public buildings
may be preferred in the project. T-Profile ceilings and
It can be easily applied to plasterboard ceiling systems.
SMD LED applied inside the luminaire
Thanks to its technology and efficient optical structure, 148lm/
Efficiency up to W is achieved
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 34W 900mA lm | 40W 1050mA lm |
|---|---|---|---|---|---|
| 595x595mm | CRI>80 | I02.LL.19894 . (...) . (...) . (...) . (...) | 2700K | 4522 | 5187 |
| 3000K | 4692 | 5382 | |||
| 3500K | 4948 | 5676 | |||
| 4000K | 5119 | 5930 | |||
| 5000K | 5170 | 5872 | |||
| CRI>90 | I02.LL.19894 . (...) . (...) . (...) . (...) | 2700K | 3992 | 4580 | |
| 3000K | 4010 | 4600 | |||
| 3500K | 4095 | 4697 | |||
| 4000K | 4180 | 4795 |
| Length (A) | watts | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|
| 595x595mm | 34W | 34W (Direct) - 900mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white |
| 40W | 40W (Direct) - 1050mA | ||||||||
| 23W | 23W (Direct) - 600mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 30W | 30W (Direct) - 800mA | ||||||||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||
 | 06 | special color |
Teknik Çizimler

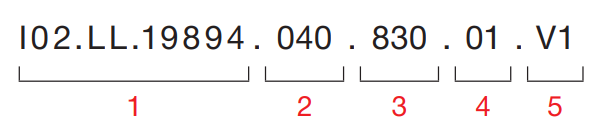

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
