Sonic
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 30-60W |
| Protection Class | IP66 |
| Shape | Pole Mounted |
| Optical | Lens |
AÇIKLAMA
Açıklama
-- LED street lighting fixture.
-- Corrosion resistant aluminum injection body.
-- With silicone gasket.
-- All external metal parts are made of stainless steel.
-- Tempered glass.
-- 10KV power surge protector can be integrated.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design.
-- High lighting comfort.
-- Color tolerance max. 3SDCM.
-- Efficient optical structure in compliance with street lighting standards.
-- Transformer unit that does not require equipment can be intervened.
-- With aluminum profile pole with 4mt and 5mt options
The sale of the armature is taking place.
-- Compatible with 350mA and 600mA driving currents.
-- Efficient structure reaching up to 144lm/W.
-- 1-10V, DALI and Astro dim options are available.
-- Alternatively a motion sensor can be integrated.
-- Designed to illuminate the walkway and main street simultaneously.
-- Besides the standard 4000K light color, alternatively 2700K, 3000K,
3500K, 5000K and 6500K options are also available.
Ürün Kodu Tablosu

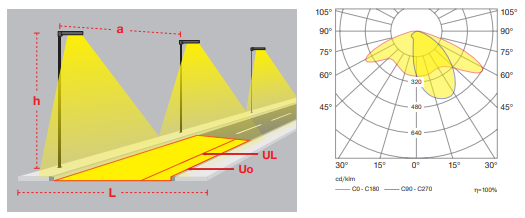

| Sonic/O07.ST.17400 | |
|---|---|
| System Power | 30W |
| Luminaire Output Lumen CRI>70 - 4000K | 4331lm |
| Driving Current | 350mA |
| Mast Span (a) | 20m |
| Mast Height (h) | 4m |
| Road Width (L) | 5m |
| Lighting Class | - |
| Optical Type | Maximum pole spacing |

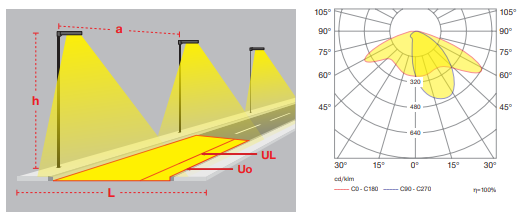

| Sonic/O07.ST.17400 | |
|---|---|
| System Power | 60W |
| Luminaire Output Lumen CRI>70 - 4000K | 8400lm |
| Driving Current | 600mA |
| Mast Span (a) | 26m |
| Mast Height (h) | 5m |
| Road Width (L) | 5m |
| Lighting Class | - |
| Optical Type | Maximum pole spacing |
| Armature Data | |
|---|---|
| Product Code | O07.ST.17400.60.740.05 |
| Family Name | Sonic |
| Material | Aluminum Injection |
| LED Life | L70/B50 50000h |
| Optical | Asymmetric Street Lighting Lens |
| Luminaire Maximum Power | 60W |
| Number of LEDs | 24 |
| Circuit | 24S2P |
| LED Type | 3535 |
| CRI | 70 |
| Operating Temperature | -20°C / +50°C |
| Protection | IP66 |
Teknik Çizimler

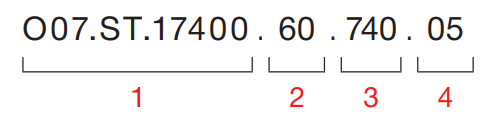

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
