Sofia
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 170W |
| Protection Class | IP66 |
| Shape | surface mounted |
| Optical | Lens |
AÇIKLAMA
Açıklama
-- LED high ceiling fixture with symmetrical light output.
-- Corrosion resistant aluminum profile body.
-- It has a bracketed mounting system.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design.
-- 2700K, 3000K, 3500K, 4000K and 6000K color temperature options
available.
-- Illumination is provided up to a height of 6-10 meters.
-- Optionally, jumper between luminaires with 2 cable entry terminals
can be done.
-- IP protection is provided without any problems with silicone gaskets.
-- All external screws are stainless.
-- Corrosion and salt resistant thanks to double-layer polyester powder paint.
-- Efficiency up to 140lm/W.
-- High color compatibility: <3 SDCM
-- Stainless cable gland is used in the luminaire and 220V main
The mains cable has an IP68 protected connector.
-- Mechanical locking system.
-- 1-10V and DALI control system options are available.
-- Safe system with L80 B10 parameters.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 170W | CRI>70 | O07.WL.19215 . (..) . (...) . (..) . (..) | 2700K | 23153 |
| 3000K | 23402 | |||
| 3500K | 23900 | |||
| 4000K | 24896 | |||
| 5000K | 25169 | |||
| 6500K | 24398 | |||
| CRI>80 | O07.WL.19215 . (..) . (...) . (..) . (..) | 2700K | 22506 | |
| 3000K | 22776 | |||
| 3500K | 24115 | |||
| 4000K | 24650 | |||
| 5000K | 24918 | |||
| 6500K | 24381 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 170 | 170W - 425mA | 727 | CRI>70 - 2700K | 827 | CRI>80 - 2700K |  | M.E. | 36° - Medium |  | 01 | white |
| 730 | CRI>70- 3000K | 830 | CRI>80 - 3000K |  | FL | 55° - Flood |  | 02 | ral 9010 | ||
| 735 | CRI>70- 3500K | 835 | CRI>80 - 3500K |  | W.F. | 75° - Wide Flood |  | 03 | black | ||
| 740 | CRI>70- 4000K | 840 | CRI>80 - 4000K |  | 04 | gray | |||||
| 750 | CRI>70- 5000K | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||
| 765 | CRI>70 - 6500K | 865 | CRI>80 - 6500K |  | 06 | special color | |||||

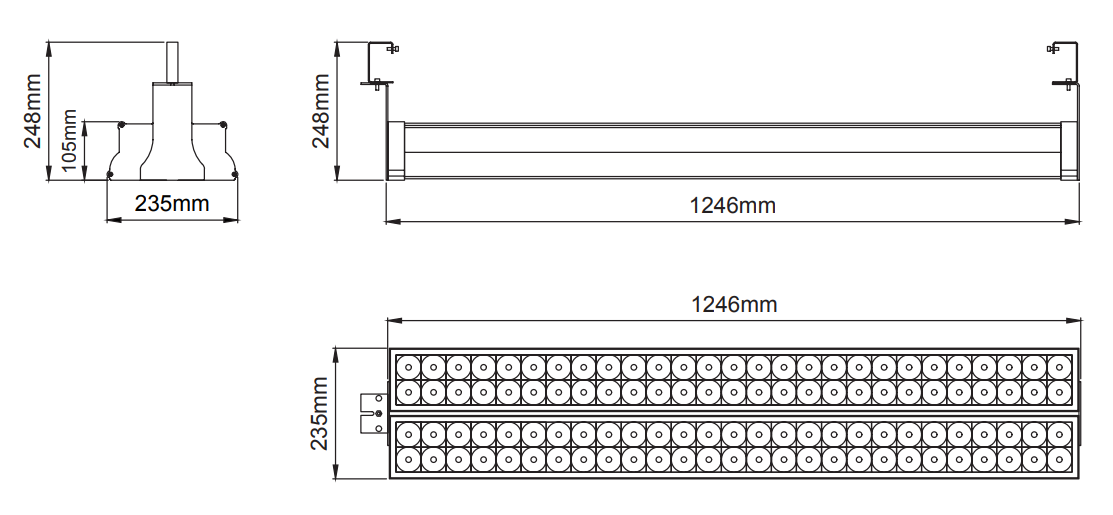

Teknik Çizimler

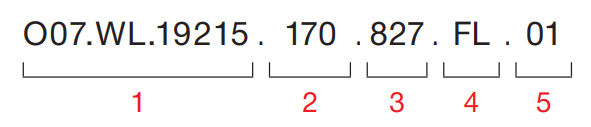

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
