Nightstar
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 55W |
| Protection Class | IP66 |
| Shape | Projector |
| Optical | Lens |
AÇIKLAMA
Açıklama
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 55W | CRI>80 | O07.WL.16100 . (..) . (...) . (..) . (..) | 2700K | 7644 |
| 3000K | 7732 | |||
| 3500K | 8087 | |||
| 4000K | 8266 | |||
| 5000K | 8355 | |||
| 6500K | 8444 | |||
| 50W | RGBW | O07.WL.16100 . (..) . (...) . (..) . (..) | RGBW | 3079 |
| 39W | CRI>80 | O07.WL.16100 . (..) . (...) . (..) . (..) | Red | 2944 |
| 53W | CRI>80 | O07.WL.16100 . (..) . (...) . (..) . (..) | Green | 4996 |
| 54W | CRI>80 | O07.WL.16100 . (..) . (...) . (..) . (..) | Blue | 2487 |
| 53W | CRI>80 | O07.WL.16100 . (..) . (...) . (..) . (..) | Amber | 5419 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 55 | 55W - 350mA | 727 | CRI>70 - 2700K | 827 | CRI>80 - 2700K |  | SP | 10° - Spot |  | 01 | white |
| 730 | CRI>70 - 3000K | 830 | CRI>80 - 3000K |  | M.E. | 25° - Medium |  | 02 | ral 9010 | ||
| 735 | CRI>70 - 3500K | 835 | CRI>80 - 3500K |  | FL | 55° - Flood |  | 03 | black | ||
| 740 | CRI>70 - 4000K | 840 | CRI>80 - 4000K |  | 04 | gray | |||||
| 750 | CRI>70 - 5000K | 860 | CRI>80 - 5000K |  | 05 | dark gray | |||||
| 765 | CRI>70 - 6500K | T.W. | 2700K - 6000K |  | 06 | special color | |||||
| RGBW | RGBW |

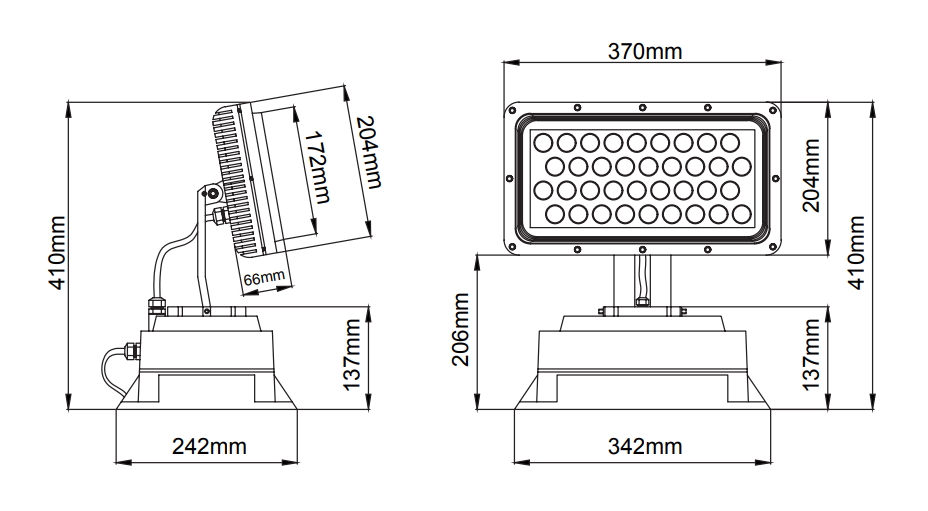

Teknik Çizimler

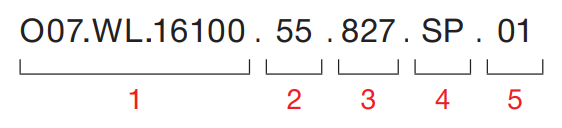

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
