Nero
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 20W |
| Protection Class | IP66 |
| Shape | surface mounted |
| Optical | Lens |
AÇIKLAMA
Açıklama
-- LED facade lighting fixture with symmetrical light output.
-- Corrosion resistant aluminum profile body.
-- Easily attaches to wall and ceiling surfaces thanks to its bracketed mounting system.
can be installed.
-- 24V DC input system. The armature is fed by an external transformer.
-- Completely homogeneous light output where the LEDs are not visible one by one.
-- 2700K, 3000K, 3500K, 4000K, 5000K and 6500K color temperature
options are available.
-- Green, red, blue and amber color options are available.
-- Thanks to the input/output IP connectors located at the back of the luminaire
can be connected to each other without interruption.
-- IP protection is provided without any problems with silicone gaskets.
-- All external screws are stainless.
-- Corrosion and salt resistant thanks to double-layer polyester powder paint.
-- High color compatibility: <3 SDCM
-- Safe system with L80 B10 50000 hour life parameters.
-- Five-year warranty.
Ürün Kodu Tablosu
| Length (A) | Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|---|
| 1000mm | 20W | CRI>80 | O07.WL.16040 . (..) . (...) . (..) . (..) | 2700K | 495 |
| 3000K | 550 | ||||
| 3500K | 577 | ||||
| 4000K | 600 | ||||
| 5000K | 622 | ||||
| 6500K | 644 | ||||
| 13W | CRI>80 | O07.WL.16040 . (..) . (...) . (..) . (..) | Red | 360 | |
| 18W | CRI>80 | O07.WL.16040 . (..) . (...) . (..) . (..) | Green | 660 | |
| 18W | CRI>80 | O07.WL.16040 . (..) . (...) . (..) . (..) | Blue | 347 | |
| 19W | CRI>80 | O07.WL.16040 . (..) . (...) . (..) . (..) | Amber | 652 | |
| 19W | RGBW | O07.WL.16040 . (..) . (...) . (..) . (..) | 2700K - 6000K | 280 |
| Length (A) | Watts - Driving Current | CRI/Kelvin | CRI/Kelvin | CRI/Kelvin | Light Angle | 5 | Product Color | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1000mm | 20W | 20W - 24V DC | 827 | CRI>80 - 2700K | 625 | Red |  | W.F. | 137° - Wide Flood | 01 | white |
| 830 | CRI>80 - 3000K | 525 | Green | 02 | ral 9010 | ||||||
| 835 | CRI>80 - 3500K | 470 | Blue | 03 | black | ||||||
| 840 | CRI>80 - 4000K | 590 | Amber | 04 | gray | ||||||
| 850 | CRI>80 - 5000K | T.W. | 2700K - 6000K | 05 | dark gray | ||||||
| 865 | CRI>80 - 6500K | RGBW | RGBW | 06 | special color | ||||||

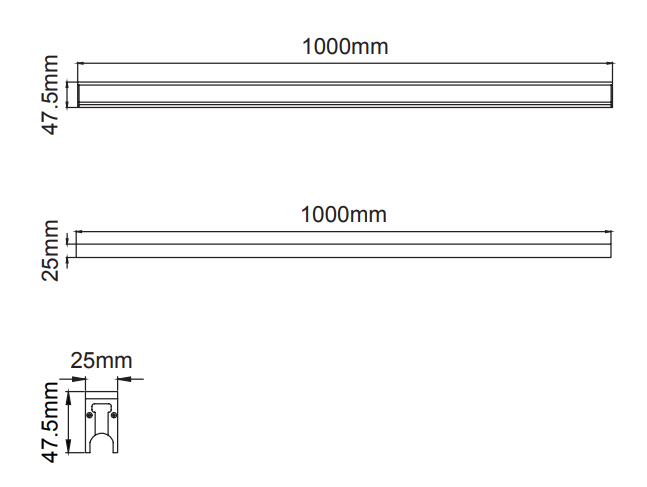

Teknik Çizimler

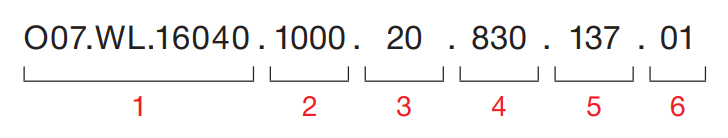

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
