Lazer Mini

Name: Lazer Mini
Brand: AVOLUX
SKU: O07.WL.16120

Ürün ikonları

Stok kodu: O07.WL.16120

Kategoriler: Facade Lighting Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR

-- LED facade lighting fixture with symmetrical light output.

-- Corrosion resistant aluminum profile body and aluminum injection

end cap.

-- Thanks to the bracketed mounting system, it can be mounted on floor, wall and ceiling surfaces.

It can be easily installed.

-- 220-240V / 50-60Hz energy input.

-- Very narrow, narrow, medium, wide and oval angle options are available.

-- 2700K, 3000K, 3500K, 4000K, 5000K and 6500K color temperature

options are available.

-- Green, red, blue and amber color options are available.

-- Optionally, jumper between luminaires with 2 cable entry terminals

can be done.

-- IP protection is provided without any problems with silicone gaskets.

-- All external screws are stainless.

-- Corrosion and salt resistant thanks to double-layer polyester powder paint.

-- Efficiency up to 114lm/W.

-- High color compatibility: <3 SDCM

-- RGB and RGBW options are available.

-- Stainless cable gland is used in the luminaire and 220V main

The mains cable has an IP68 protected connector.

-- Mechanical locking system.

-- Thanks to flexible mounting legs, 180° movement is provided in a single plane.

-- Safe system with L80 B10 50000 hour life parameters.

-- Five-year warranty.

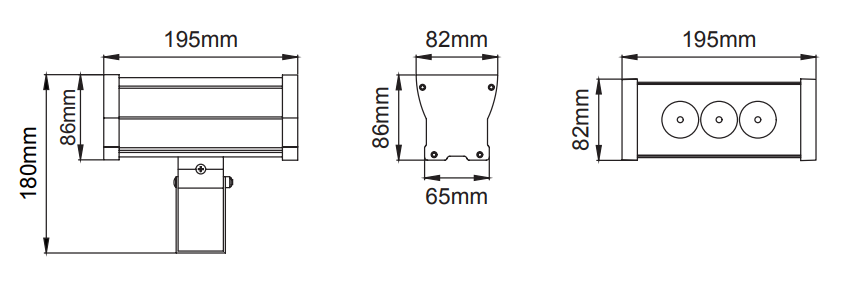

Length (A)	Strength	CRI	Order Code	Kelvin	Lumen

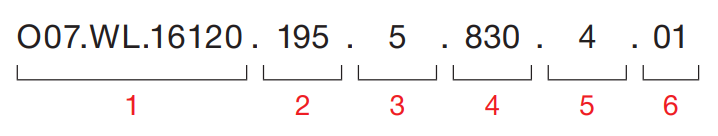

195mm	5W	CRI>80	O07.WL.16120 . (..) . (...) . (..) . (..)	2700K	258
				3000K	272
				3500K	286
				4000K	294
				5000K	305
				6500K	315
	3W	CRI>80	O07.WL.16120 . (..) . (...) . (..) . (..)	Red	115
	5W	CRI>80	O07.WL.16120 . (..) . (...) . (..) . (..)	Green	205
	5W	CRI>80	O07.WL.16120 . (..) . (...) . (..) . (..)	Blue	95
	5W	CRI>80	O07.WL.16120 . (..) . (...) . (..) . (..)	Amber	230
