| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 10W |
| Protection Class | IP65 |
| Shape | bollard |
| Optical | diffuser |
AÇIKLAMA
Açıklama
-- Smart design with cooling performance up to 10W.
-- Aluminum injection body.
-- Maximum LED life with high performance thermal cooler.
-- Homogeneous light distribution with correct optic selection.
-- Office buildings with high efficiency symmetrical optics option,
exterior of projects such as shopping malls, hotels and campuses
It makes it suitable for use in spaces.
-- With transparent PMMA plexi glass.
--IP65 and IK05.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 10W | CRI>80 | O07.BL.08980 . (..) . (...) . (..) . (..) | 2700K | 942 |
| 3000K | 961 | |||
| 3500K | 980 | |||
| 4000K | 1000 | |||
| 5000K | 1020 | |||
| 6500K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|
| 10 | 10W | 827 | CRI>80 - 2700K |  | 01 | white | ||
| 830 | CRI>80 - 3000K |  | 02 | ral 9010 | ||||
| 835 | CRI>80 - 3500K |  | 03 | black | ||||
| 840 | CRI>80 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||
 | 06 | special color |

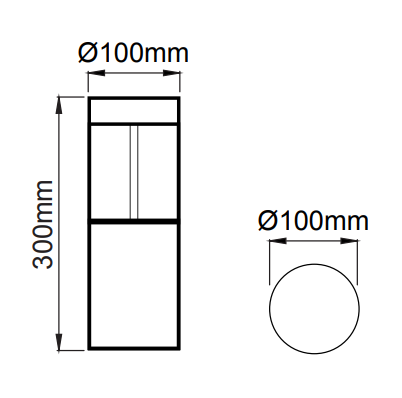

Teknik Çizimler
Kod Örneği
1- Product code / Armature code2- Power / Power3- CRI / Kelvin
4- Reflector angle
