Etange
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 20-50W |
| Protection Class | IP65 |
| Shape | surface mounted |
| Optical | Lens |
AÇIKLAMA
Açıklama
-- Aluminum body PMMA plexi.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design.
-- 1-10V, DALI and switch dim options are available.
-- Opal diffuser.
-- Emergency lighting kit system can be applied.
-- It can be easily assembled thanks to metal clips.
-- 2700K, 3000K, 3500K, 4000K and 5000K color temperature options
available.
-- Silicone gasket providing water resistance.
-- High LED color compatibility: <3 SDCM
-- Efficiency up to 126lm/W.
Ürün Kodu Tablosu
| Armature Data | |
|---|---|
| Product Code | O07.LL.19345.1274.20.830.01 |
| Family Name | etange |
| Material | Aluminum Profile |
| Format | linear |
| Profile Width | 73mm |
| Profile Width | 81mm |
| Installation Type | Pendant, Surface Mounted and Rail Mounted |
| Productivity | >128lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Opal Plexi |
| Length (A) | CRI | Order Code | Kelvin | 20W 125mA lm | 40W 250mA lm |
|---|---|---|---|---|---|
| 1274mm | CRI>80 | O07.LL.19345 . (...) . (...) . (...) . (...) | 2700K | 2356 | 4504 |
| 3000K | 2432 | 4648 | |||
| 3500K | 2469 | 4720 | |||
| 4000K | 2564 | 4900 | |||
| 5000K | 2601 | 4972 | |||
| 6500K | - | - |
| Length (A) | CRI | Order Code | Kelvin | 25W 125mA lm | 50W 250mA lm |
|---|---|---|---|---|---|
| 1574mm | CRI>80 | O07.LL.19345 . (...) . (...) . (...) . (...) | 2700K | 2920 | 5561 |
| 3000K | 3013 | 5739 | |||
| 3500K | 3060 | 5827 | |||
| 4000K | 3177 | 6050 | |||
| 5000K | 3224 | 6139 | |||
| 6500K | - | - |
| Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 5 | Product Color | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1274mm | 20W | 20W (Direct) - 125mA | 827 | CRI>80 - 2700K |  | 01 | white | ||||
| 1574mm | 40W | 40W (Direct) - 250mA | 830 | CRI>80 - 3000K |  | 02 | ral 9010 | ||||
| 25W | 25W (Direct) - 125mA | 835 | CRI>80 - 3500K |  | 03 | black | |||||
| 50W | 50W (Direct) - 250mA | 840 | CRI>80 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
| 865 | CRI>80 - 6500K |  | 06 | special color |

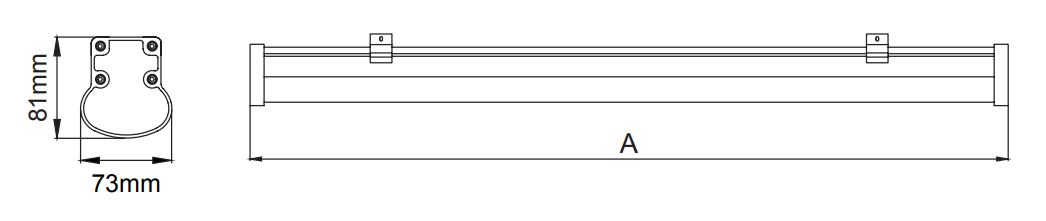

Teknik Çizimler
Kod Örneği
1- Product code / Armature code
2- Power / Güç
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
