| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 22W |
| Protection Class | IP54 |
| Shape | surface mounted |
| Optical | diffuser |
AÇIKLAMA
Açıklama
-- Corrosion resistant aluminum body.
-- Opal diffuser front cover.
-- Plastic gasket providing water resistance.
-- Electrostatic powder coated, resistant to ultraviolet radiation.
-- Compatible with SMD LED technology.
-- Corrosion and salt resistant thanks to double-layer polyester powder paint
body.
-- High LED color compatibility: <3 SDCM
-- L80 B10 50000 hours and five years warranty.
-- Motion Sensor and Emergency kit can be integrated into the fixture.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 22W | CRI>80 | O07.WA.07875 . (..) . (...) . (..) . (..) | 2700K | 1522 |
| 3000K | 1533 | |||
| 3500K | 1585 | |||
| 4000K | 1617 | |||
| 5000K | 1649 | |||
| 6500K | 1698 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22 | 22W | 827 | CRI>80 - 2700K |  | W.F. | Wide Flood |  | 01 | white | ||
| 830 | CRI>80 - 3000K |  | 02 | ral 9010 | |||||||
| 835 | CRI>80 - 3500K |  | 03 | black | |||||||
| 840 | CRI>80 - 4000K |  | 04 | gray | |||||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
| 865 | CRI>80 - 6500K |  | 06 | special color | |||||||

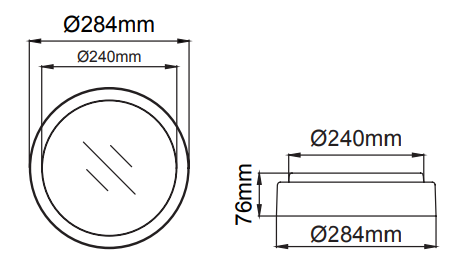

Teknik Çizimler

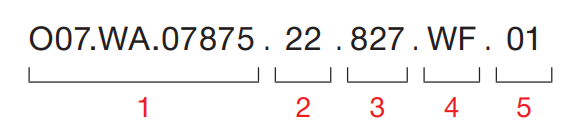

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
