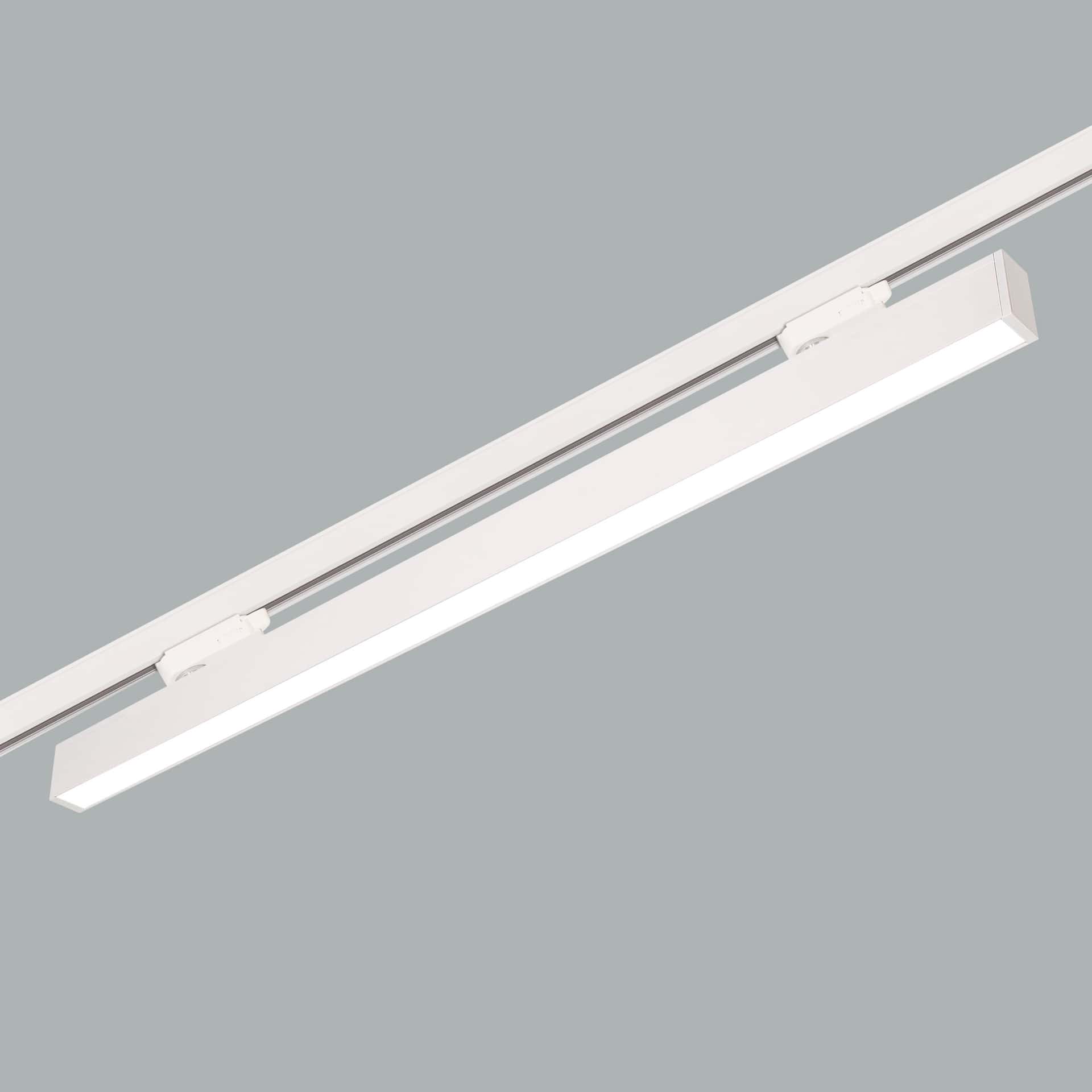

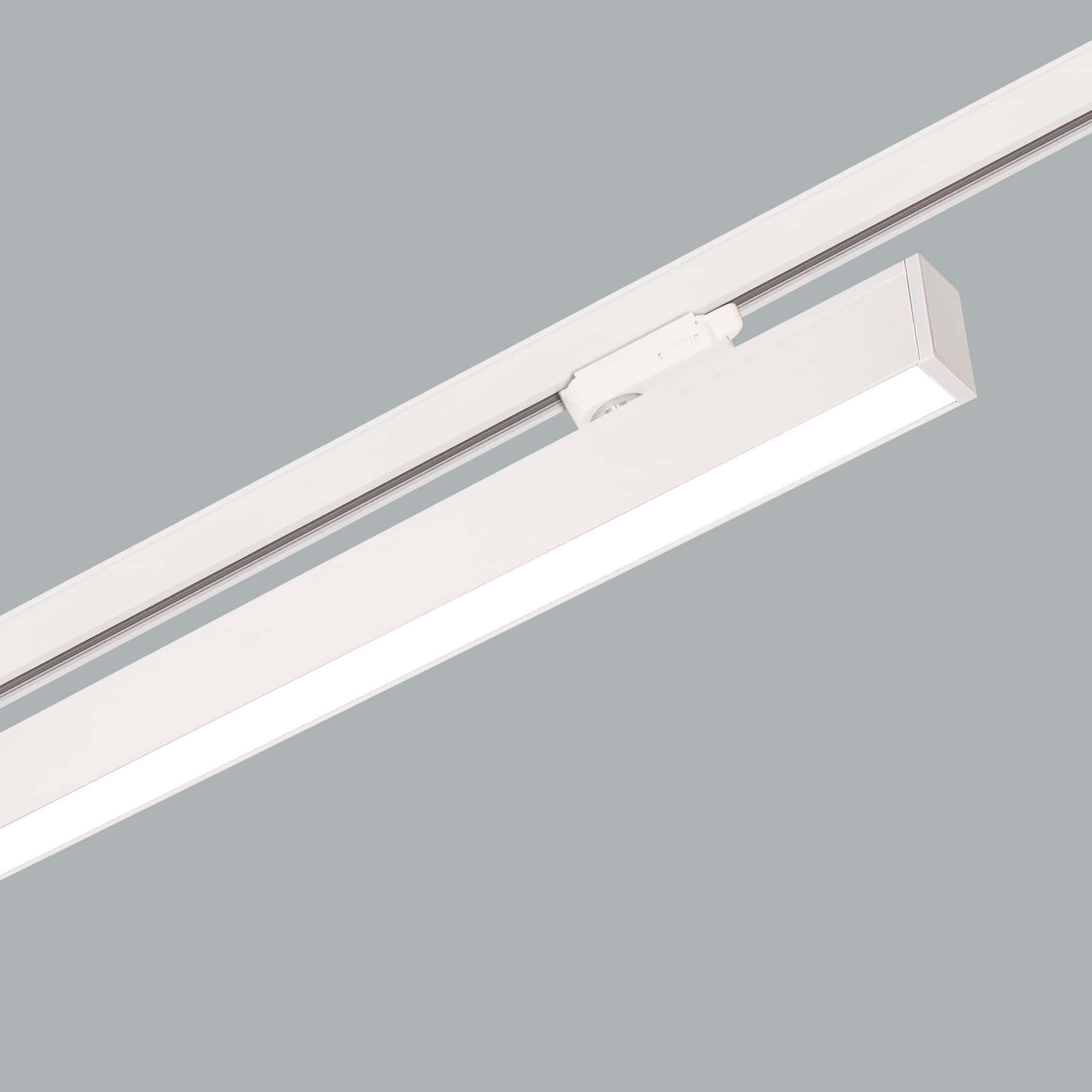

Yatomi Track Mounted
Yatomi Track Mounted is an AVOLUX LED lighting fixture in the Linear Profile Led Series category with a power of 20-58W and IP20 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 20-58W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | diffuser |
| width, height | 40-66mm |
| Mounting Type | Rail Mounted |
YATOMI provides lighting solutions in offices, stores, hospitals, etc. Thanks to its minimal profile structure, it is widely preferred in offices and similar areas. 2700K, 3000K, 3500K, 4000K and 5000K options can be applied with different power, size and DIM preferences. DIM options include DALI, Dynamic White, Wireless DIM. Pendant direct, pendant direct/indirect, surface mounted and rail mounted mounting options are available.
| Length (A) | CRI | Order Code | Kelvin | 20W 250mA lm | 25W 350mA lm |
|---|---|---|---|---|---|
| 895mm | CRI>80 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 2101 | 2662 |
| 3000K | 2168 | 2748 | |||
| 3500K | 2202 | 2790 | |||
| 4000K | 2286 | 2897 | |||
| 5000K | 2319 | 2939 | |||
| CRI>90 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 1765 | 2236 | |
| 3000K | 1815 | 2300 | |||
| 3500K | 1849 | 2343 | |||
| 4000K | 1916 | 2428 |
| Length (A) | CRI | Order Code | Kelvin | 24W 250mA lm | 34W 350mA lm |
|---|---|---|---|---|---|
| 1175mm | CRI>80 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 2556 | 3388 |
| 3000K | 2638 | 3496 | |||
| 3500K | 2678 | 3550 | |||
| 4000K | 2781 | 3686 | |||
| 5000K | 2822 | 3740 | |||
| CRI>90 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 2147 | 2845 | |
| 3000K | 2208 | 2927 | |||
| 3500K | 2249 | 2981 | |||
| 4000K | 2331 | 3089 |
| Length (A) | CRI | Order Code | Kelvin | 30W 250mA lm | 43W 350mA lm |
|---|---|---|---|---|---|
| 1455mm | CRI>80 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 3263 | 4366 |
| 3000K | 3367 | 4505 | |||
| 3500K | 3419 | 4575 | |||
| 4000K | 3550 | 4750 | |||
| 5000K | 3602 | 4820 | |||
| CRI>90 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 2740 | 3667 | |
| 3000K | 2819 | 3772 | |||
| 3500K | 2871 | 3842 | |||
| 4000K | 2975 | 3981 |
| Length (A) | CRI | Order Code | Kelvin | 36W 250mA lm | 51W 350mA lm |
|---|---|---|---|---|---|
| 1735mm | CRI>80 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 4000 | 5328 |
| 3000K | 4128 | 5499 | |||
| 3500K | 4192 | 5584 | |||
| 4000K | 4352 | 5797 | |||
| 5000K | 4416 | 5882 | |||
| CRI>90 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 3360 | 4475 | |
| 3000K | 3456 | 4603 | |||
| 3500K | 3520 | 4689 | |||
| 4000K | 3648 | 4859 |
| Length (A) | CRI | Order Code | Kelvin | 42W 250mA lm | 58W 350mA lm |
|---|---|---|---|---|---|
| 2015mm | CRI>80 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 4764 | 6306 |
| 3000K | 4916 | 6508 | |||
| 3500K | 4992 | 6609 | |||
| 4000K | 5183 | 6861 | |||
| 5000K | 5259 | 6962 | |||
| CRI>90 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 4001 | 5297 | |
| 3000K | 4116 | 5449 | |||
| 3500K | 4192 | 5549 | |||
| 4000K | 4344 | 5751 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 895mm | 20W | 20W (Direct) - 250mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 25W | 25W (Direct) - 350mA | |||||||||
| 1175mm | 24W | 24W (Direct) - 250mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 34W | 34W (Direct) - 350mA | |||||||||
| 1455mm | 30W | 30W (Direct) - 250mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |
| 43W | 43W (Direct) - 350mA | |||||||||
| 1735mm | 36W | 36W (Direct) - 250mA | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |
| 51W | 51W (Direct) - 350mA | |||||||||
| 2015mm | 42W | 42W (Direct) - 250mA | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||
| 58W | 58W (Direct) - 350mA | |||||||||
 | 06 | special color |

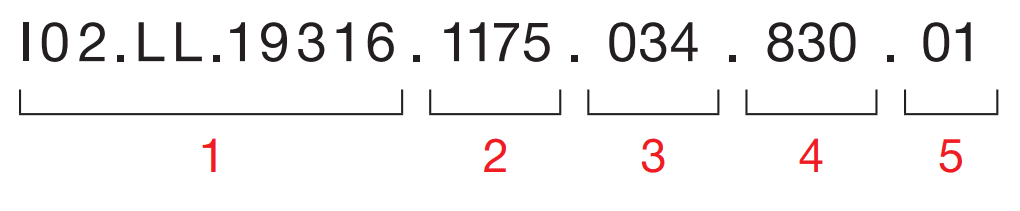

1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
Frequently Asked Questions
What is the wattage of Yatomi Track Mounted?
Yatomi Track Mounted has a power of 20-58W.
What is the protection class of Yatomi Track Mounted?
The protection class of Yatomi Track Mounted is IP20.
Which certifications and standards does Yatomi Track Mounted have?
Yatomi Track Mounted carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP20.
What is the product code of Yatomi Track Mounted?
The product (stock) code of Yatomi Track Mounted is I02.LL.19316.
Where can I download the catalog or PDF of Yatomi Track Mounted?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/linealed/112.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/linea/YATOMI%20Linea%20Led.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/linea/I02.LL.19316.rar) buttons on this page.
