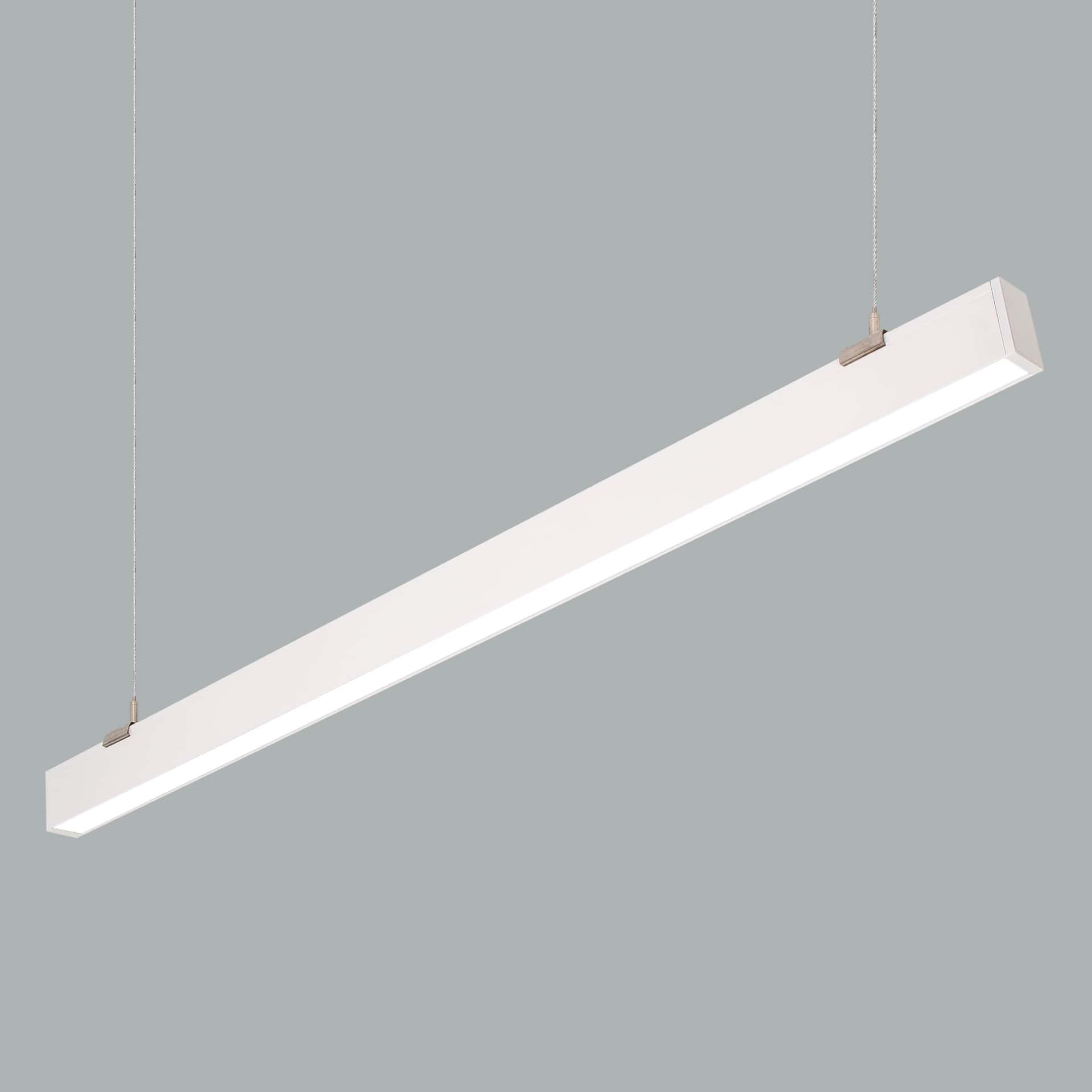

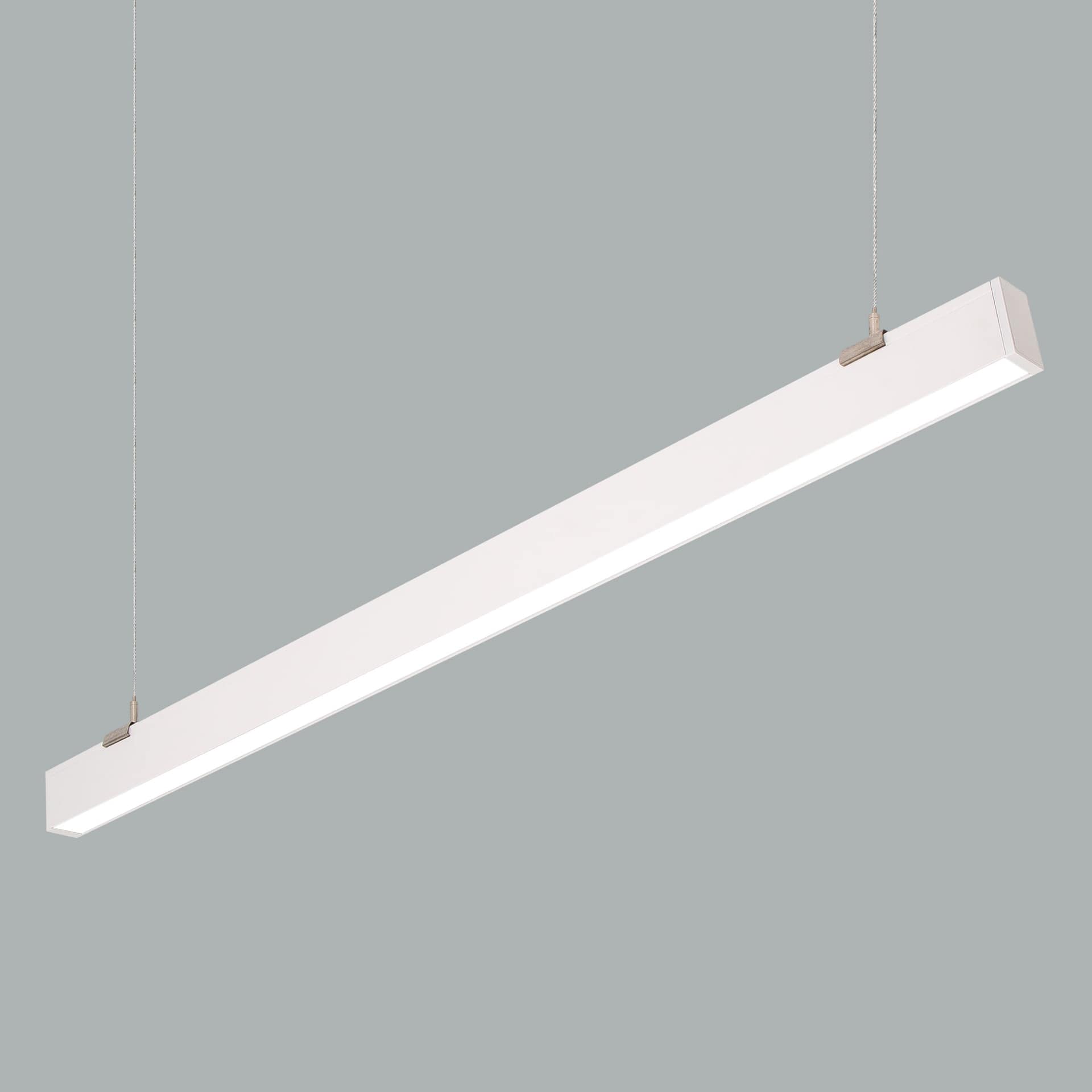

Yatomi Suspendant
Yatomi Suspendant is an AVOLUX LED lighting fixture in the Linear Profile Led Series category with a power of 20-58W and IP20 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 20-58W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | diffuser |
| width, height | 40-66mm |
| Mounting Type | Stalactite |
| Armature Data | |
|---|---|
| Product Code | I02.LL.19318.1175.034.830.01 |
| Family Name | Yatomi |
| Material | Aluminum Profile |
| Format | linear |
| Profile Width | 40mm |
| Profile Height | 66mm |
| Installation Type | Pendant, Surface Mounted and Rail Mounted |
| Productivity | >108lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Opal Plexi |
| Length (A) | CRI | Order Code | Kelvin | 20W 250mA lm | 25W 350mA lm |
|---|---|---|---|---|---|
| 895mm | CRI>80 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 2101 | 2662 |
| 3000K | 2168 | 2748 | |||
| 3500K | 2202 | 2790 | |||
| 4000K | 2286 | 2897 | |||
| 5000K | 2319 | 2939 | |||
| CRI>90 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 1765 | 2236 | |
| 3000K | 1815 | 2300 | |||
| 3500K | 1849 | 2343 | |||
| 4000K | 1916 | 2428 |
| Length (A) | CRI | Order Code | Kelvin | 24W 250mA lm | 34W 350mA lm |
|---|---|---|---|---|---|
| 1175mm | CRI>80 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 2556 | 3388 |
| 3000K | 2638 | 3496 | |||
| 3500K | 2678 | 3550 | |||
| 4000K | 2781 | 3686 | |||
| 5000K | 2822 | 3740 | |||
| CRI>90 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 2147 | 2845 | |
| 3000K | 2208 | 2927 | |||
| 3500K | 2249 | 2981 | |||
| 4000K | 2331 | 3089 |
| Length (A) | CRI | Order Code | Kelvin | 30W 250mA lm | 43W 350mA lm |
|---|---|---|---|---|---|
| 1455mm | CRI>80 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 3263 | 4366 |
| 3000K | 3367 | 4505 | |||
| 3500K | 3419 | 4575 | |||
| 4000K | 3550 | 4750 | |||
| 5000K | 3602 | 4820 | |||
| CRI>90 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 2740 | 3667 | |
| 3000K | 2819 | 3772 | |||
| 3500K | 2871 | 3842 | |||
| 4000K | 2975 | 3981 |
| Length (A) | CRI | Order Code | Kelvin | 36W 250mA lm | 51W 350mA lm |
|---|---|---|---|---|---|
| 1735mm | CRI>80 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 4000 | 5328 |
| 3000K | 4128 | 5499 | |||
| 3500K | 4192 | 5584 | |||
| 4000K | 4352 | 5797 | |||
| 5000K | 4416 | 5882 | |||
| CRI>90 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 3360 | 4475 | |
| 3000K | 3456 | 4603 | |||
| 3500K | 3520 | 4689 | |||
| 4000K | 3648 | 4859 |
| Length (A) | CRI | Order Code | Kelvin | 42W 250mA lm | 58W 350mA lm |
|---|---|---|---|---|---|
| 2015mm | CRI>80 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 4764 | 6306 |
| 3000K | 4916 | 6508 | |||
| 3500K | 4992 | 6609 | |||
| 4000K | 5183 | 6861 | |||
| 5000K | 5259 | 6962 | |||
| CRI>90 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 4001 | 5297 | |
| 3000K | 4116 | 5449 | |||
| 3500K | 4192 | 5549 | |||
| 4000K | 4344 | 5751 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 895mm | 20W | 20W (Direct) - 250mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 25W | 25W (Direct) - 350mA | |||||||||
| 1175mm | 24W | 24W (Direct) - 250mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 34W | 34W (Direct) - 350mA | |||||||||
| 1455mm | 30W | 30W (Direct) - 250mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |
| 43W | 43W (Direct) - 350mA | |||||||||
| 1735mm | 36W | 36W (Direct) - 250mA | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |
| 51W | 51W (Direct) - 350mA | |||||||||
| 2015mm | 42W | 42W (Direct) - 250mA | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||
| 58W | 58W (Direct) - 350mA | |||||||||
 | 06 | special color |

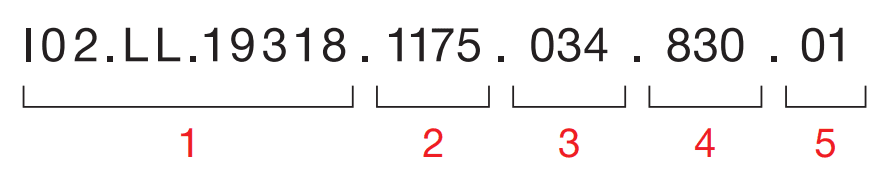

1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
Frequently Asked Questions
What is the wattage of Yatomi Suspendant?
Yatomi Suspendant has a power of 20-58W.
What is the protection class of Yatomi Suspendant?
The protection class of Yatomi Suspendant is IP20.
Which certifications and standards does Yatomi Suspendant have?
Yatomi Suspendant carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP20.
What is the product code of Yatomi Suspendant?
The product (stock) code of Yatomi Suspendant is I02.LL.19318.
Where can I download the catalog or PDF of Yatomi Suspendant?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/linealed/110-111.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/linea/YATOMI%20Linea%20Led.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/linea/I02.LL.19318.rar) buttons on this page.
