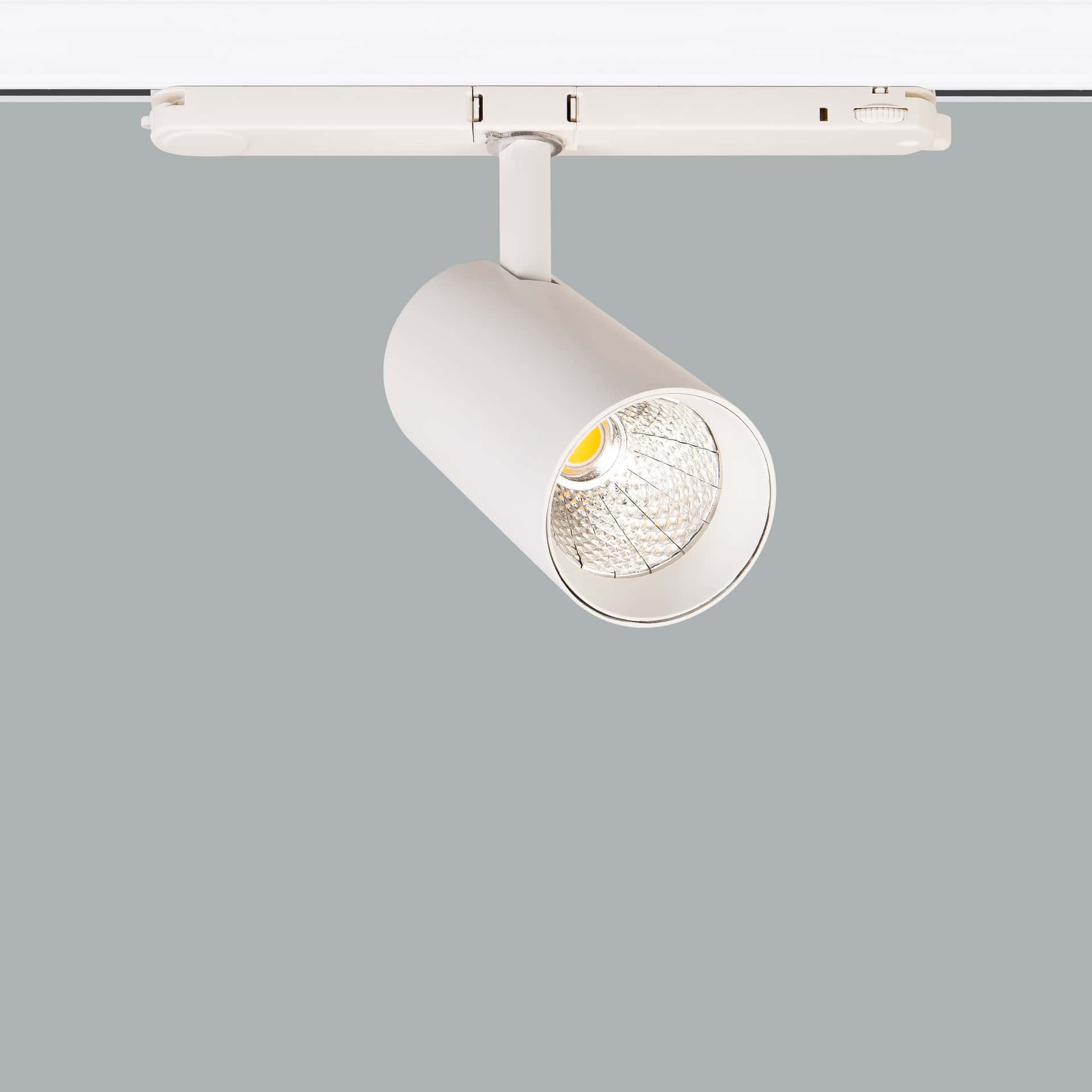

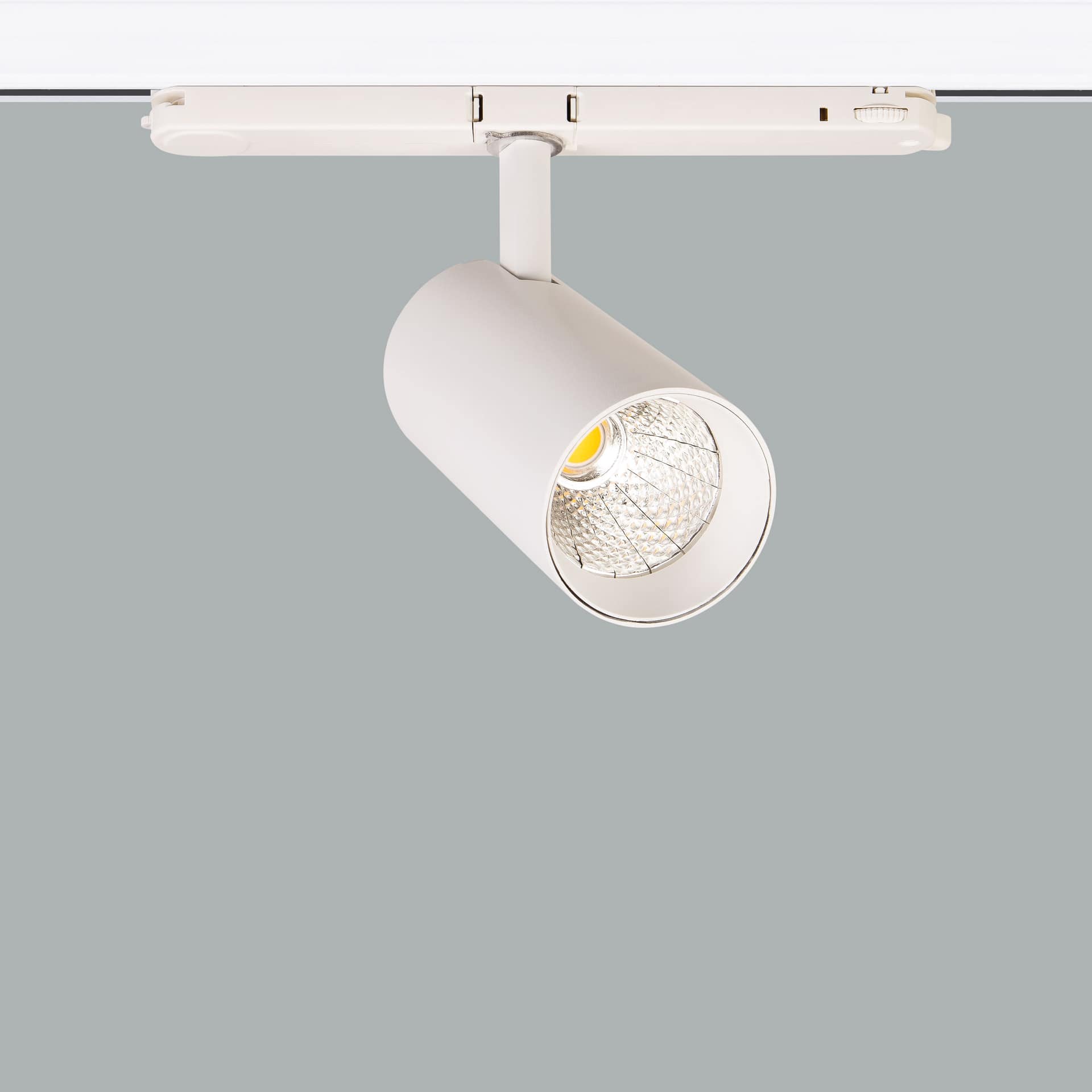

Silindir Trex Maxi
Silindir Trex Maxi is an AVOLUX LED lighting fixture in the COB Led Tracklight Series category with a power of 24W and IP20 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 24W |
| Protection Class | IP20 |
| Shape | rayspot |
| Optical | Reflector |
-- Aluminum injection body.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 24W | CRI>80 | I01.MLT.18189 . (..) . (...) . (..) . (..) | 2700K | 2962 |
| 3000K | 3145 | |||
| 3500K | 3022 | |||
| 4000K | 3082 | |||
| 5000K | 3283 | |||
| CRI>90 | I01.MLT.18189 . (..) . (...) . (..) . (..) | 2700K | 2754 | |
| 3000K | 2815 | |||
| 3500K | 2873 | |||
| 4000K | 2937 | |||
| 5000K | X | |||
| CRI>98 | I01.MLT.18189 . (..) . (...) . (..) . (..) | 2700K | 2190 | |
| 3000K | 2270 | |||
| 4000K | 2429 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 24W | 827 | CRI>80 - 2700K | 930 | CRI>90 - 3000K |  | SP | 23° - Spot |  | 01 | white |
| 830 | CRI>80 - 3000K | 935 | CRI>90 - 3500K |  | M.E. | 35° - Medium |  | 02 | ral 9010 | ||
| 835 | CRI>80 - 3500K | 940 | CRI>90 - 4000K |  | FL | 48° - Flood |  | 03 | black | ||
| 840 | CRI>80 - 4000K | 9827 | CRI>98 - 2700K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K | 9830 | CRI>98 - 3000K |  | 05 | dark gray | |||||
| 927 | CRI>90 - 2700K | 9840 | CRI>98 -4000K |  | 06 | special color |

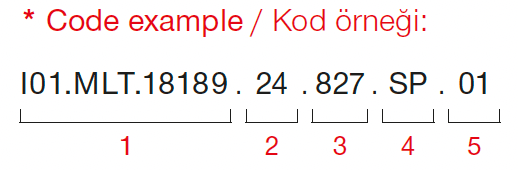

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Silindir Trex Maxi?
Silindir Trex Maxi has a power of 24W.
What is the protection class of Silindir Trex Maxi?
The protection class of Silindir Trex Maxi is IP20.
Which certifications and standards does Silindir Trex Maxi have?
Silindir Trex Maxi carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class II, IP20.
What is the product code of Silindir Trex Maxi?
The product (stock) code of Silindir Trex Maxi is I01.MLT.18189.
Where can I download the catalog or PDF of Silindir Trex Maxi?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/046.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/tracklight/SILINDIR%20TREX%20Tracklight.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Silindir%20Trex%20Maxi%2BI01.MLT.18189.rar) buttons on this page.
