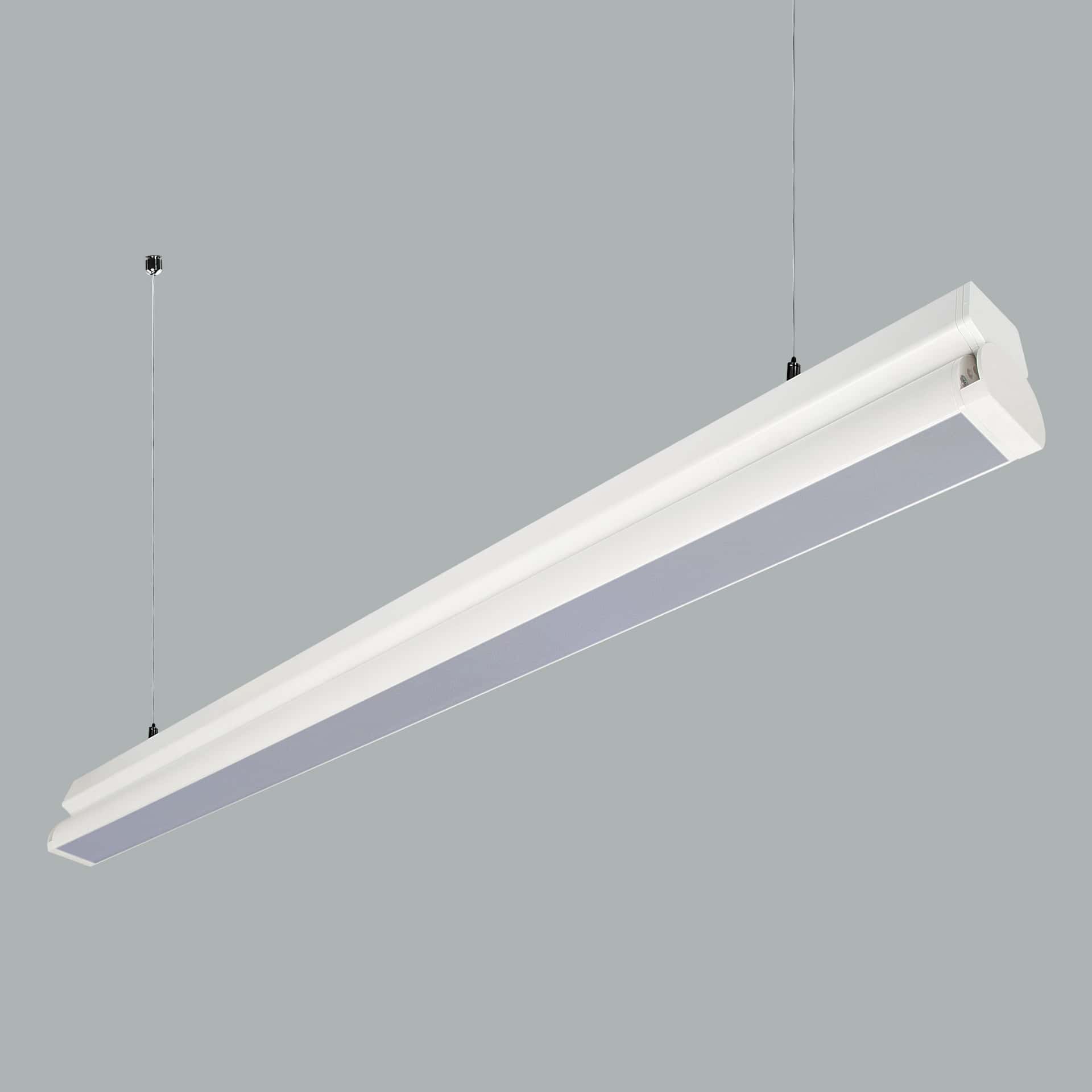

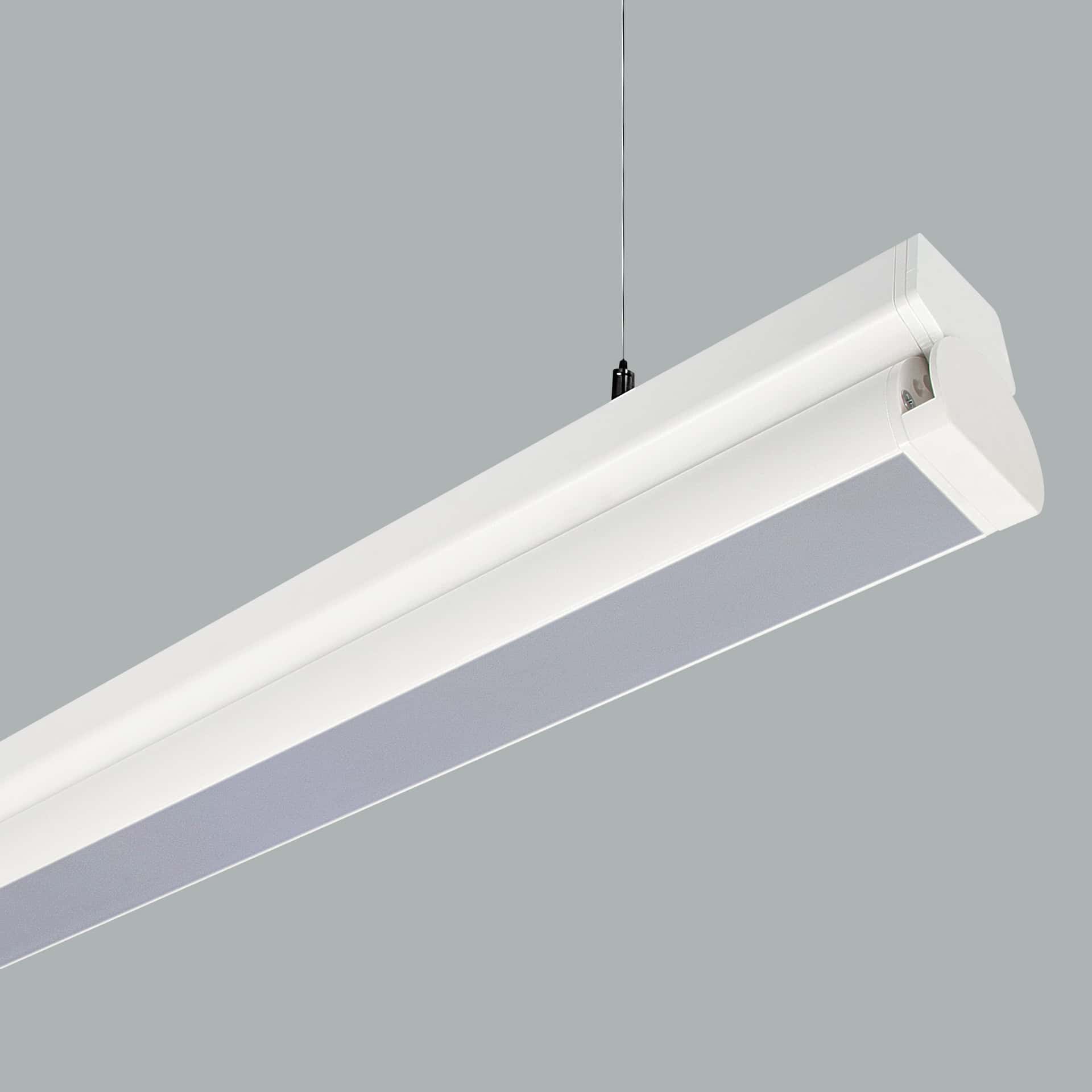

Rood Suspendant
Rood Suspendant is an AVOLUX LED lighting fixture in the Linear Profile Led Series category with a power of 28-43W and IP20 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 28-43W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | diffuser |
| width, height | 60-86mm |
| Mounting Type | Stalactite |
| Armature Data | |
|---|---|
| Product Code | I02.LL.19210.1180.035.830.01 |
| Family Name | rood |
| Material | Aluminum Profile |
| Format | Linear Motion |
| Profile Width | 60mm |
| Profile Height | 86mm |
| Installation Type | Pendant, Surface Mounted and Rail Mounted |
| Productivity | >76lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Opal Plexi |
| Alternative Diffuser UGR<19 | microprismatic |
| Length (A) | CRI | Order Code | Kelvin | 900mm 28W 350mA lm | 1180mm 35W 350mA lm | 1460mm 43W 350mA lm |
|---|---|---|---|---|---|---|
| 900mm - 28W | CRI>80 | I02.LL.19210 . (...) . (...) . (...) | 2700K | 1910 | 2457 | 3103 |
| 1180mm - 35W | 3000K | 1971 | 2535 | 3202 | ||
| 1460mm - 43W | 3500K | 2001 | 2574 | 3252 | ||
| 4000K | 2078 | 2673 | 3376 | |||
| 5000K | 2108 | 2712 | 3425 | |||
| CRI>90 | I02.LL.19210 . (...) . (...) . (...) | 2700K | 1604 | 2068 | 2606 | |
| 3000K | 1650 | 2122 | 2681 | |||
| 3500K | 1680 | 2162 | 2730 | |||
| 4000K | 1741 | 2240 | 2830 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 900mm | 28W | 28W (Direct) - 350mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 1180mm | 35W | 35W (Direct) - 350mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 1460mm | 43W | 43W (Direct) - 350mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||||
 | 06 | special color |

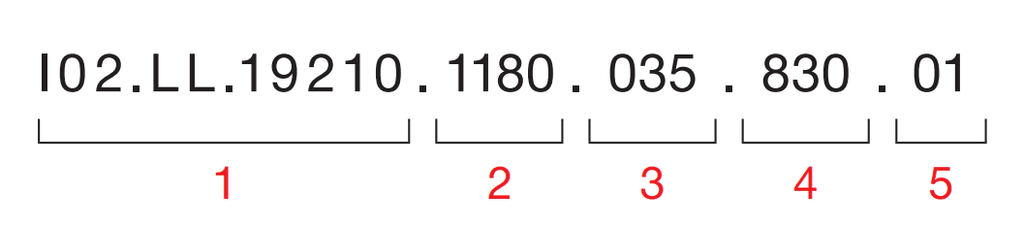

1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
Frequently Asked Questions
What is the wattage of Rood Suspendant?
Rood Suspendant has a power of 28-43W.
What is the protection class of Rood Suspendant?
The protection class of Rood Suspendant is IP20.
Which certifications and standards does Rood Suspendant have?
Rood Suspendant carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP20.
What is the product code of Rood Suspendant?
The product (stock) code of Rood Suspendant is I02.LL.19210.
Where can I download the catalog or PDF of Rood Suspendant?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/linealed/166-167.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/linealedpanel/ROOD%20Linea%20Led.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/linea/I02.LL.19210.rar) buttons on this page.
