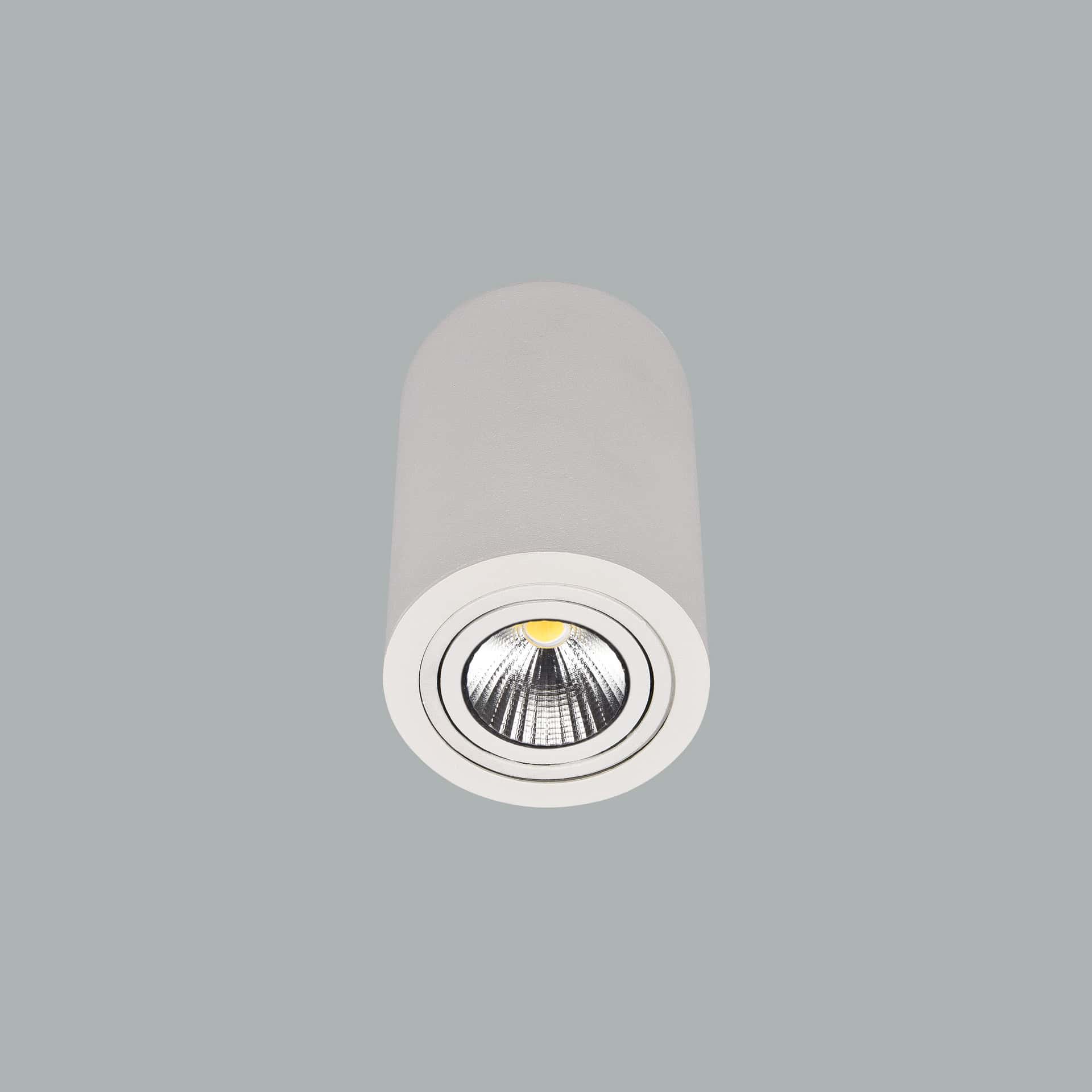

Pipa Midi
Pipa Midi is an AVOLUX LED lighting fixture in the COB Led Surface Mounted Series category with a power of 15W and IP40 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 15W |
| Protection Class | IP40 |
| Shape | surface mounted |
| Optical | Reflector |
DESCRIPTION
-- Aluminum body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Tempered glass.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- High-tech control systems Wireless DIM, Hot DIM and
Dynamic White applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
--Honeycomb Filter and Color Filter accessory options are applicable.

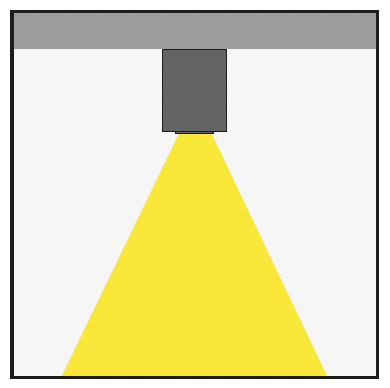

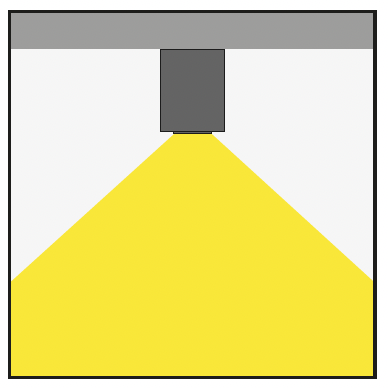

-- Very Narrow, Narrow, Medium, Wide and Very Wide reflector angle options
available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED
options are available.
-- Efficiency up to 136lm/W.
-- High color compatibility: <3 SDCM.
-- Emergency lighting kit system can be applied if the profile length is extended.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 15W | CRI>80 | I01.MLS.17070 . (..) . (...) . (..) . (..) | 2700K | 1347 |
| 3000K | 1380 | |||
| 3500K | 1429 | |||
| 4000K | 1478 | |||
| 5000K | 1582 | |||
| CRI>90 | I01.MLS.17070 . (..) . (...) . (..) . (..) | 2700K | 1212 | |
| 3000K | 1241 | |||
| 3500K | 1285 | |||
| 4000K | 1329 | |||
| 5000K | X | |||
| CRI>98 | I01.MLS.17070 . (..) . (...) . (..) . (..) | 2700K | 930 | |
| 3000K | 964 | |||
| 4000K | 1011 | |||
| Meat COB | I01.MLS.17070 . (..) . (...) . (..) . (..) | 1800K | X | |
| Food COB | I01.MLS.17070 . (..) . (...) . (..) . (..) | 2400K | X | |
| Pisces COB | I01.MLS.17070 . (..) . (...) . (..) . (..) | 6600K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 15W - 350mA | 827 | CRI>80 - 2700K | 9827 | CRI>98 - 2700K |  | SP | 17° - Spot |  | 01 | white |
| 10 | 10W - 250mA | 830 | CRI>80 - 3000K | 9830 | CRI>98 - 3000K |  | FL | 36° - Flood |  | 02 | ral 9010 |
| 7 | 7W - 180mA | 835 | CRI>80 - 3500K | 9840 | CRI>98 -4000K |  | W.F. | 60° - Wide Flood |  | 03 | black |
| 4 | 4W - 100mA | 840 | CRI>80 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
| 927 | CRI>90 - 2700K |  | 06 | special color | |||||||
| 930 | CRI>90 - 3000K | ||||||||||
| 935 | CRI>90 - 3500K | ||||||||||
| 940 | CRI>90 - 4000K |

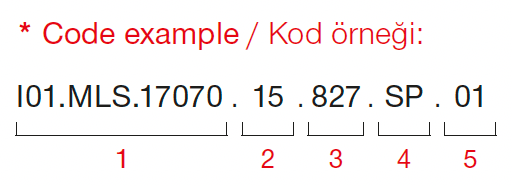

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Pipa Midi?
Pipa Midi has a power of 15W.
What is the protection class of Pipa Midi?
The protection class of Pipa Midi is IP40.
Which certifications and standards does Pipa Midi have?
Pipa Midi carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP40.
What is the product code of Pipa Midi?
The product (stock) code of Pipa Midi is I01.MLS.17070.
Where can I download the catalog or PDF of Pipa Midi?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/566.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/surface/PIPA%20Surface.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Pipa%20Midi%20Surface%20%20%20I01.MLS.17070.rar) buttons on this page.
