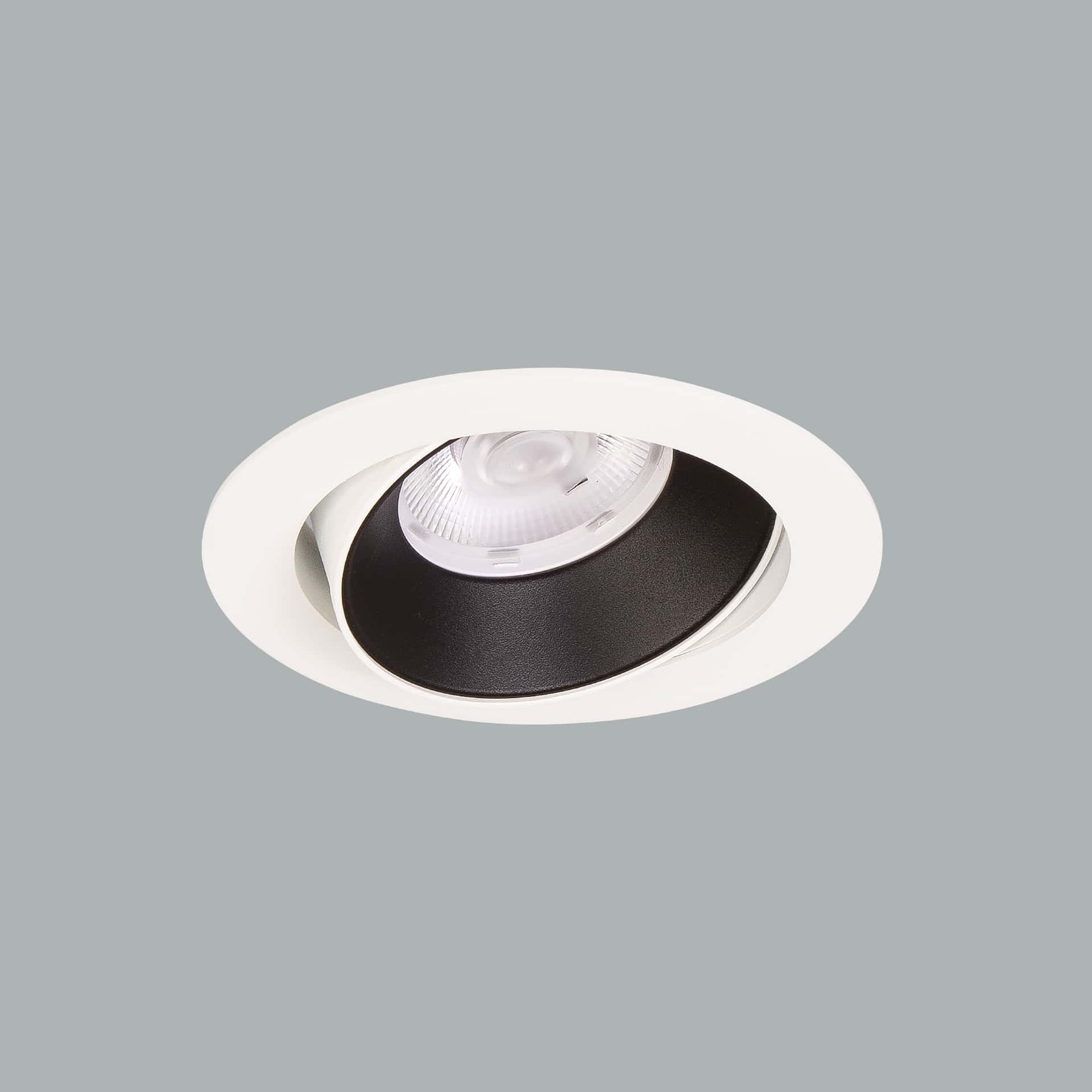

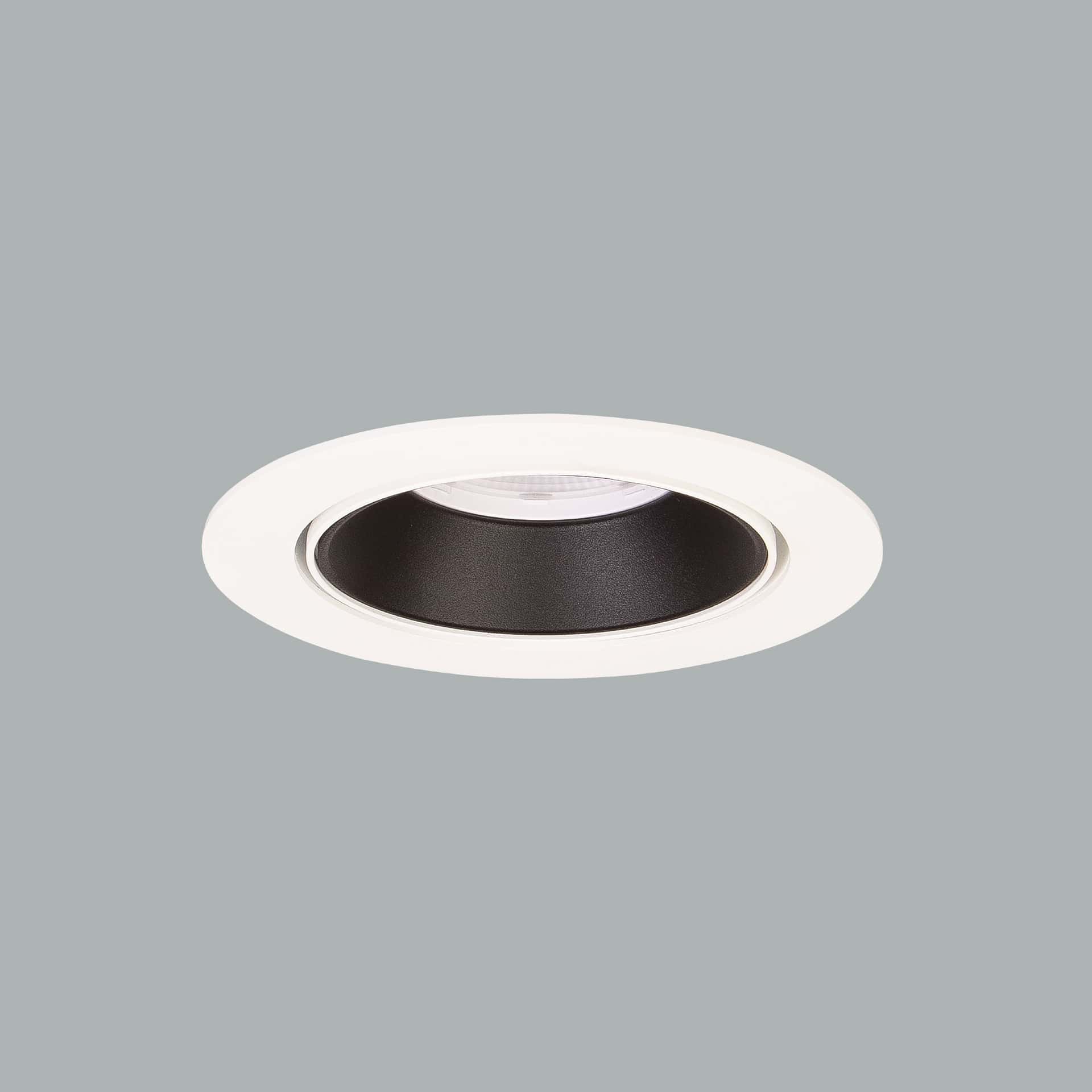

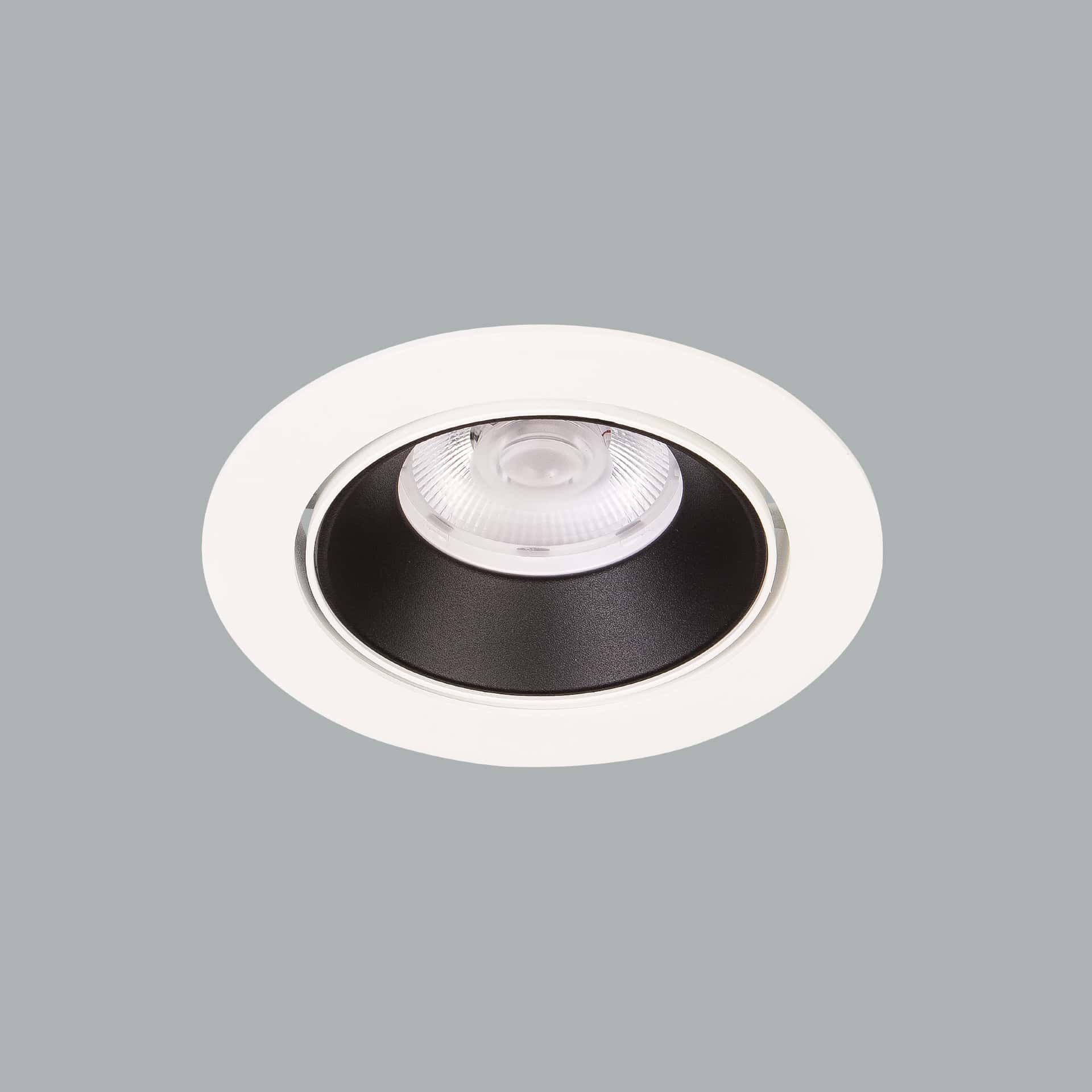

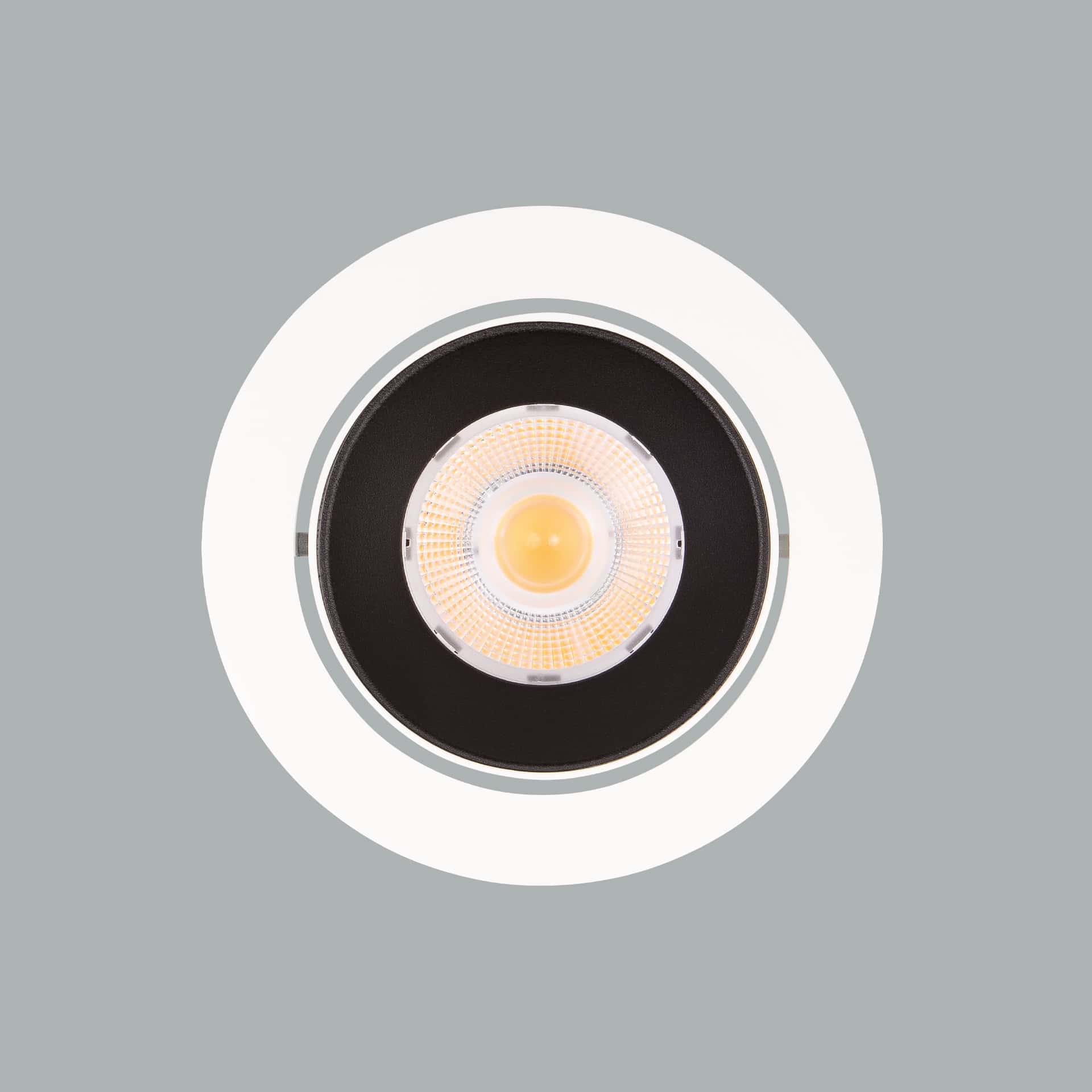

Pera Maxi
Pera Maxi is an AVOLUX LED lighting fixture in the COB Led Recessed Series category with a power of 24W and IP20 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 24W |
| Protection Class | IP20 |

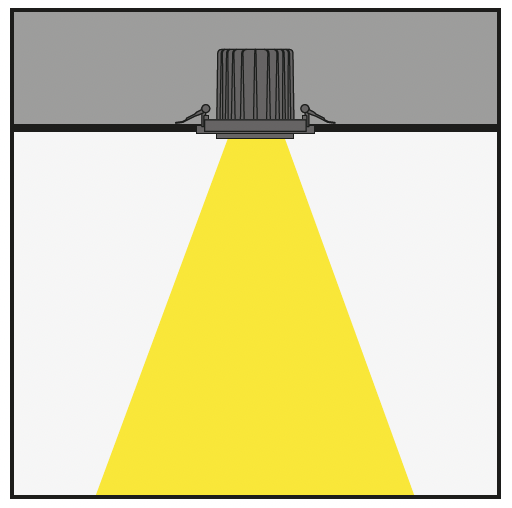

| Shape | built-in |
| Optical | Lens |
DESCRIPTION
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Mechanical locking with 20° vertical and 20° horizontal movement capability
joint system.

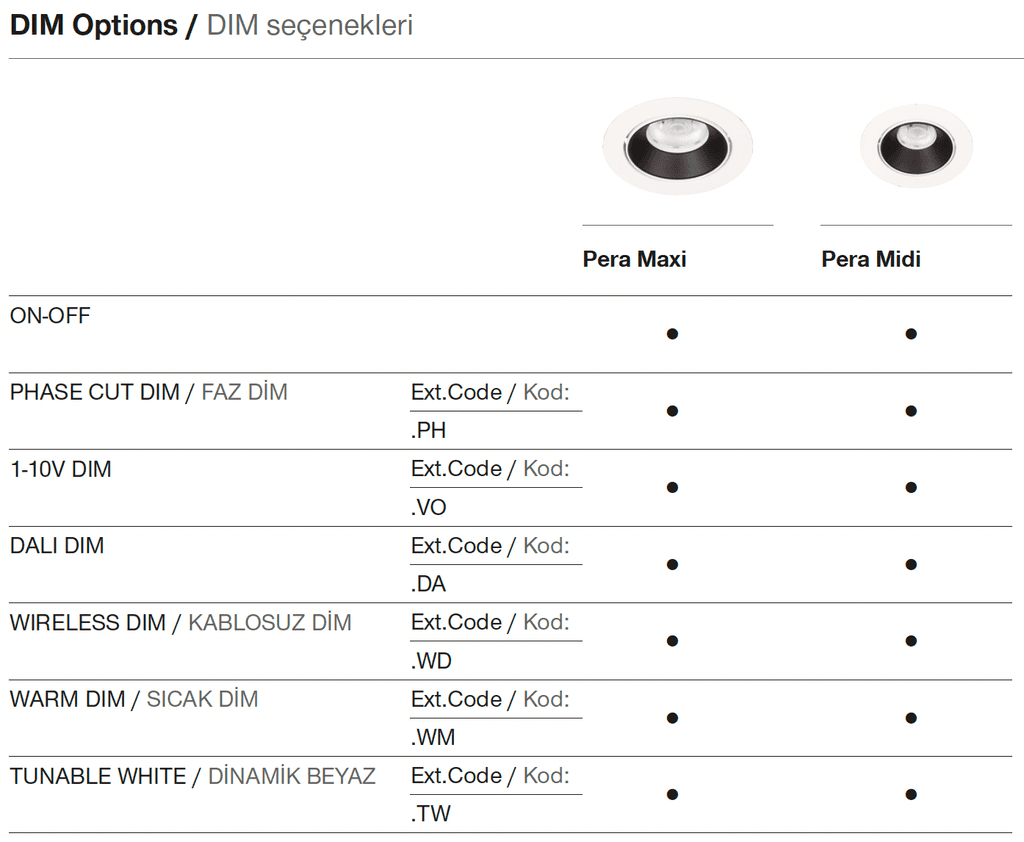

-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- High-tech control systems Wireless DIM, Hot DIM and
Dynamic White applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
-- Honeycomb Filter can be applied.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED
options are available.
-- Efficiency up to 116lm/W.
-- High color compatibility: <3 SDCM.
-- Emergency lighting kit system can be applied.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 24W | CRI>80 | I01.MLR.14060 . (..) . (...) . (..) . (..) | 2700K | 2632 |
| 3000K | 2685 | |||
| 3500K | 2738 | |||
| 4000K | 2794 | |||
| 5000K | 2876 | |||
| CRI>90 | I01.MLR.14060 . (..) . (...) . (..) . (..) | 2700K | 2447 | |
| 3000K | 2500 | |||
| 3500K | 2553 | |||
| 4000K | 2609 | |||
| 5000K | X | |||
| CRI>98 | I01.MLR.14060 . (..) . (...) . (..) . (..) | 2700K | X | |
| 3000K | X | |||
| 4000K | X |

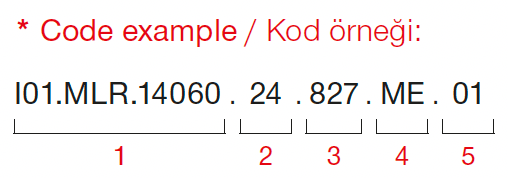

| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 24W - 600mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | M.E. | 30° - Medium |  | 01 | white |
| 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |||||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color |
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Pera Maxi?
Pera Maxi has a power of 24W.
What is the protection class of Pera Maxi?
The protection class of Pera Maxi is IP20.
Which certifications and standards does Pera Maxi have?
Pera Maxi carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP20.
What is the product code of Pera Maxi?
The product (stock) code of Pera Maxi is I01.MLR.14060.
Where can I download the catalog or PDF of Pera Maxi?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/456.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/recessed/PERA%20Recessed.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/PeraMaxi%2BI01.MLR.14060.rar) buttons on this page.
