Pars Line Surface Mounted
Pars Line Surface Mounted is an AVOLUX LED lighting fixture in the Linear Profile Led Series category with a power of 17-54W and IP44 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 17-54W |
| Protection Class | IP44 |
| Shape | Linear |
| Optical | Lens |
| Mounting Type | surface mounted |
The Pars Line optical system is designed for low glare light output. Thanks to its minimal profile structure, it is widely preferred in offices and similar areas. Medium and wide angle options are available. 2700K, 3000K, 3500K, 4000K and 5000K light colors can be applied with different power and size preferences. 1-10V, DALI, Wireless DIM and Dynamic White options increase the functionality of the luminaire.
| Length (A) | CRI | Order Code | Kelvin | 17W 250mA lm | 23W 350mA lm | 32W 500mA lm |
|---|---|---|---|---|---|---|
| 626mm | CRI>80 | I02.LL.19900 . (...) . (...) . (...) . (...) | 2700K | 1729 | 2390 | 3257 |
| 3000K | 1784 | 2466 | 3362 | |||
| 3500K | 1819 | 2515 | 3428 | |||
| 4000K | 1856 | 2566 | 3497 | |||
| 5000K | 1912 | 2644 | 3603 | |||
| CRI>90 | I02.LL.19900 . (...) . (...) . (...) . (...) | 2700K | 1607 | 2222 | 3029 | |
| 3000K | 1658 | 2292 | 3124 | |||
| 3500K | 1691 | 2338 | 3187 | |||
| 4000K | 1726 | 2387 | 3253 |
| Length (A) | CRI | Order Code | Kelvin | 20W 250mA lm | 28W 350mA lm | 39.5W 500mA lm |
|---|---|---|---|---|---|---|
| 781mm | CRI>80 | I02.LL.19900 . (...) . (...) . (...) . (...) | 2700K | 2161 | 2988 | 4072 |
| 3000K | 2230 | 3084 | 4203 | |||
| 3500K | 2274 | 3145 | 4286 | |||
| 4000K | 2320 | 3208 | 4372 | |||
| 5000K | 2390 | 3305 | 4504 | |||
| CRI>90 | I02.LL.19900 . (...) . (...) . (...) . (...) | 2700K | 2009 | 2778 | 3787 | |
| 3000K | 2073 | 2866 | 3906 | |||
| 3500K | 2114 | 2923 | 3984 | |||
| 4000K | 2158 | 2984 | 4067 |
| Length (A) | CRI | Order Code | Kelvin | 24W 250mA lm | 33.5W 350mA lm | 47W 500mA lm |
|---|---|---|---|---|---|---|
| 936mm | CRI>80 | I02.LL.19900 . (...) . (...) . (...) . (...) | 2700K | 2593 | 3585 | 4887 |
| 3000K | 2676 | 3700 | 5043 | |||
| 3500K | 2729 | 3773 | 5143 | |||
| 4000K | 2784 | 3849 | 5246 | |||
| 5000K | 2868 | 3966 | 5405 | |||
| CRI>90 | I02.LL.19900 . (...) . (...) . (...) . (...) | 2700K | 2411 | 3334 | 4544 | |
| 3000K | 2487 | 3439 | 4687 | |||
| 3500K | 2537 | 3507 | 4781 | |||
| 4000K | 2590 | 3581 | 4880 |
| Length (A) | CRI | Order Code | Kelvin | 28W 250mA lm | 39W 350mA lm | 54W 500mA lm |
|---|---|---|---|---|---|---|
| 1091mm | CRI>80 | I02.LL.19900 . (...) . (...) . (...) . (...) | 2700K | 3111 | 4300 | 5865 |
| 3000K | 3211 | 4440 | 6050 | |||
| 3500K | 3275 | 4530 | 6170 | |||
| 4000K | 3340 | 4620 | 6295 | |||
| 5000K | 3440 | 4760 | 6485 | |||
| CRI>90 | I02.LL.19900 . (...) . (...) . (...) . (...) | 2700K | 2895 | 4000 | 5450 | |
| 3000K | 2985 | 4125 | 5625 | |||
| 3500K | 3045 | 4200 | 5735 | |||
| 4000K | 3108 | 4300 | 5855 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | Light Angle | 5 | CRI/Kelvin | 5 | CRI/Kelvin | 6 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 626mm | 17W | 17W (Direct) - 250mA |  | M.E. | 30° - Medium | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 23W | 23W (Direct) - 350mA |  | W.F. | 60° - Wide Flood | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||
| 32W | 32W (Direct) - 500mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||||
| 781mm | 20W | 20W (Direct) - 250mA | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 28W | 28W (Direct) - 350mA | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
| 39.5W | 39.5W (Direct) - 500mA |  | 06 | special color | |||||||||
| 936mm | 24W | 24W (Direct) - 250mA | |||||||||||
| 33.5W | 33.5W (Direct) - 350mA | ||||||||||||
| 47W | 47W (Direct) - 500mA | ||||||||||||
| 1091mm | 28W | 28W (Direct) - 250mA | |||||||||||
| 39W | 39W (Direct) - 350mA | ||||||||||||
| 54W | 54W (Direct) - 500mA |

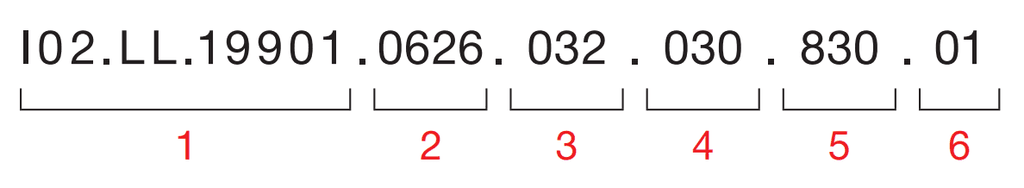

1- Product code / Armature code
2- Length
3- Power
4- Beam Angle
5- CRI / Kelvin
6- Color / Product color
7- Control type
Frequently Asked Questions
What is the wattage of Pars Line Surface Mounted?
Pars Line Surface Mounted has a power of 17-54W.
What is the protection class of Pars Line Surface Mounted?
The protection class of Pars Line Surface Mounted is IP44.
Which certifications and standards does Pars Line Surface Mounted have?
Pars Line Surface Mounted carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP44.
What is the product code of Pars Line Surface Mounted?
The product (stock) code of Pars Line Surface Mounted is I02.LL.19901.
Where can I download the catalog or PDF of Pars Line Surface Mounted?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/linealed/202.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/linealedpanel/PARS%20Line%20Linea%20Led.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/linea/I02.LL.19901.rar) buttons on this page.
