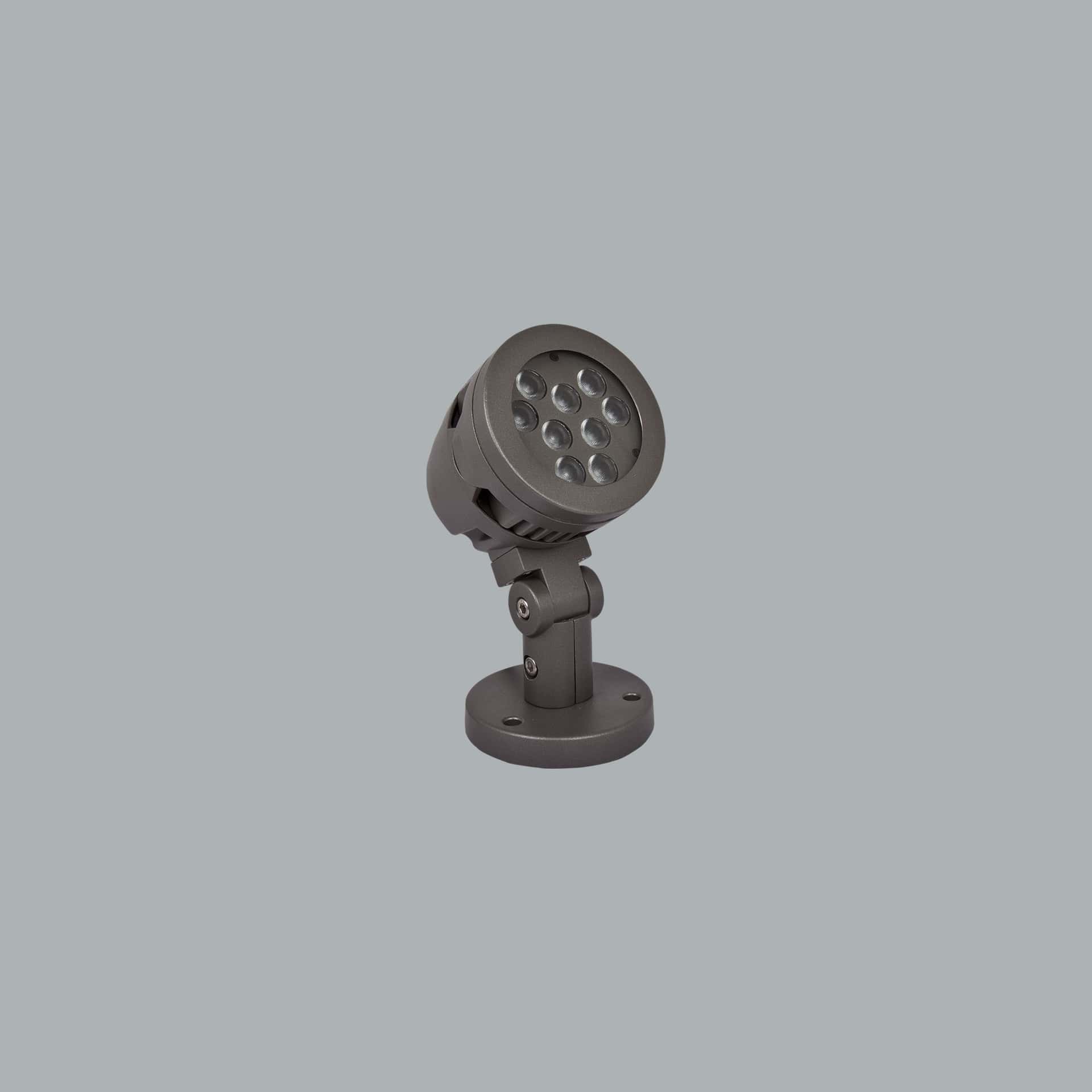

Panda Mini
Panda Mini is an AVOLUX LED lighting fixture in the Floodlight Series category with a power of 22W and IP66 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 22W |
| Protection Class | IP66 |
| Shape | Projector |
| Optical | Lens |
-- LED projector fixture with symmetrical light output.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 22W | CRI>80 | O07.WL.00521 . (..) . (...) . (..) . (..) | 2700K | 2287 |
| 3000K | 2314 | |||
| 3500K | 2420 | |||
| 4000K | 2473 | |||
| 5000K | 2500 | |||
| 6500K | 2526 | |||
| 16W | CRI>80 | O07.WL.00521 . (..) . (...) . (..) . (..) | Red | 1020 |
| 21W | CRI>80 | O07.WL.00521 . (..) . (...) . (..) . (..) | Green | 1559 |
| 22W | CRI>80 | O07.WL.00521 . (..) . (...) . (..) . (..) | Blue | 772 |
| 20W | CRI>80 | O07.WL.00521 . (..) . (...) . (..) . (..) | Amber | 1800 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22 | 22W - 700mA | 827 | CRI>80 - 2700K | 625 | Red |  | SP | 14° - Spot |  | 01 | white |
| 830 | CRI>80 - 3000K | 525 | Green |  | M.E. | 25° - Medium |  | 02 | ral 9010 | ||
| 835 | CRI>80 - 3500K | 470 | Blue |  | M.F. | 30° - Medium Flood |  | 03 | black | ||
| 840 | CRI>80 - 4000K | 590 | Amber |  | FL | 45° - Flood |  | 04 | gray | ||
| 850 | CRI>80 - 5000K |  | OV | 40° x 18° - Oval |  | 05 | dark gray | ||||
| 865 | CRI>80 - 6500K |  | 06 | special color | |||||||

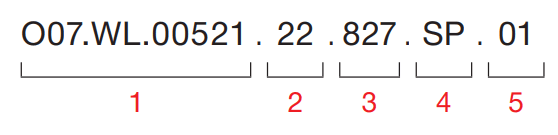

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
Frequently Asked Questions
What is the wattage of Panda Mini?
Panda Mini has a power of 22W.
What is the protection class of Panda Mini?
The protection class of Panda Mini is IP66.
Which certifications and standards does Panda Mini have?
Panda Mini carries the following certifications and standards: PBS, SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP66, IK08.
What is the product code of Panda Mini?
The product (stock) code of Panda Mini is O07.WL.00521.
Where can I download the catalog or PDF of Panda Mini?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/outdoor/352.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/Projekt%C3%B6r/Panda.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/outdoor/PANDA%20M%C4%B0N%C4%B0.zip) buttons on this page.
