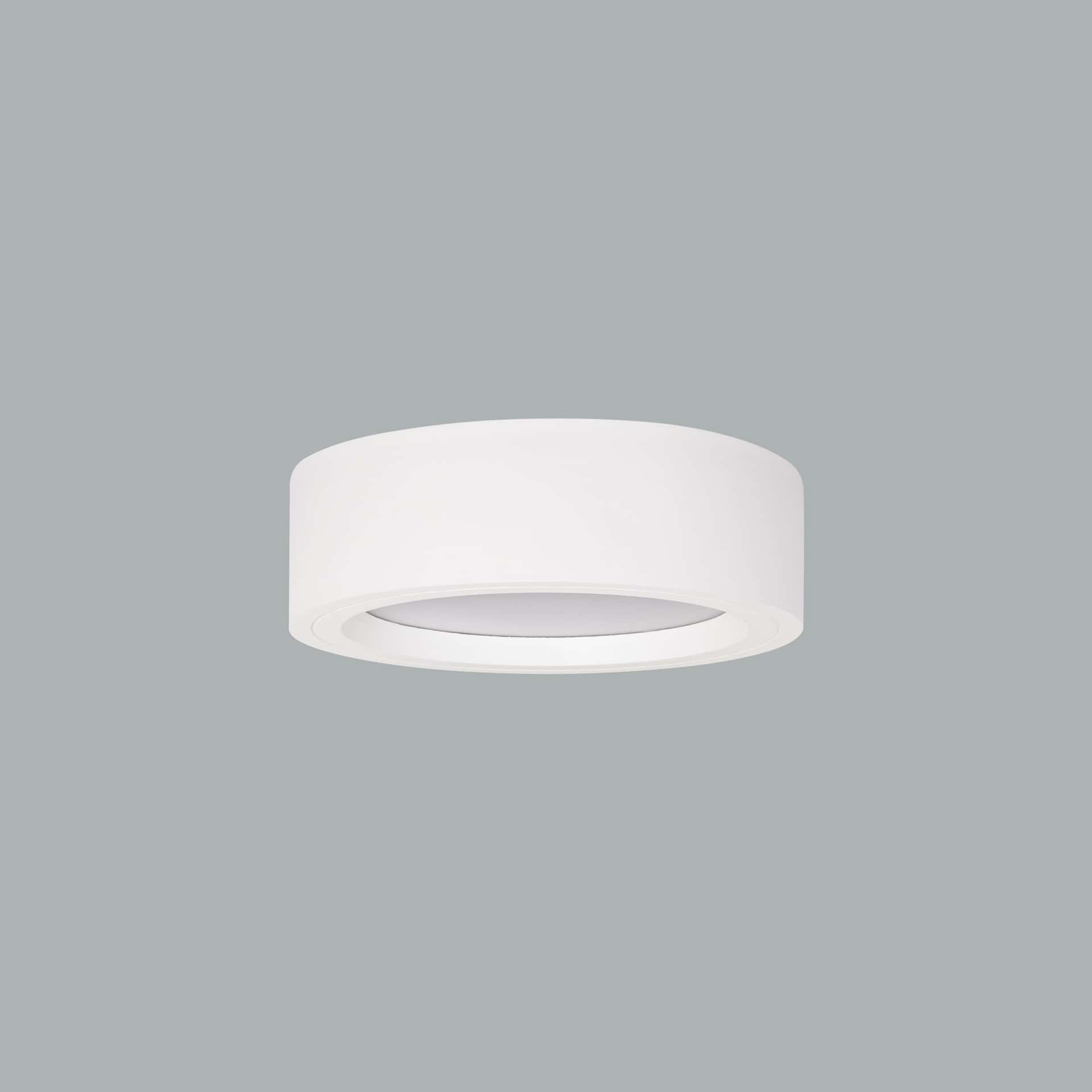

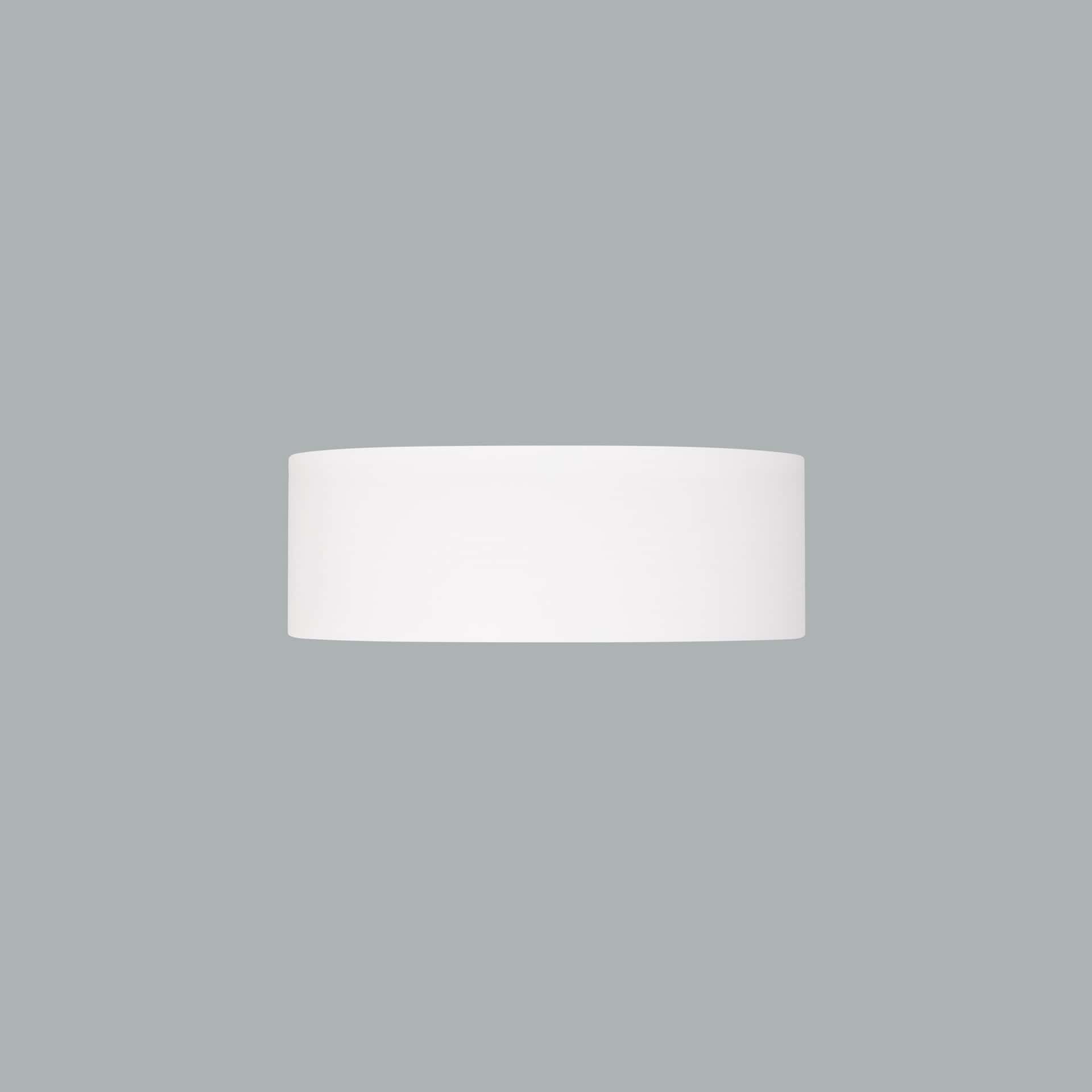

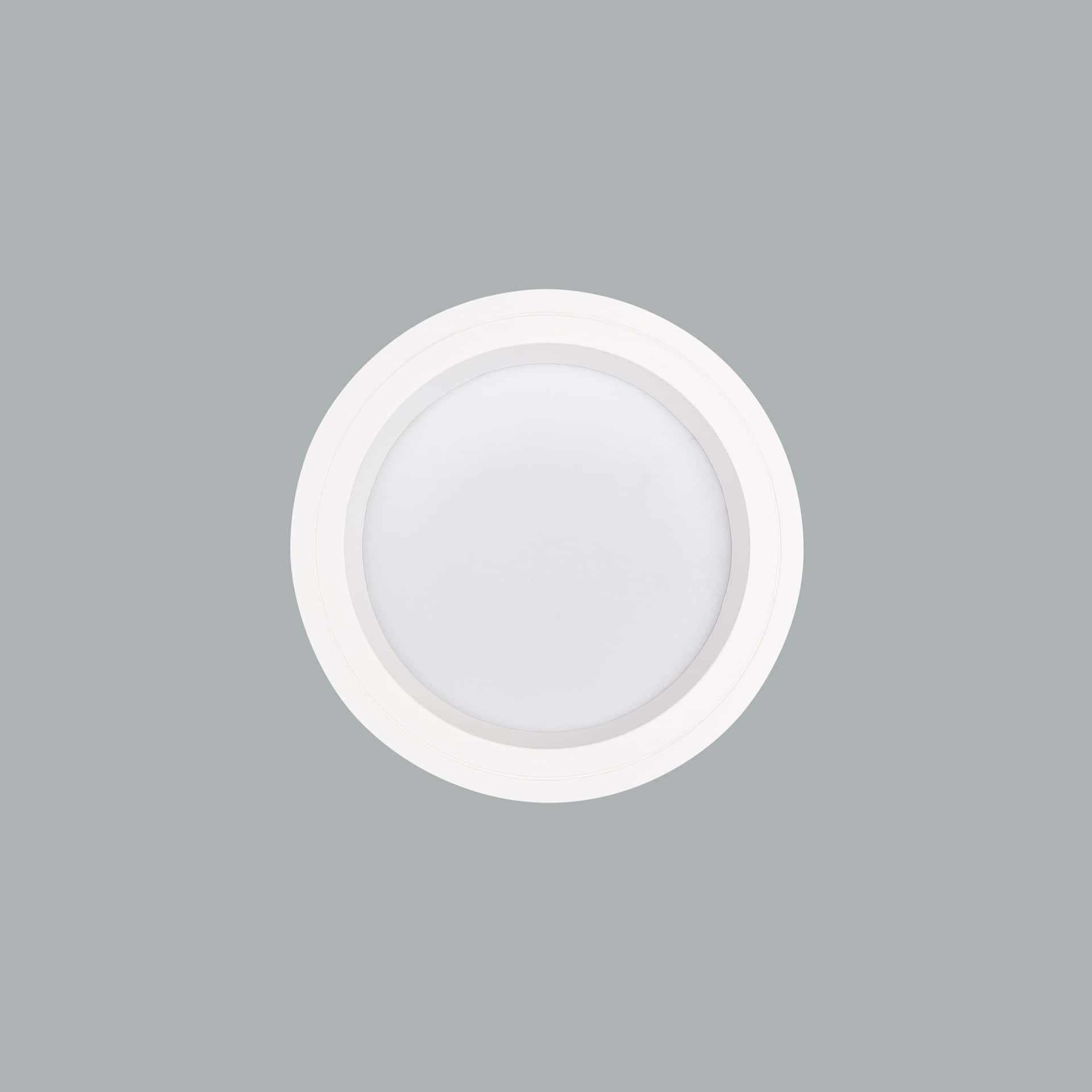

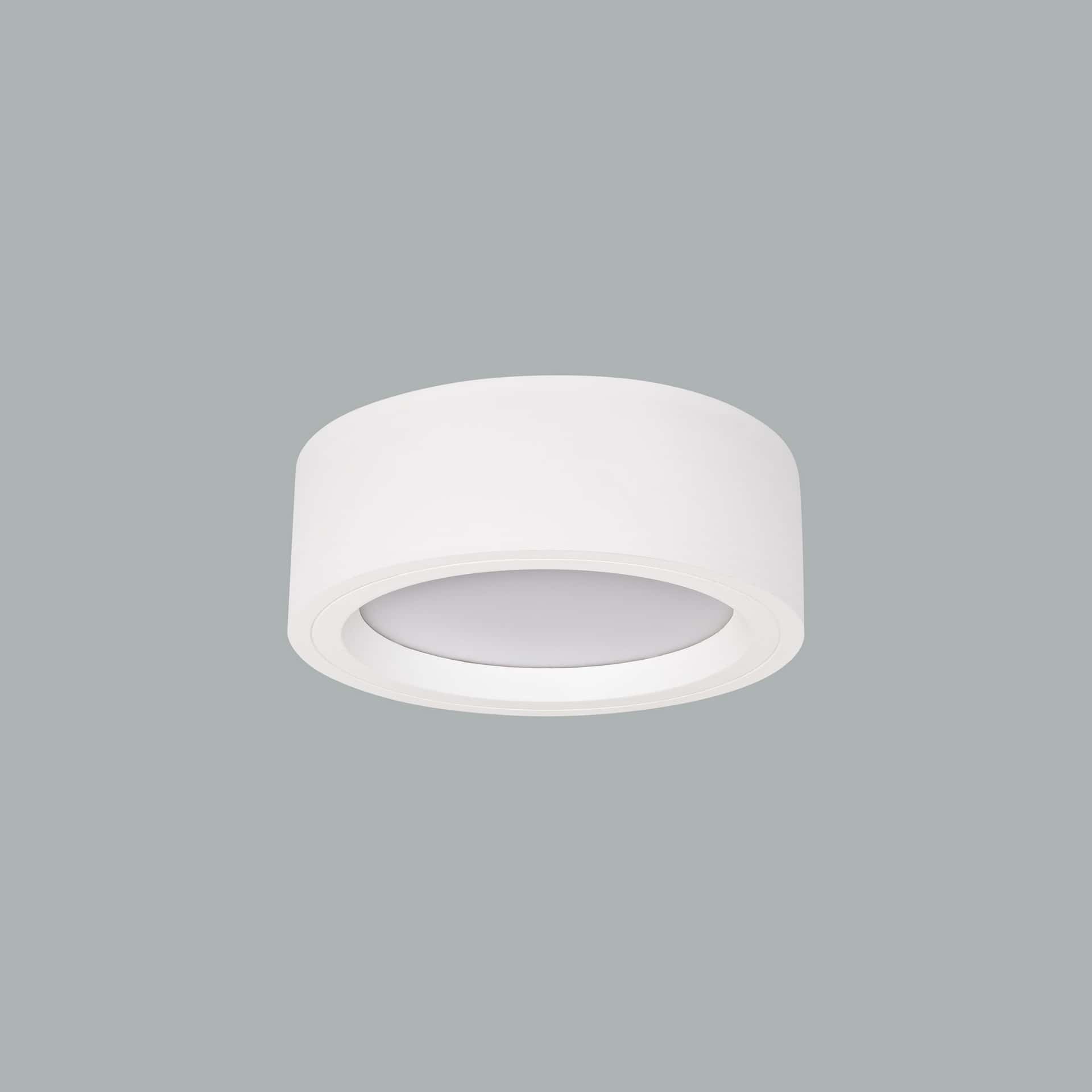

Neptun Surface
Neptun Surface is an AVOLUX LED lighting fixture in the COB Led Surface Mounted Series category with a power of 20W and IP44 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 20W |
| Protection Class | IP44 |
| Shape | surface mounted |
| Optical | Opal Diffuser |
DESCRIPTION
-- Aluminum injection body.
-- With PMMA opal diffuser.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.

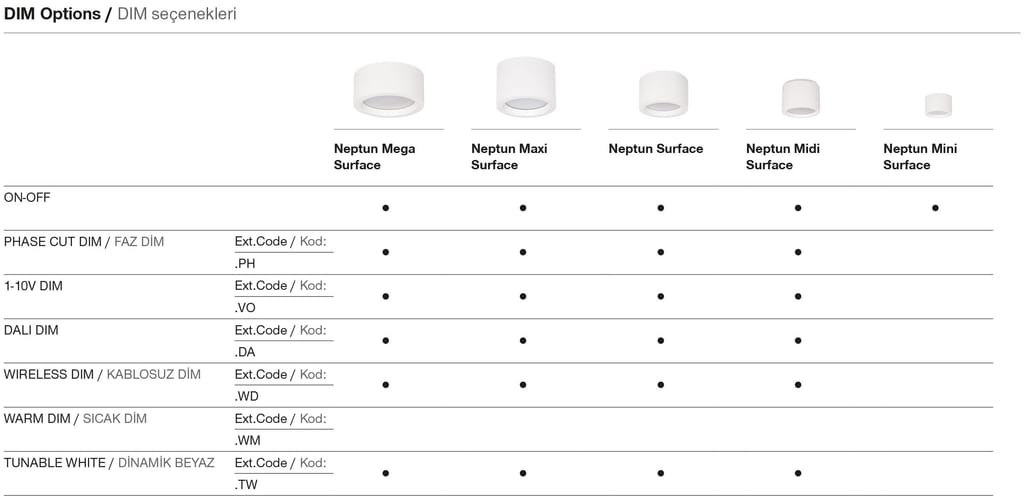

-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- Wireless DIM and Dynamic White with high-tech control systems
applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
-- Standard CRI>80 option is available.
-- Efficiency up to 106lm/W.
-- High color compatibility: <3 SDCM.
-- Thanks to the rear mounting plate, it can be easily mounted on the ceiling.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 20W | CRI>80 | I02.PSM.15078 . (..) . (...) . (..) . (..) | 2700K | 1990 |
| 3000K | 2051 | |||
| 3500K | 2093 | |||
| 4000K | 2136 | |||
| 5000K | 2200 | |||
| CRI>90 | I02.PSM.15078 . (..) . (...) . (..) . (..) | 2700K | 1850 | |
| 3000K | 1907 | |||
| 3500K | 1946 | |||
| 4000K | 1986 | |||
| 5000K | X | |||
| CRI>98 | I02.PSM.15078 . (..) . (...) . (..) . (..) | 2700K | X | |
| 3000K | X | |||
| 4000K | X |

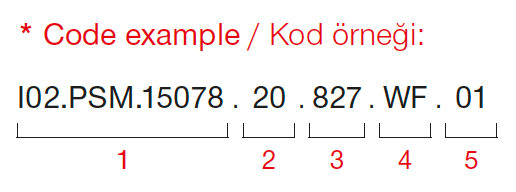

| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|

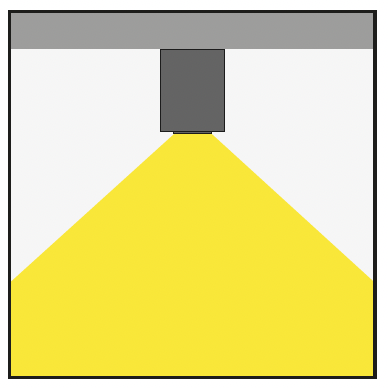

| 20 | 20W - 500mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | W.F. | 108° - Wide Flood |  | 01 | white |
| 16 | 16W - 350mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color |
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Neptun Surface?
Neptun Surface has a power of 20W.
What is the protection class of Neptun Surface?
The protection class of Neptun Surface is IP44.
Which certifications and standards does Neptun Surface have?
Neptun Surface carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP44.
What is the product code of Neptun Surface?
The product (stock) code of Neptun Surface is I02.PSM.15078.
Where can I download the catalog or PDF of Neptun Surface?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/619.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/surface/NEPTUN%20Surface.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Neptun%20%2BI02.PSM.15078.rar) buttons on this page.
