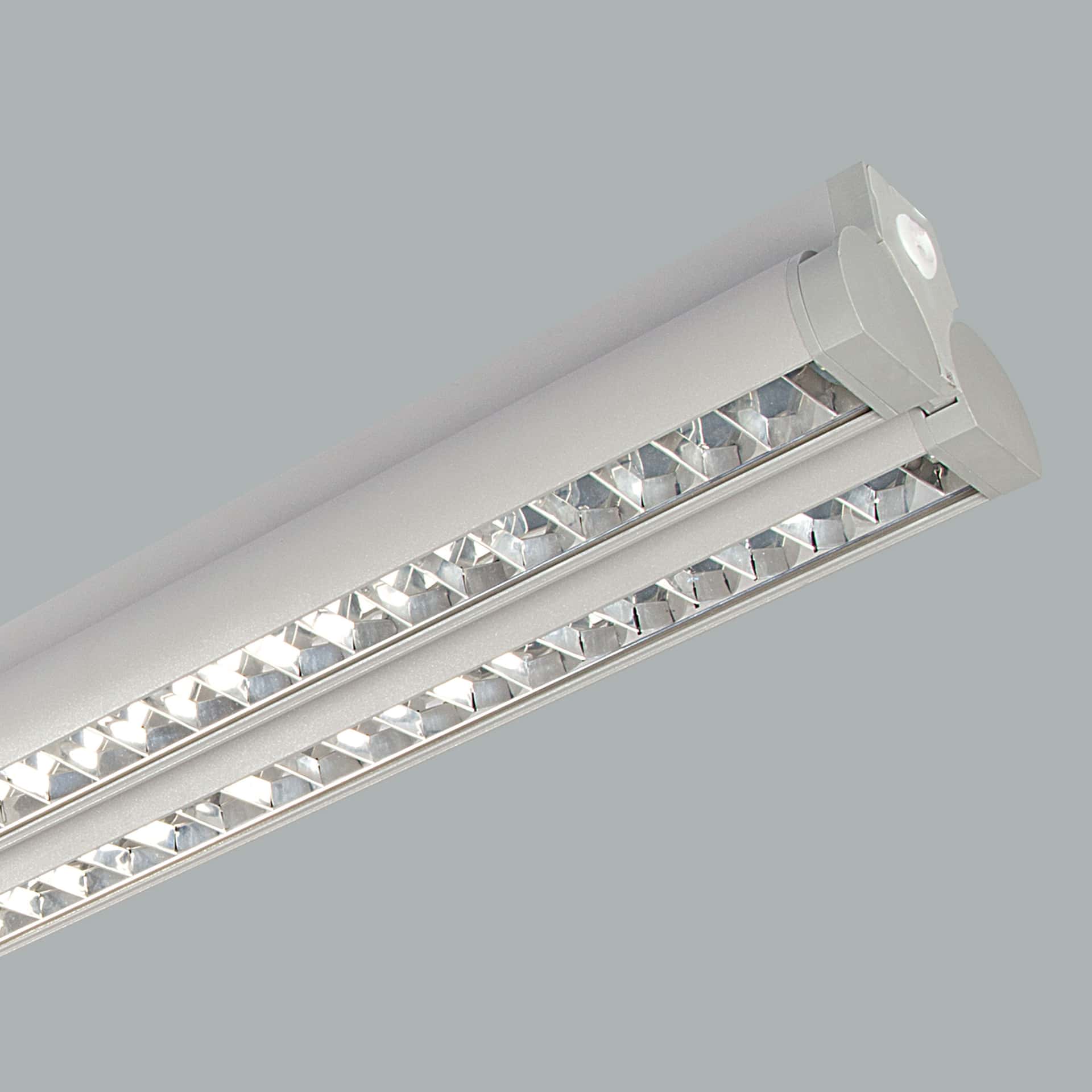

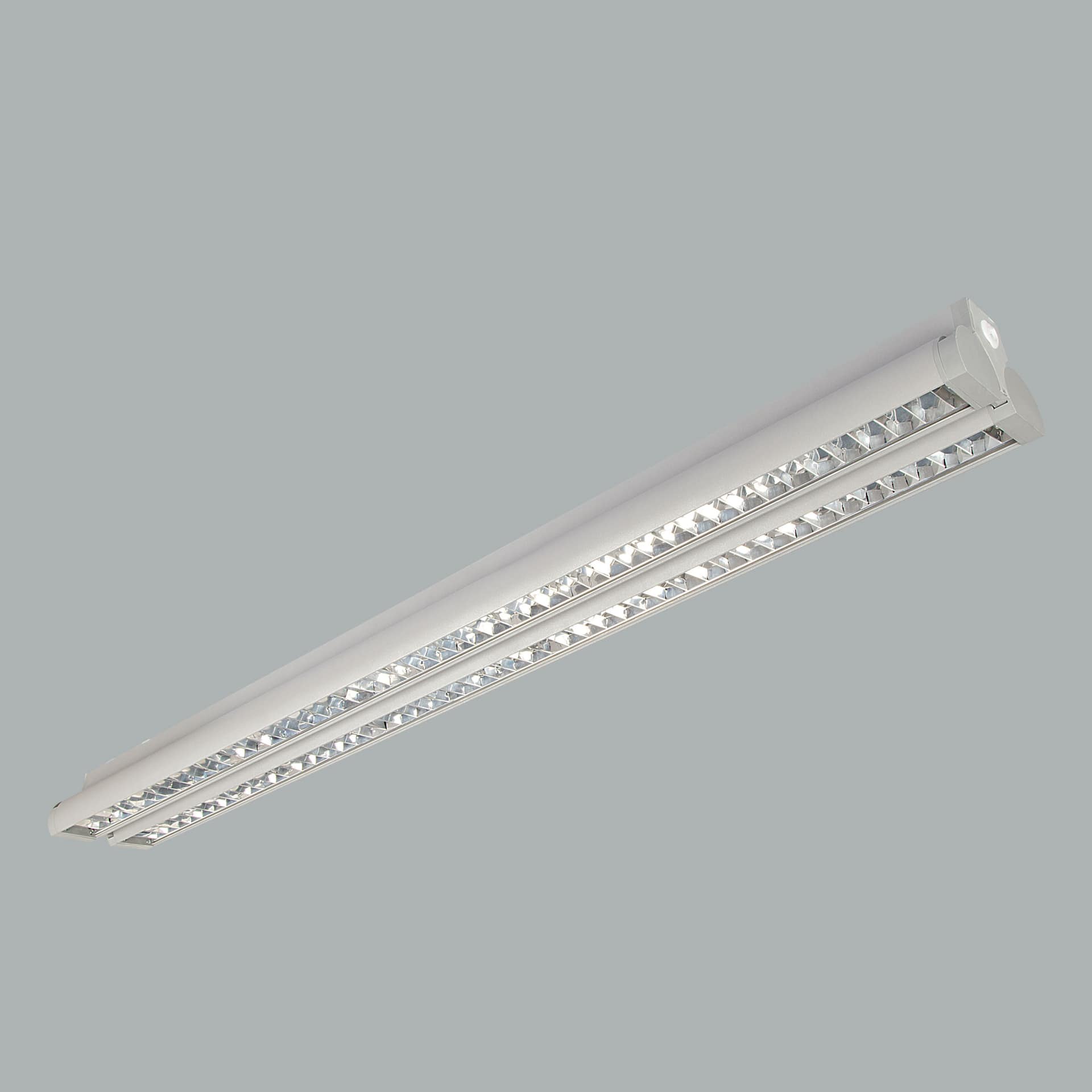

Market Surface Mounted
Market Surface Mounted is an AVOLUX LED lighting fixture in the Linear Profile Led Series category with a power of 50-67W and IP20 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 50-67W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | Reflector |
| width, height | 133-86mm |
| Mounting Type | surface mounted |
| Armature Data | |
|---|---|
| Product Code | I02.LL.19207.1180.067.830.01 |
| Family Name | Market |
| Material | Aluminum Profile |
| Format | Linear Motion |
| Profile Width | 133mm |
| Profile Height | 86mm |
| Installation Type | Pendant, Surface Mounted and Rail Mounted |
| Productivity | >115lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Parabolic Aluminum Reflector |
| Length (A) | CRI | Order Code | Kelvin | 900mm 50W 350mA lm | 1180mm 67W 350mA lm |
|---|---|---|---|---|---|
| 900mm - 50W | CRI>80 | I02.LL.19217 . (...) . (...) . (...) . (...) | 2700K | 5038 | 7096 |
| 1180mm - 67W | 3000K | 5199 | 7323 | ||
| 3500K | 5279 | 7436 | |||
| 4000K | 5481 | 7720 | |||
| 5000K | 5562 | 7834 | |||
| CRI>90 | I02.LL.19217 . (...) . (...) . (...) . (...) | 2700K | 4231 | 5960 | |
| 3000K | 4353 | 6131 | |||
| 3500K | 4433 | 6244 | |||
| 4000K | 4594 | 7720 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 900mm | 50W | 50W (Direct) - 350mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 1180mm | 67W | 67W (Direct) - 350mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | ||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||||
 | 06 | special color |

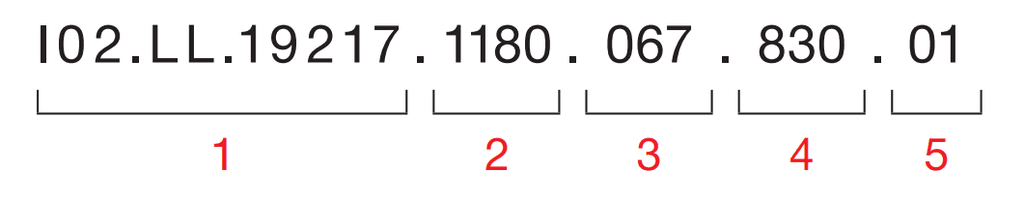

1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
Frequently Asked Questions
What is the wattage of Market Surface Mounted?
Market Surface Mounted has a power of 50-67W.
What is the protection class of Market Surface Mounted?
The protection class of Market Surface Mounted is IP20.
Which certifications and standards does Market Surface Mounted have?
Market Surface Mounted carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP20.
What is the product code of Market Surface Mounted?
The product (stock) code of Market Surface Mounted is I02.LL.19217.
Where can I download the catalog or PDF of Market Surface Mounted?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/linealed/156-157.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/linealedpanel/MARKET%20Linea%20Led.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/linea/I02.LL.19217.rar) buttons on this page.
