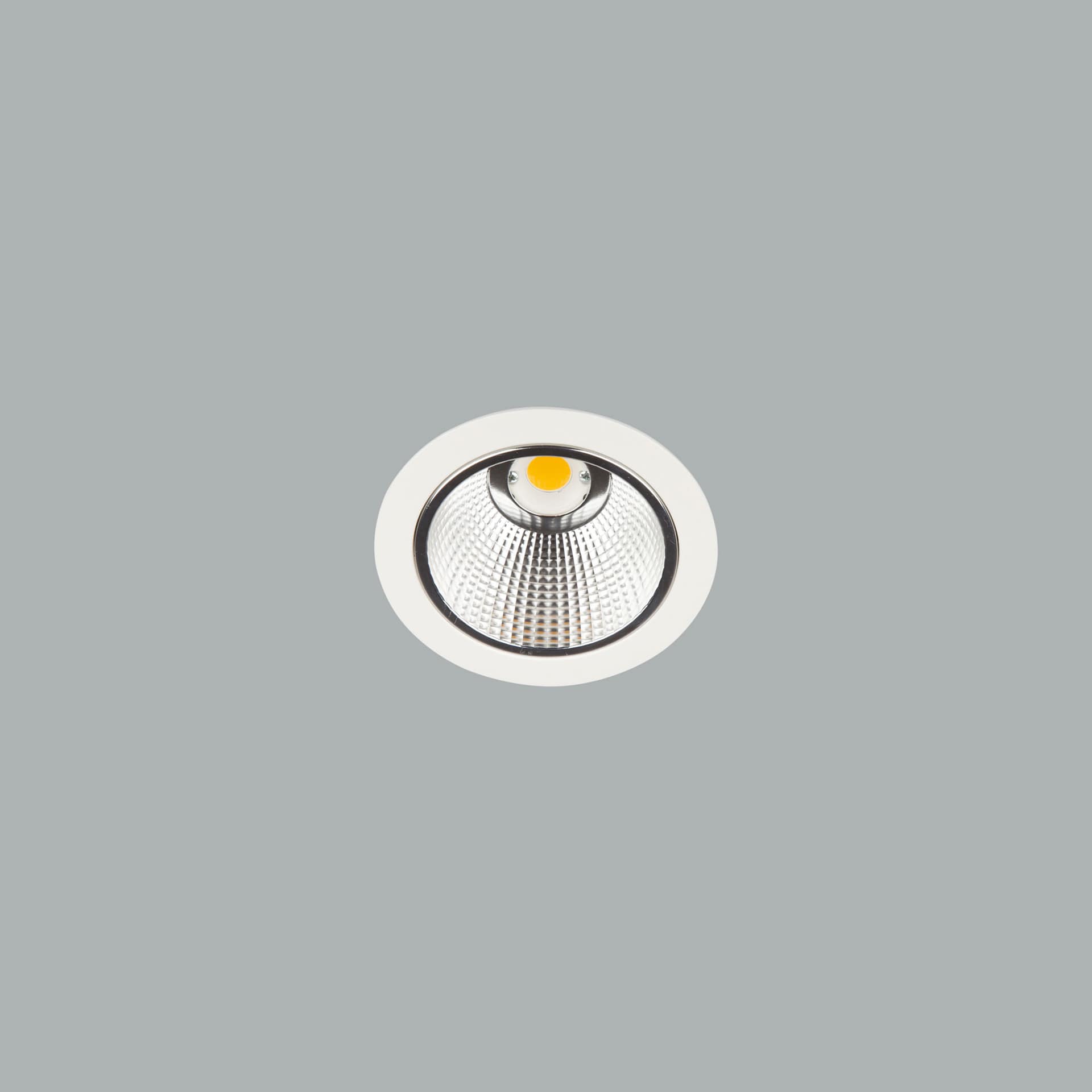

Leila Mini
Leila Mini is an AVOLUX LED lighting fixture in the COB Led Recessed Series category with a power of 20W and IP20 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 20W |
| Protection Class | IP20 |
| Shape | built-in |
| Optical | Reflector |
DESCRIPTION
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- High-tech control systems Wireless DIM, Hot DIM and
Dynamic White applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
-- Very wide reflector angle options are available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED
options are available.
-- Efficiency up to 144lm/W.
-- High color compatibility: <3 SDCM.
-- Emergency lighting kit system can be applied.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 20W | CRI>80 | I01.MLR.15068 . (..) . (...) . (..) . (..) | 2700K | 2662 |
| 3000K | 2715 | |||
| 3500K | 2796 | |||
| 4000K | 2880 | |||
| 5000K | 3082 | |||
| CRI>90 | I01.MLR.15068 . (..) . (...) . (..) . (..) | 2700K | 2462 | |
| 3000K | 2511 | |||
| 3500K | 2586 | |||
| 4000K | 2664 | |||
| 5000K | X | |||
| CRI>98 | I01.MLR.15068 . (..) . (...) . (..) . (..) | 2700K | 1888 | |
| 3000K | 1925 | |||
| 4000K | 2063 | |||
| Meat COB | I01.MLR.15068 . (..) . (...) . (..) . (..) | 1800K | 1650 | |
| Food COB | I01.MLR.15068 . (..) . (...) . (..) . (..) | 2400K | 1699 | |
| Pisces COB | I01.MLR.15068 . (..) . (...) . (..) . (..) | 6600K | 2335 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 20W - 500mA | 827 | CRI>80 - 2700K | 9827 | CRI>98 - 2700K |  | W.F. | 60° - Wide Flood |  | 01 | white |
| 15 | 15W - 350mA | 830 | CRI>80 - 3000K | 9830 | CRI>98 - 3000K |  | 02 | ral 9010 | |||
| 10 | 10W - 250mA | 835 | CRI>80 - 3500K | 9840 | CRI>98 -4000K |  | 03 | black | |||
| 7 | 7W - 180mA | 840 | CRI>80 - 4000K | MEAT | 1800K |  | 04 | gray | |||
| 850 | CRI>80 - 5000K | GOLD | 2400K |  | 05 | dark gray | |||||
| 927 | CRI>90 - 2700K | fish | 6600K |  | 06 | special color | |||||
| 930 | CRI>90 - 3000K | ||||||||||
| 935 | CRI>90 - 3500K | ||||||||||
| 940 | CRI>90 - 4000K |

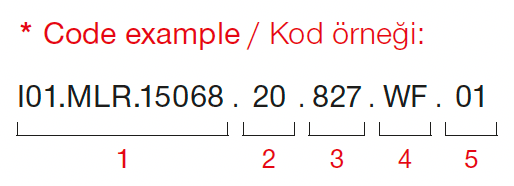

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Leila Mini?
Leila Mini has a power of 20W.
What is the protection class of Leila Mini?
The protection class of Leila Mini is IP20.
Which certifications and standards does Leila Mini have?
Leila Mini carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP20.
What is the product code of Leila Mini?
The product (stock) code of Leila Mini is I01.MLR.15068.
Where can I download the catalog or PDF of Leila Mini?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/403.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/recessed/LEILA%20Recessed.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Leila%20Mini%20I01.MLR.15068.rar) buttons on this page.
