Lale

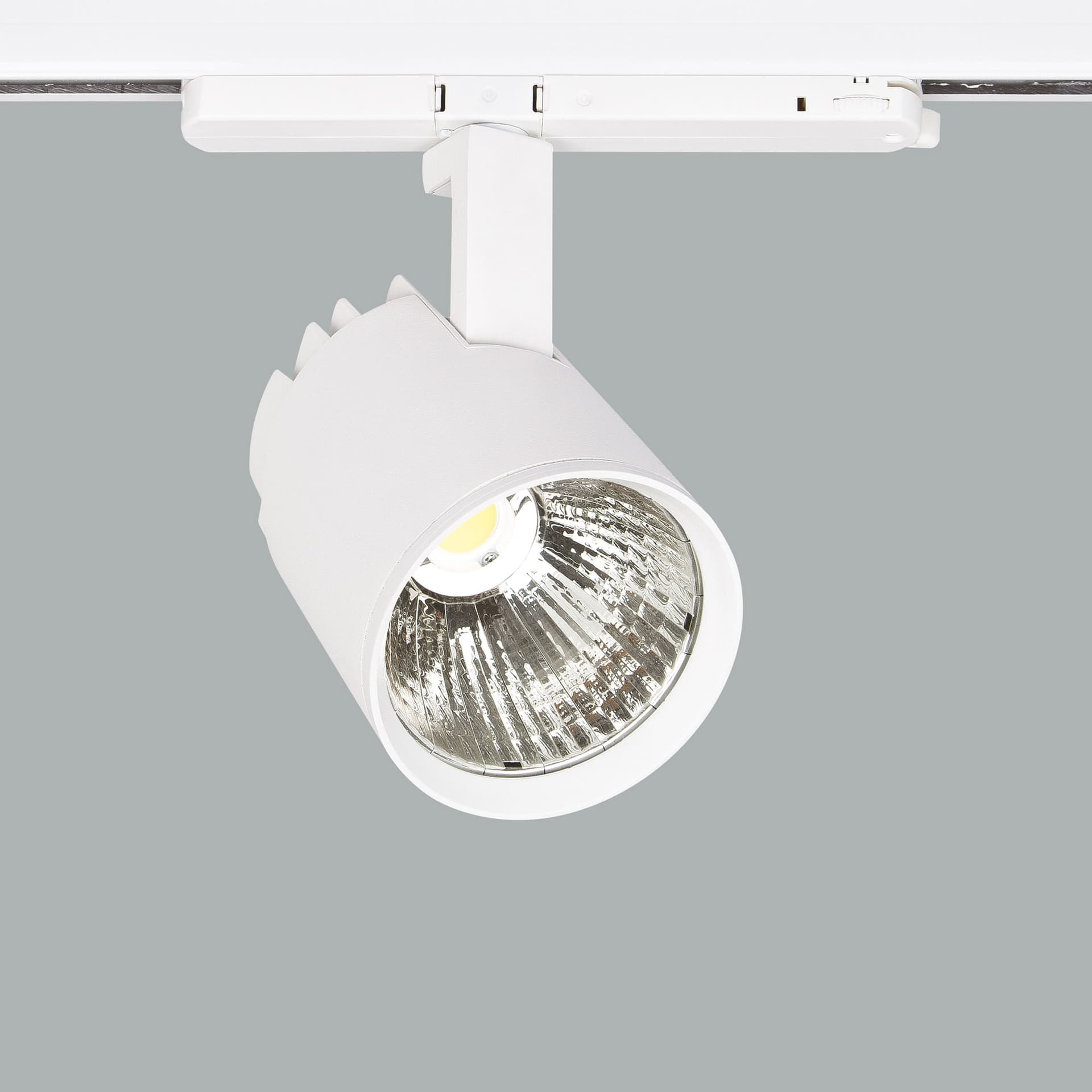

Lale is an AVOLUX LED lighting fixture in the COB Led Tracklight Series category with a power of 42W and IP20 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 42W |
| Protection Class | IP20 |
| Shape | rayspot |
| Optical | Reflector |
DESCRIPTION
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- With 3-Phase universal rail adapter.
-- Mechanical with 90° vertical and 350° horizontal movement capability
locking joint system.
-- Tempered glass.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- High-tech control systems Wireless DIM, Dynamic White and
Hot DIM applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
-- Flap, Honeycomb Filter, Color Filter, Anti-Glare and Viewfinder
accessory options can be applied.
-- Very Narrow, Narrow, Medium, Wide and Very Wide reflector angle options
available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED
options are available.
-- Efficiency up to 131lm/W.
-- High color compatibility: <3 SDCM
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 42W | CRI>80 | I01.MLT.30852 . (..) . (...) . (..) . (..) | 2700K | 4841 |
| 3000K | 4964 | |||
| 3500K | 5136 | |||
| 4000K | 5312 | |||
| 5000K | 5688 | |||
| CRI>90 | I01.MLT.30852 . (..) . (...) . (..) . (..) | 2700K | 3723 | |
| 3000K | 4357 | |||
| 3500K | 4467 | |||
| 4000K | 4622 | |||
| 5000K | X | |||
| CRI>98 | I01.MLT.30852 . (..) . (...) . (..) . (..) | 2700K | 3909 | |
| 3000K | 4041 | |||
| 4000K | 4320 | |||
| Meat COB | I01.MLT.30852 . (..) . (...) . (..) . (..) | 1800K | 2918 | |
| Food COB | I01.MLT.30852 . (..) . (...) . (..) . (..) | 2400K | 3004 | |
| Pisces COB | I01.MLT.30852 . (..) . (...) . (..) . (..) | 6600K | 3965 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 42 | 42W - 1050mA | 827 | CRI>80 - 2700K | 9827 | CRI>98 - 2700K |  | SS | 12° - Super Spot |  | 01 | white |
| 35 | 35W - 900mA | 830 | CRI>80 - 3000K | 9830 | CRI>98 - 3000K |  | SP | 20° - Spot |  | 02 | ral 9010 |
| 31 | 31W - 800mA | 835 | CRI>80 - 3500K | 9840 | CRI>98 -4000K |  | M.E. | 30° - Medium |  | 03 | black |
| 28 | 28W - 700mA | 840 | CRI>80 - 4000K | MEAT | 1800K |  | FL | 40° - Flood |  | 04 | gray |
| 850 | CRI>80 - 5000K | GOLD | 2400K |  | W.F. | 60° - Wide Flood |  | 05 | dark gray | ||
| 927 | CRI>90 - 2700K | fish | 6600K |  | 06 | special color | |||||
| 930 | CRI>90 - 3000K | ||||||||||
| 935 | CRI>90 - 3500K | ||||||||||
| 940 | CRI>90 - 4000K |
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Lale?
Lale has a power of 42W.
What is the protection class of Lale?
The protection class of Lale is IP20.
Which certifications and standards does Lale have?
Lale carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP20.
What is the product code of Lale?
The product (stock) code of Lale is I01.MLT.30852.
Where can I download the catalog or PDF of Lale?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/148.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/tracklight/LALE%20%26%20LALE%20DECO%20Tracklight.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Lale%2BI01.MLT.30852.rar) buttons on this page.
