Keops Solar

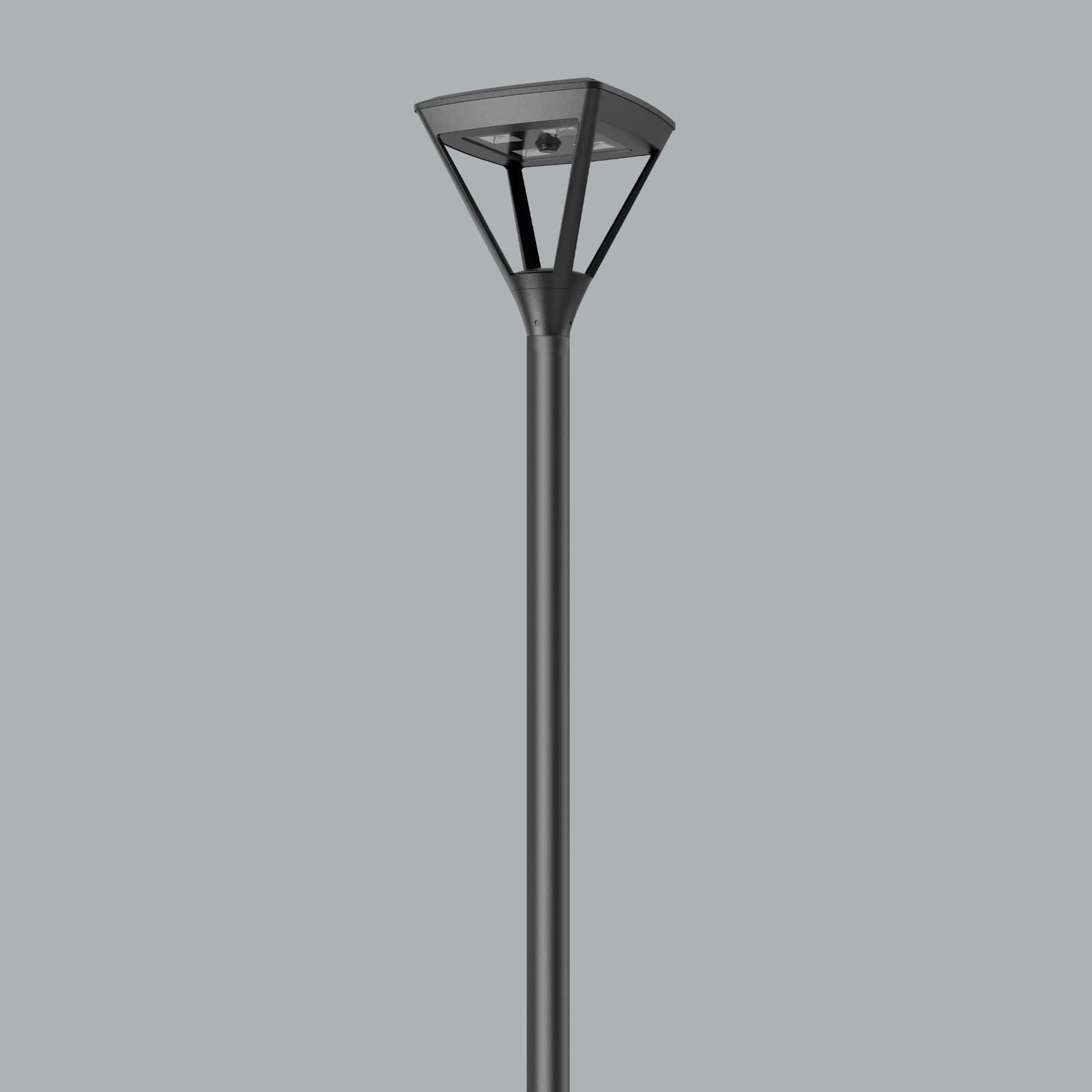

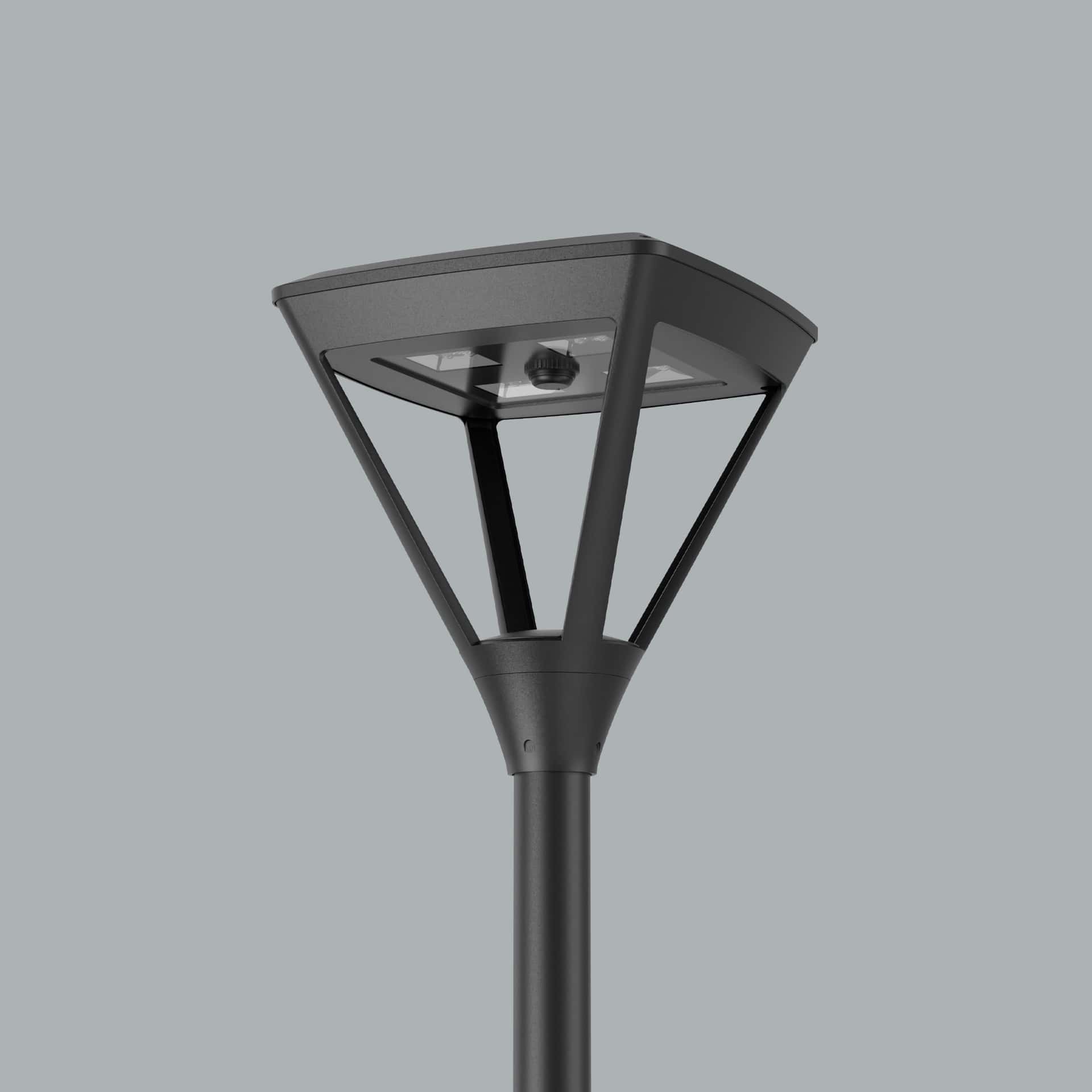

Keops Solar is an AVOLUX LED lighting fixture in the Solar Fixtures Series category with a power of 10W and IP66 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 10W |
| Protection Class | IP66 |
| Shape | Pole Mounted |
| Optical | Asymmetric Street Lighting Lens |
DESCRIPTION
| Armature Data | |
|---|---|
| Product Code | O07.ST.08920.10.840.05 |
| Family Name | Cheops |
| Material | Aluminum Injection |
| LED Life | L70/B50 50000h |
| Optical | Asymmetric Street Lighting Lens |

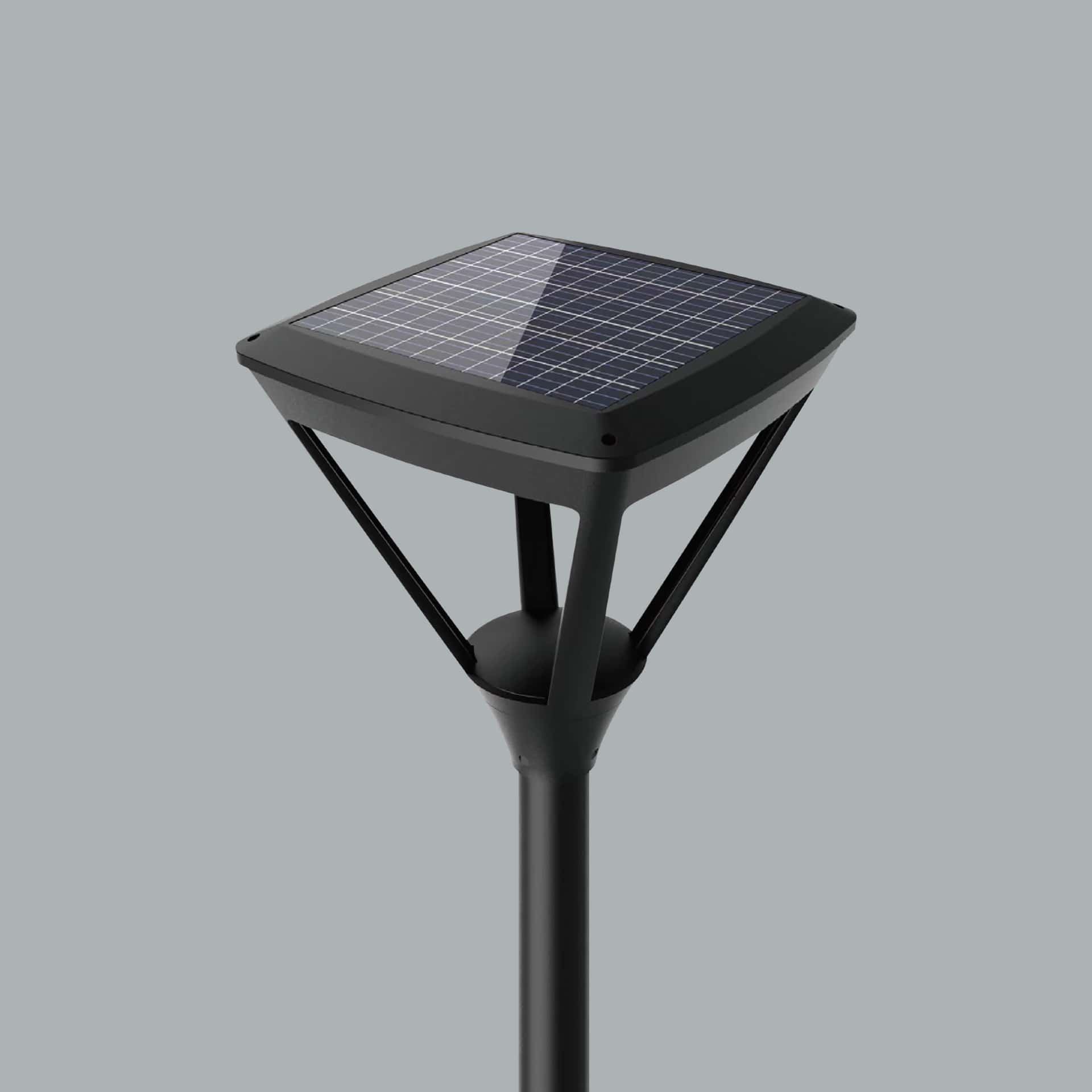

| PV Panel Power | 20W |
| Panel Type | MonoCrystal |
| Solar Panel Voltage | 18V |
| PV Panel Efficiency | 21% |
| Armature Power | 10W |
| Led Panel Voltage | 42V |
| Number of LEDs | 56 Pieces |
| Circuit | 14S4P |
| LED Type | 3030 |
| Lumen | 1500lm |
| Luminaire Efficiency | 150lm/W |
| CRI | 70 |
| Battery Power | 230W |
| Battery Voltage | 12.8V |
| Battery Current | 18A |
| Battery Type | LiFePO4 |
| Battery Life | 3000 |
| Controller Type | MPPT |
| Cloudy Day Working Time | 45 hours |
| Operating Temperature | -20°C / +50°C |
| Protection | IP66 |
| Quasar Mini Solar | |
|---|---|
| System Power | 10W |
| Armature Output Lumen CRI>80 | 4000K | 1500lm |
| Max. Mast Span (a) | 15m |

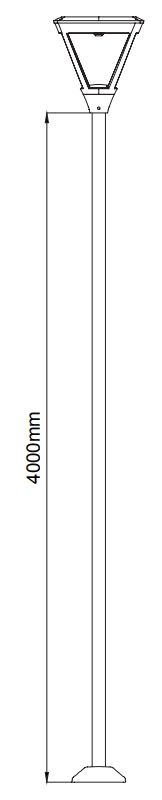

| Max. Mast Height (h) | 4m |
| Max. Road Width (L) | - |
| Lighting Class | - |
Frequently Asked Questions
What is the wattage of Keops Solar?
Keops Solar has a power of 10W.
What is the protection class of Keops Solar?
The protection class of Keops Solar is IP66.
Which certifications and standards does Keops Solar have?
Keops Solar carries the following certifications and standards: PBS, SASO, CB, LVD, EAC, CE, Protection class III, IP66, IK08.
What is the product code of Keops Solar?
The product (stock) code of Keops Solar is O07.ST.08920.
Where can I download the catalog or PDF of Keops Solar?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/outdoor/200-201.pdf) buttons on this page.
