Falcon ST Maxi
Falcon ST Maxi is an AVOLUX LED lighting fixture in the Pole Mounted Street Fixtures Series category with a power of 200W and IP66 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 200W |
| Protection Class | IP66 |
| Shape | Pole Mounted |
| Optical | Lens |

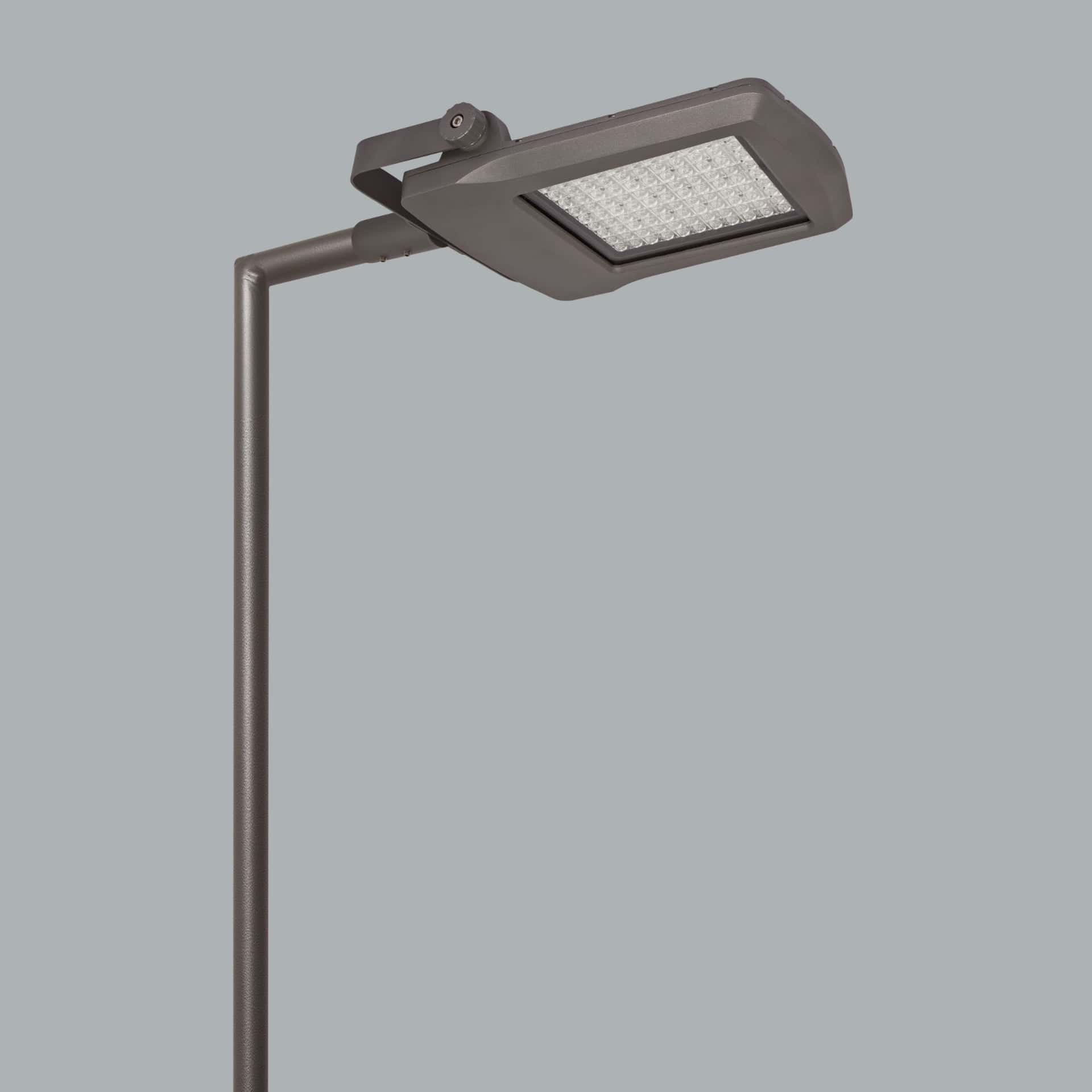

-- LED street lighting fixture.
| Falcon ST Maxi / O07.ST.16430 | |
|---|---|
| System Power | 200W |
| Luminaire Output Lumen CRI>70 - 4000K | 31276lm |
| Driving Current | 1000mA |

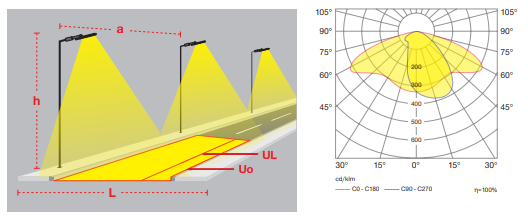

| Mast Span (a) | 44m |
| Mast Height (h) | 14m |
| Road Width (L) | 10.5m |
| Lighting Class | ME2 |
| Optical Type | Maximum pole spacing |
| Armature Data | |
|---|---|
| Product Code | O07.ST.16430.200.740.05 |
| Family Name | Falcon ST Maxi |
| Material | Aluminum Injection |
| LED Life | L70/B50 50000h |
| Optical | Asymmetric Street Lighting Lens |
| Luminaire Maximum Power | 200W |
| Number of LEDs | 99 |
| Circuit | 24S2P |
| LED Type | 3535 |
| CRI | 70 |
| Operating Temperature | -20°C / +50°C |
| Protection | IP66 |

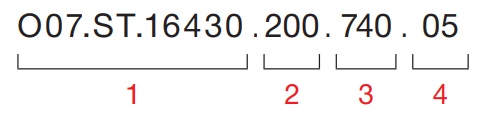

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
Frequently Asked Questions
What is the wattage of Falcon ST Maxi?
Falcon ST Maxi has a power of 200W.
What is the protection class of Falcon ST Maxi?
The protection class of Falcon ST Maxi is IP66.
Which certifications and standards does Falcon ST Maxi have?
Falcon ST Maxi carries the following certifications and standards: PBS, SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP66, IK08.
What is the product code of Falcon ST Maxi?
The product (stock) code of Falcon ST Maxi is O07.ST.16430.
Where can I download the catalog or PDF of Falcon ST Maxi?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/outdoor/080-081.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/Dire%C4%9Fe%20Monte/Falcon%20ST.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/outdoor/Falcon%20Maxi%20ST.zip) buttons on this page.
