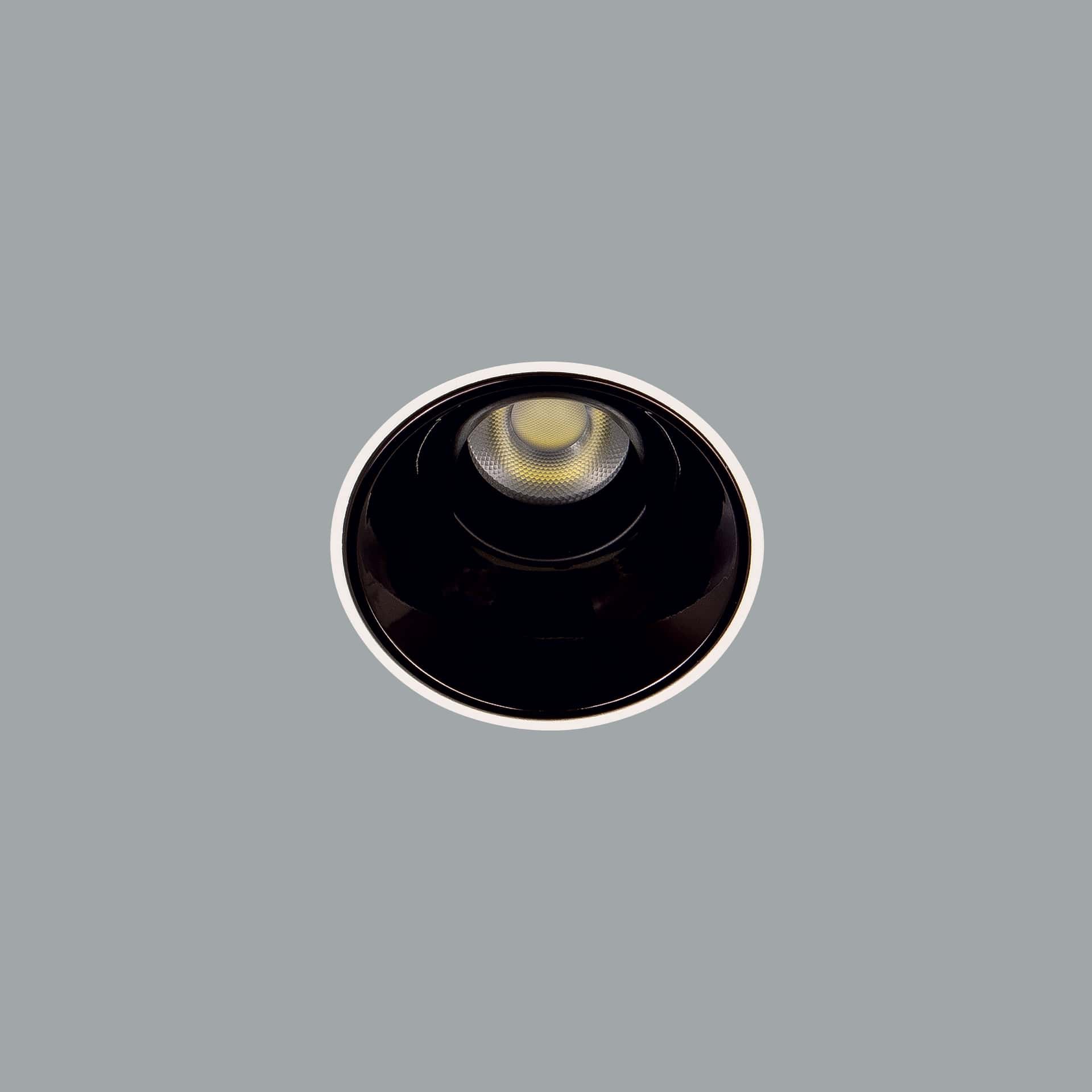

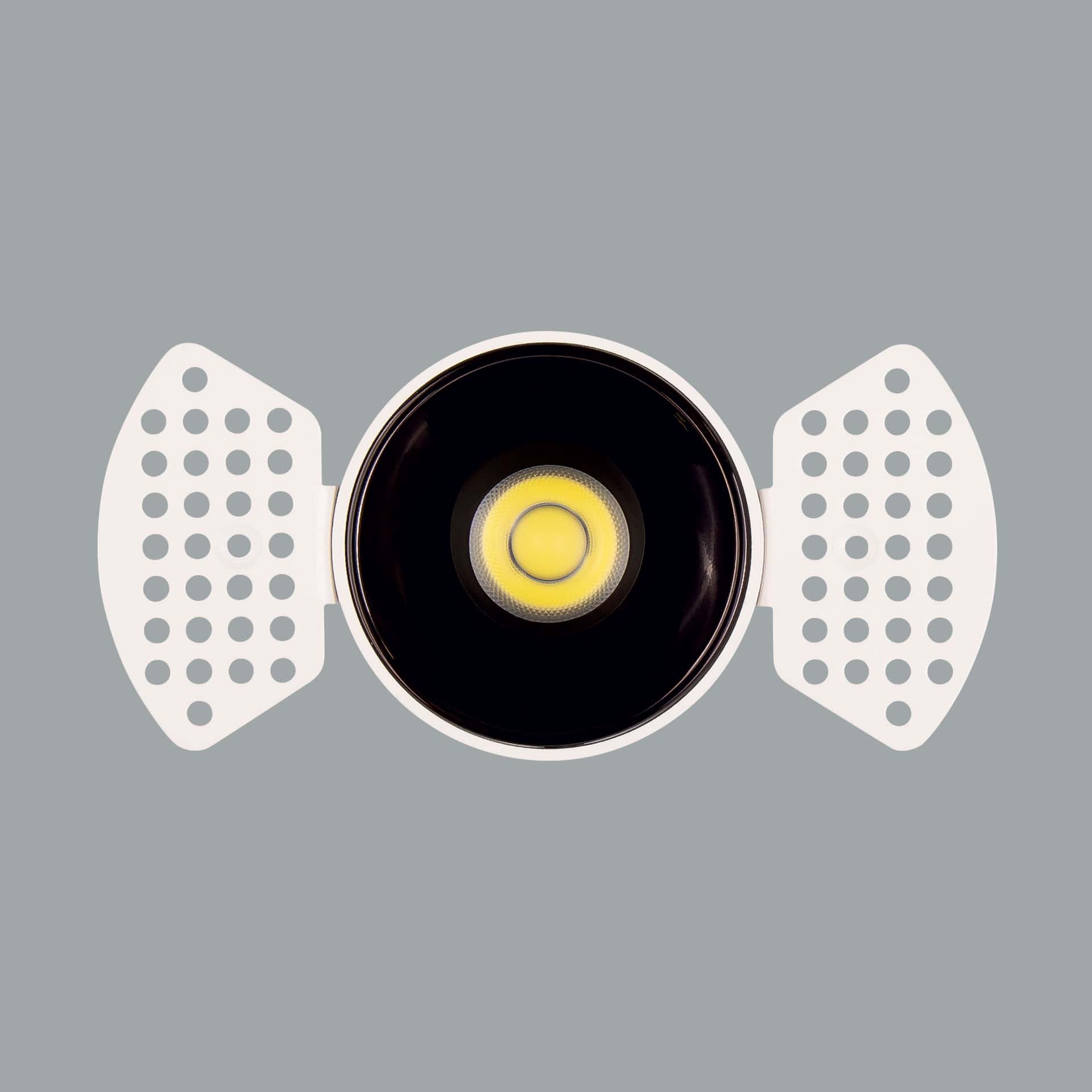

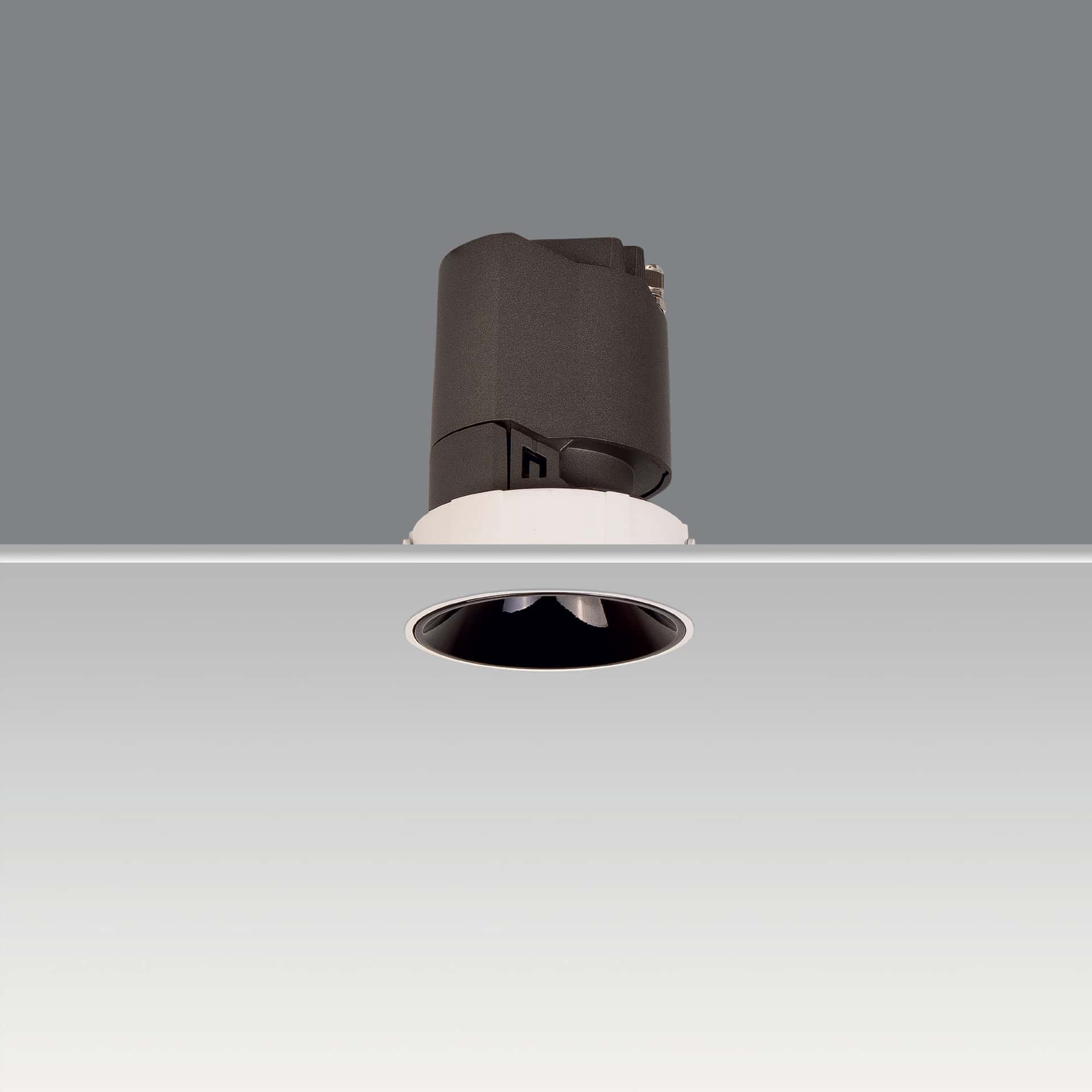

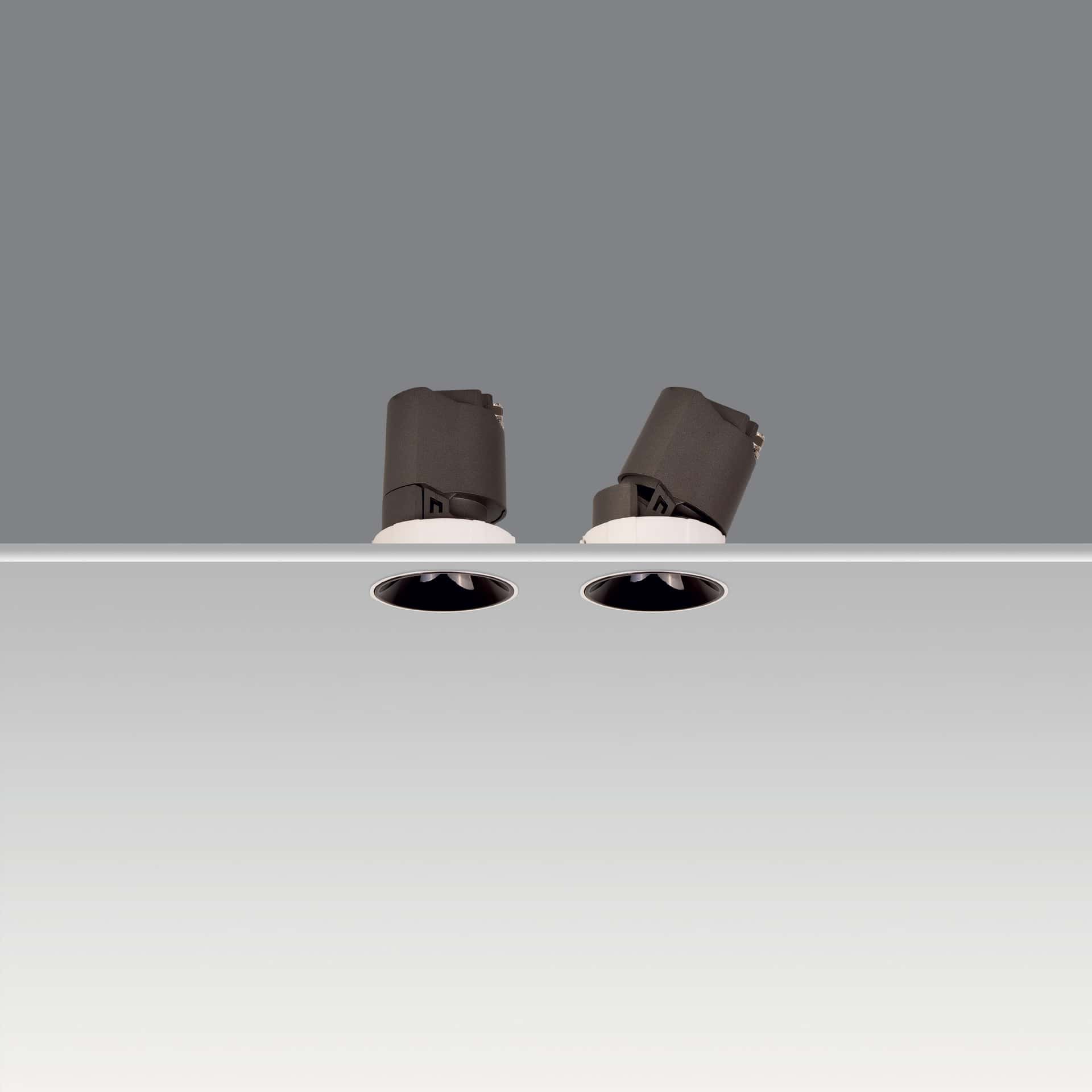

Indo Trimless Midi
Indo Trimless Midi is an AVOLUX LED lighting fixture in the COB Led Recessed Series category with a power of 10W and IP20 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 10W |
| Protection Class | IP20 |
| Shape | built-in |
| Optical | Reflector |
DESCRIPTION
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- High-tech control systems Wireless DIM, Hot DIM and
Dynamic White applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
--Honeycomb and Color filter accessory options can be applied.
-- The luminaire is narrow when facing directly downwards and very wide when oriented
Wall painting has optical feature.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED
options are available.
-- Efficiency up to 92lm/W.
-- High color compatibility: <3 SDCM.
-- Emergency lighting kit system can be applied.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 10W | CRI>80 | I01.MLR.14915 . (..) . (...) . (..) . (..) | 2700K | 872 |
| 3000K | 890 | |||
| 3500K | 909 | |||
| 4000K | 926 | |||
| 5000K | 946 | |||
| CRI>90 | I01.MLR.14915 . (..) . (...) . (..) . (..) | 2700K | 811 | |
| 3000K | 828 | |||
| 3500K | 844 | |||
| 4000K | 860 | |||
| 5000K | X | |||
| CRI>98 | I01.MLR.14915 . (..) . (...) . (..) . (..) | 2700K | X | |
| 3000K | X | |||
| 4000K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|

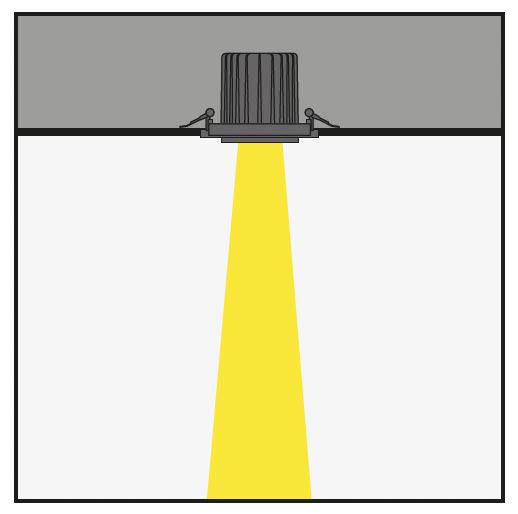

| 10 | 10W - 250mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | SS | 15° - Super Spot |  | 01 | white |

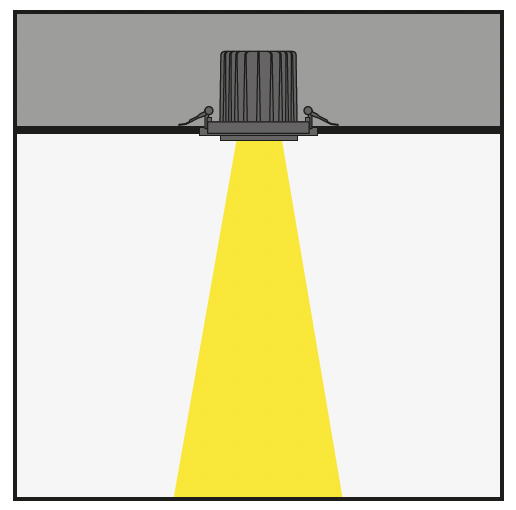

| 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | SP | 24° - Spot |  | 02 | ral 9010 | ||

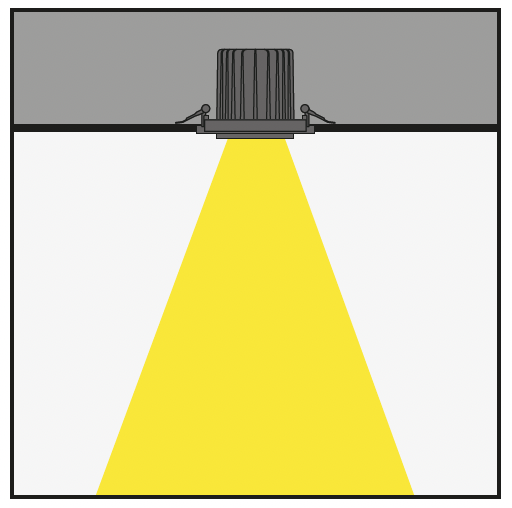

| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | M.E. | 36° - Medium |  | 03 | black | ||

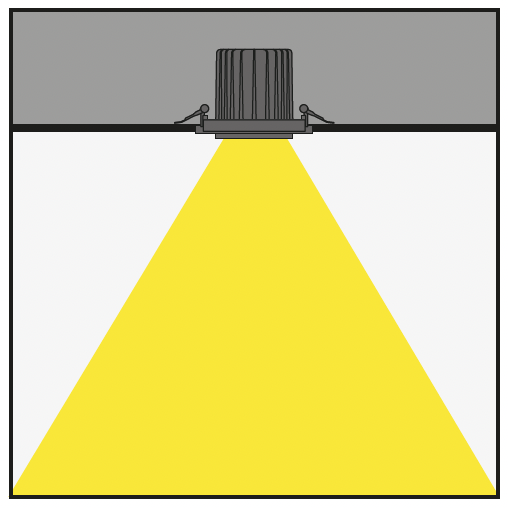

| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | FL | 55° - Flood |  | 04 | gray | ||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color |
Luminaire codePowerKelvinReflector angleProduct color
Frequently Asked Questions
What is the wattage of Indo Trimless Midi?
Indo Trimless Midi has a power of 10W.
What is the protection class of Indo Trimless Midi?
The protection class of Indo Trimless Midi is IP20.
Which certifications and standards does Indo Trimless Midi have?
Indo Trimless Midi carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP20.
What is the product code of Indo Trimless Midi?
The product (stock) code of Indo Trimless Midi is I01.MLR.14915.
