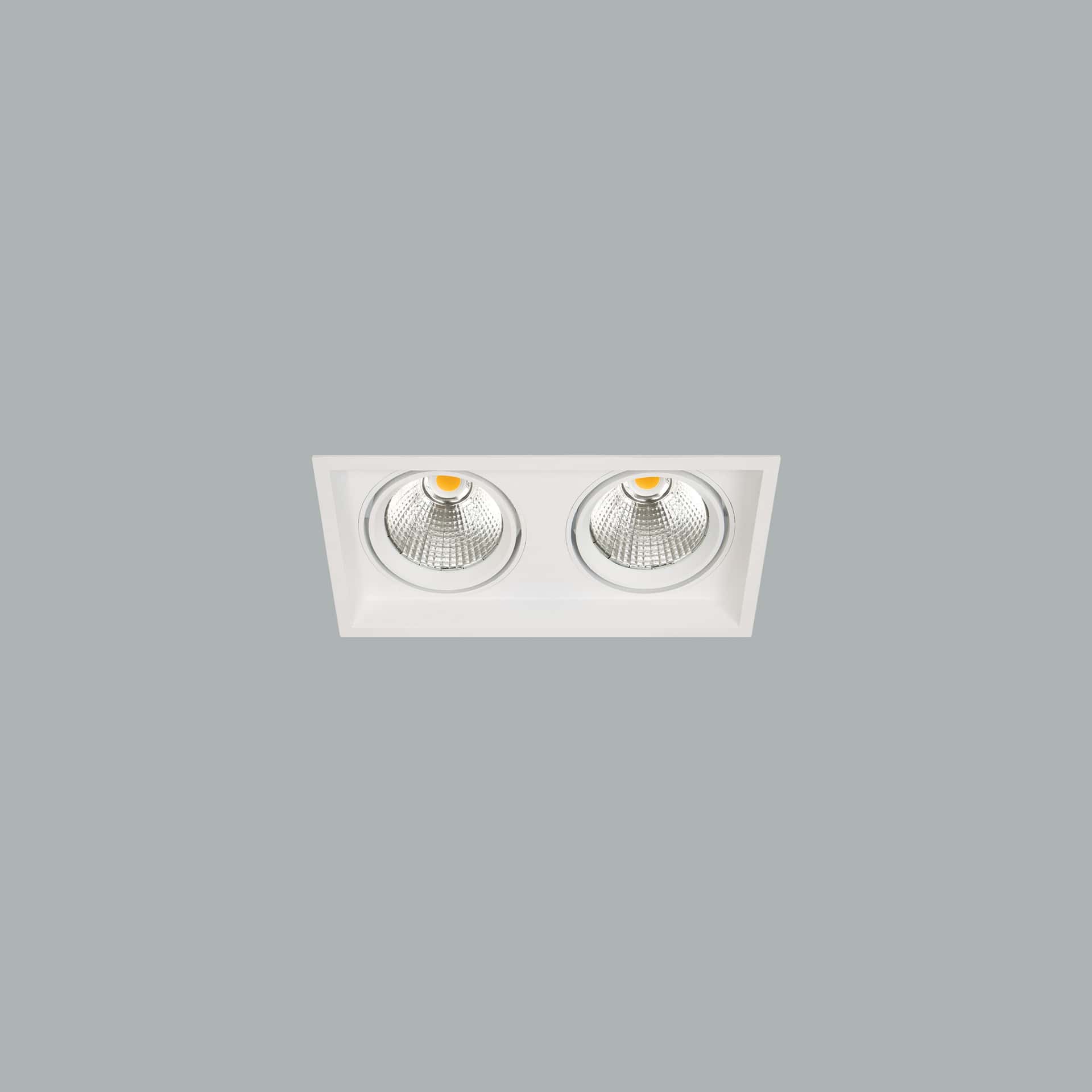

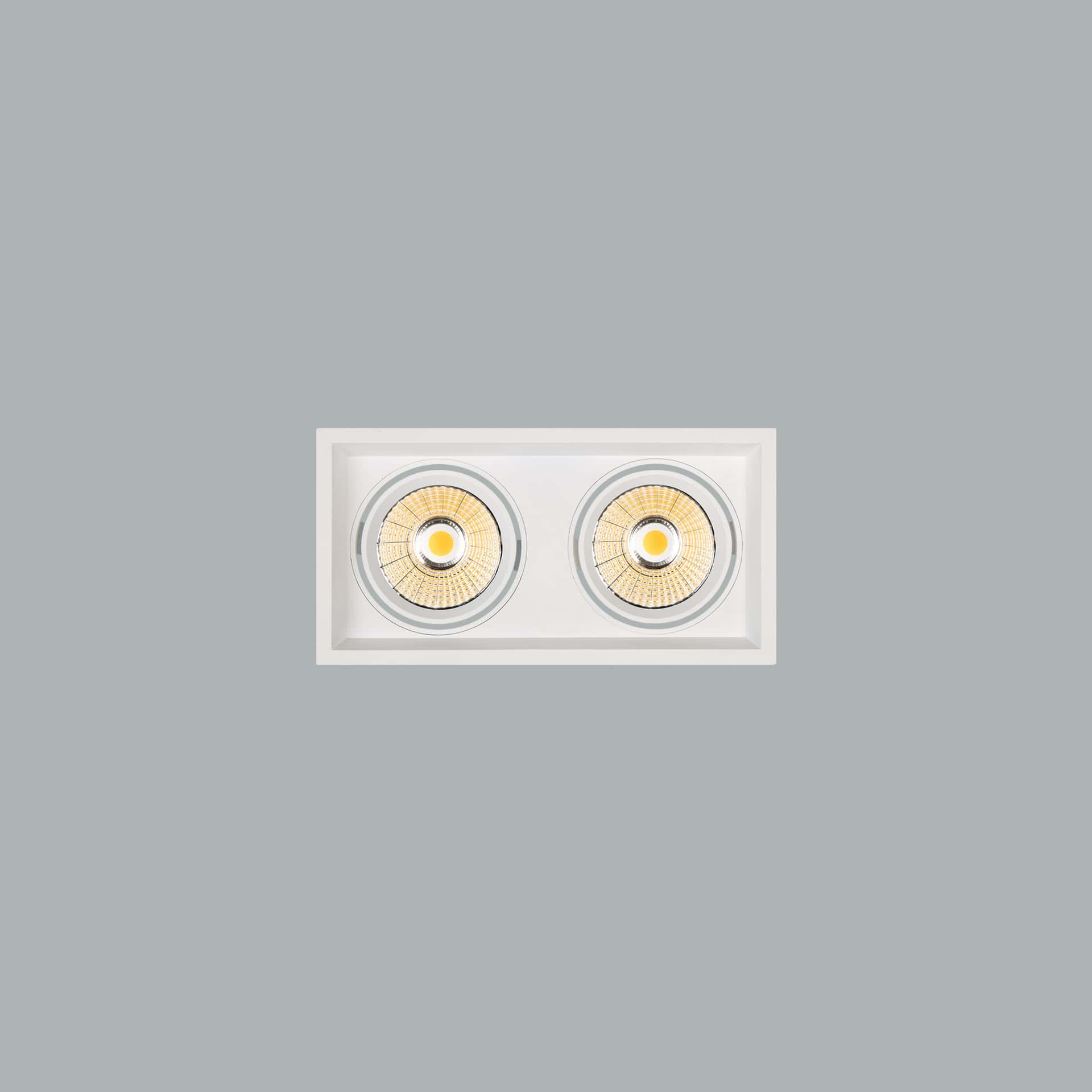

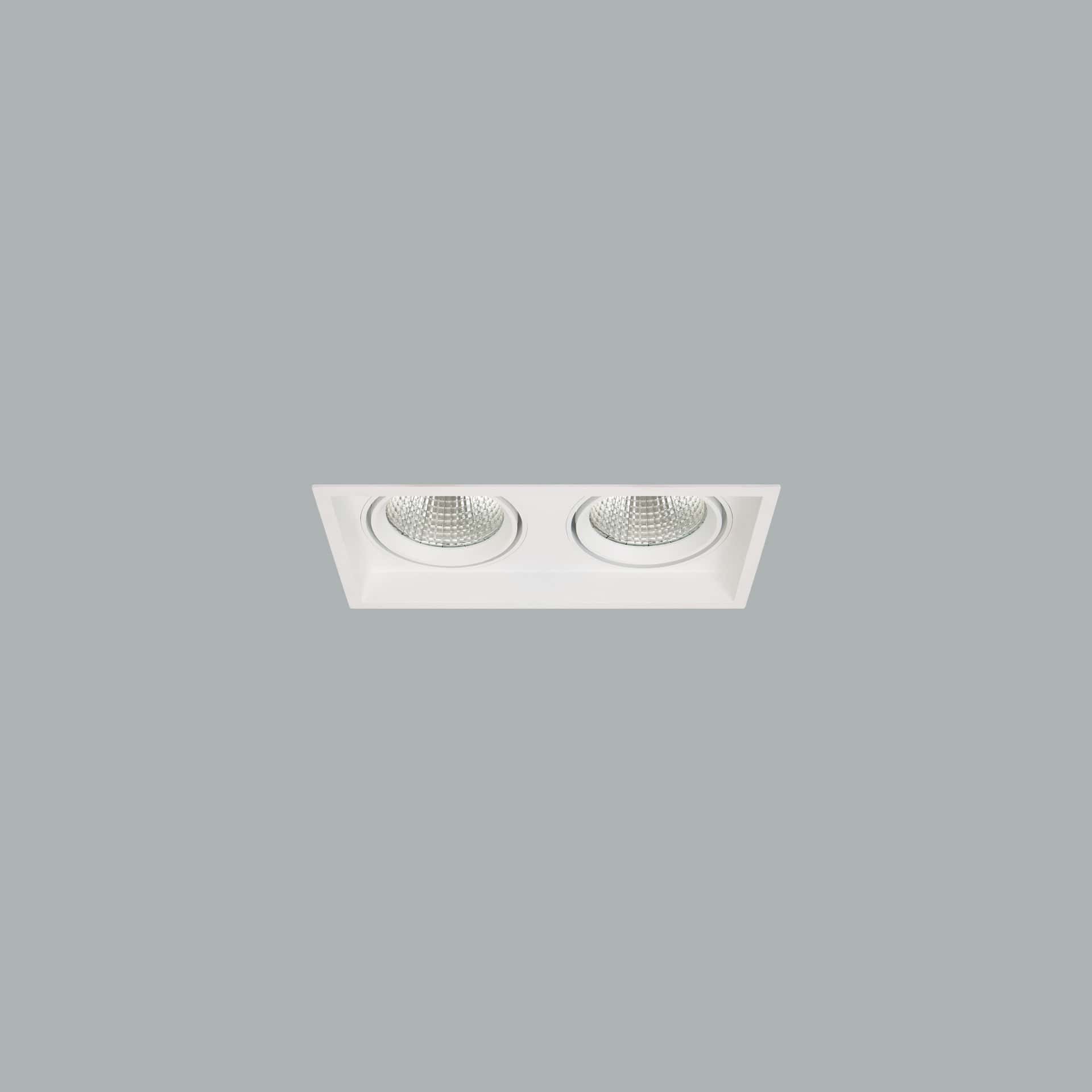

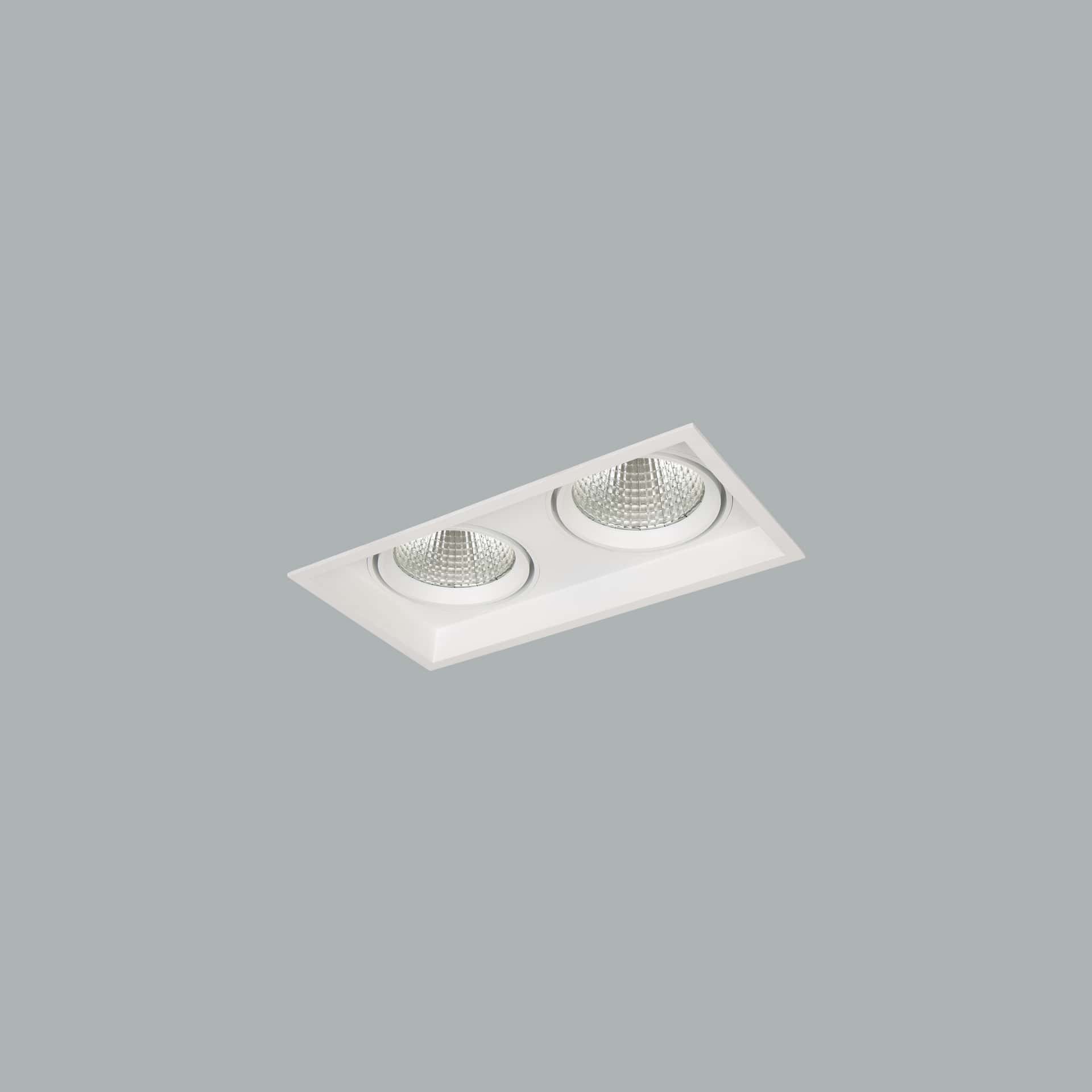

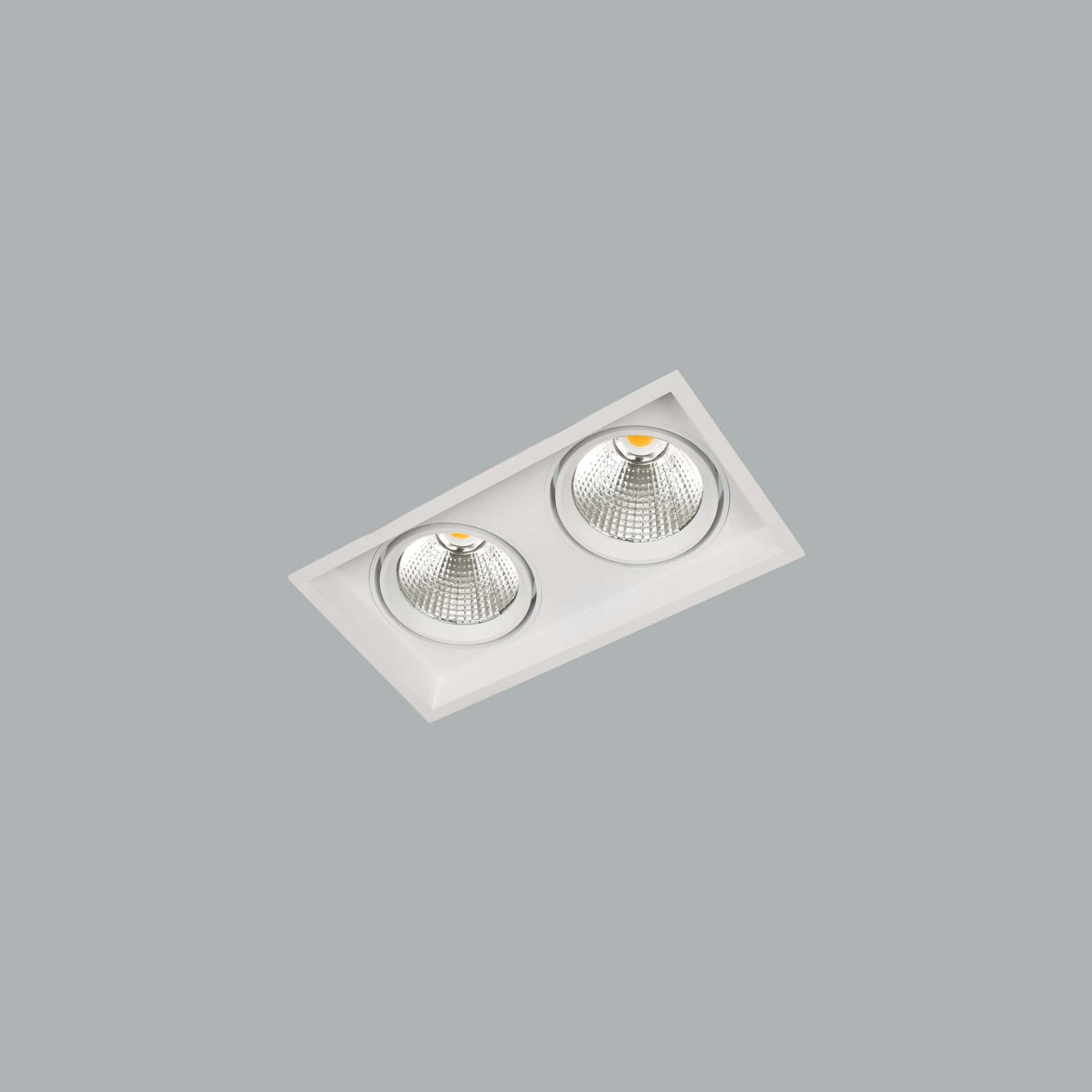

Foton Mini
Foton Mini is an AVOLUX LED lighting fixture in the COB Led Recessed Series category with a power of 2x35W and IP20 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 2x35W |
| Protection Class | IP20 |
| Shape | built-in |
| Optical | Reflector |
DESCRIPTION
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Mechanical locking with 30° vertical and 30° horizontal movement capability
joint system.
-- Tempered glass.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- High-tech control systems Wireless DIM, Hot DIM and
Dynamic White applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
--Honeycomb Filter and Color Filter accessory options are applicable.
-- Very Narrow, Narrow, Medium, Wide and Very Wide reflector angle options
available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED
options are available.
-- Efficiency up to 144lm/W.
-- High color compatibility: <3 SDCM.
-- Emergency lighting kit system can be applied.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 2x35W | CRI>80 | I01.MLR.13002 . (..) . (...) . (..) . (..) | 2700K | 8184 |
| 3000K | 8408 | |||
| 3500K | 8628 | |||
| 4000K | 8984 | |||
| 5000K | 9610 | |||
| CRI>90 | I01.MLR.13002 . (..) . (...) . (..) . (..) | 2700K | 7354 | |
| 3000K | 7536 | |||
| 3500K | 7798 | |||
| 4000K | 8346 | |||
| 5000K | X | |||
| CRI>98 | I01.MLR.13002 . (..) . (...) . (..) . (..) | 2700K | 6200 | |
| 3000K | 6426 | |||
| 4000K | 6628 | |||
| Meat COB | I01.MLR.13002 . (..) . (...) . (..) . (..) | 1800K | 5010 | |
| Food COB | I01.MLR.13002 . (..) . (...) . (..) . (..) | 2400K | 5158 | |
| Pisces COB | I01.MLR.13002 . (..) . (...) . (..) . (..) | 6600K | 6820 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 35 | 2x35W - 900mA | 827 | CRI>80 - 2700K | 9827 | CRI>98 - 2700K |  | SP | 2x20° - Spot |  | 01 | white |
| 31 | 2x31W - 800mA | 830 | CRI>80 - 3000K | 9830 | CRI>98 - 3000K |  | M.E. | 2x30° - Medium |  | 02 | ral 9010 |
| 28 | 2x28W - 700mA | 835 | CRI>80 - 3500K | 9840 | CRI>98 -4000K |  | FL | 2x40° - Flood |  | 03 | black |
| 24 | 2x24W - 600mA | 840 | CRI>80 - 4000K | MEAT | 1800K |  | W.F. | 2x60° - Wide Flood |  | 04 | gray |
| 850 | CRI>80 - 5000K | GOLD | 2400K |  | 05 | dark gray | |||||
| 927 | CRI>90 - 2700K | fish | 6600K |  | 06 | special color | |||||
| 930 | CRI>90 - 3000K | ||||||||||
| 935 | CRI>90 - 3500K | ||||||||||
| 940 | CRI>90 - 4000K |

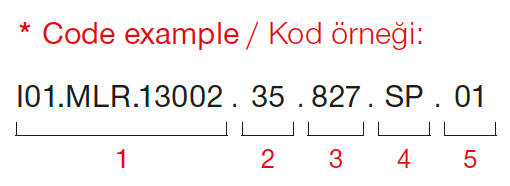

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Foton Mini?
Foton Mini has a power of 2x35W.
What is the protection class of Foton Mini?
The protection class of Foton Mini is IP20.
Which certifications and standards does Foton Mini have?
Foton Mini carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP20.
What is the product code of Foton Mini?
The product (stock) code of Foton Mini is I01.MLR.13002.
Where can I download the catalog or PDF of Foton Mini?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/370.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/recessed/FOTON%20Recessed.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/I01.MLR.13002.rar) buttons on this page.
